Jenn-Air
Upright Freezer

Model # JDF15 Official Jenn-Air freezer

Here are the diagrams and repair parts for Official Jenn-Air JDF15 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Drier 13900
#13

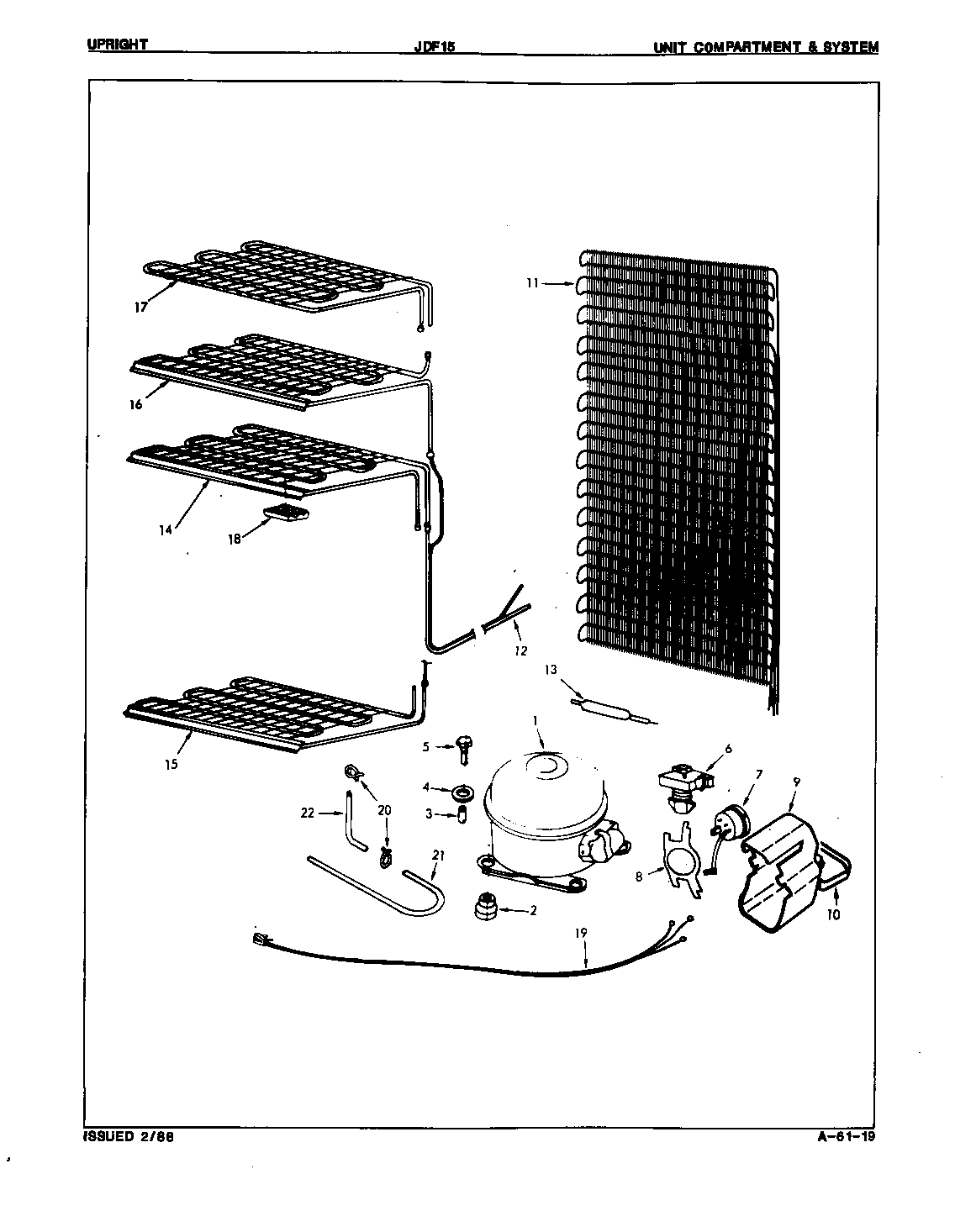

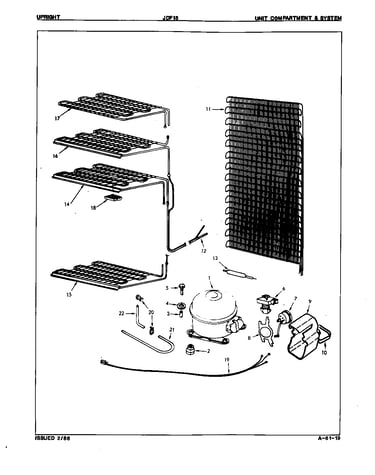

Unit compartment & system diagram

Drier

Part #13900

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Switch 66987-1
#5

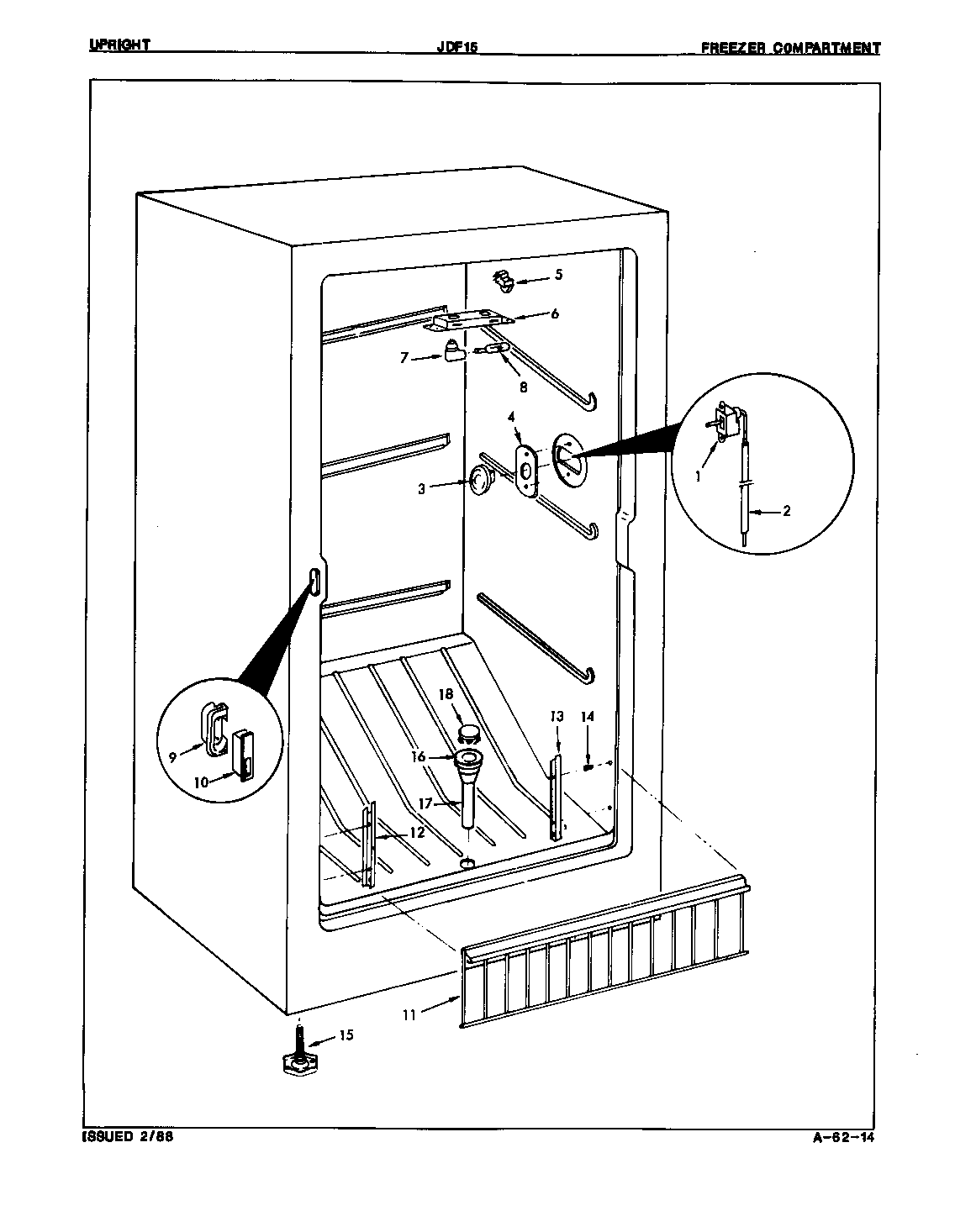

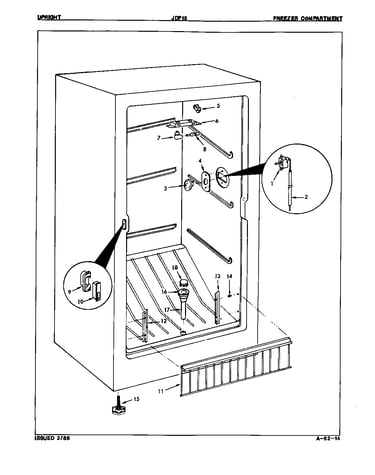

Freezer compartment diagram

Light switch

Part #66987-1

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 66987-1. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Screw 400015-12
#14B

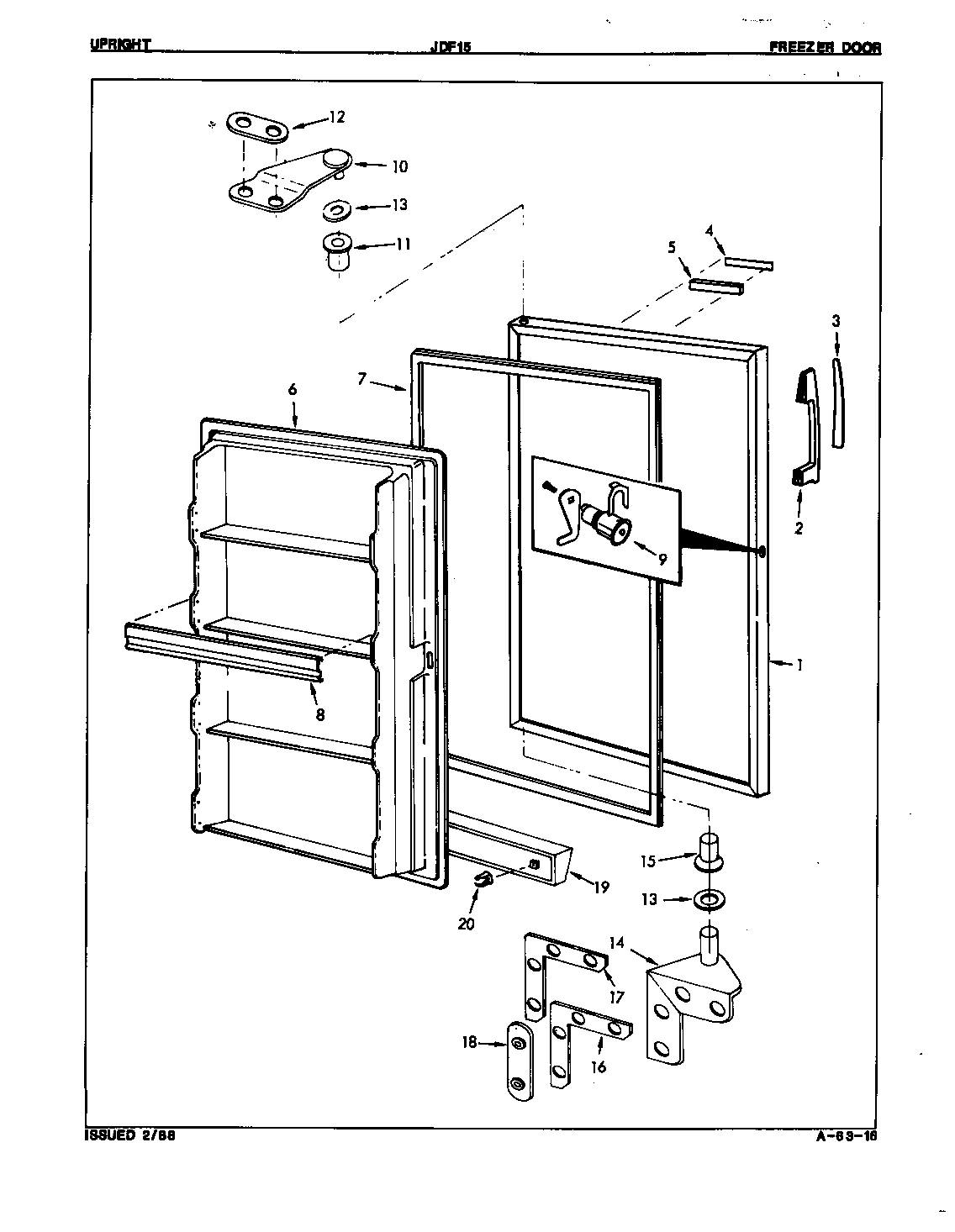

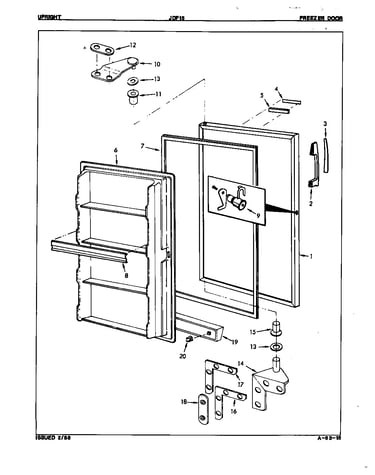

Upright freezer door diagram

Screw

Part #400015-12

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 400015-12. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 046897-05
#9C

Upright freezer door diagram

Screw

Part #046897-05

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 046897-05. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Compressor RMC250-1
#1

Unit compartment & system diagram

Compressor

Part #RMC250-1

Replaced by #W10439652

?
Manufacturer substitution
This part replaces RMC250-1. Substitute parts can look different from the original.
$265.04 |
$12.00 OFF Phone Price : $277.04
In Stock
Bracket Support 65587-1
#13

Freezer compartment diagram

Bracket support

Part #65587-1

Replaced by #4357293

?
Manufacturer substitution
This part replaces 65587-1. Substitute parts can look different from the original.
$37.51
In Stock
Refrigerator Door Hinge Nylon Washer 52185-1
#13

Upright freezer door diagram

Refrigerator door hinge nylon washer

Part #52185-1

Replaced by #WP52185-1

?
Manufacturer substitution
This part replaces 52185-1. Substitute parts can look different from the original.
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Lock Bolt 046897-02
#9A

Upright freezer door diagram

Lock bolt

Part #046897-02

Replaced by #3-35284-001

?
Manufacturer substitution
This part replaces 046897-02. Substitute parts can look different from the original.
$20.56 |
23% OFF Phone Price : $26.56
In Stock
Clamp 049137-01
#18

Unit compartment & system diagram

Clamp

Part #049137-01

Replaced by #1-80308-101

?
Manufacturer substitution
This part replaces 049137-01. Substitute parts can look different from the original.
$29.89
In Stock
Gasket F15 047526-02
#7

Upright freezer door diagram

Gasket f15

Part #047526-02

Replaced by #WP4357099

?
Manufacturer substitution
This part replaces 047526-02. Substitute parts can look different from the original.
$157.38 |
7% OFF Phone Price : $169.38
In Stock
