Model # 6227DWE Official Makita cordless drill/driver

Here are the diagrams and repair parts for Official Makita 6227DWE cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Chng Lever 125091-1
#1

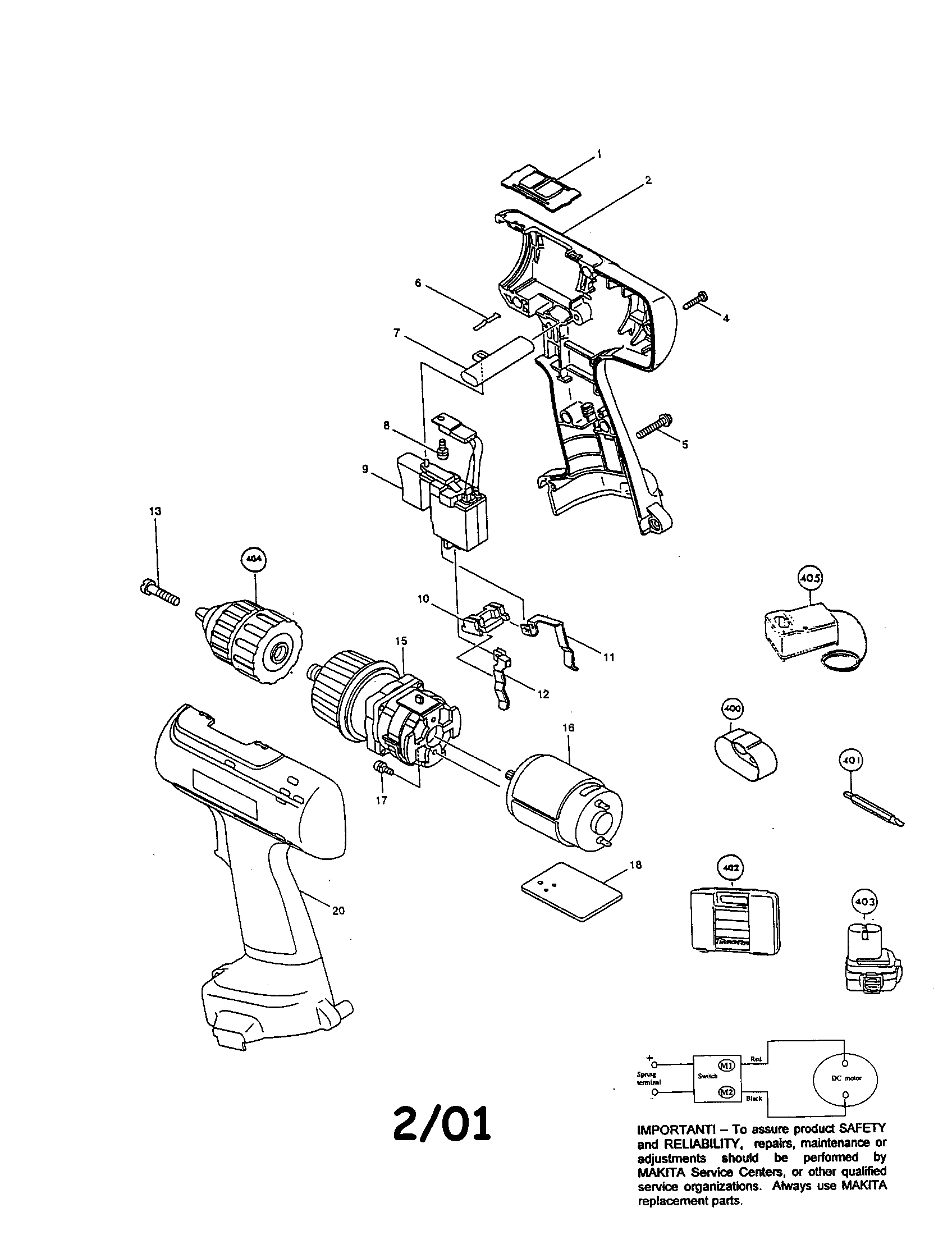

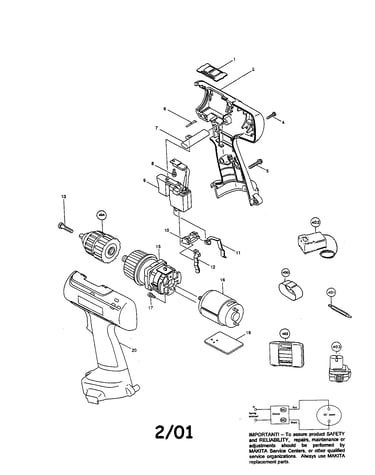

Cordless driver drill diagram

Chng lever

Part #125091-1

The manufacturer no longer makes this part, and there's no substitute part

Makita Battery 192681-5
#403

Cordless driver drill diagram

Makita battery

Part #192681-5

The manufacturer no longer makes this part, and there's no substitute part

Screw 266130-9
#4

Cordless driver drill diagram

Screw

Part #266130-9

The manufacturer no longer makes this part, and there's no substitute part

Screw 911003-8
Screw

Part #911003-8

The manufacturer no longer makes this part, and there's no substitute part

Screw 911143-2
#5

Cordless driver drill diagram

Screw

Part #911143-2

The manufacturer no longer makes this part, and there's no substitute part

Switch 651989-1
#9

Cordless driver drill diagram

Switch

Part #651989-1

The manufacturer no longer makes this part, and there's no substitute part

Spring 232182-2
#6

Cordless driver drill diagram

Spring

Part #232182-2

The manufacturer no longer makes this part, and there's no substitute part

Chuck 763132-1
#404

Cordless driver drill diagram

Chuck

Part #763132-1

The manufacturer no longer makes this part, and there's no substitute part

Gear Assembly 125087-2
#15

Cordless driver drill diagram

Gear assembly

Part #125087-2

The manufacturer no longer makes this part, and there's no substitute part

Spring 654168-0
#11

Cordless driver drill diagram

Spring

Part #654168-0

The manufacturer no longer makes this part, and there's no substitute part
