Model # FFU16F6AW3 Official Frigidaire upright freezer - 5995244984

Here are the diagrams and repair parts for Official Frigidaire FFU16F6AW3 upright freezer - 5995244984, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Filter 5308000027
#30

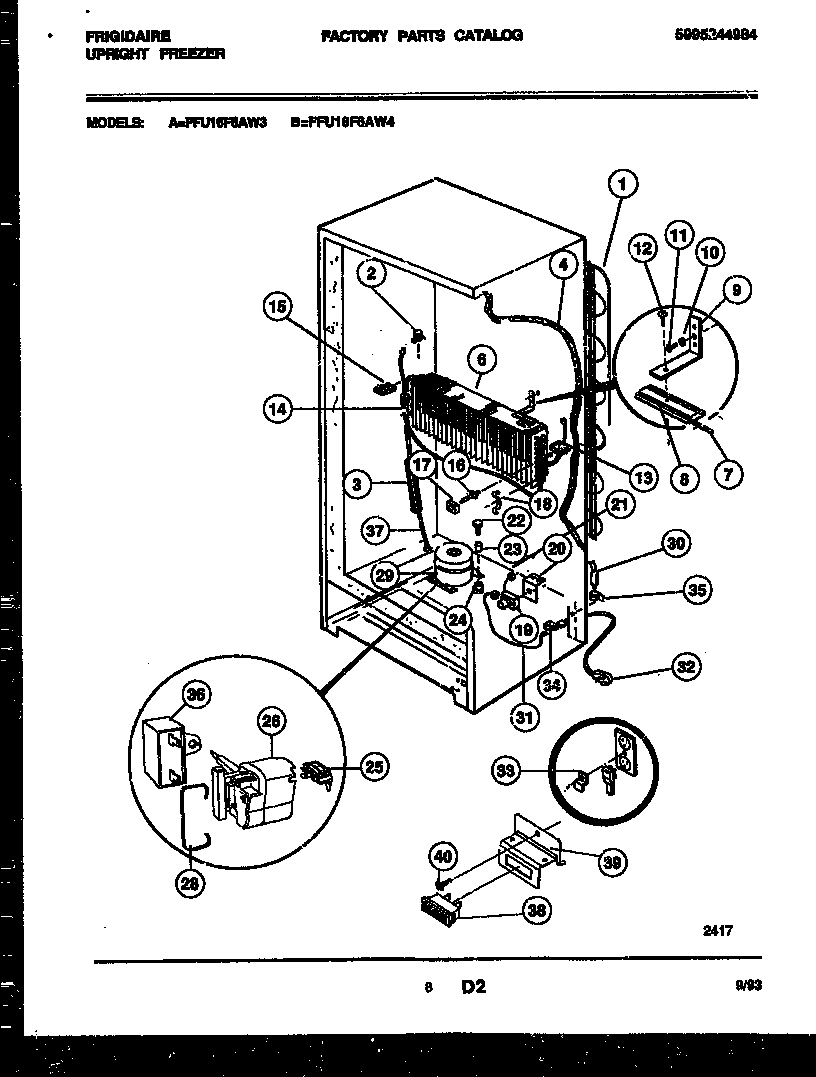

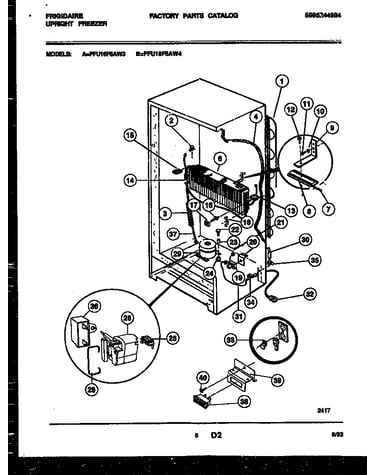

System and automatic defrost parts diagram

Filter

Part #5308000027

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 5308000027. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key 5308037402

#NI

All parts diagram

Key

Part #5308037402

Replaced by #297147700

?
Manufacturer substitution
This part replaces 5308037402. Substitute parts can look different from the original.
BEST SELLER
$9.07 |
10% OFF Phone Price : $10.07
In Stock
Upright Freezer Defrost Timer 5308037967
#19

System and automatic defrost parts diagram

Upright freezer defrost timer

Part #5308037967

The manufacturer no longer makes this part, and there's no substitute part

Compressor 216100200
#29

System and automatic defrost parts diagram

Compressor

Part #216100200

Replaced by #5304475098

?
Manufacturer substitution
This part replaces 216100200. Substitute parts can look different from the original.
BEST SELLER
$363.07 |
$12.00 OFF Phone Price : $375.07
In Stock
Capacitor 216236200
#36

System and automatic defrost parts diagram

Capacitor

Part #216236200

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 216236200. Substitute parts can look different from the original.
BEST SELLER
$45.87 |
12% OFF Phone Price : $51.87
In Stock
Clip 06599536
#18

System and automatic defrost parts diagram

Clip

Part #06599536

Replaced by #5308000110

?
Manufacturer substitution
This part replaces 06599536. Substitute parts can look different from the original.
BEST SELLER
$52.30 |
10% OFF Phone Price : $58.30
In Stock
Bulb 5303091423
#12

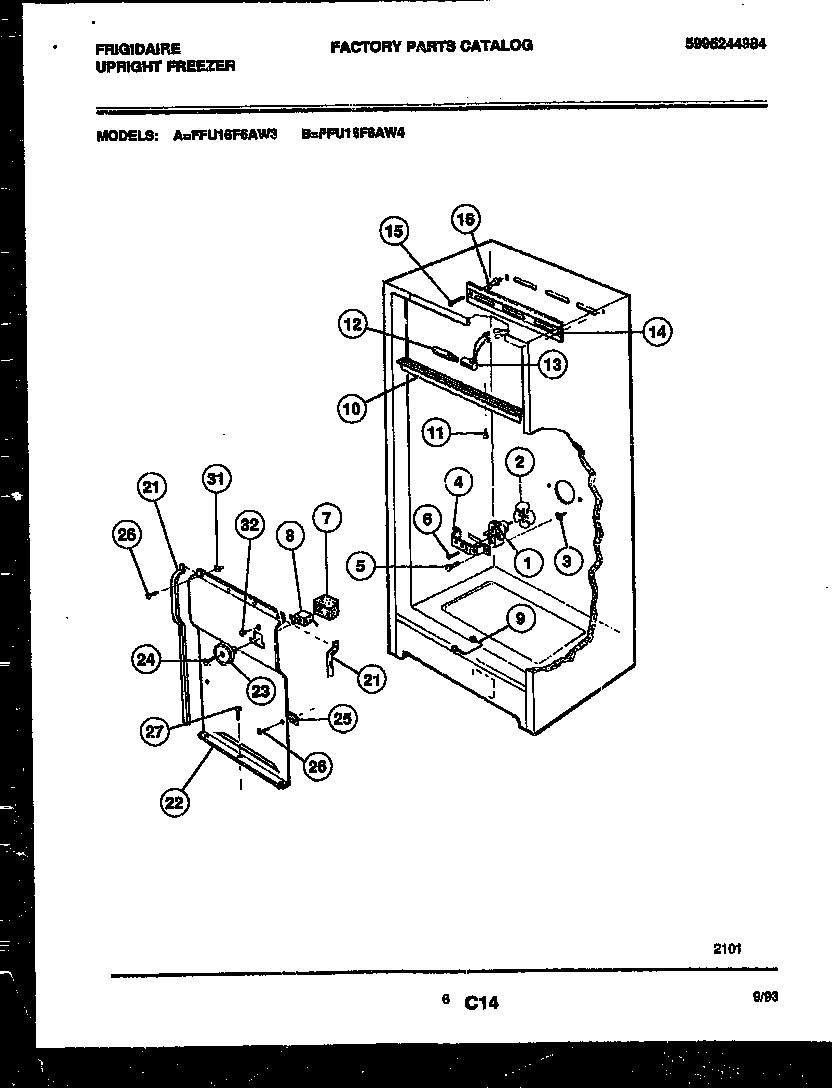

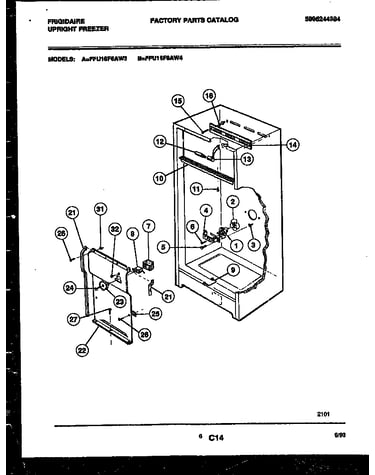

Interior parts diagram

Bulb

Part #5303091423

Replaced by #216846400

?
Manufacturer substitution
This part replaces 5303091423. Substitute parts can look different from the original.
$40.15 |
13% OFF Phone Price : $46.15
In Stock
Freezer Drain Hose Adapter 5308005500
#28

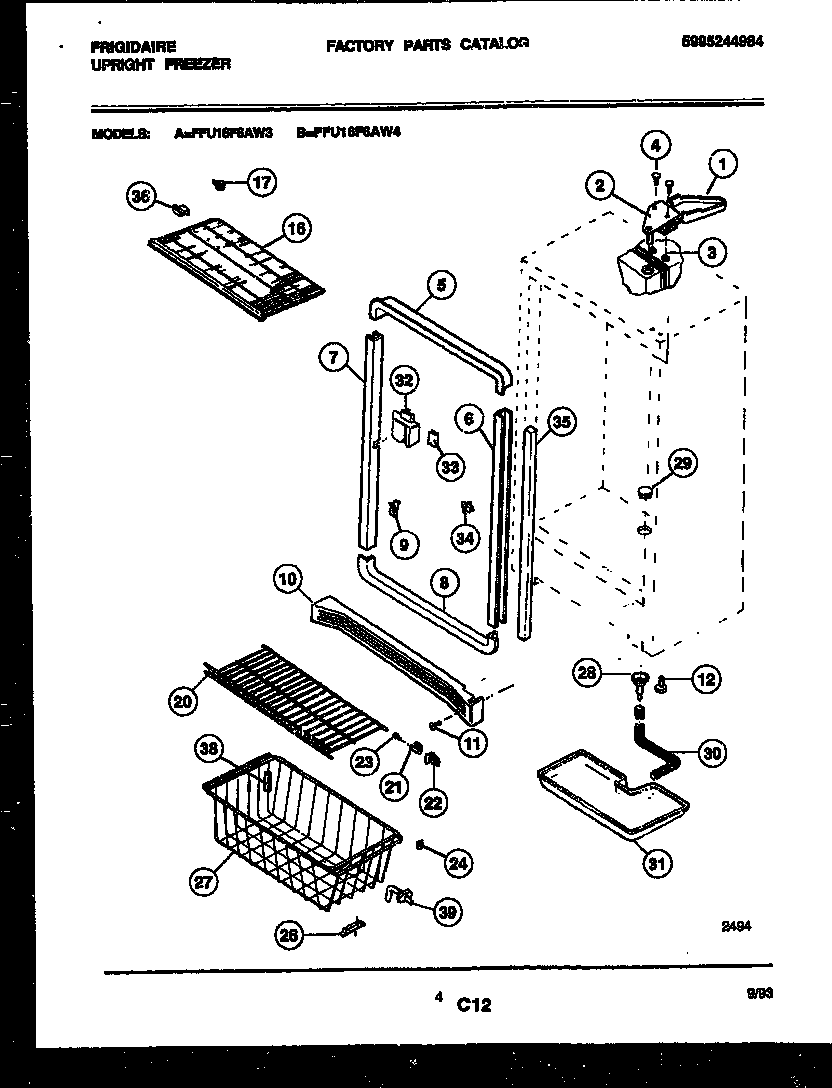

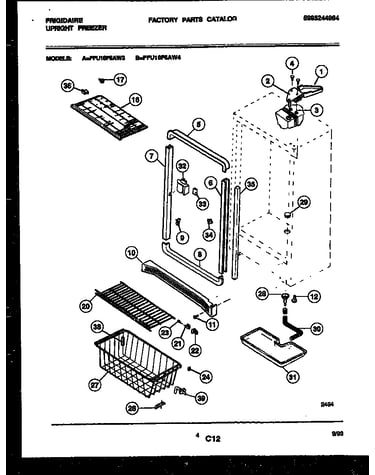

Cabinet parts diagram

Freezer drain hose adapter

Part #5308005500

Replaced by #5304511843

?
Manufacturer substitution
This part replaces 5308005500. Substitute parts can look different from the original.
This item is not returnable
$13.42 |
13% OFF Phone Price : $15.42
In Stock
Freezer Breather Valve 5309950074
#21

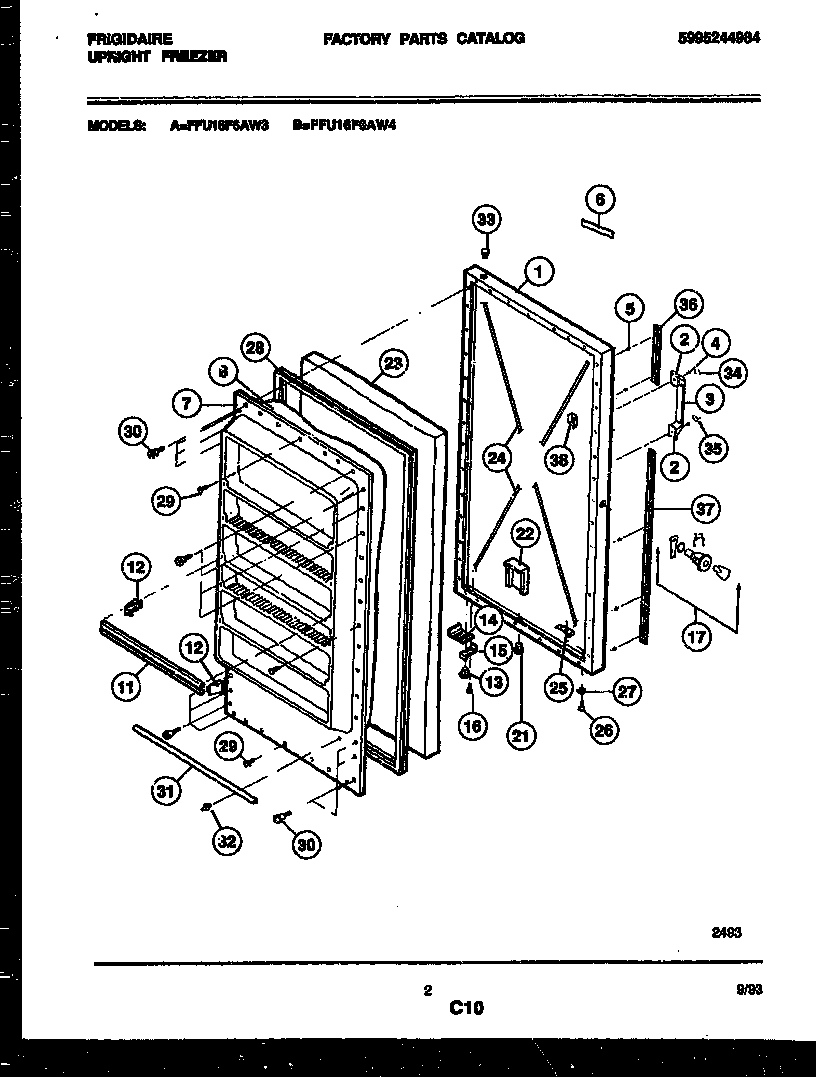

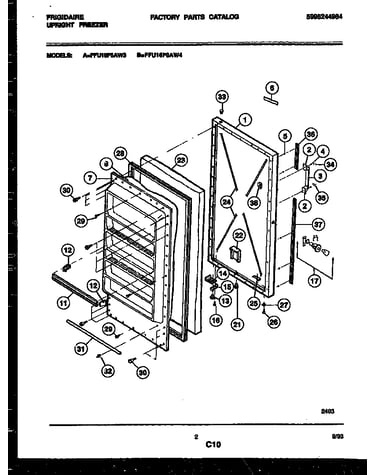

Door parts diagram

Freezer breather valve

Part #5309950074

This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Freezer Evaporator (replaces 3205656) 216195900
#6

System and automatic defrost parts diagram

Freezer evaporator (replaces 3205656)

Part #216195900

$306.77 |
$12.00 OFF Phone Price : $318.77
In Stock
