Model # UVH13013M3TS Official GE range hood

Here are the diagrams and repair parts for Official GE UVH13013M3TS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Front Camera Assembly WB02X33189
#42

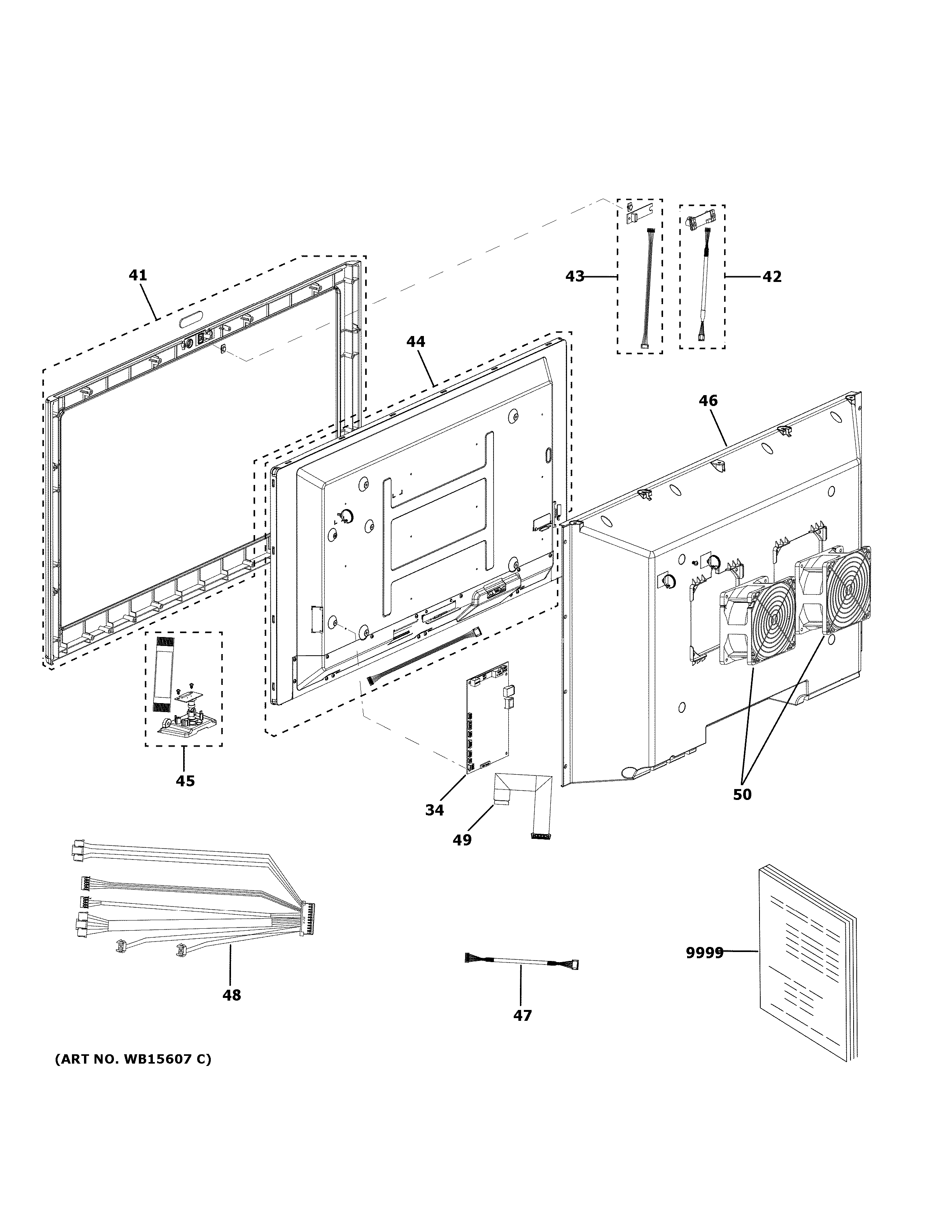

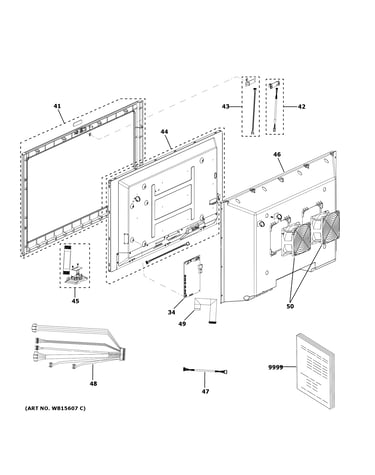

Touch screen assembly diagram

Front camera assembly

Part #WB02X33189

$310.37
In Stock
Speakers Left Assembly WB02X33204
#52

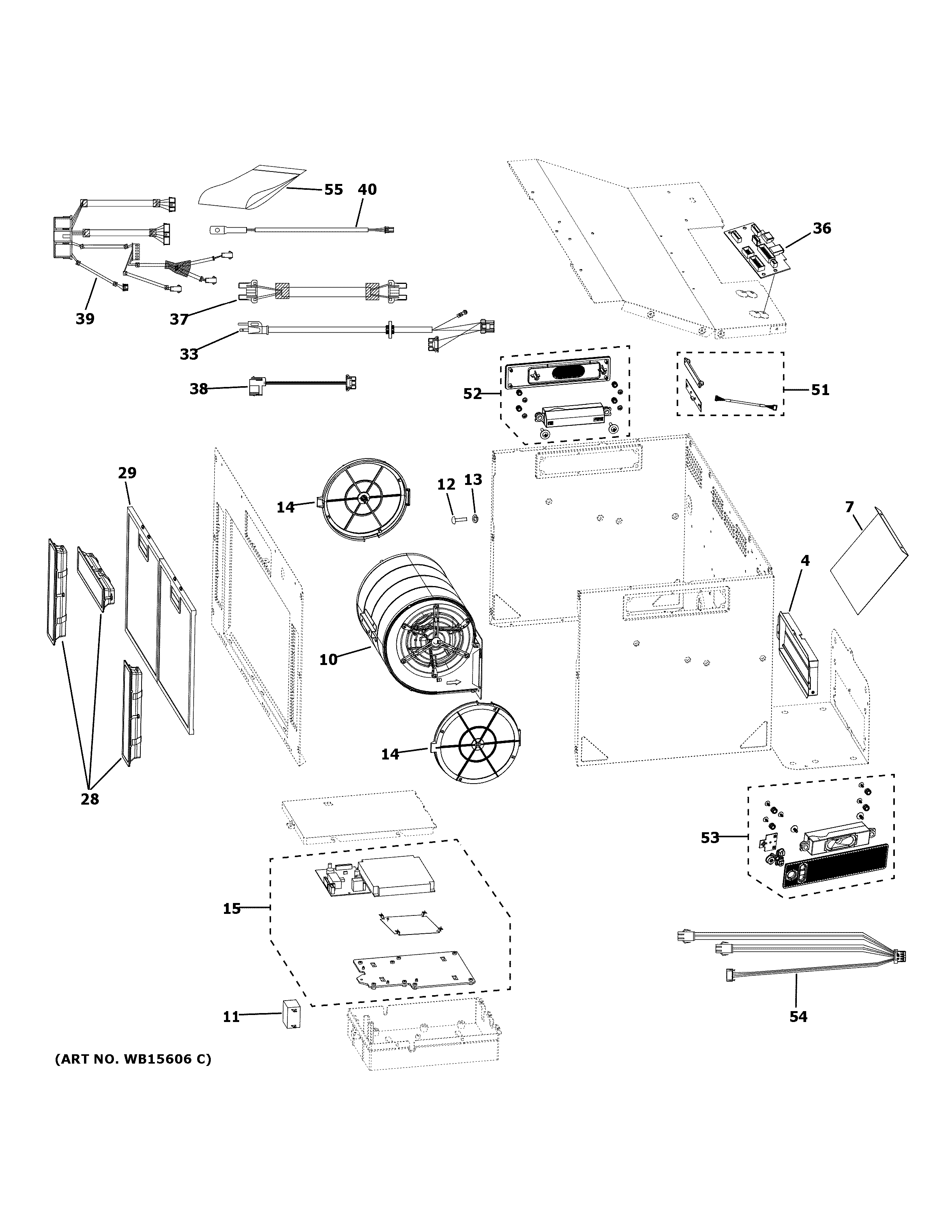

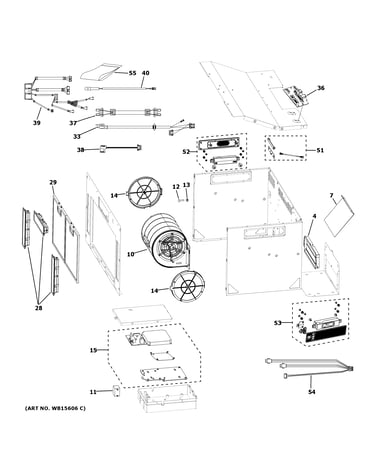

Hood assembly diagram

Speakers left assembly

Part #WB02X33204

$102.67
In Stock
Pcb Down Facing Camera Assembly WB27X33202
#45

Touch screen assembly diagram

Pcb down facing camera assembly

Part #WB27X33202

$351.27
In Stock
Heater Sensor WB24X33197
#40

Hood assembly diagram

Heater sensor

Part #WB24X33197

$16.59 |
11% OFF Phone Price : $18.59
In Stock
Harness Mc Interface Board WB18X33216
#39

Hood assembly diagram

Harness mc interface board

Part #WB18X33216

$48.26 |
11% OFF Phone Price : $54.26
In Stock
Front Panel Assembly Black Stainless WB56X33192
#41

Touch screen assembly diagram

Front panel assembly black stainless

Part #WB56X33192

$541.90
In Stock
Hardware Bag WB01X33199
#55

Hood assembly diagram

Hardware bag

Part #WB01X33199

$30.58
In Stock
Rj45 Harness Assembly WB18X33198
#38

Hood assembly diagram

Rj45 harness assembly

Part #WB18X33198

$11.66
In Stock
Speakers Right Assembly WB02X33208
#53

Hood assembly diagram

Speakers right assembly

Part #WB02X33208

$101.11
In Stock
Board Assembly WB27X33191
#15

Hood assembly diagram

Board assembly

Part #WB27X33191

$330.65
In Stock
