Model # 10127580 Official Craftsman 12" metal turning lathe

Here are the diagrams and repair parts for Official Craftsman 10127580 12" metal turning lathe, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

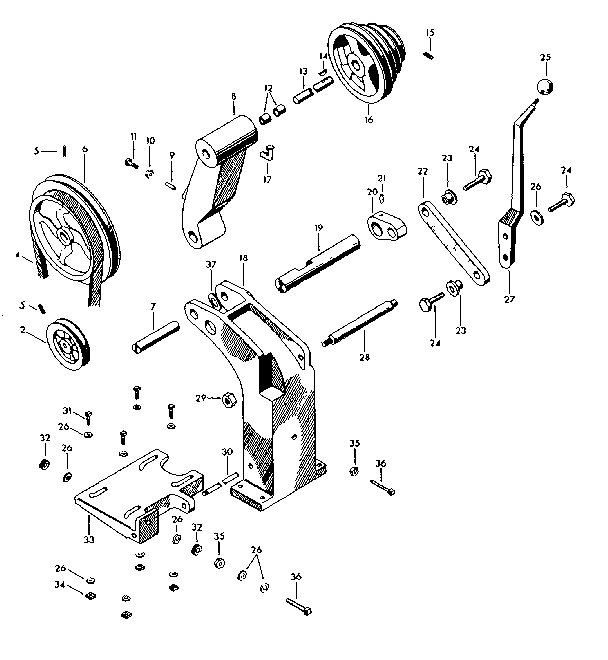

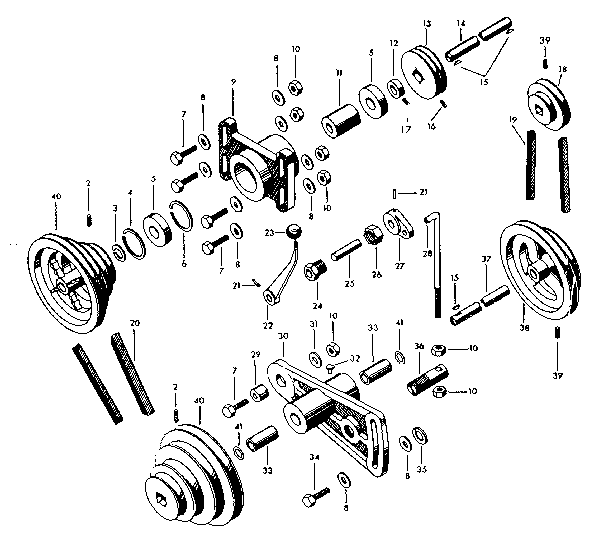

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 429 parts  |
Bracket 041-117
#38

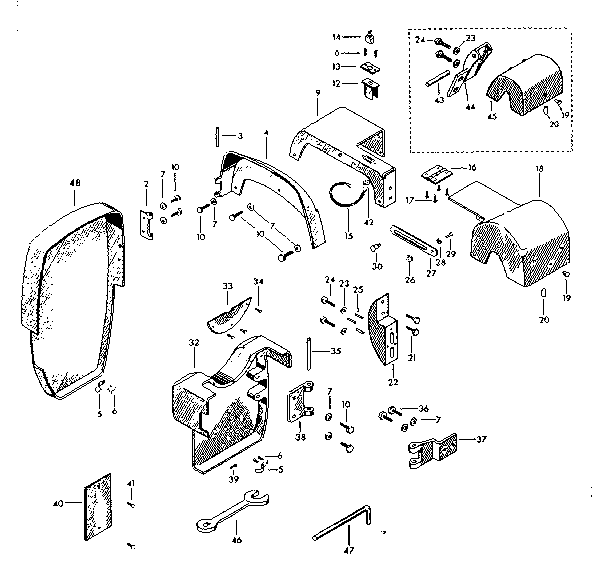

Guard assembly diagram

Bracket

Part #041-117

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring L6-1054
#58

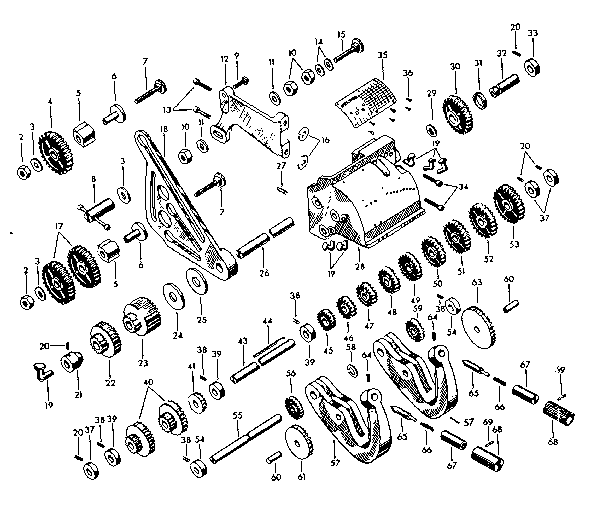

Quick change assembly diagram

Retaining ring

Part #L6-1054

The manufacturer no longer makes this part, and there's no substitute part

Leg 294-005
#17

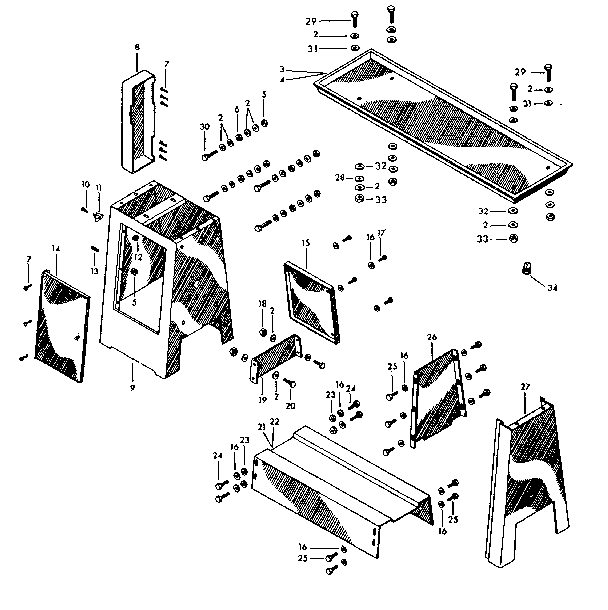

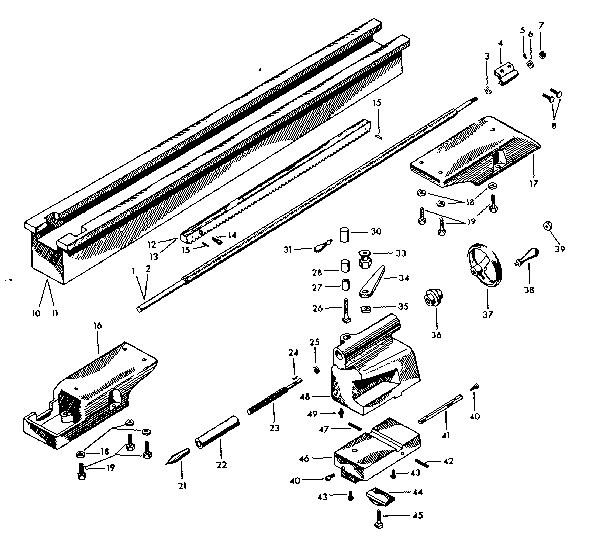

Tailstock, bed, legs and rack assembly diagram

Leg

Part #294-005

The manufacturer no longer makes this part, and there's no substitute part

Washer 932-022
#25

Quick change assembly diagram

Washer

Part #932-022

The manufacturer no longer makes this part, and there's no substitute part

Spindle Assembly 990-280
#1

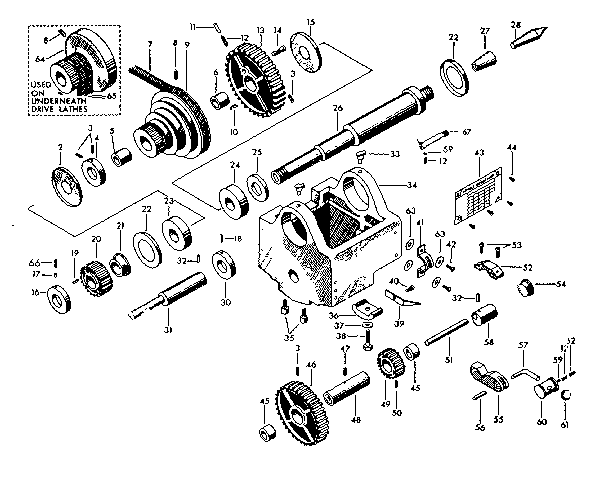

Spindle assembly diagram

Spindle assembly

Part #990-280

The manufacturer no longer makes this part, and there's no substitute part

Lathe Gear, 20-tooth 10-1523
#56

Quick change assembly diagram

Lathe gear, 20-tooth

Part #10-1523

The manufacturer no longer makes this part, and there's no substitute part

Adjusting Screw 10D-60
#40

Tailstock, bed, legs and rack assembly diagram

Adjusting screw

Part #10D-60

The manufacturer no longer makes this part, and there's no substitute part

Lathe Split Nut Assembly 10F-12
#14

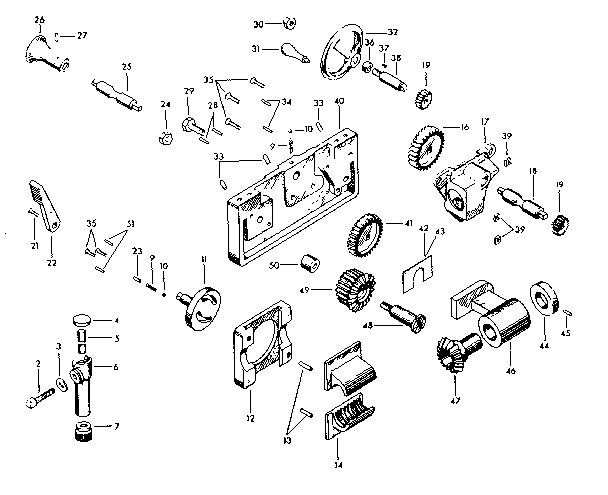

Threading dial, split nut, apron and gear case assembly diagram

Lathe split nut assembly

Part #10F-12

The manufacturer no longer makes this part, and there's no substitute part

Clamp 9-97
#36

Spindle assembly diagram

Clamp

Part #9-97

The manufacturer no longer makes this part, and there's no substitute part

Screw 696-048
#12

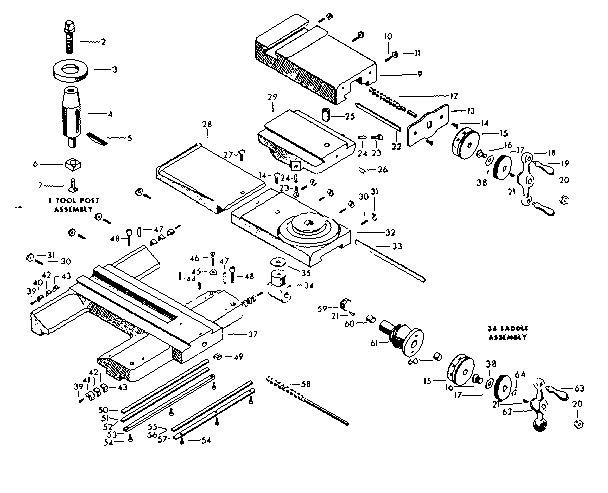

Tool post compound rest and saddle assembly diagram

Screw

Part #696-048

The manufacturer no longer makes this part, and there's no substitute part
