Model # 020507-01 Official Briggs & Stratton pressure washer

Here are the diagrams and repair parts for Official Briggs & Stratton 020507-01 pressure washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

  View engine

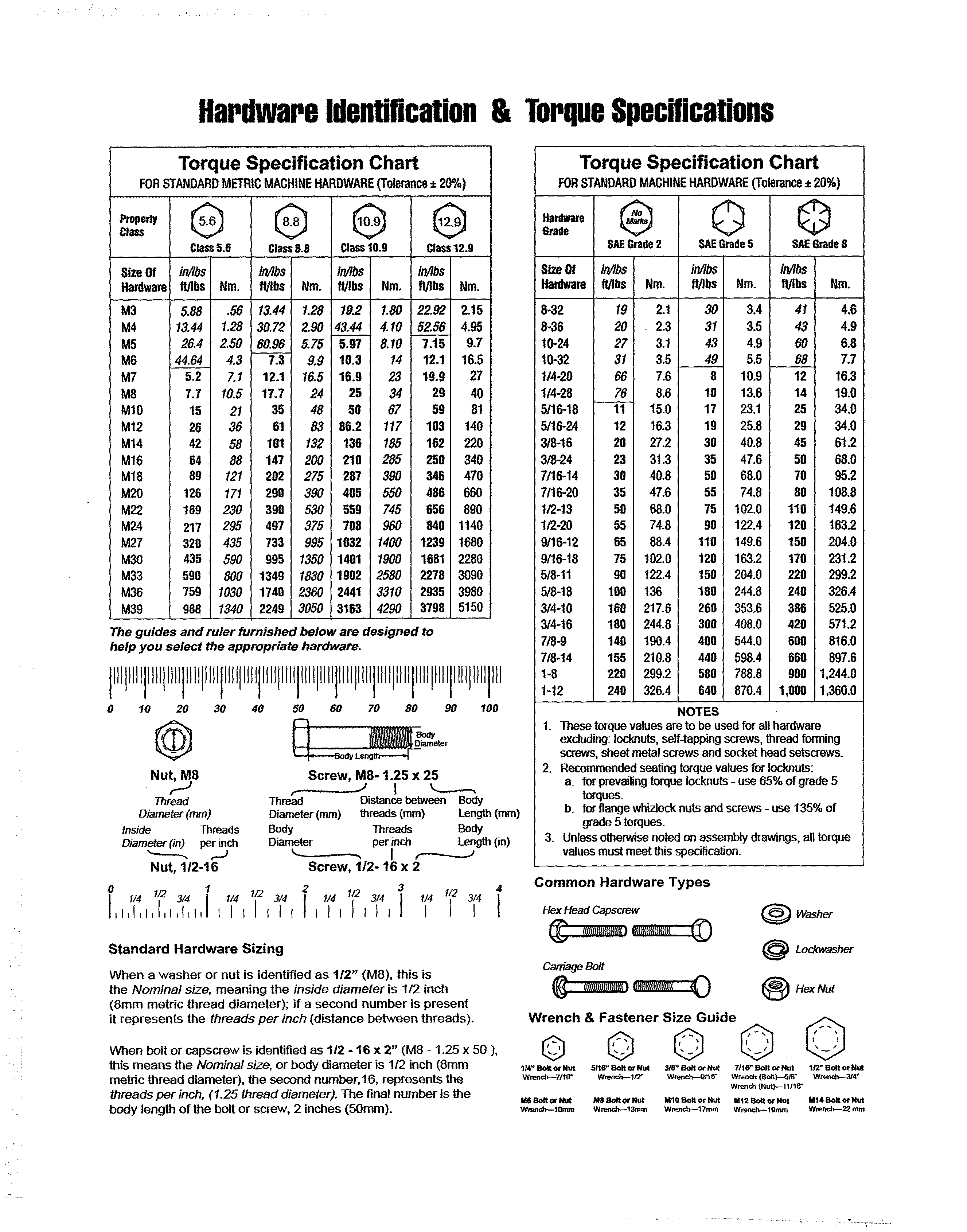

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 256 parts  |
Pressure Washer O-ring Kit 196002GS
#16

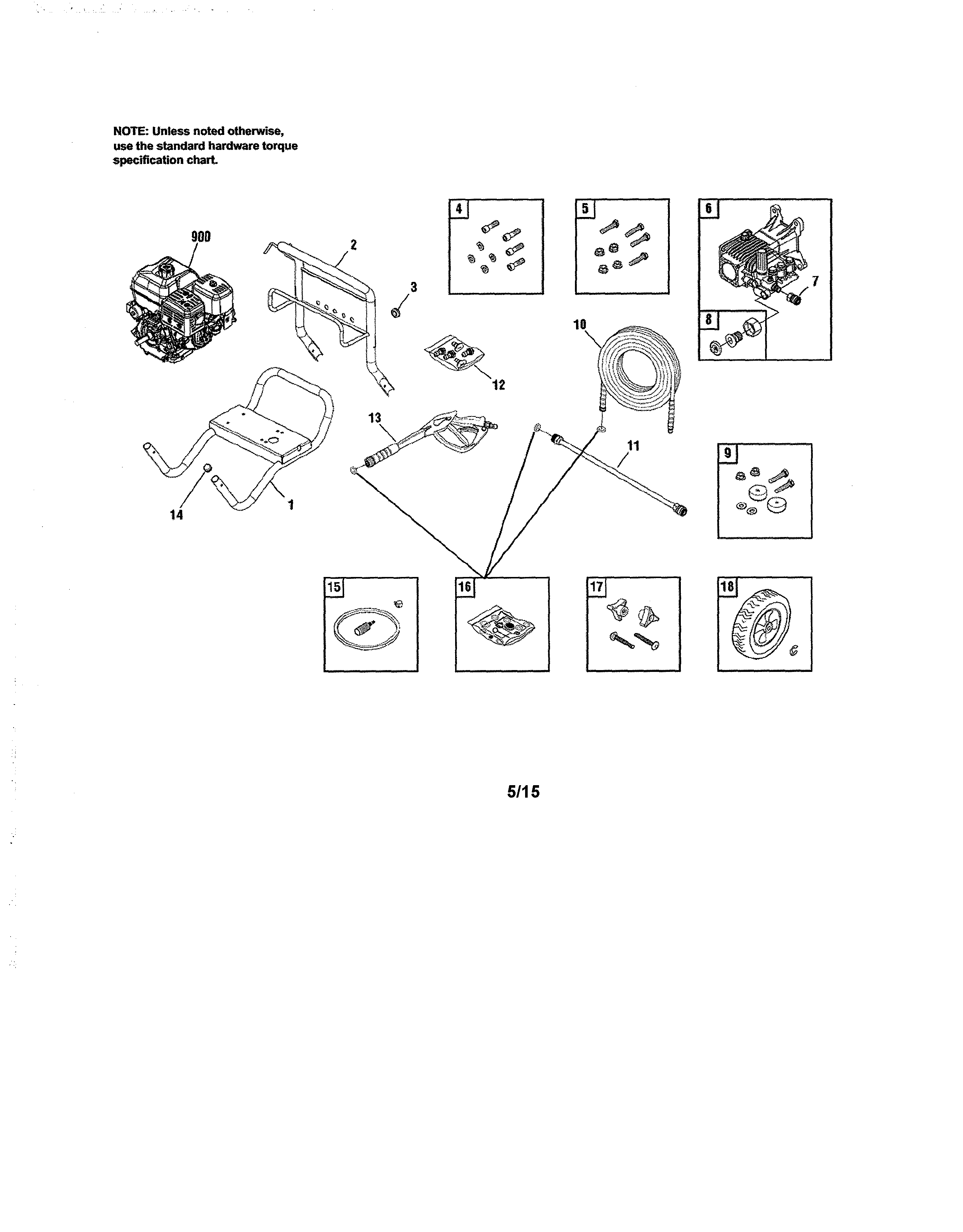

Main unit diagram

Pressure washer o-ring kit

Part #196002GS

Replaced by #705001

?
Manufacturer substitution
This part replaces 196002GS. Substitute parts can look different from the original.
BEST SELLER
$26.04 |
19% OFF Phone Price : $32.04
In Stock
Pressure Washer Thermal Release Valve (replaces 194298gs) 208673GS

#NI09

All parts diagram

Pressure washer thermal release valve (replaces 194298gs)

Part #208673GS

BEST SELLER
$20.84 |
22% OFF Phone Price : $26.84
In Stock
Pressure Washer Chemical Injection Kit (replaces 11587628pgs, 1250280gs, 1560520gs, 1982520gs, 231b2327gs, 480480gs) 192914GS
#83D

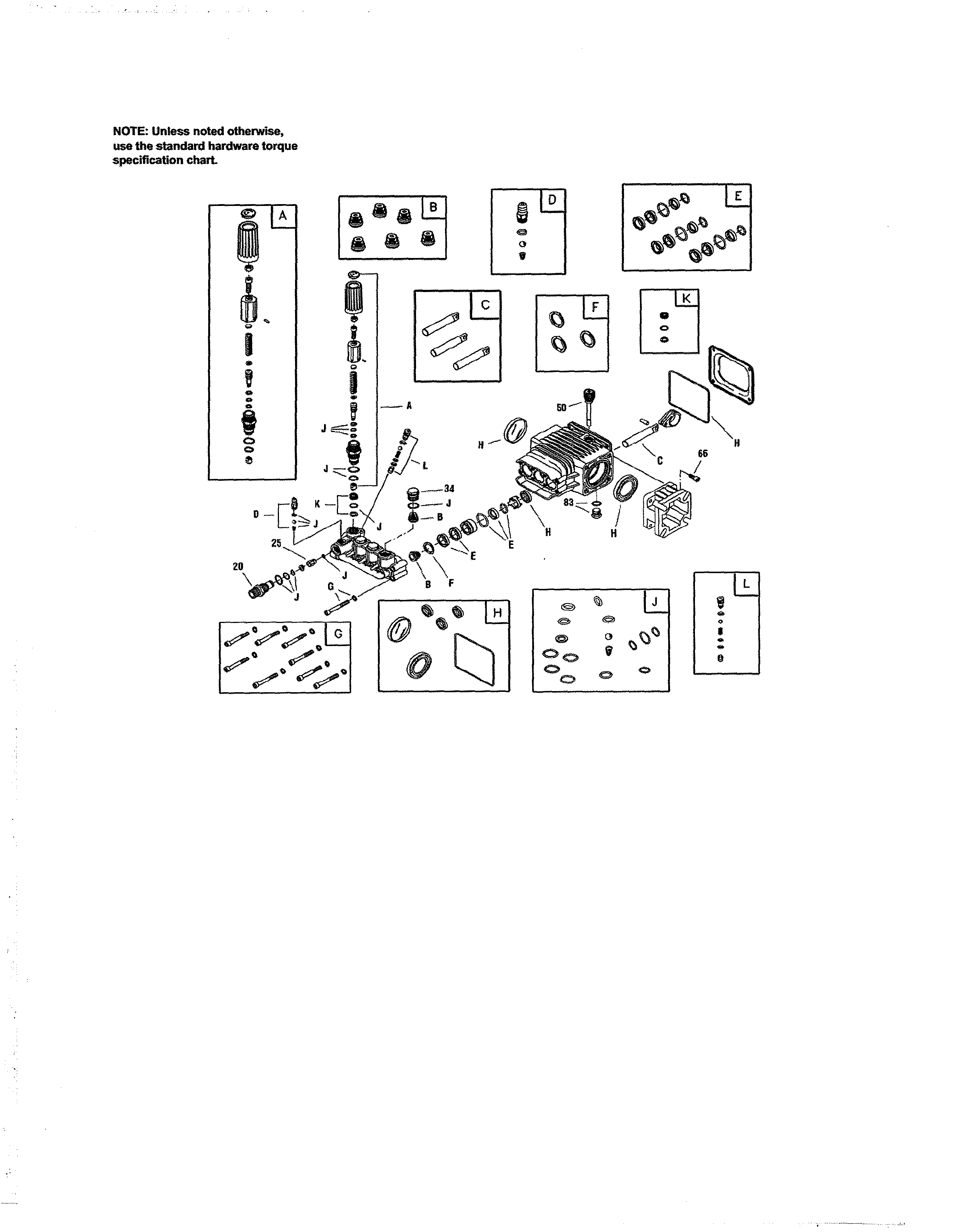

Pump diagram

Pressure washer chemical injection kit (replaces 11587628pgs, 1250280gs, 1560520gs, 1982520gs, 231b2327gs, 480480gs)

Part #192914GS

This item is not returnable
$26.70 |
18% OFF Phone Price : $32.70
In Stock
Briggs & Stratton Pressure Washer Pump Saver (replaces 100515gs) 6039
Briggs & stratton pressure washer pump saver (replaces 100515gs)

Part #6039

$16.56 |
11% OFF Phone Price : $18.56
In Stock
Gun 316705GS
#13

Main unit diagram

Gun

Part #316705GS

Replaced by #704311

?
Manufacturer substitution
This part replaces 316705GS. Substitute parts can look different from the original.
$106.06 |
10% OFF Phone Price : $118.06
In Stock
Generator E-ring 191265GS
#18A

Main unit diagram

Generator e-ring

Part #191265GS

Replaced by #703977

?
Manufacturer substitution
This part replaces 191265GS. Substitute parts can look different from the original.
This item is not returnable
$8.26
In Stock
Pressure Washer Cap Plug (replaces 205543gs) 189332GS
#14

Main unit diagram

Pressure washer cap plug (replaces 205543gs)

Part #189332GS

This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
Kit 203040GS
#17

Main unit diagram

Kit

Part #203040GS

$12.06
In Stock
Fastening 192132GS
#4

Main unit diagram

Fastening

Part #192132GS

$22.71
In Stock
Generac Pressure Washer Chemical Injector Hose 192796GS
#15

Main unit diagram

Generac pressure washer chemical injector hose

Part #192796GS

$18.24
In Stock
