Model # RSE37BAW3 Official Frigidaire electric range - lf32089290

Here are the diagrams and repair parts for Official Frigidaire RSE37BAW3 electric range - lf32089290, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

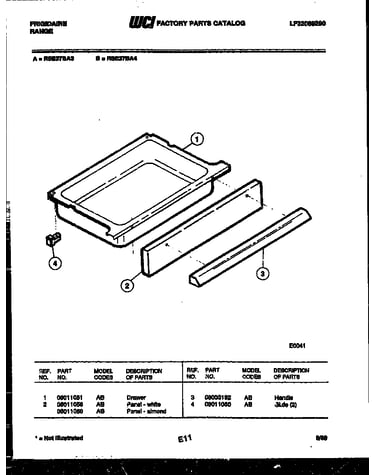

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Light 3013071
#12

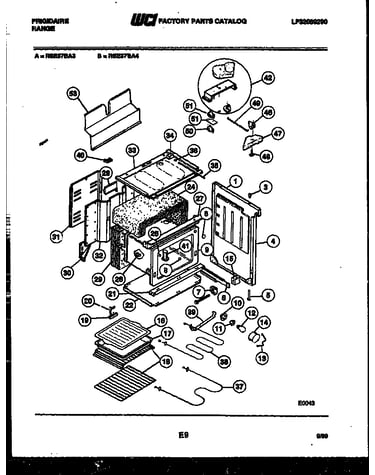

Body parts diagram

Light

Part #3013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Surface Element 3015210
#3A

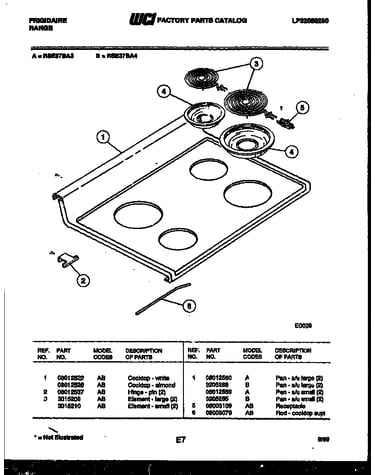

Cooktop parts diagram

Surface element

Part #3015210

Replaced by #318372211

?
Manufacturer substitution
This part replaces 3015210. Substitute parts can look different from the original.
BEST SELLER
$36.79 |
14% OFF Phone Price : $42.79
In Stock
Bake Element 08002858
#37

Body parts diagram

Bake element

Part #08002858

Replaced by #5303051519

?
Manufacturer substitution
This part replaces 08002858. Substitute parts can look different from the original.
BEST SELLER
$36.94 |
14% OFF Phone Price : $42.94
In Stock
Receptacle 08011085
#11

Body parts diagram

Receptacle

Part #08011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 08011085. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Support 08012539
#15

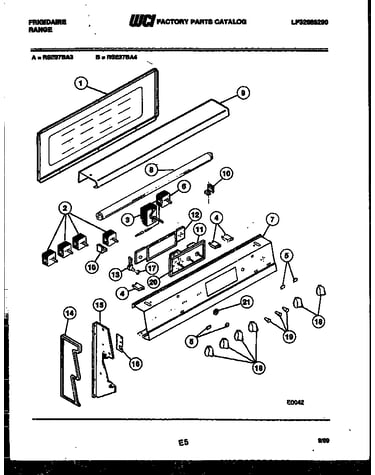

Backguard diagram

Support

Part #08012539

This item is not returnable
$3.99
In Stock
Deflector 08003659
#4

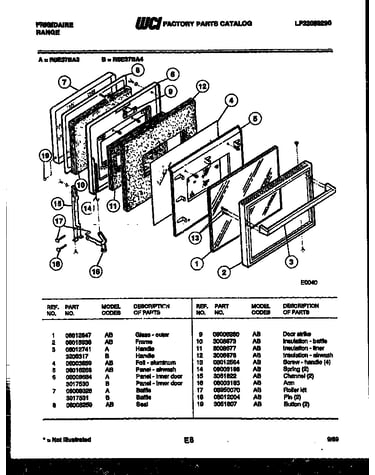

Door parts diagram

Deflector

Part #08003659

This item is not returnable
$3.49
In Stock
Pan 08005315
#17

Body parts diagram

Pan

Part #08005315

Replaced by #5304442087

?
Manufacturer substitution
This part replaces 08005315. Substitute parts can look different from the original.
$77.99 |
7% OFF Phone Price : $83.99
In Stock
Pan 08012559
#4A

Cooktop parts diagram

Pan

Part #08012559

Replaced by #316048414

?
Manufacturer substitution
This part replaces 08012559. Substitute parts can look different from the original.
This item is not returnable
$5.38 |
16% OFF Phone Price : $6.38
In Stock
Pan 3205285
#4A

Cooktop parts diagram

Pan

Part #3205285

Replaced by #316048414

?
Manufacturer substitution
This part replaces 3205285. Substitute parts can look different from the original.
This item is not returnable
$5.38 |
16% OFF Phone Price : $6.38
In Stock
Rail 08015746
#6

Body parts diagram

Rail

Part #08015746

Replaced by #318161600

?
Manufacturer substitution
This part replaces 08015746. Substitute parts can look different from the original.
$67.36
In Stock
