Craftsman
Drill/Driver

Model # 315271470 Official Craftsman drill/driver

Here are the diagrams and repair parts for Official Craftsman 315271470 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Switch Assembly 970987-000
#7A

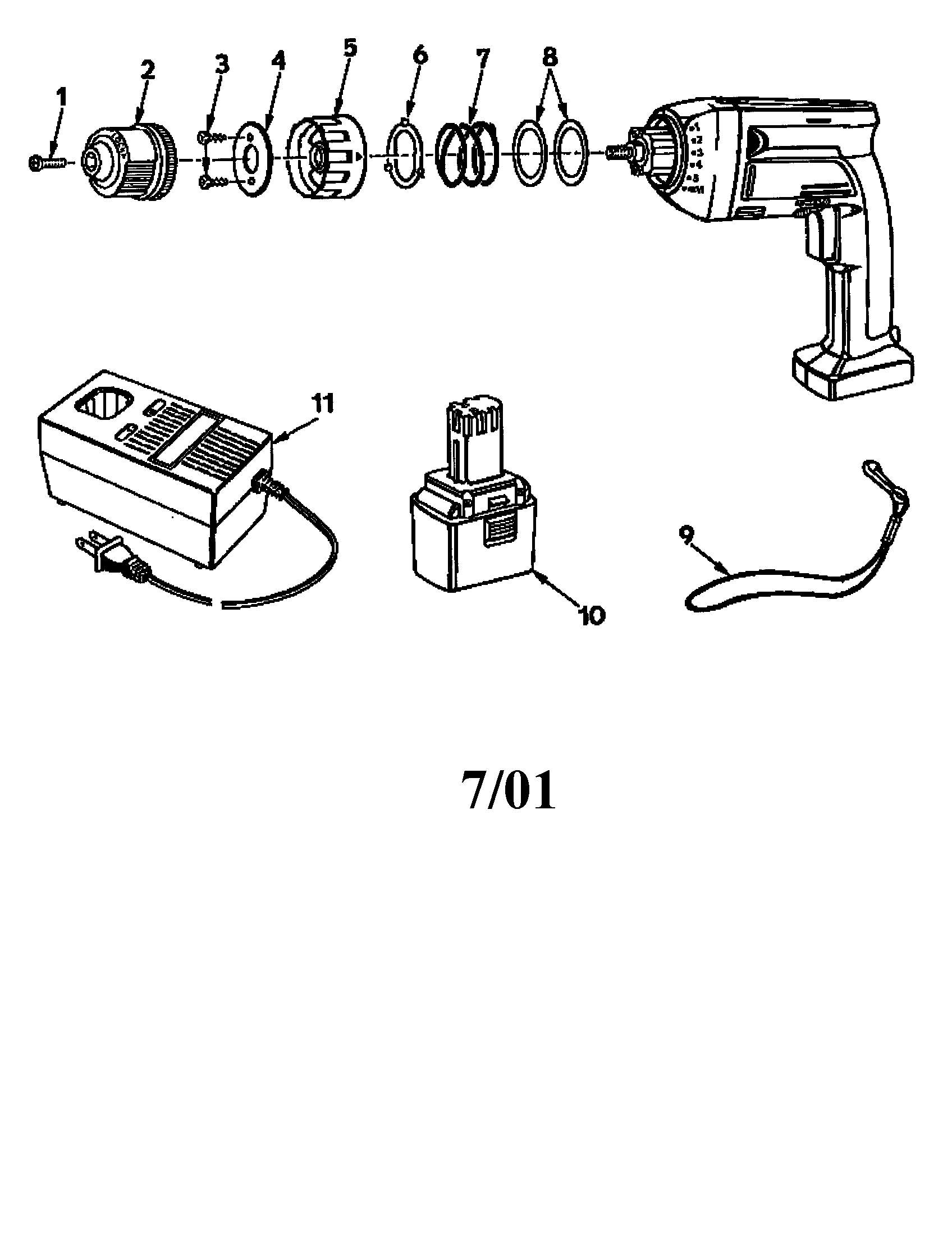

Drill driver diagram

Switch assembly

Part #970987-000

The manufacturer no longer makes this part, and there's no substitute part

Bit Hldr. 970369-000
#8

Drill driver diagram

Bit hldr.

Part #970369-000

The manufacturer no longer makes this part, and there's no substitute part

Heat Sink 971294-000
#6A

Drill driver diagram

Heat sink

Part #971294-000

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 970813-009
#10

Drill driver diagram

Battery pack

Part #970813-009

The manufacturer no longer makes this part, and there's no substitute part

Clutch Ring 970835-000
#6

Drill driver diagram

Clutch ring

Part #970835-000

The manufacturer no longer makes this part, and there's no substitute part

T. Plate W/1 970367-000
#9

Drill driver diagram

T. plate w/1

Part #970367-000

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 970984-001
#1

Drill driver diagram

Housing assembly

Part #970984-001

The manufacturer no longer makes this part, and there's no substitute part

Flat Spring 972685-000
#10A

Drill driver diagram

Flat spring

Part #972685-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 970861-000
#4

Drill driver diagram

Screw

Part #970861-000

The manufacturer no longer makes this part, and there's no substitute part

Gr. Chnge A. 971004-000
#3

Drill driver diagram

Gr. chnge a.

Part #971004-000

The manufacturer no longer makes this part, and there's no substitute part
