Model # CMV1000ADB Official Maytag microwave
Here are the diagrams and repair parts for Official Maytag CMV1000ADB microwave, as well as links to manuals and error code tables, if available.

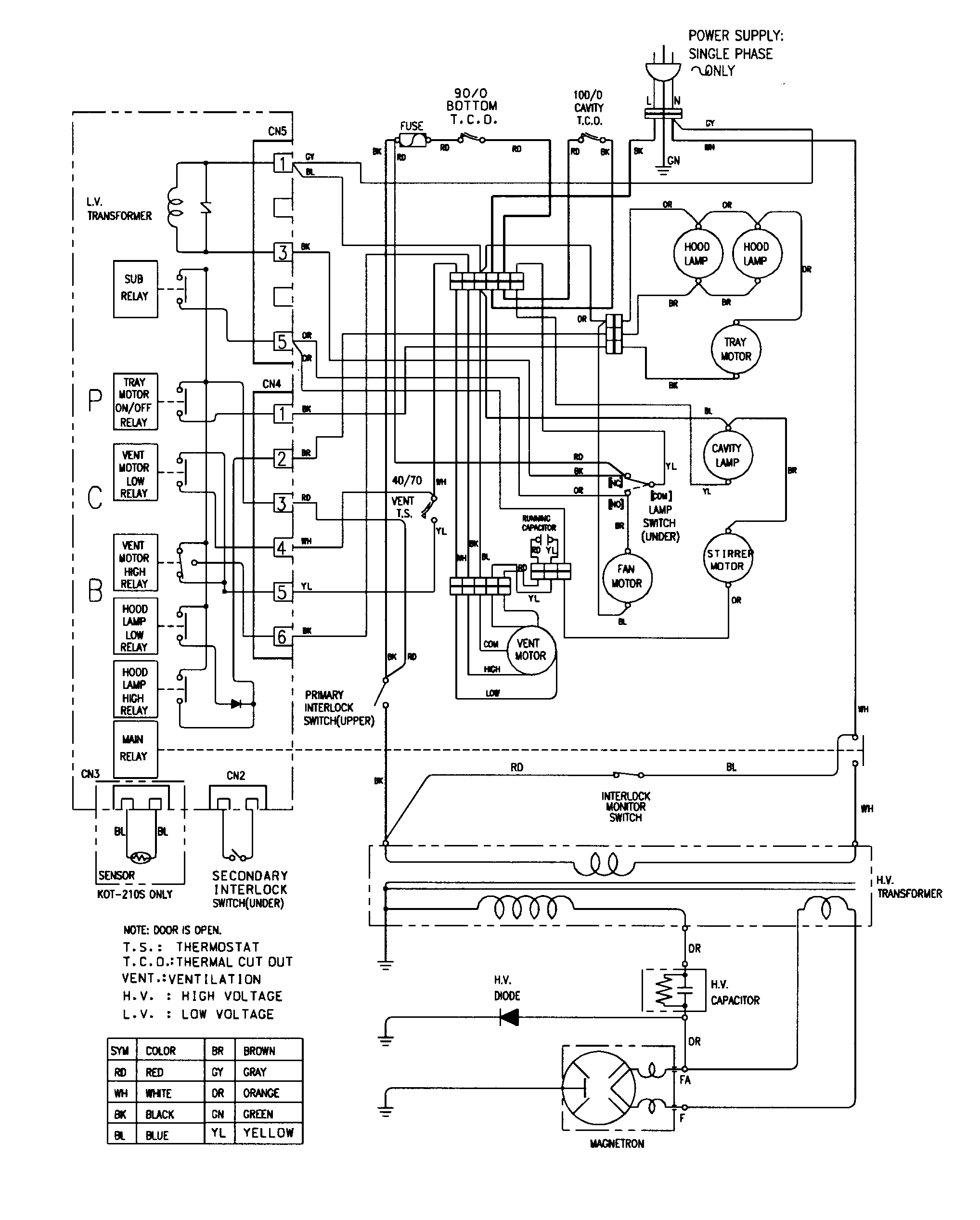

By Schematic
By Part
SELECT DIAGRAM
Browse Parts forCMV1000ADB Microwave
- #5

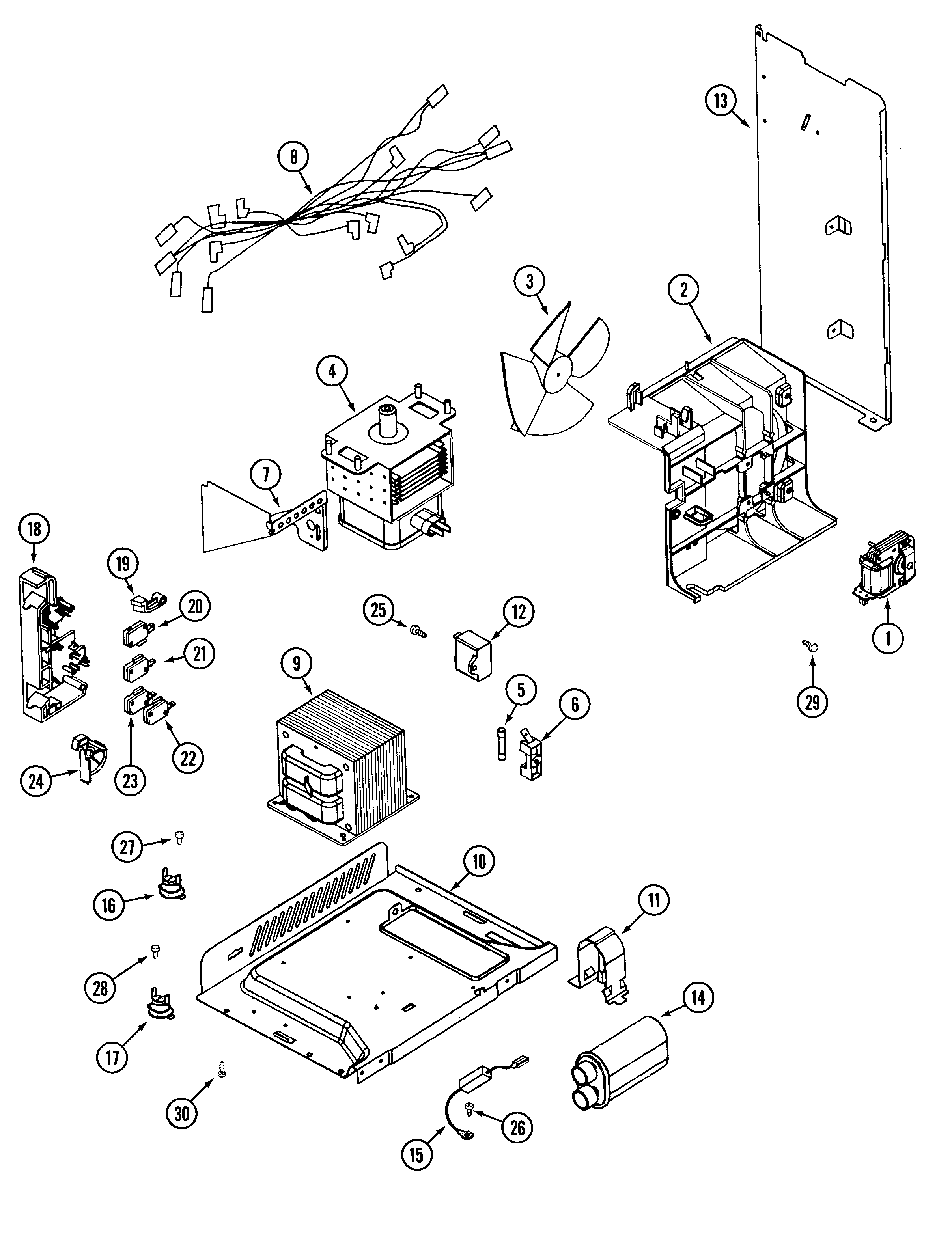

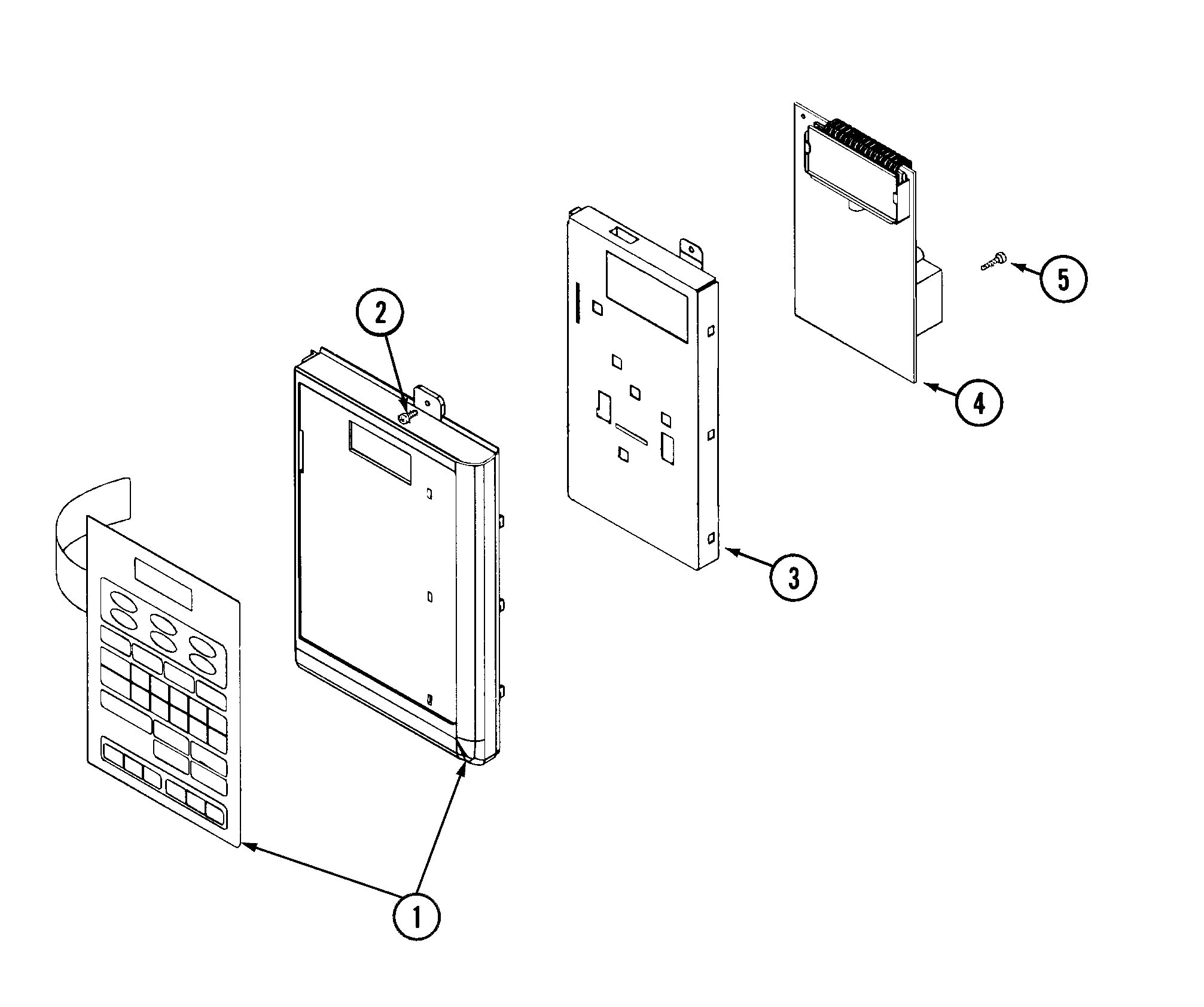

Internal controls diagram
FusePart #51001303
Replaced by #WPM0805101
?Manufacturer substitutionThis part replaces 51001303. Substitute parts can look different from the original.This item is not returnable$6.35 |14% OFF Phone Price : $7.35In Stock - #3

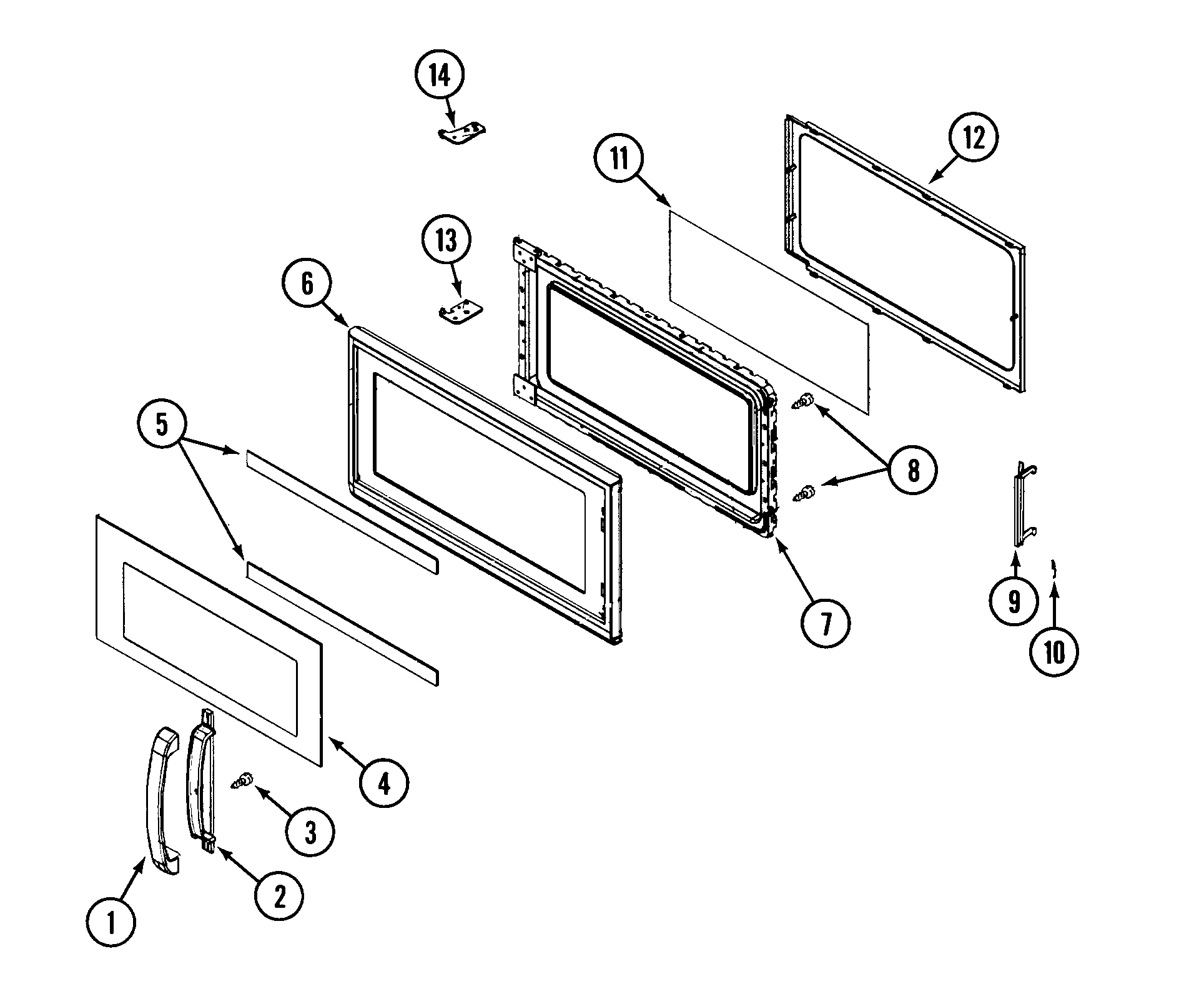

Door diagram
ScrewPart #56001173
Replaced by #WP56001173
?Manufacturer substitutionThis part replaces 56001173. Substitute parts can look different from the original.This item is not returnable$2.16In Stock - #1

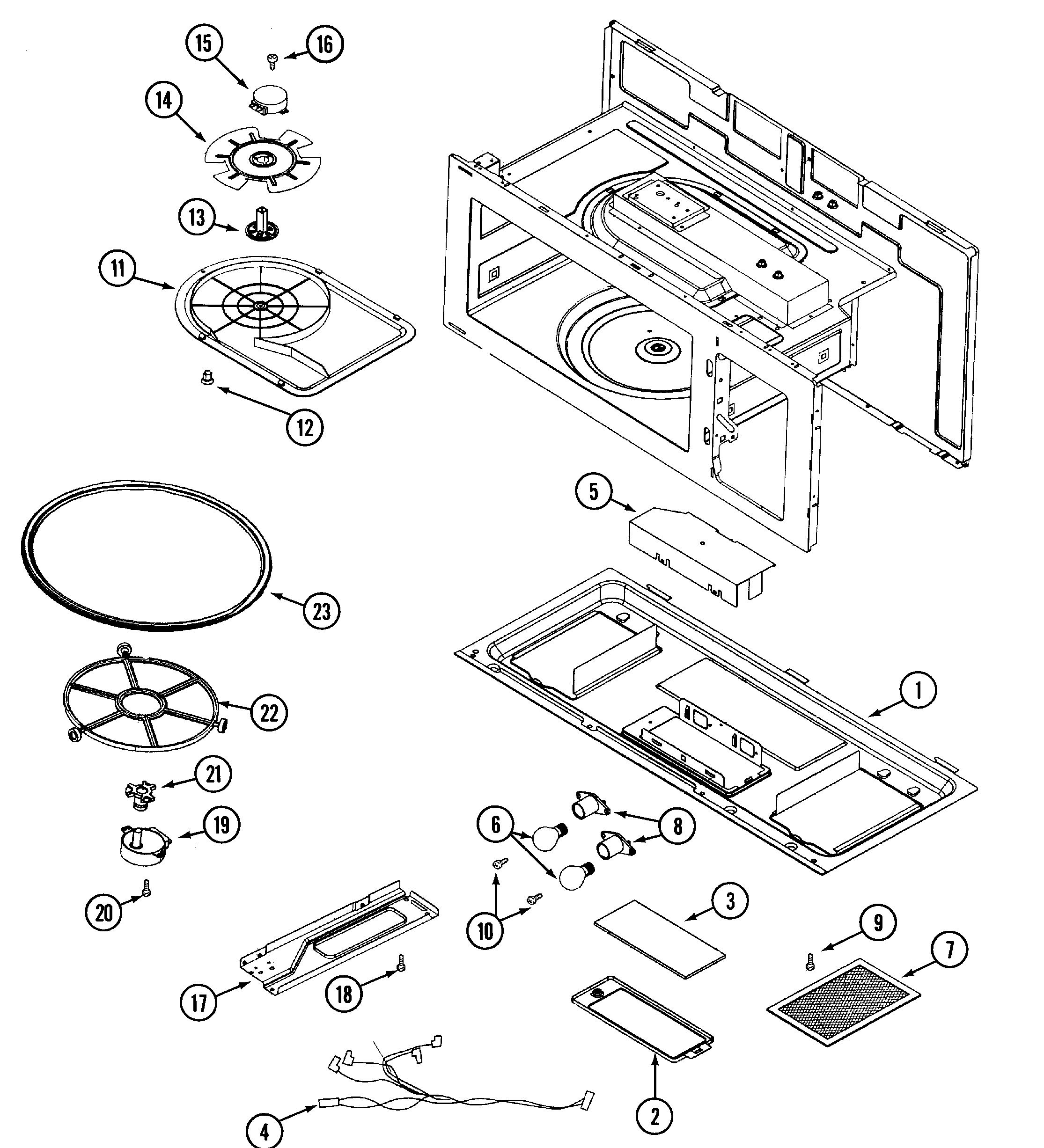

Base & cavity diagram
Base platePart #56001180
$24.36In Stock - Microwave wire harness
Part #56001176
$65.04In Stock - #19

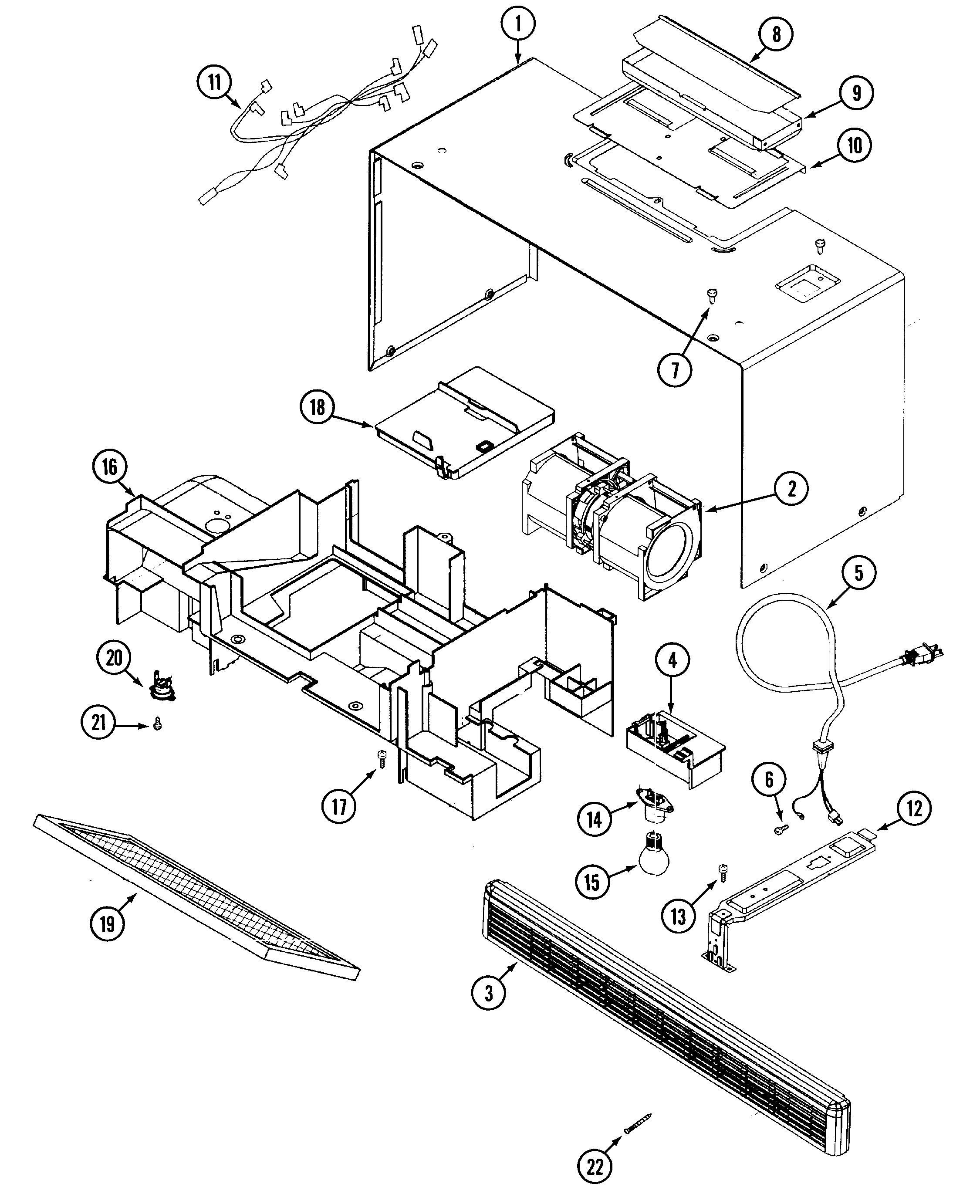

Cabinet & ventilation diagram
Charcoal filterPart #56001084
Replaced by #WP56001084
?Manufacturer substitutionThis part replaces 56001084. Substitute parts can look different from the original.$28.37In Stock - #6
Internal controls diagram
Fuse holderPart #56001110
Replaced by #W10206728
?Manufacturer substitutionThis part replaces 56001110. Substitute parts can look different from the original.This item is not returnable$11.67 |15% OFF Phone Price : $13.67In Stock - #1B
Door diagram
Microwave/hood door handlePart #56001139
Replaced by #WP56001139
?Manufacturer substitutionThis part replaces 56001139. Substitute parts can look different from the original.$83.12 |7% OFF Phone Price : $89.12In Stock - #15
Base & cavity diagram
Stirrer motorPart #56001077
Replaced by #56001337
?Manufacturer substitutionThis part replaces 56001077. Substitute parts can look different from the original.$68.87 |8% OFF Phone Price : $74.87In Stock - #2B
Door diagram
Microwave/hood door handle (white)Part #56001136
Replaced by #WP56001136
?Manufacturer substitutionThis part replaces 56001136. Substitute parts can look different from the original.$83.09 |7% OFF Phone Price : $89.09In Stock - #6
Base & cavity diagram
BulbPart #56001071
Replaced by #8206232A
?Manufacturer substitutionThis part replaces 56001071. Substitute parts can look different from the original.$8.35 |11% OFF Phone Price : $9.35In Stock
