Jenn-Air
Microwave/Hood Combo

Model # JMV9196CB5 Official Jenn-Air microwave/hood combo

Here are the diagrams and repair parts for Official Jenn-Air JMV9196CB5 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

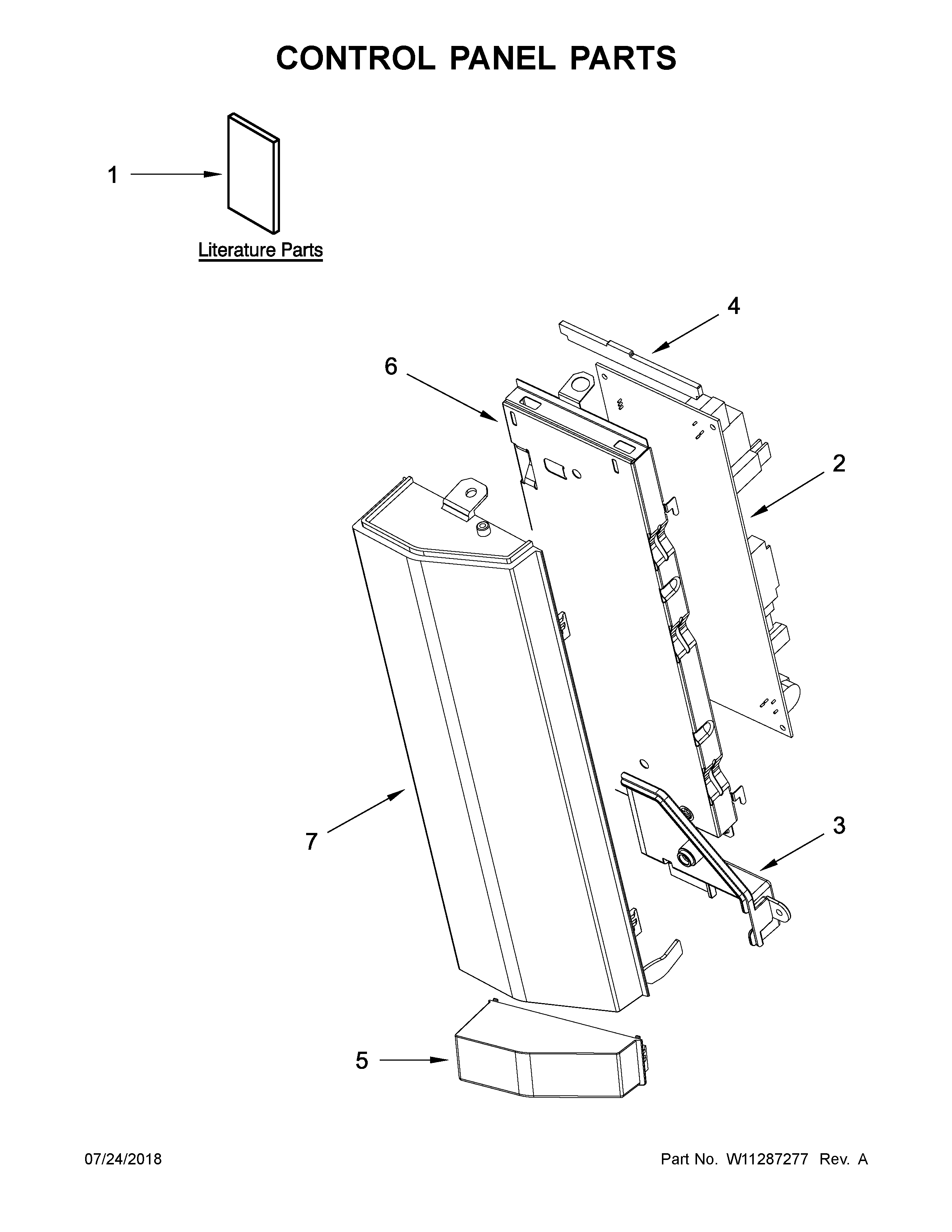

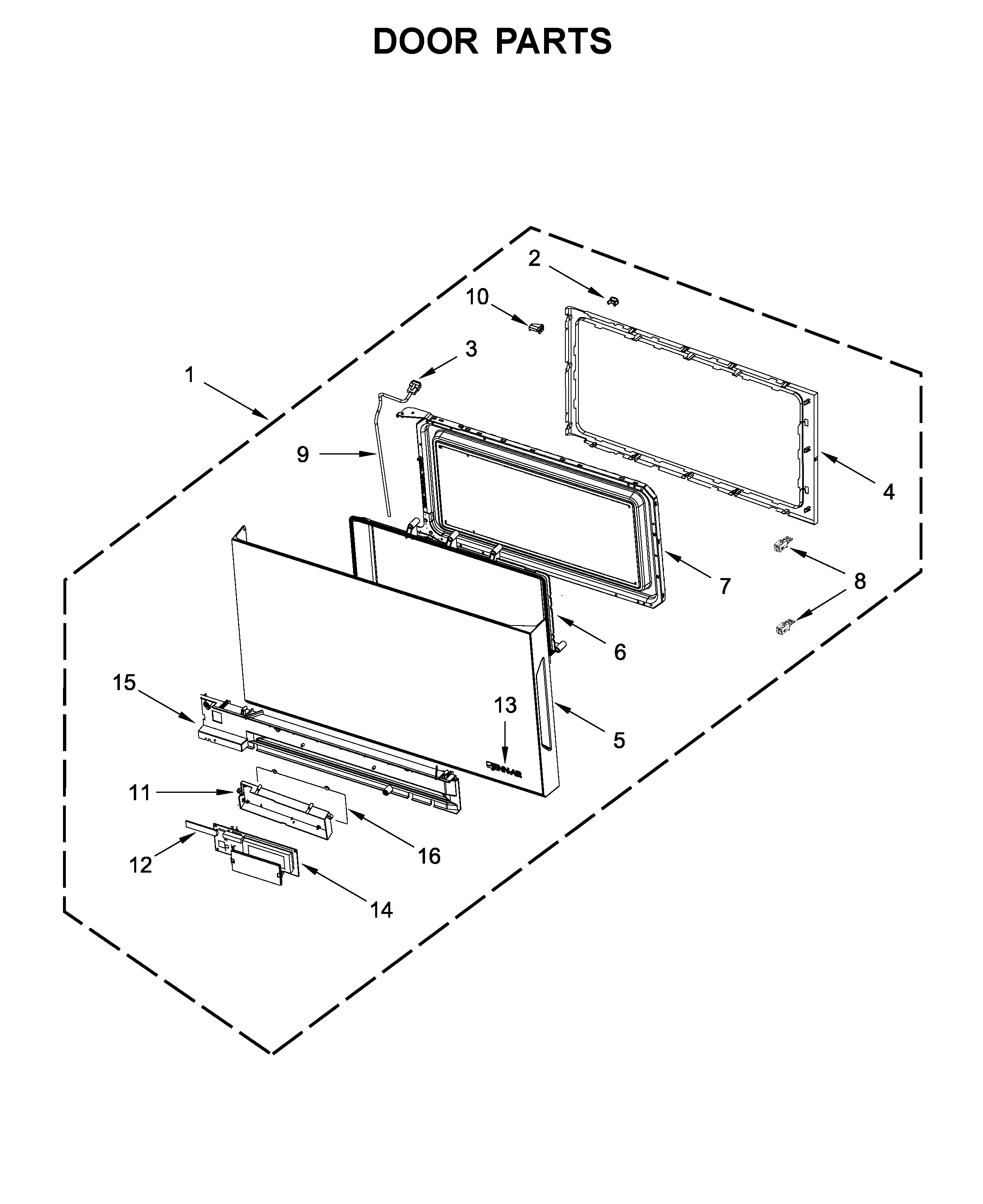

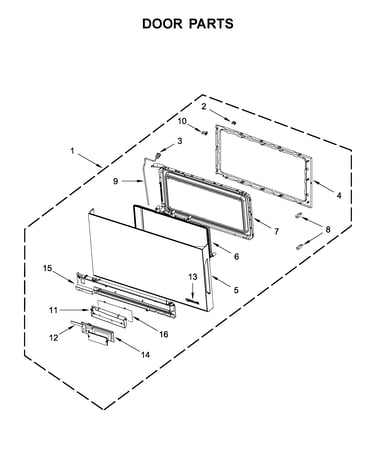

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Diode W10575765
#13

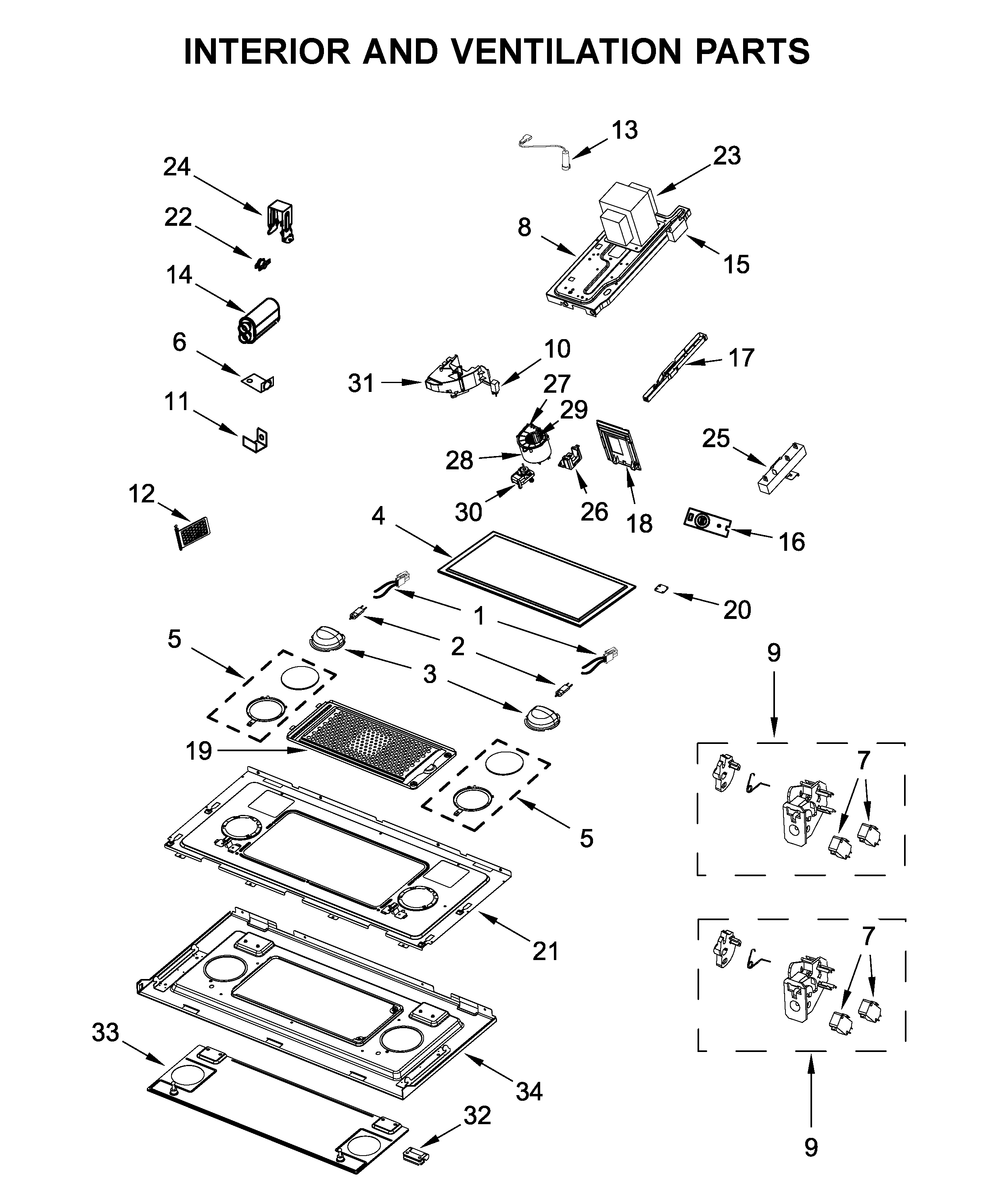

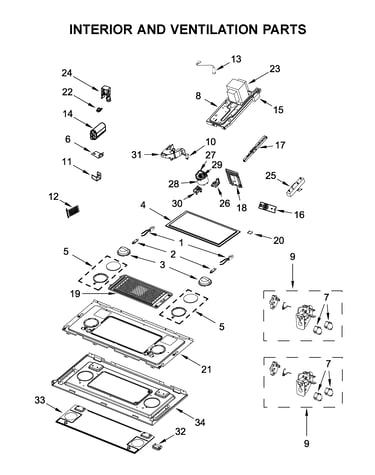

Interior and ventilation parts diagram

Diode

Part #W10575765

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W10575765. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Filter W10208631
#4

Interior and ventilation parts diagram

Filter

Part #W10208631

Replaced by #W10208631A

?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Microwave High-voltage Capacitor W10561770
#14

Interior and ventilation parts diagram

Microwave high-voltage capacitor

Part #W10561770

BEST SELLER
$29.89 |
17% OFF Phone Price : $35.89
In Stock
Microwave Mounting Plate (replaces W10440498) W11025649
#1

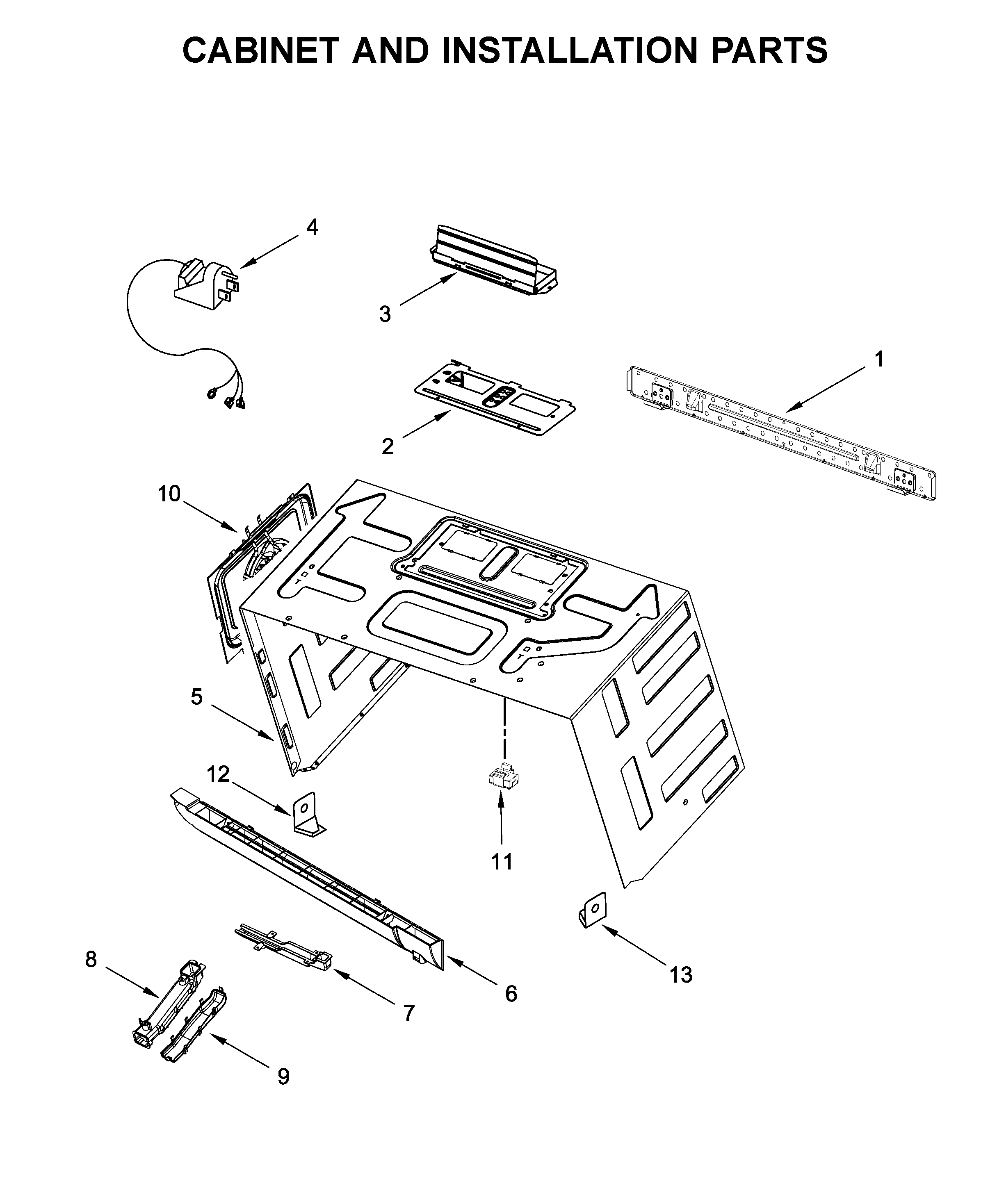

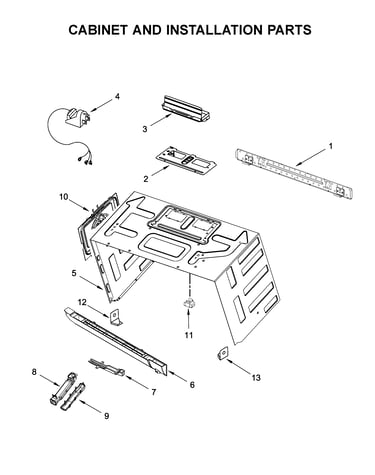

Cabinet and installation parts diagram

Microwave mounting plate (replaces w10440498)

Part #W11025649

$12.77 |
14% OFF Phone Price : $14.77
In Stock
Microwave Turntable Motor Coupler W10337248
#4

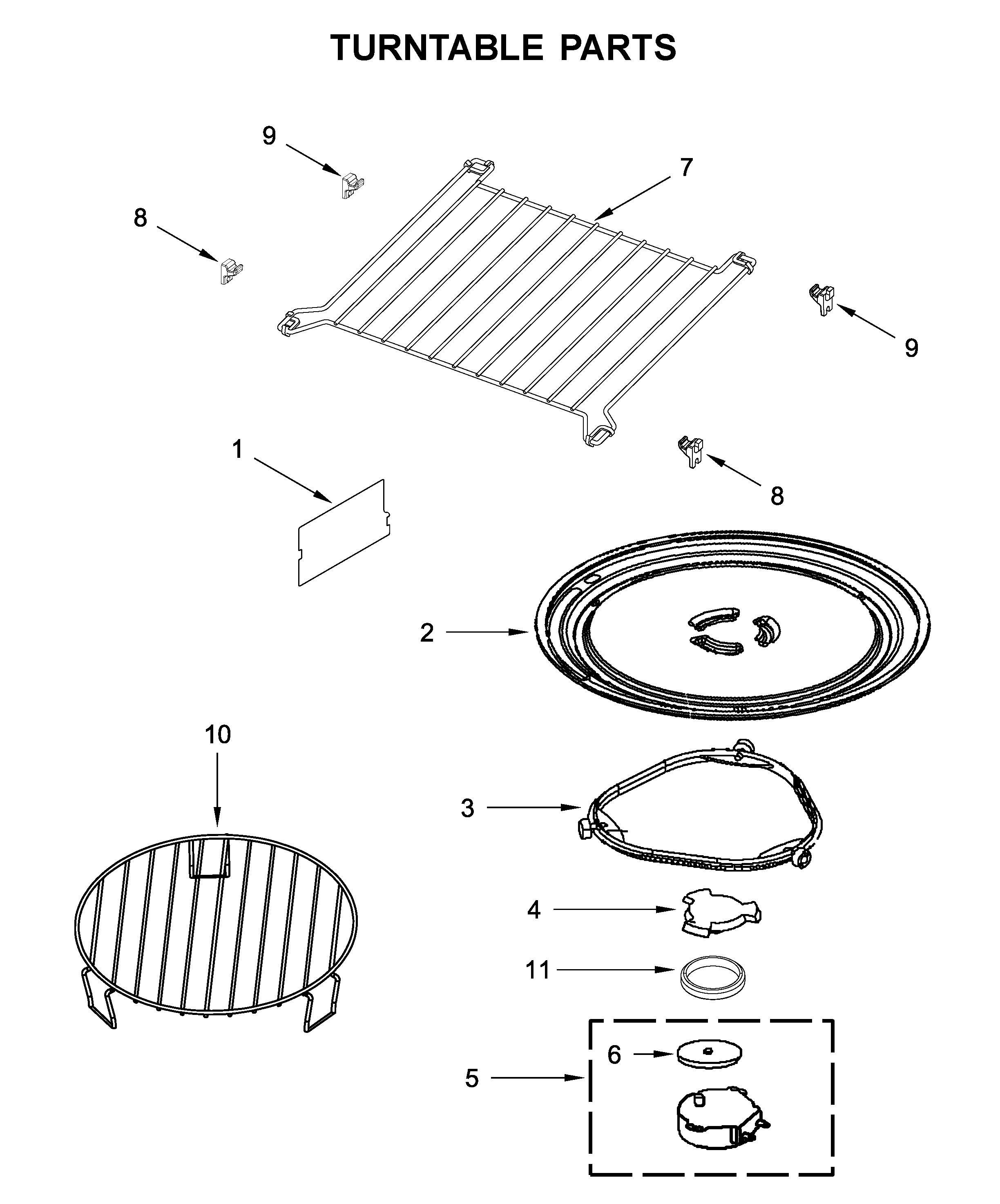

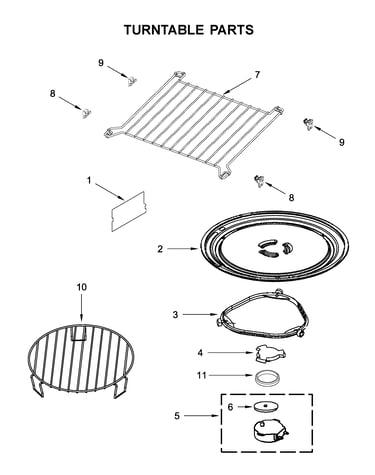

Turntable parts diagram

Microwave turntable motor coupler

Part #W10337248

This item is not returnable
$5.69 |
15% OFF Phone Price : $6.69
In Stock
Microwave Surface Light Bulb (replaces W10208564, W10618217, W10892536, W11414610) W10709921
Microwave surface light bulb (replaces w10208564, w10618217, w10892536, w11414610)

Part #W10709921

$15.38 |
12% OFF Phone Price : $17.38
In Stock
Microwave Installation Template W10190018
#NI

Cabinet and installation parts diagram

Microwave installation template

Part #W10190018

This item is not returnable
$6.39 |
14% OFF Phone Price : $7.39
In Stock
Microwave/hood Filter W10531156
#10

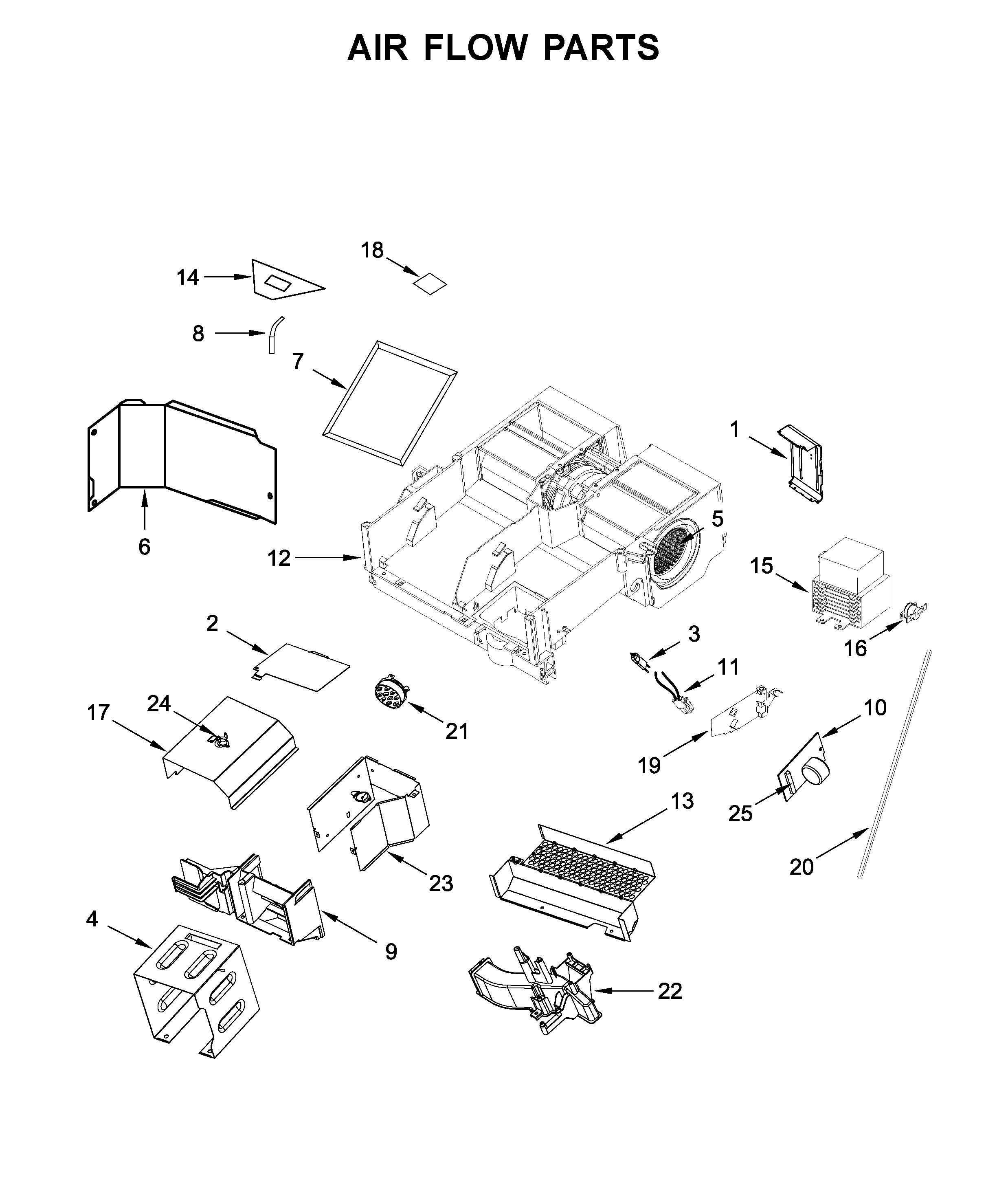

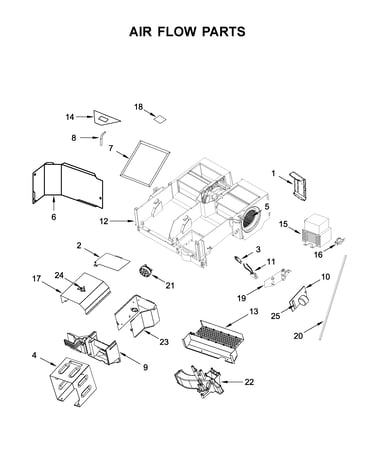

Air flow parts diagram

Microwave/hood filter

Part #W10531156

Replaced by #WPW10531156

?
Manufacturer substitution
This part replaces W10531156. Substitute parts can look different from the original.
$31.13
In Stock
Microwave Vent Grille (replaces W10533490) W10701701
#6

Cabinet and installation parts diagram

Microwave vent grille (replaces w10533490)

Part #W10701701

$44.69 |
12% OFF Phone Price : $50.69
In Stock
Microwave Screw 8169704
#NI

Cabinet and installation parts diagram

Microwave screw

Part #8169704

Replaced by #WP8169704

?
Manufacturer substitution
This part replaces 8169704. Substitute parts can look different from the original.
This item is not returnable
$5.07 |
16% OFF Phone Price : $6.07
In Stock
