Kenmore
Small Appliance

Model # 40068090 Official Kenmore power pack

Here are the diagrams and repair parts for Official Kenmore 40068090 power pack, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 9 parts  |
Kenmore Plug Blade 3272-271-1800
#6

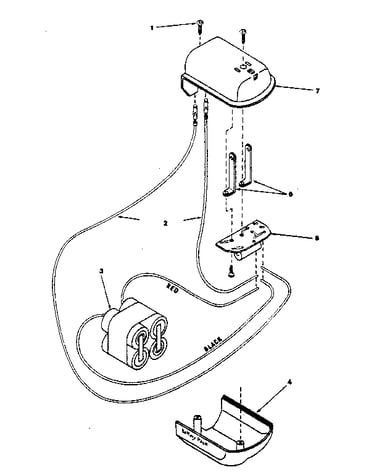

Replacement parts diagram

Kenmore plug blade

Part #3272-271-1800

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Upr Bttry Cs 3225-271-2400
#7A

Replacement parts diagram

Kenmore upr bttry cs

Part #3225-271-2400

The manufacturer no longer makes this part, and there's no substitute part

Screw 4101-004-2403
#1

Replacement parts diagram

Screw

Part #4101-004-2403

The manufacturer no longer makes this part, and there's no substitute part

Upr Bttry Cs 3225-271-1500
#7

Replacement parts diagram

Upr bttry cs

Part #3225-271-1500

The manufacturer no longer makes this part, and there's no substitute part

Pc Board 3113-271-0010
#5

Replacement parts diagram

Pc board

Part #3113-271-0010

The manufacturer no longer makes this part, and there's no substitute part

Lwr Bttry Cs 8424-271-2400
#4A

Replacement parts diagram

Lwr bttry cs

Part #8424-271-2400

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 3501-271-0000
#3

Replacement parts diagram

Battery pack

Part #3501-271-0000

The manufacturer no longer makes this part, and there's no substitute part

Lead Comp. (2 Used) 6161-271-0500
#2

Replacement parts diagram

Lead comp. (2 used)

Part #6161-271-0500

The manufacturer no longer makes this part, and there's no substitute part

Lwr Bttry Cs 8424-271-1500
#4

Replacement parts diagram

Lwr bttry cs

Part #8424-271-1500

The manufacturer no longer makes this part, and there's no substitute part
