Craftsman
Gas Walk-Behind Mower

Model # 917388130 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917388130 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 212 parts  |
Lock Nut 83923
#61

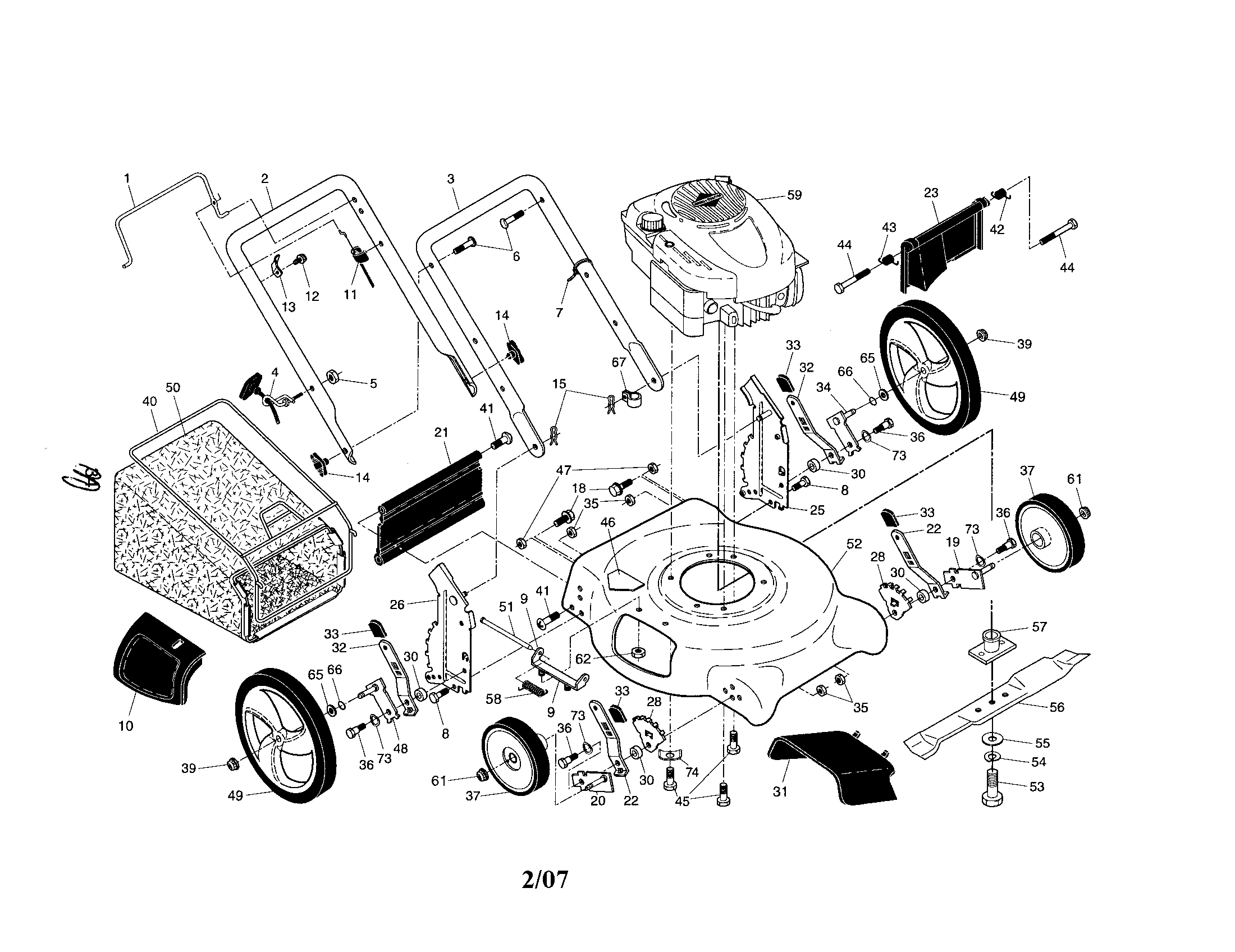

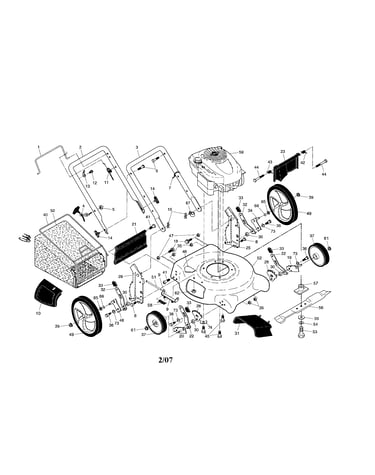

Lawn mower diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Lock Nut 145212
#39

Lawn mower diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hndl.knob.bl 189713X428
#14

Lawn mower diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Lawn Mower Wheel, 8 X 1-3/4-in 194348X460
#37

Lawn mower diagram

Lawn mower wheel, 8 x 1-3/4-in

Part #194348X460

Replaced by #583720201

?
Manufacturer substitution
This part replaces 194348X460. Substitute parts can look different from the original.
BEST SELLER
$25.18 |
19% OFF Phone Price : $31.18
In Stock
Handle Bolt 191574
#6

Lawn mower diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Bag (gray) 410938
#50

Lawn mower diagram

Bag (gray)

Part #410938

Replaced by #532410666

?
Manufacturer substitution
This part replaces 410938. Substitute parts can look different from the original.
BEST SELLER
$68.54 |
8% OFF Phone Price : $74.54
In Stock
Lawn & Garden Equipment Lock Nut 73800400
#62

Lawn mower diagram

Lawn & garden equipment lock nut

Part #73800400

Replaced by #582478602

?
Manufacturer substitution
This part replaces 73800400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Nut 132004
#5

Lawn mower diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Rear Door Assembly 401814X428
#23

Lawn mower diagram

Rear door assembly

Part #401814X428

Replaced by #532401814

?
Manufacturer substitution
This part replaces 401814X428. Substitute parts can look different from the original.
This item is not returnable
$23.98 |
20% OFF Phone Price : $29.98
In Stock
Wheel.12.1.7 193929X460
#49

Lawn mower diagram

Wheel.12.1.7

Part #193929X460

Replaced by #532433099

?
Manufacturer substitution
This part replaces 193929X460. Substitute parts can look different from the original.
$43.98
In Stock
