Gibson
Upright Freezer

Model # GFU20F7AW6 Official Gibson freezer

Here are the diagrams and repair parts for Official Gibson GFU20F7AW6 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Filter Drier 216099900
#4

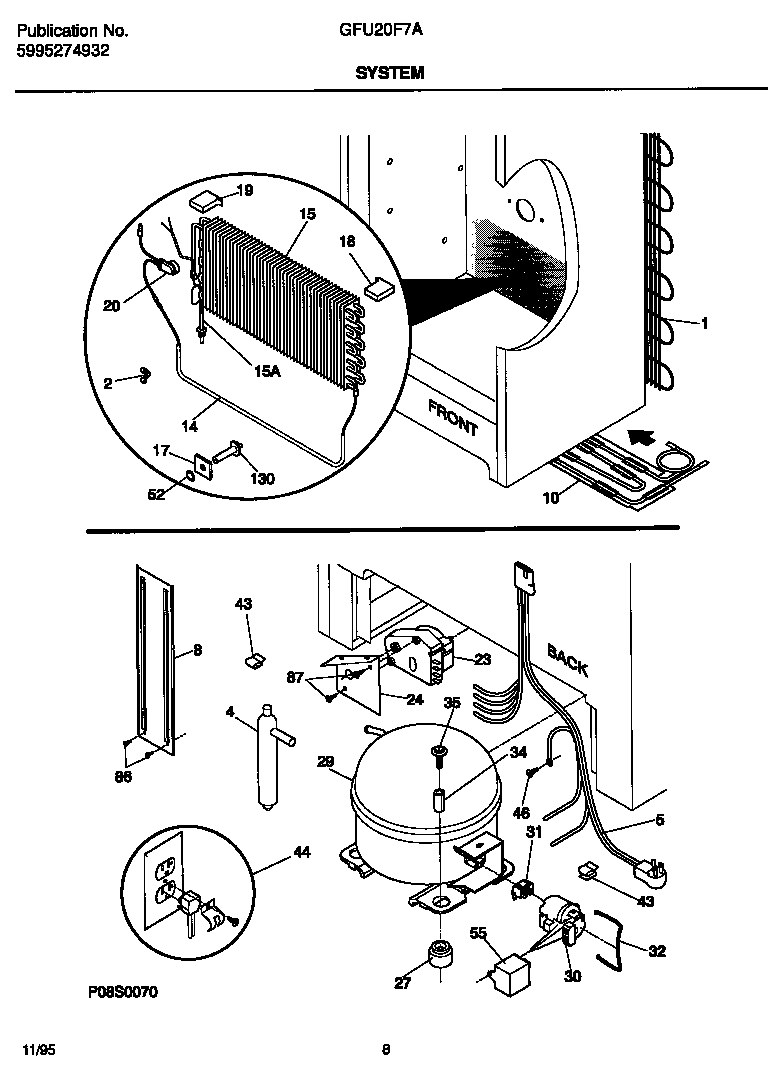

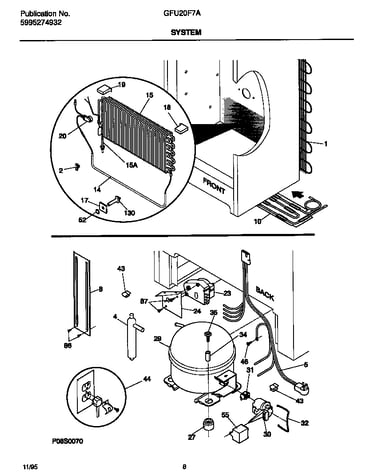

System diagram

Filter drier

Part #216099900

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216099900. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Blade 216325600
#5

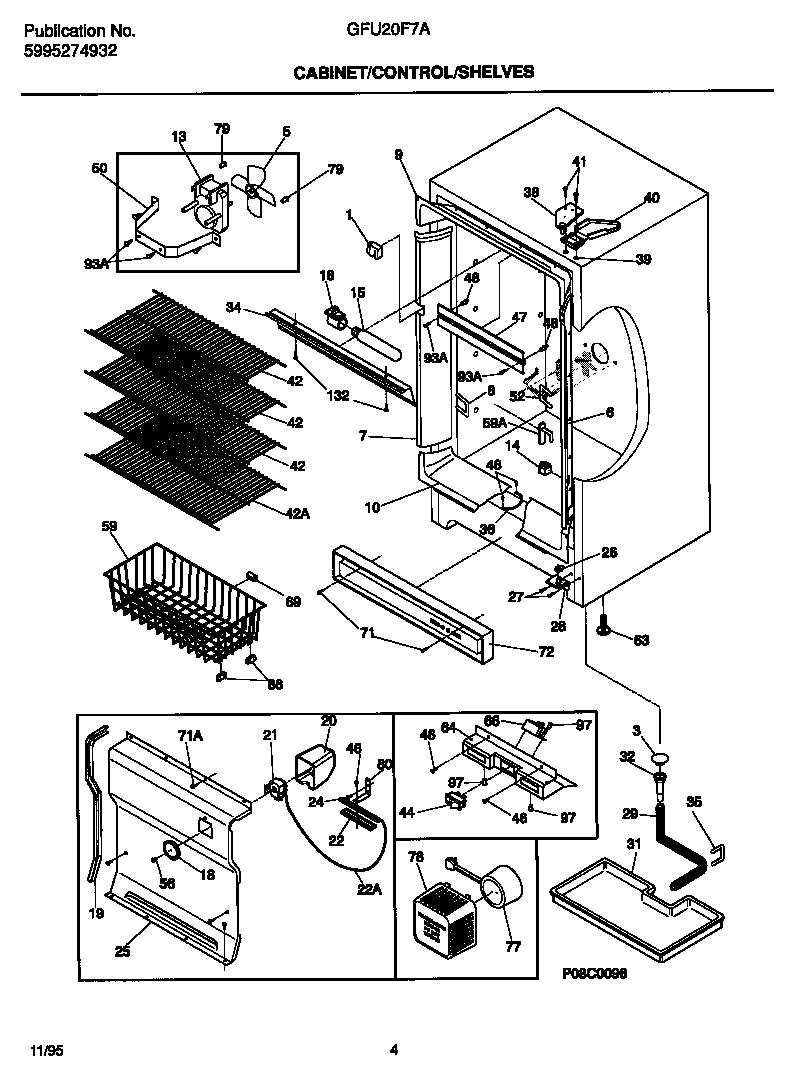

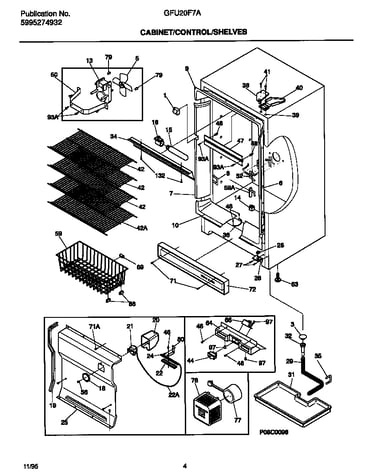

Cabinet/control/shelves diagram

Blade

Part #216325600

Replaced by #5308000010

?
Manufacturer substitution
This part replaces 216325600. Substitute parts can look different from the original.
BEST SELLER
$39.93 |
13% OFF Phone Price : $45.93
In Stock
Key 216388700
#5

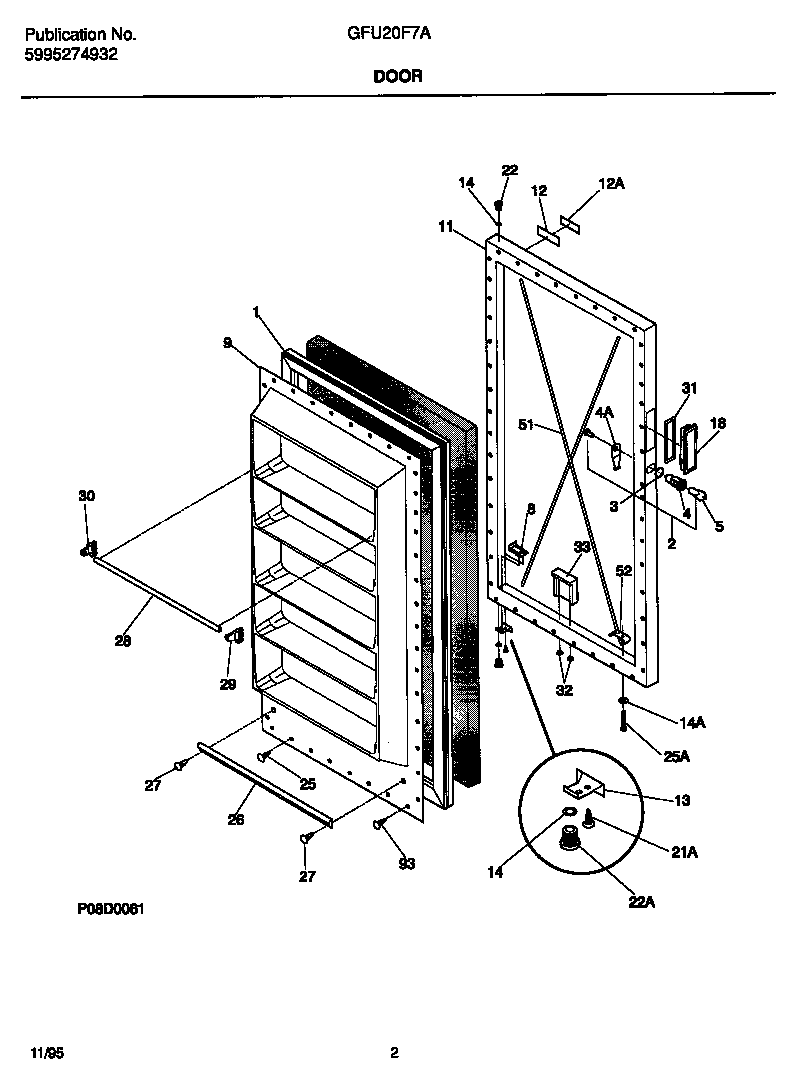

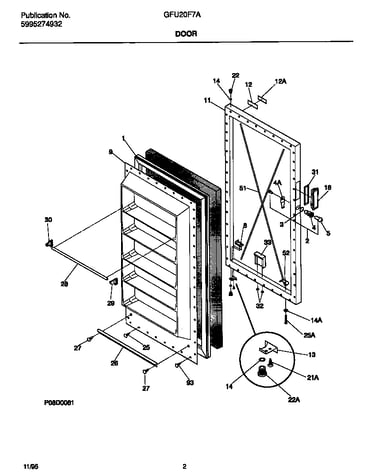

Door diagram

Key

Part #216388700

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216388700. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Capacitor 216236200
#55

System diagram

Capacitor

Part #216236200

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 216236200. Substitute parts can look different from the original.
BEST SELLER
$47.29 |
11% OFF Phone Price : $53.29
In Stock
Clip 06599536
#2

System diagram

Clip

Part #06599536

Replaced by #5308000110

?
Manufacturer substitution
This part replaces 06599536. Substitute parts can look different from the original.
BEST SELLER
$52.30 |
10% OFF Phone Price : $58.30
In Stock
Freezer Condenser Coil (replaces 000300847, 000900204, 08000459, 08037427, 08950154, 118630, 75300083897, 83339, 83727, 83897, 8950154, F000300847, F000900204, F112069, F118630, F83339, F83727, F83897) 5300083897
#1

System diagram

Freezer condenser coil (replaces 000300847, 000900204, 08000459, 08037427, 08950154, 118630, 75300083897, 83339, 83727, 83897, 8950154, f000300847, f000900204, f112069, f118630, f83339, f83727, f83897)

Part #5300083897

This item is not returnable
$417.18 |
$12.00 OFF Phone Price : $429.18
In Stock
Freezer Drain Tube 216313501
#29

Cabinet/control/shelves diagram

Freezer drain tube

Part #216313501

Replaced by #5304512272

?
Manufacturer substitution
This part replaces 216313501. Substitute parts can look different from the original.
This item is not returnable
$16.29 |
11% OFF Phone Price : $18.29
In Stock
Refrigerator Thermostat Sensor Barrier 5303916855
#22

Cabinet/control/shelves diagram

Refrigerator thermostat sensor barrier

Part #5303916855

$47.89 |
11% OFF Phone Price : $53.89
In Stock
Freezer Breather Valve 5309950074
#32

Door diagram

Freezer breather valve

Part #5309950074

This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Refrigerator Light Switch 5309918806
#14

Cabinet/control/shelves diagram

Refrigerator light switch

Part #5309918806

This item is not returnable
$22.76 |
21% OFF Phone Price : $28.76
In Stock
