Kenmore
Gas Range

Model # 1037857810 Official Kenmore 30" gas range with double oven

Here are the diagrams and repair parts for Official Kenmore 1037857810 30" gas range with double oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

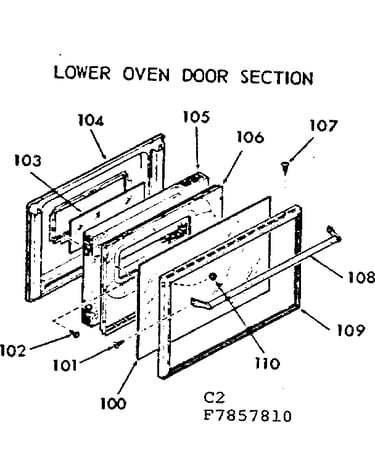

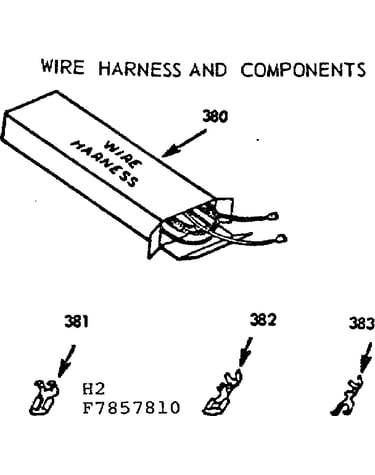

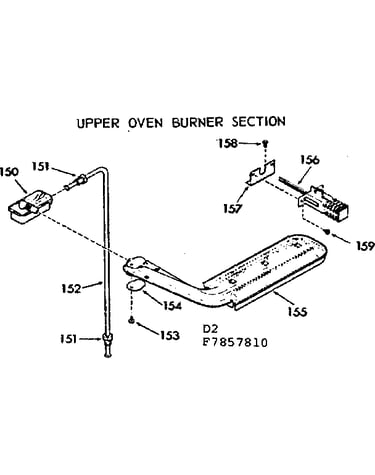

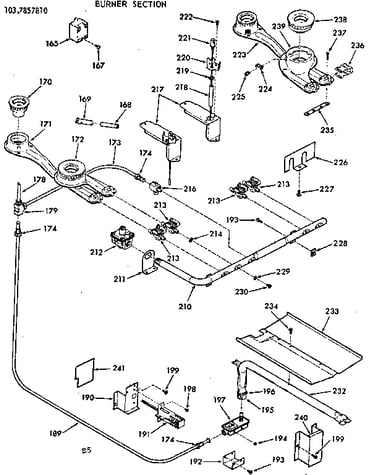

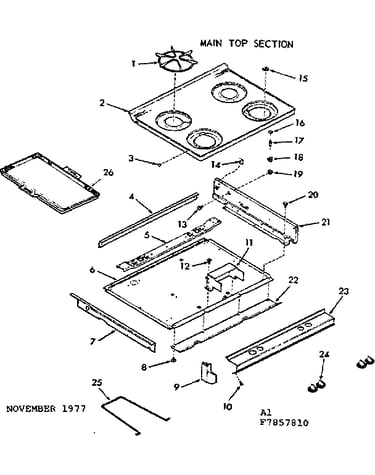

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 287 parts  |
Igniter 300259
Igniter

Part #300259

Replaced by #WB2X9154

?
Manufacturer substitution
This part replaces 300259. Substitute parts can look different from the original.
BEST SELLER
$86.63 |
6% OFF Phone Price : $92.63
Back Order
Lamp Bulb STD372401
Lamp bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Screw 105771
Screw

Part #105771

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces 105771. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer 106462
#47

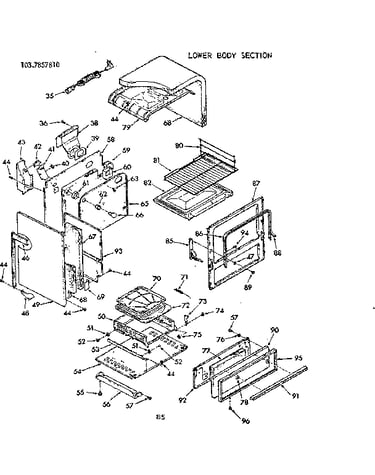

Lower body section diagram

Washer

Part #106462

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces 106462. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Sidesplash 308249
#314E

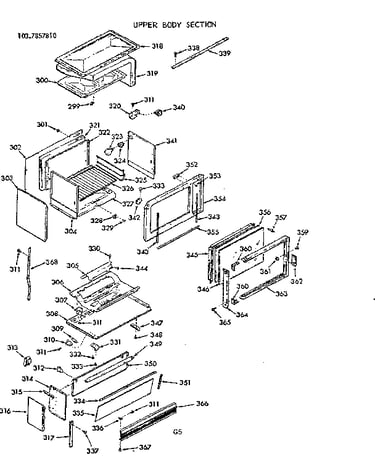

Upper body section diagram

Sidesplash

Part #308249

$13.99
In Stock
Spacer 281992
#345

Upper body section diagram

Spacer

Part #281992

This item is not returnable
$6.49
In Stock
Lead Wire (white) 284278
#262A

Optional rotisserie diagram

Lead wire (white)

Part #284278

This item is not returnable
$2.29
In Stock
Cabinet (almond) 308254
#303E

Upper body section diagram

Cabinet (almond)

Part #308254

$15.49
In Stock
Screw 295849
Screw

Part #295849

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 295849. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 295850
Screw

Part #295850

Replaced by #WB1X1424D

?
Manufacturer substitution
This part replaces 295850. Substitute parts can look different from the original.
This item is not returnable
$6.14 |
14% OFF Phone Price : $7.14
In Stock
