Model # 315272990 Official Craftsman impact wrench

Here are the diagrams and repair parts for Official Craftsman 315272990 impact wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

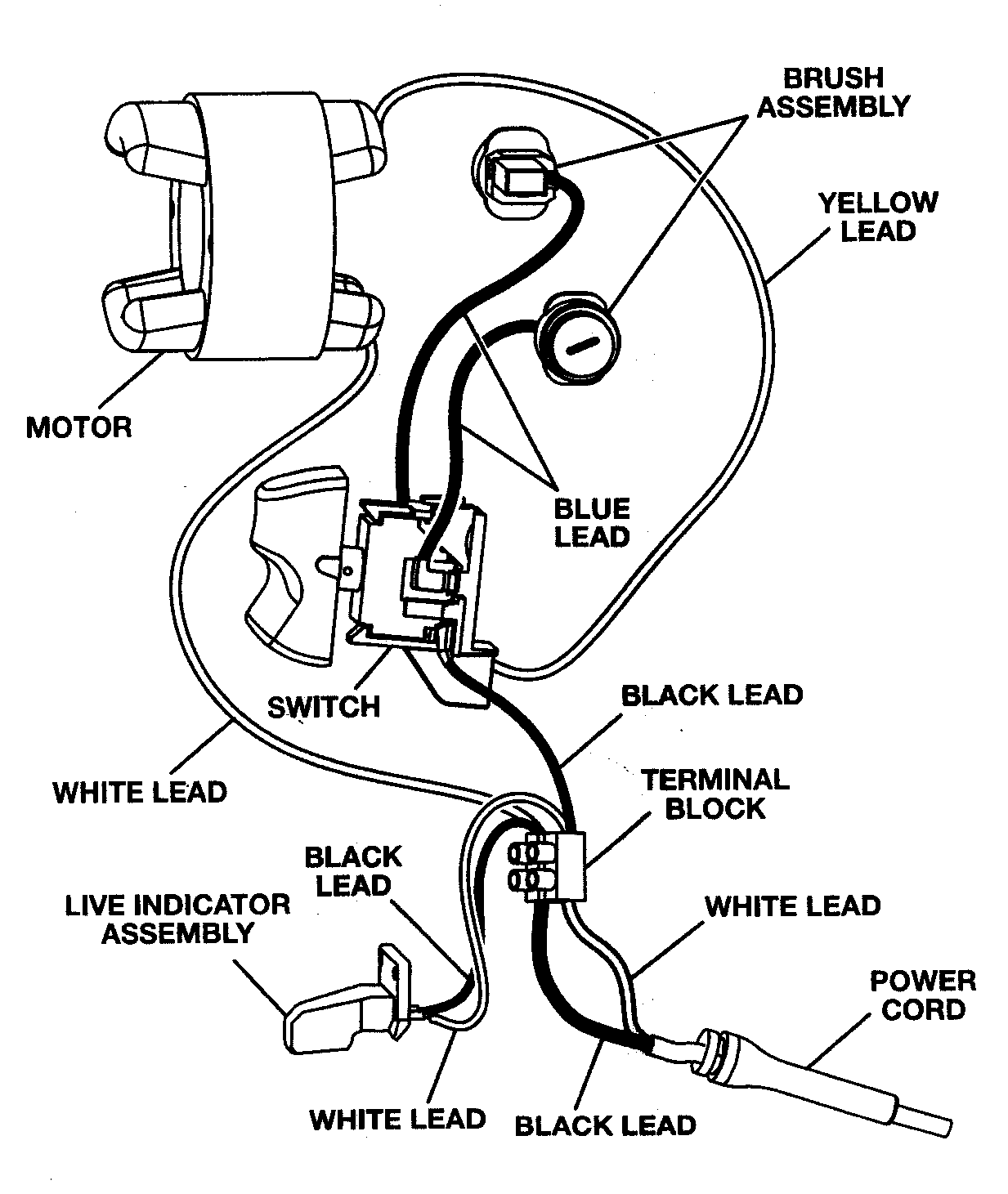

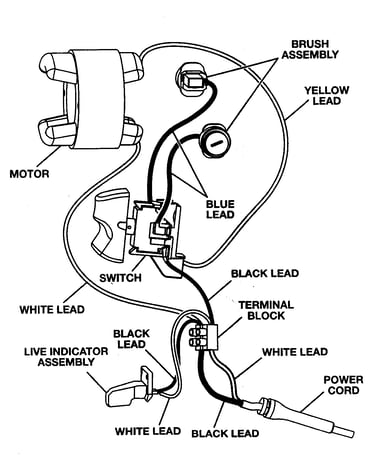

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 48 parts |

#12

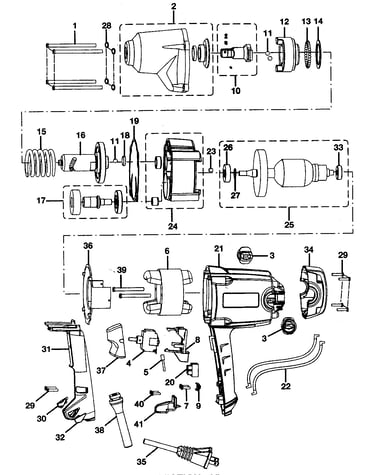

Housing assy diagram

Impactor

Part #671407001

The manufacturer no longer makes this part, and there's no substitute part

#37

Housing assy diagram

Trigger

Part #590975003

The manufacturer no longer makes this part, and there's no substitute part

Housing assy diagram

Switch

Part #760330001

The manufacturer no longer makes this part, and there's no substitute part

#16

Housing assy diagram

Cam assembly

Part #200309002

The manufacturer no longer makes this part, and there's no substitute part

Housing assy diagram

Screw

Part #660182006

The manufacturer no longer makes this part, and there's no substitute part

#33

Housing assy diagram

608llt

Part #6814104

The manufacturer no longer makes this part, and there's no substitute part

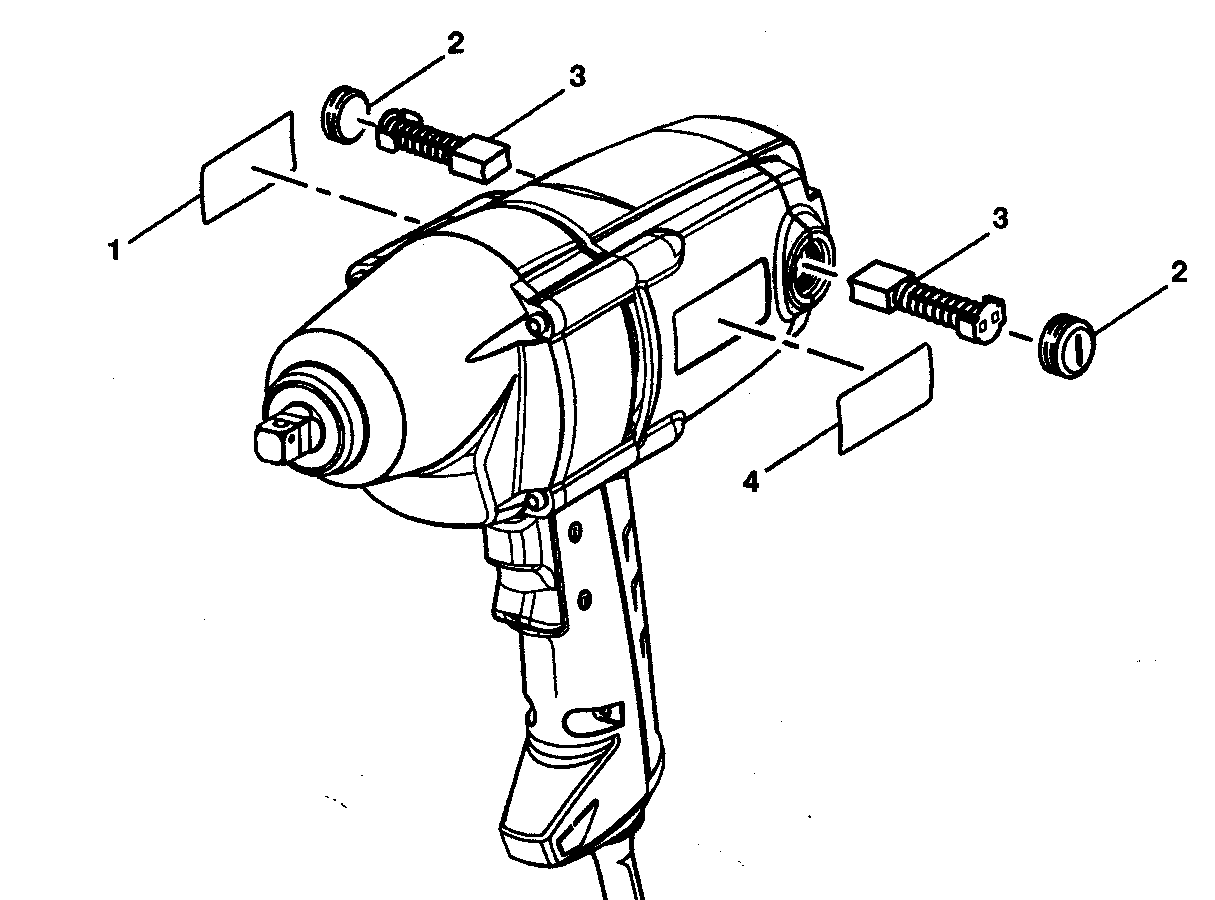

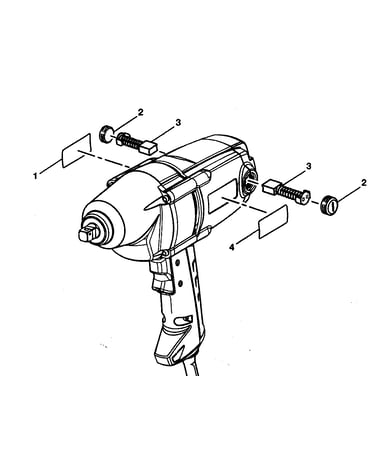

Wrench diagram

Brush cap

Part #511534002

The manufacturer no longer makes this part, and there's no substitute part

#31

Housing assy diagram

Handle cover

Part #341519001

The manufacturer no longer makes this part, and there's no substitute part

#34

Housing assy diagram

Rear cover

Part #513518001

The manufacturer no longer makes this part, and there's no substitute part

Housing assy diagram

Wire assembly

Part #290061087

The manufacturer no longer makes this part, and there's no substitute part
