Craftsman
Electric Walk-Behind Mower

Model # 3155000 Official Craftsman rotary lawn mower electric motor unit

Here are the diagrams and repair parts for Official Craftsman 3155000 rotary lawn mower electric motor unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Screw 1-930993-01
#20

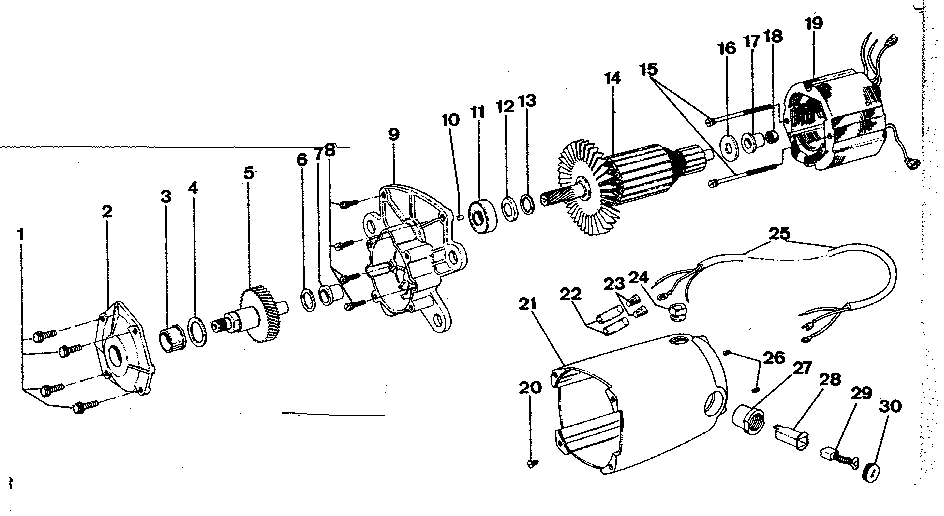

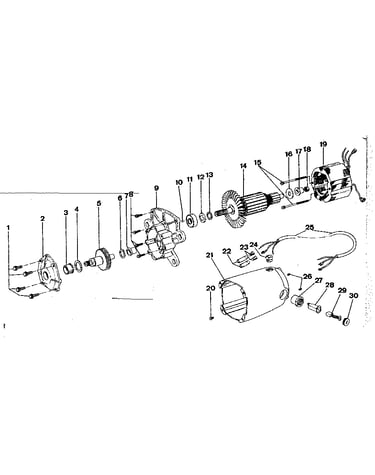

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Retain Ring 1-623880-02
#13

Unit parts diagram

Retain ring

Part #1-623880-02

The manufacturer no longer makes this part, and there's no substitute part

Bearing 1-615268-01
#3

Unit parts diagram

Bearing

Part #1-615268-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-622786-07
#8

Unit parts diagram

Screw

Part #1-622786-07

The manufacturer no longer makes this part, and there's no substitute part

Flange Bearing 1-622148-12
#17

Unit parts diagram

Flange bearing

Part #1-622148-12

The manufacturer no longer makes this part, and there's no substitute part

Cable Assembly 2-615271-01
#25

Unit parts diagram

Cable assembly

Part #2-615271-01

The manufacturer no longer makes this part, and there's no substitute part

Ins Sleeve 1-615490-01
#22

Unit parts diagram

Ins sleeve

Part #1-615490-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-615695-01
#1

Unit parts diagram

Screw

Part #1-615695-01

The manufacturer no longer makes this part, and there's no substitute part

Cover Plate 1-615277-01
#2

Unit parts diagram

Cover plate

Part #1-615277-01

The manufacturer no longer makes this part, and there's no substitute part

Brush Cap 1-624198-01
#30

Unit parts diagram

Brush cap

Part #1-624198-01

The manufacturer no longer makes this part, and there's no substitute part
