Model # GT15A63V Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag GT15A63V refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

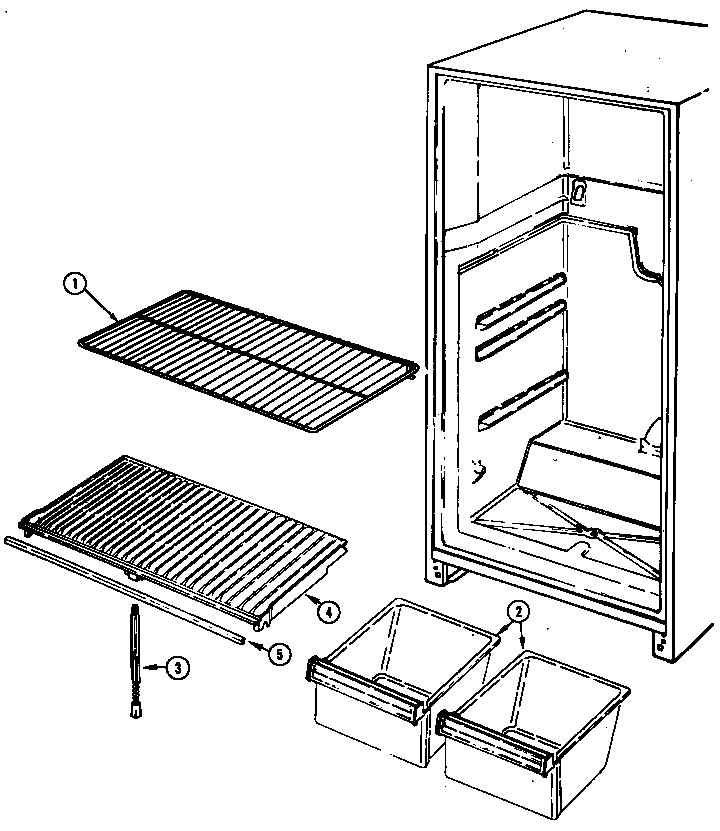

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 182 parts  |
Drier 13900
#13

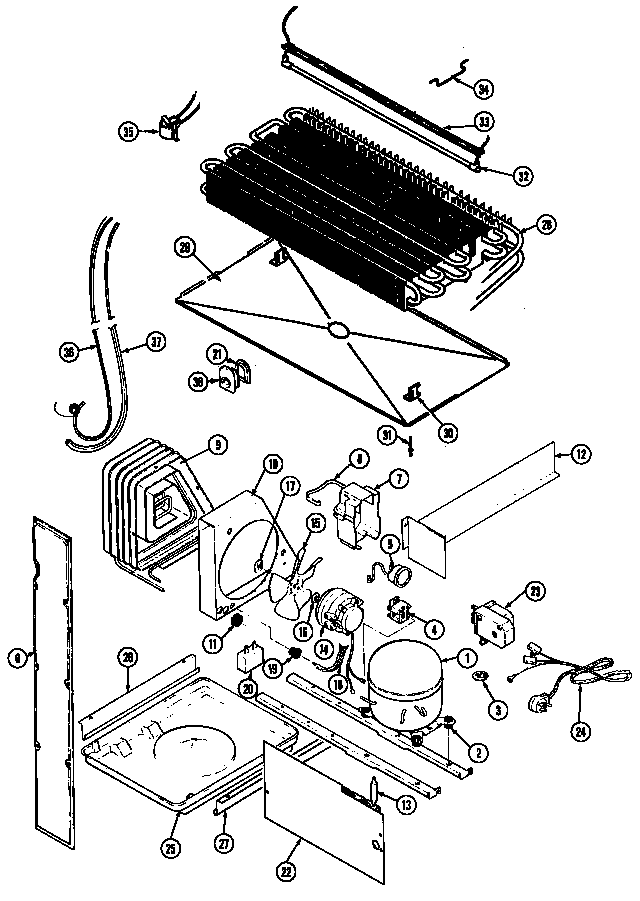

Unit compartment & system diagram

Drier

Part #13900

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Switch 66987-1
#23

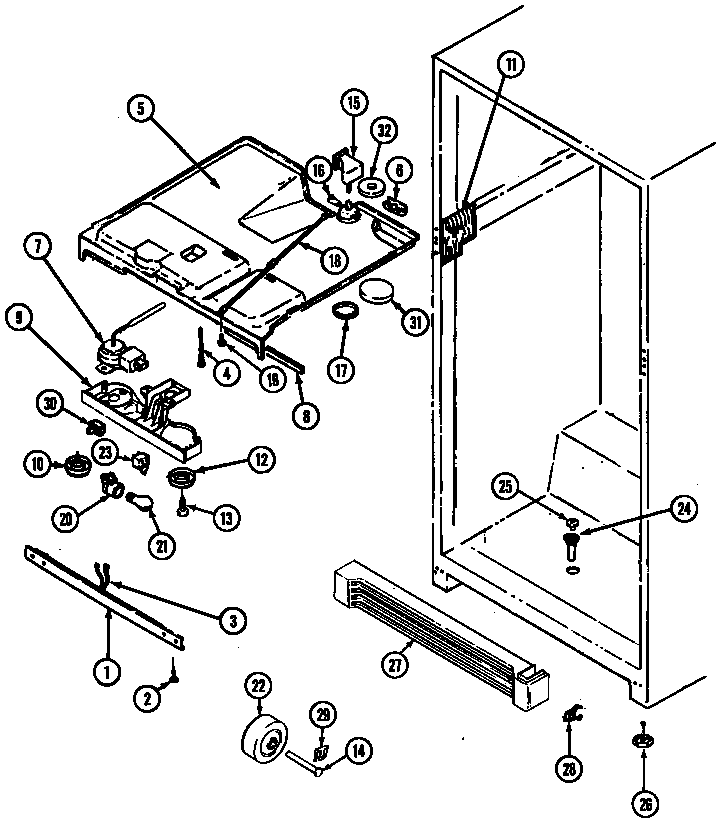

Fresh food compartment diagram

Light switch

Part #66987-1

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 66987-1. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Screw 400017-1
Screw

Part #400017-1

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 400017-1. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Screw 65275-80
#11

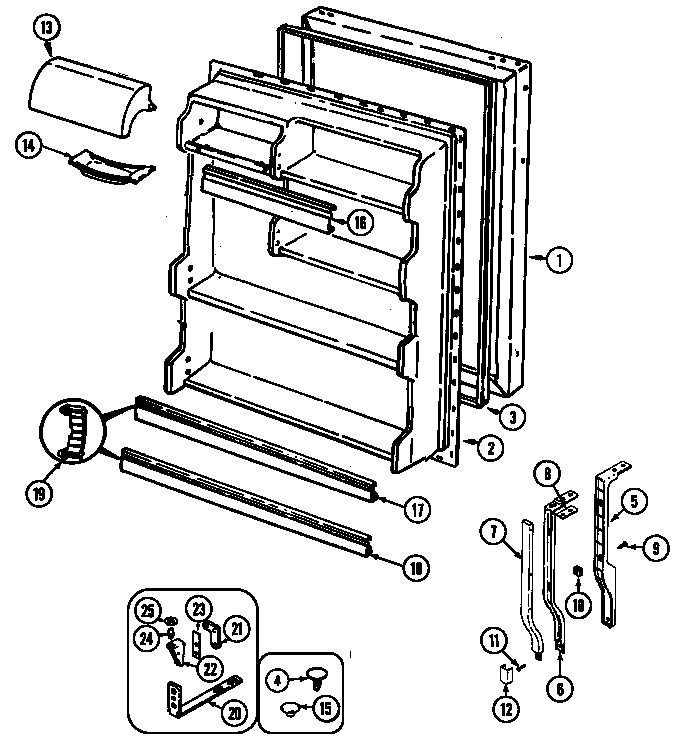

Fresh food door diagram

Refrigerator screw

Part #65275-80

Replaced by #W10856122

?
Manufacturer substitution
This part replaces 65275-80. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Refrigerator Screw 65275-13
#19

Fresh food compartment diagram

Refrigerator screw

Part #65275-13

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 65275-13. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Ice Tray 59281-2
#18

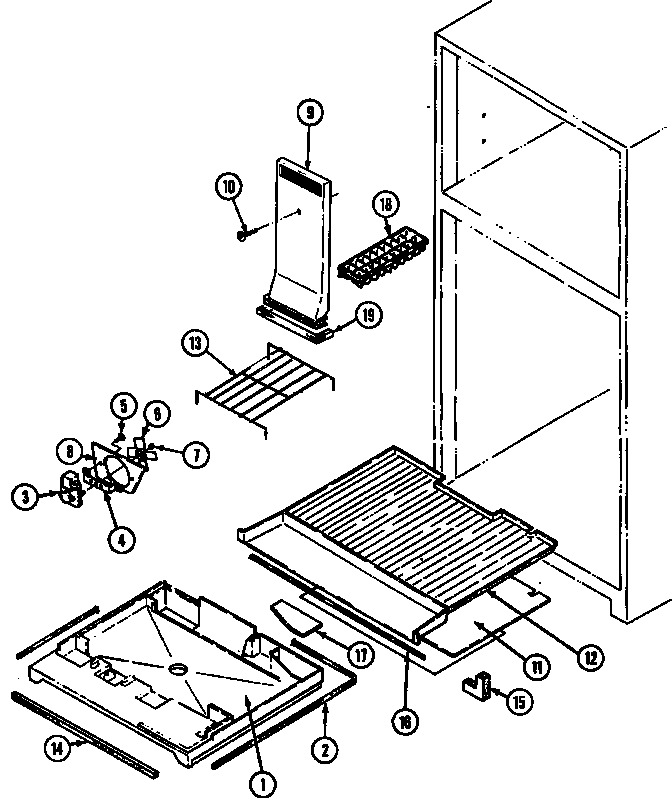

Freezer compartment diagram

Refrigerator ice tray

Part #59281-2

Replaced by #WP841180A

?
Manufacturer substitution
This part replaces 59281-2. Substitute parts can look different from the original.
This item is not returnable
$7.19 |
12% OFF Phone Price : $8.19
In Stock
Refrigerator Door Shelf Retainer Clip 70197-1
Refrigerator door shelf retainer clip

Part #70197-1

This item is not returnable
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Refrigerator Condenser Fan Motor Mounting Clip 19914-0
#17

Unit compartment & system diagram

Refrigerator condenser fan motor mounting clip

Part #19914-0

Replaced by #WP486692

?
Manufacturer substitution
This part replaces 19914-0. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Refrigerator Screw 400015-31
#10

Freezer compartment diagram

Refrigerator screw

Part #400015-31

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 400015-31. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Leveling Leg 68664-2
#26

Fresh food compartment diagram

Leveling leg

Part #68664-2

Replaced by #W11117769

?
Manufacturer substitution
This part replaces 68664-2. Substitute parts can look different from the original.
$12.39 |
14% OFF Phone Price : $14.39
In Stock
