Dirt Devil
Upright Vacuum

Model # 084015 Official Dirt Devil roommate

Here are the diagrams and repair parts for Official Dirt Devil 084015 roommate, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

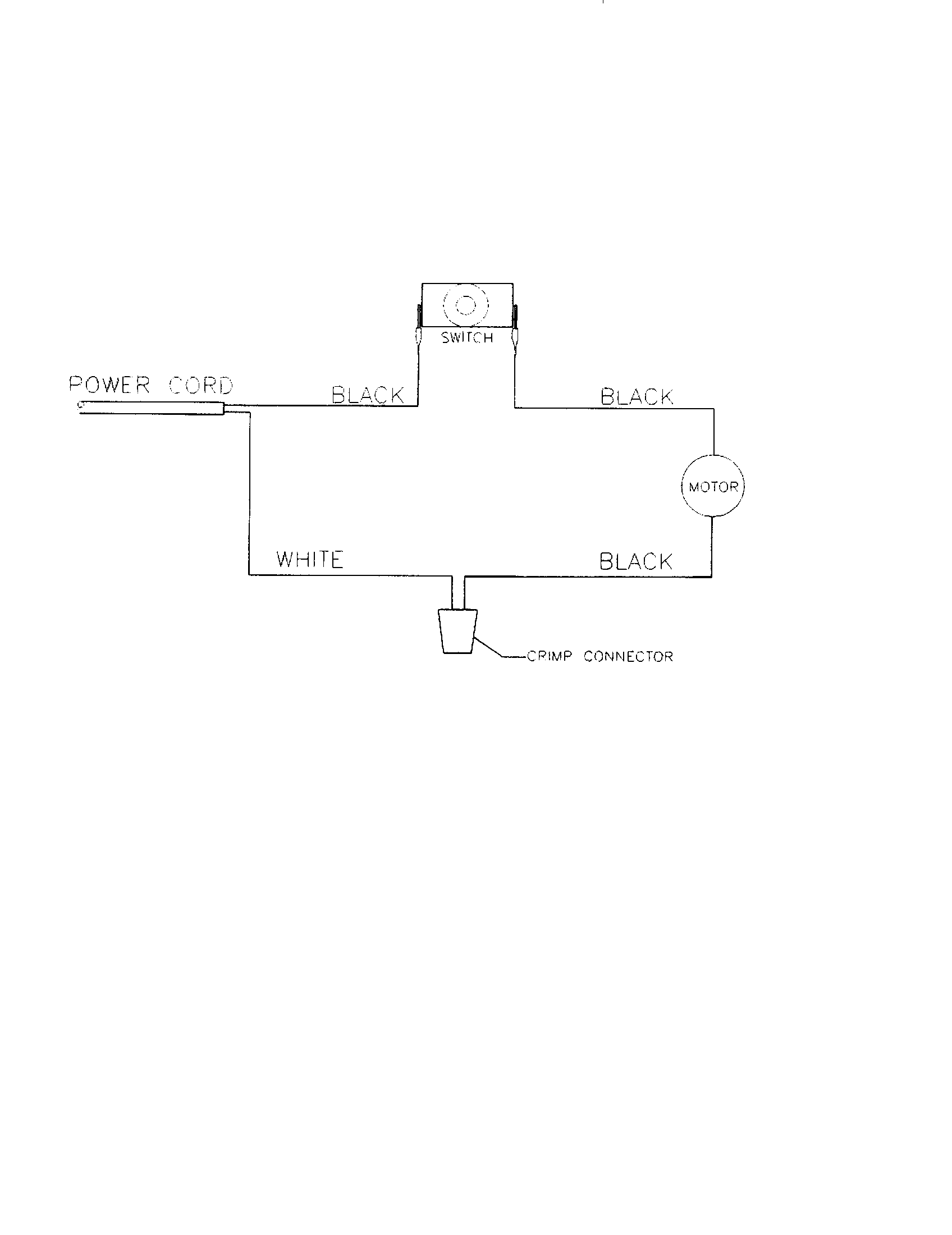

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |

Vacuum Beater Bar Belt 1-400615-600
#11

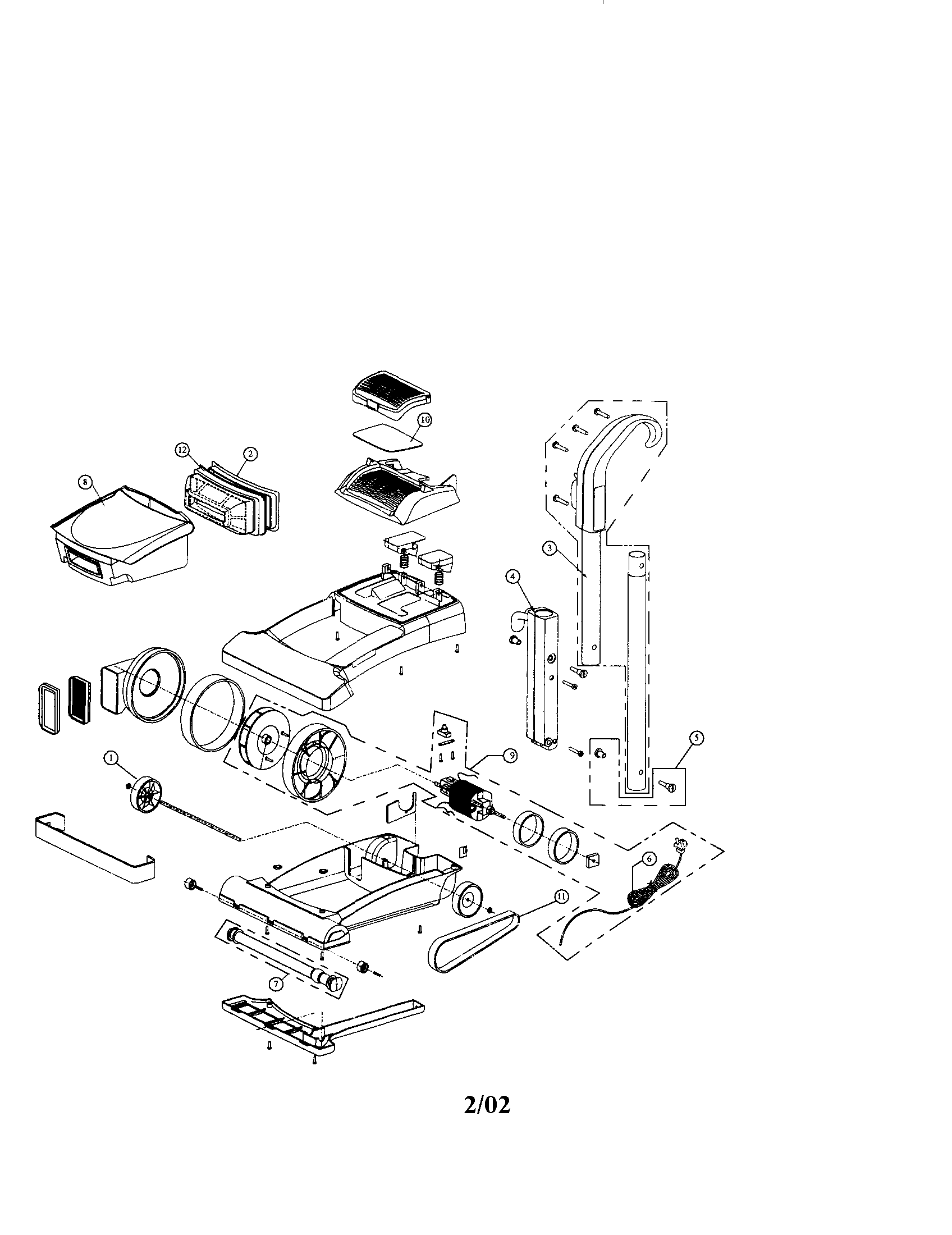

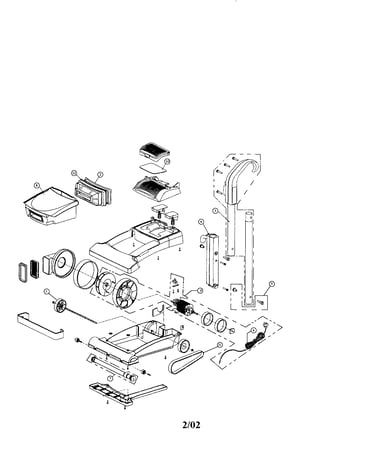

Dirt devil room-mate diagram

Vacuum beater bar belt

Part #1-400615-600

The manufacturer no longer makes this part, and there's no substitute part

Filter, 1-pack 1-400321-000
#10

Dirt devil room-mate diagram

Filter, 1-pack

Part #1-400321-000

The manufacturer no longer makes this part, and there's no substitute part

Filter, 2-pack 3-400700-001
#12

Dirt devil room-mate diagram

Filter, 2-pack

Part #3-400700-001

The manufacturer no longer makes this part, and there's no substitute part

Cord 2-400235-600
#6

Dirt devil room-mate diagram

Cord

Part #2-400235-600

The manufacturer no longer makes this part, and there's no substitute part

Wheel 1-400445-600
#1

Dirt devil room-mate diagram

Wheel

Part #1-400445-600

The manufacturer no longer makes this part, and there's no substitute part

Seal 1-400715-600
#2

Dirt devil room-mate diagram

Seal

Part #1-400715-600

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle 2-400140-600
#4

Dirt devil room-mate diagram

Vacuum handle

Part #2-400140-600

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 2-400146-000
#5

Dirt devil room-mate diagram

Lock nut

Part #2-400146-000

The manufacturer no longer makes this part, and there's no substitute part

Handle 2-400100-000
#3

Dirt devil room-mate diagram

Handle

Part #2-400100-000

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 2-400801-000
#8

Dirt devil room-mate diagram

Nozzle

Part #2-400801-000

The manufacturer no longer makes this part, and there's no substitute part
