Model # 41516106210 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 41516106210 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Main Burner 302120027
#22

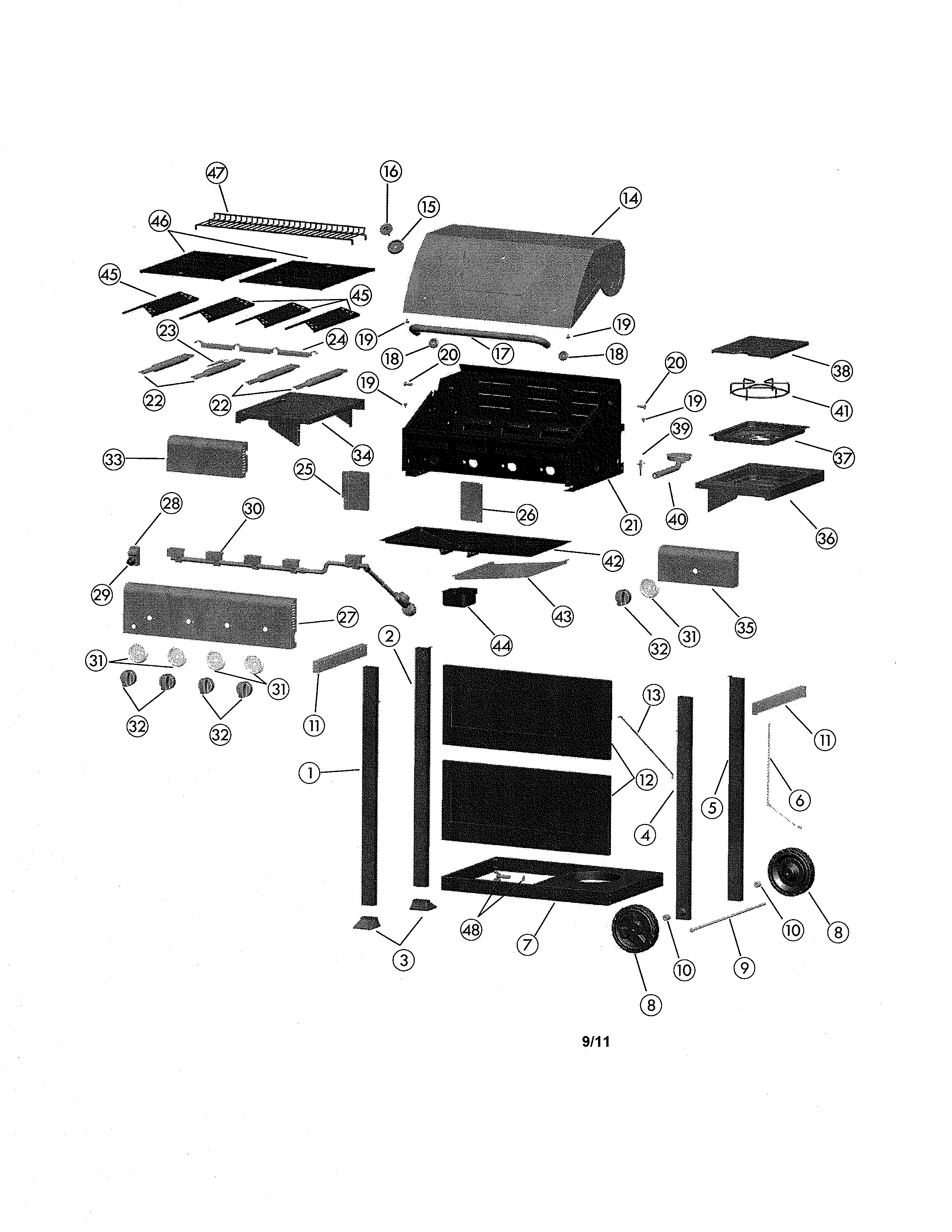

Gas grill diagram

Main burner

Part #302120027

Replaced by #SH1010007-104

?
Manufacturer substitution
This part replaces 302120027. Substitute parts can look different from the original.
$14.26 |
12% OFF Phone Price : $16.26
In Stock
Gas Grill Carryover Tube SH101002707
#24

Gas grill diagram

Gas grill carryover tube

Part #SH101002707

Replaced by #01673

?
Manufacturer substitution
This part replaces SH101002707. Substitute parts can look different from the original.
This item is not returnable
$40.82 |
13% OFF Phone Price : $46.82
In Stock
Button, F/ I 302260011-1
#29

Gas grill diagram

Button, f/ i

Part #302260011-1

Replaced by #G432-0026-W1

?
Manufacturer substitution
This part replaces 302260011-1. Substitute parts can look different from the original.
This item is not returnable
$5.69 |
15% OFF Phone Price : $6.69
In Stock
Gas Grill Cooking Grate (replaces 302110025) 302110024
#46

Gas grill diagram

Gas grill cooking grate (replaces 302110025)

Part #302110024

$39.37 |
13% OFF Phone Price : $45.37
In Stock
Model 464424 307010085

#NI02

All parts diagram

Model 464424

Part #307010085

$7.99
In Stock
Bracket SH101002709
#26

Gas grill diagram

Bracket

Part #SH101002709

This item is not returnable
$3.99
In Stock
Electrode SH101002714
#39

Gas grill diagram

Electrode

Part #SH101002714

$7.99
In Stock
Gas Grill Lid Bumper (replaces 263602100205) 302060001
#19

Gas grill diagram

Gas grill lid bumper (replaces 263602100205)

Part #302060001

This item is not returnable
$2.16
In Stock
Gas Grill Handle End 201090001
#18

Gas grill diagram

Gas grill handle end

Part #201090001

This item is not returnable
$2.16
In Stock
Gas Grill Wheel Spacer 302470077
#10

Gas grill diagram

Gas grill wheel spacer

Part #302470077

This item is not returnable
$2.16
In Stock
