Model # CEB515M2N1S5 Official GE countertop microwave

Here are the diagrams and repair parts for Official GE CEB515M2N1S5 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

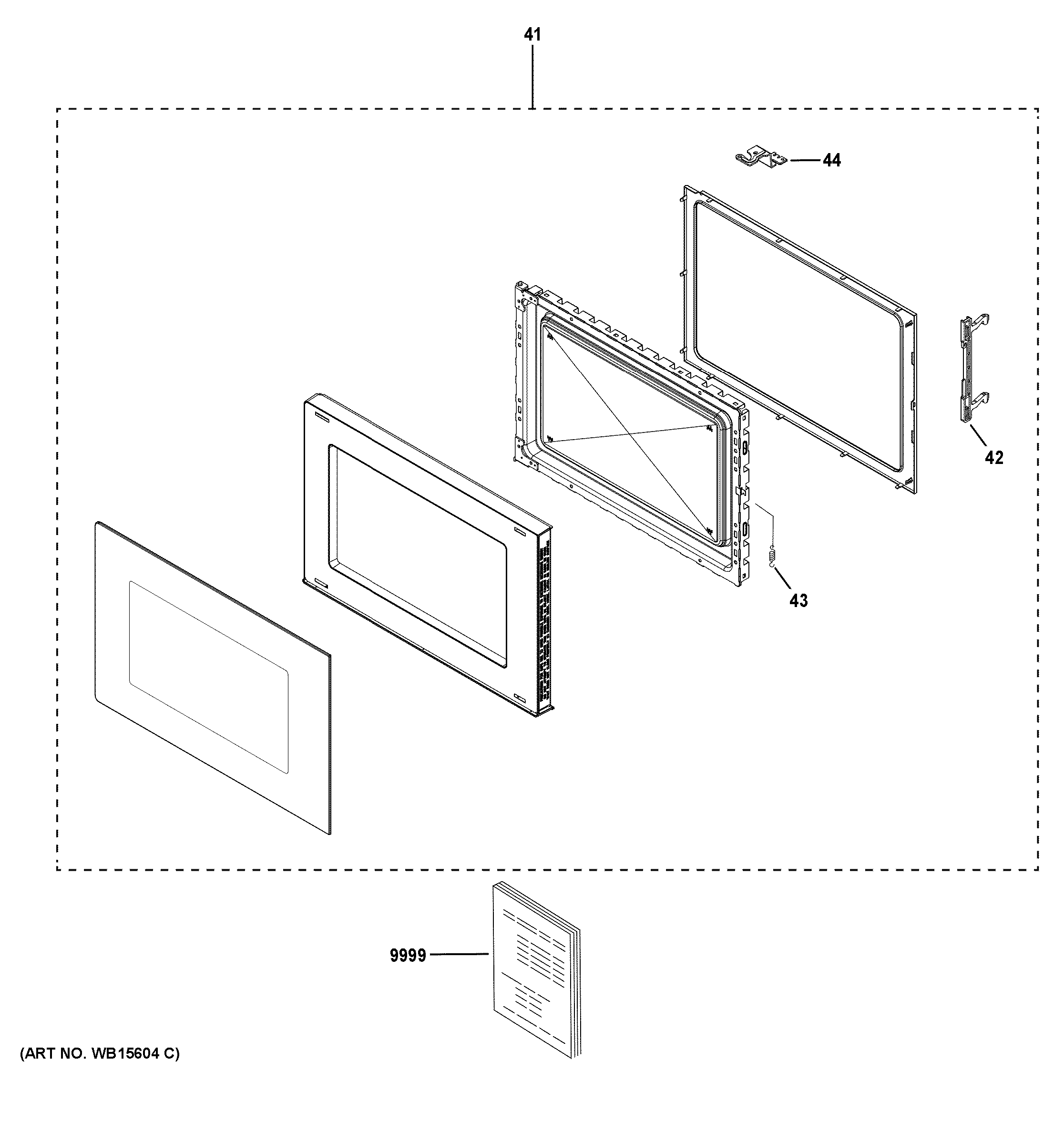

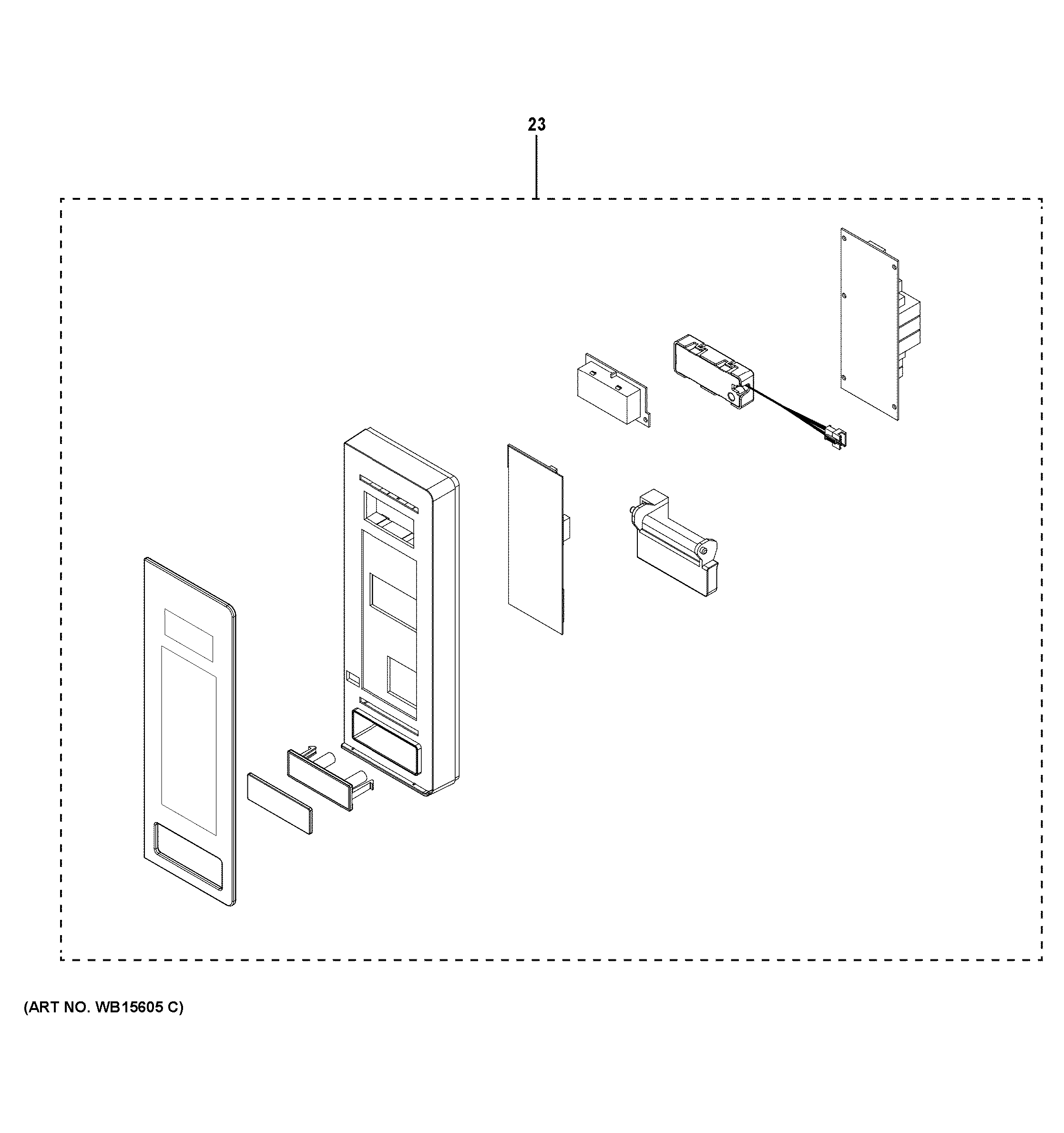

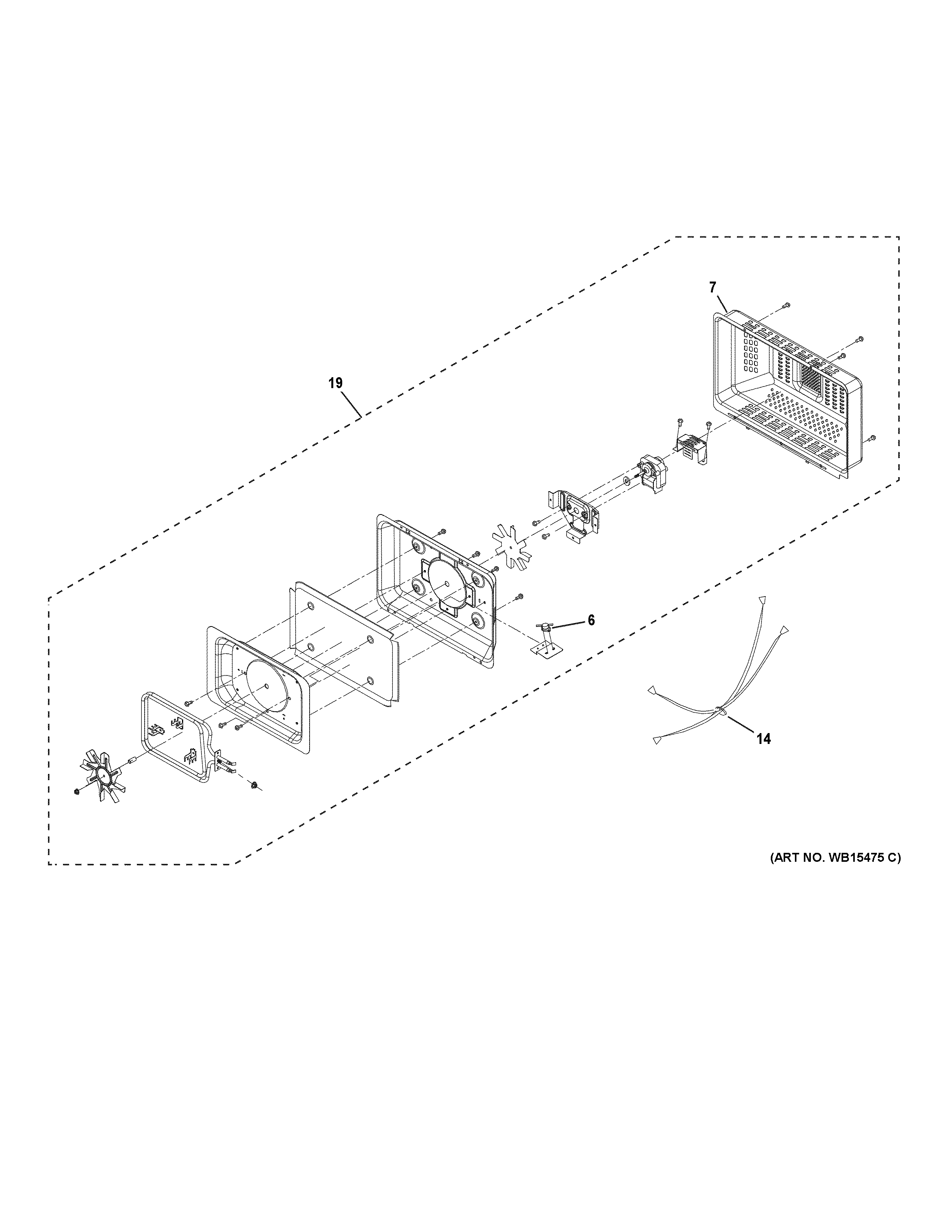

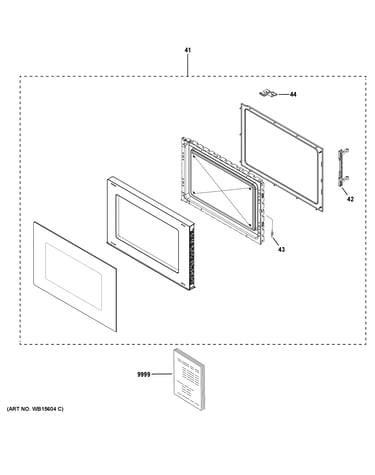

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Microwave Fuse WB27X11138
#1

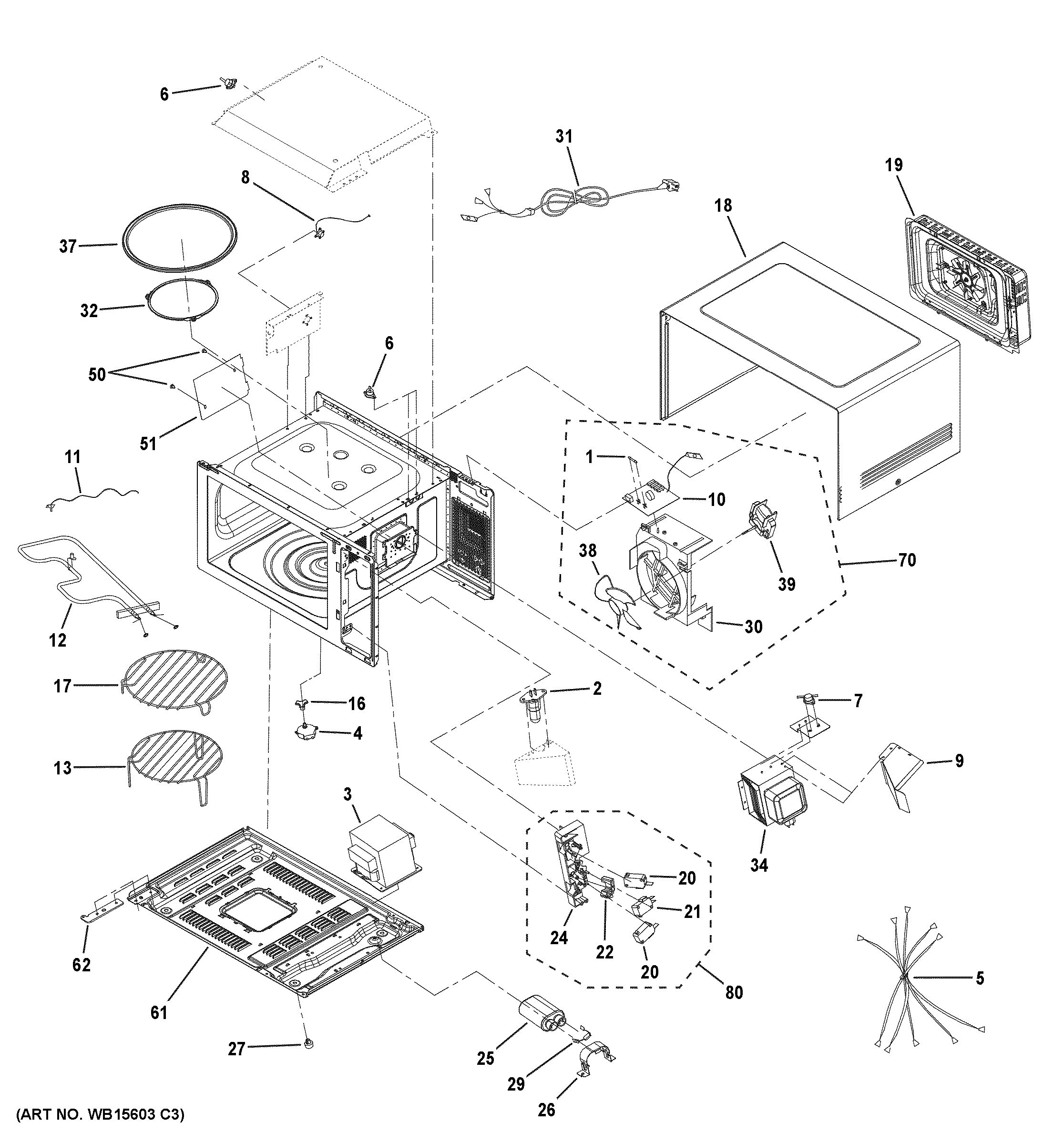

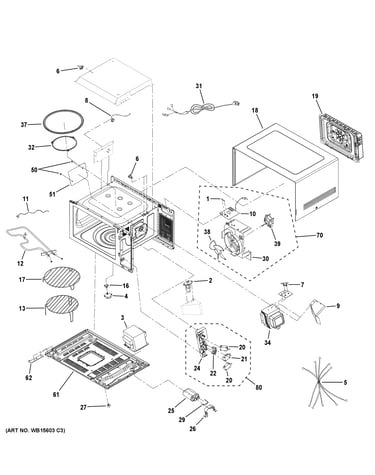

Oven cavity parts diagram

Microwave fuse

Part #WB27X11138

BEST SELLER
$50.37 |
11% OFF Phone Price : $56.37
In Stock
Microwave Door Interlock Switch (replaces Wb24x28941) WB24X10146
#20

Oven cavity parts diagram

Microwave door interlock switch (replaces wb24x28941)

Part #WB24X10146

BEST SELLER
$32.79 |
15% OFF Phone Price : $38.79
In Stock
Microwave Door Interlock Switch Bracket WB14X10049
#24

Oven cavity parts diagram

Microwave door interlock switch bracket

Part #WB14X10049

BEST SELLER
$39.59 |
13% OFF Phone Price : $45.59
In Stock
Microwave Magnetron WB27X11211
#34

Oven cavity parts diagram

Microwave magnetron

Part #WB27X11211

Replaced by #WB26X23320

?
Manufacturer substitution
This part replaces WB27X11211. Substitute parts can look different from the original.
BEST SELLER
$318.95
In Stock
Microwave Waveguide Cover WB39X10034
#51

Oven cavity parts diagram

Microwave waveguide cover

Part #WB39X10034

BEST SELLER
This item is not returnable
$13.79 |
13% OFF Phone Price : $15.79
In Stock
Microwave High-voltage Diode WB27X10849
#29

Oven cavity parts diagram

Microwave high-voltage diode

Part #WB27X10849

Replaced by #WB26X28935

?
Manufacturer substitution
This part replaces WB27X10849. Substitute parts can look different from the original.
BEST SELLER
$50.11 |
11% OFF Phone Price : $56.11
In Stock
Turn Table M WB26X30161
#4

Oven cavity parts diagram

Turn table m

Part #WB26X30161

Replaced by #WB26X32190

?
Manufacturer substitution
This part replaces WB26X30161. Substitute parts can look different from the original.
BEST SELLER
$51.05 |
11% OFF Phone Price : $57.05
In Stock
Lever Switch WB06X10864
#22

Oven cavity parts diagram

Lever switch

Part #WB06X10864

Replaced by #WB10X27080

?
Manufacturer substitution
This part replaces WB06X10864. Substitute parts can look different from the original.
$29.82 |
17% OFF Phone Price : $35.82
In Stock
H.v. Capacitor WB27X27078
#25

Oven cavity parts diagram

H.v. capacitor

Part #WB27X27078

$87.42 |
6% OFF Phone Price : $93.42
In Stock
High-voltage Transformer WB24X25617
#3

Oven cavity parts diagram

High-voltage transformer

Part #WB24X25617

$196.33
In Stock
