Thermador
Bottom-Mount Refrigerator

Model # T36IT71FN/26 Official Thermador refrigerator

Here are the diagrams and repair parts for Official Thermador T36IT71FN-26 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

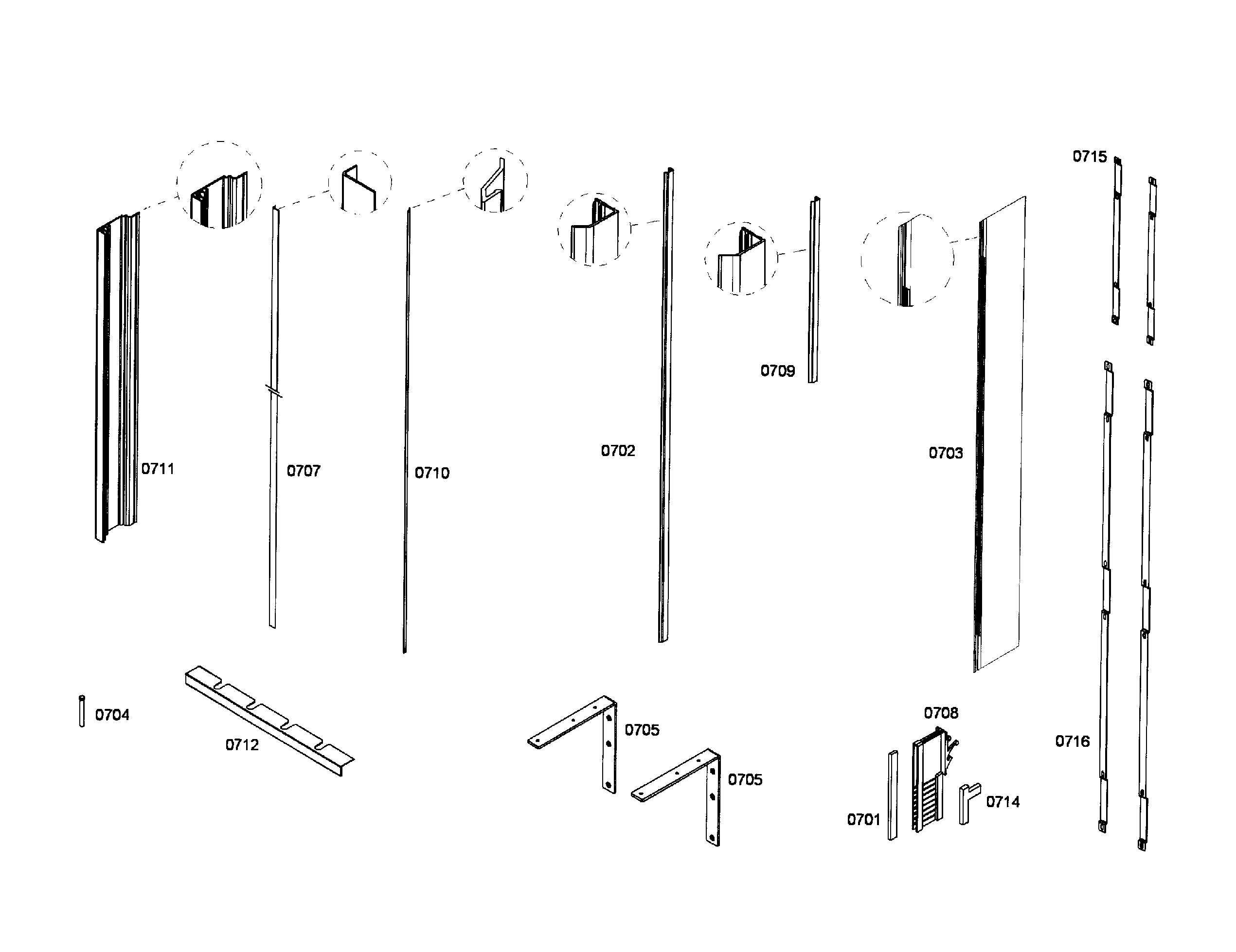

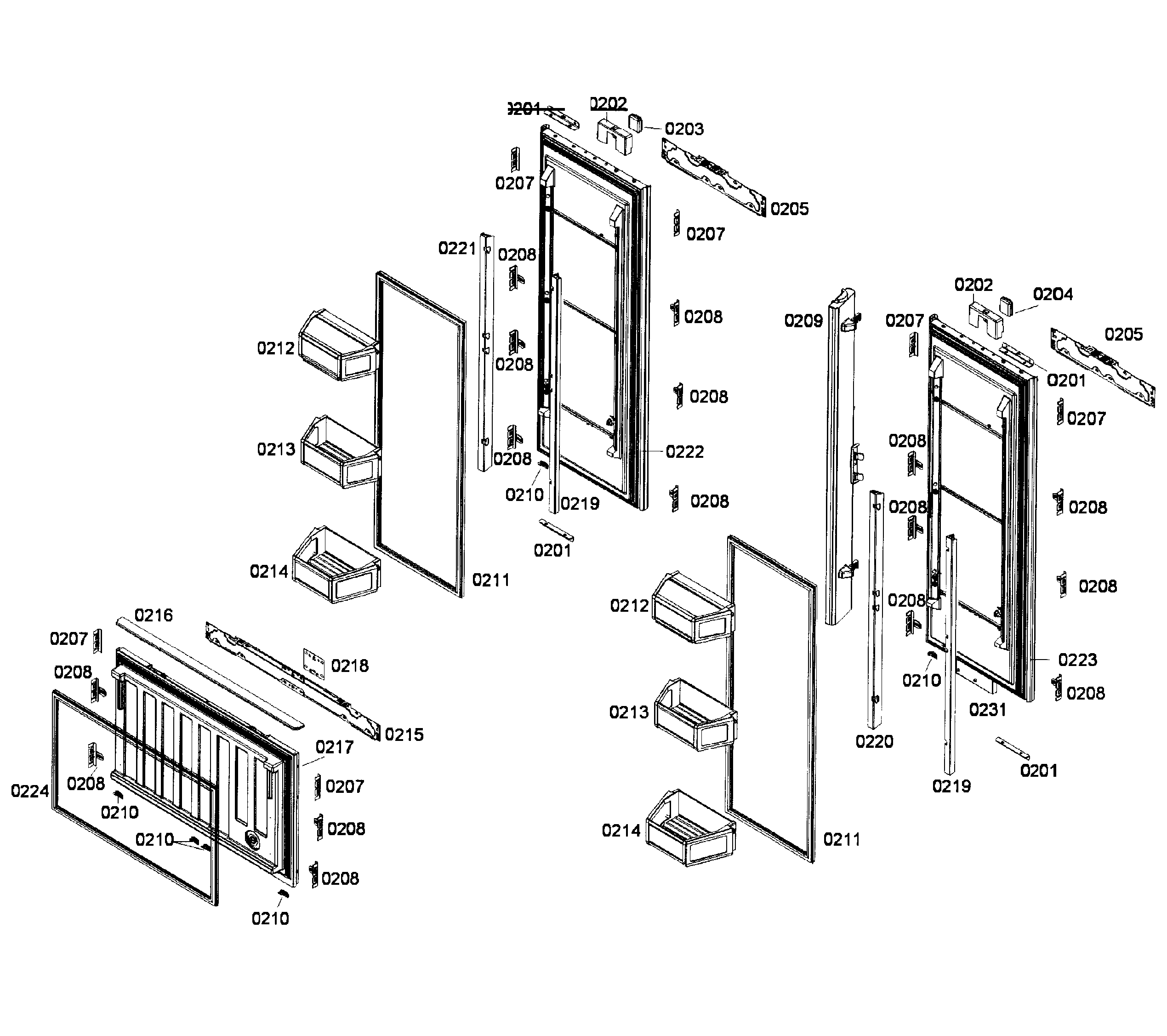

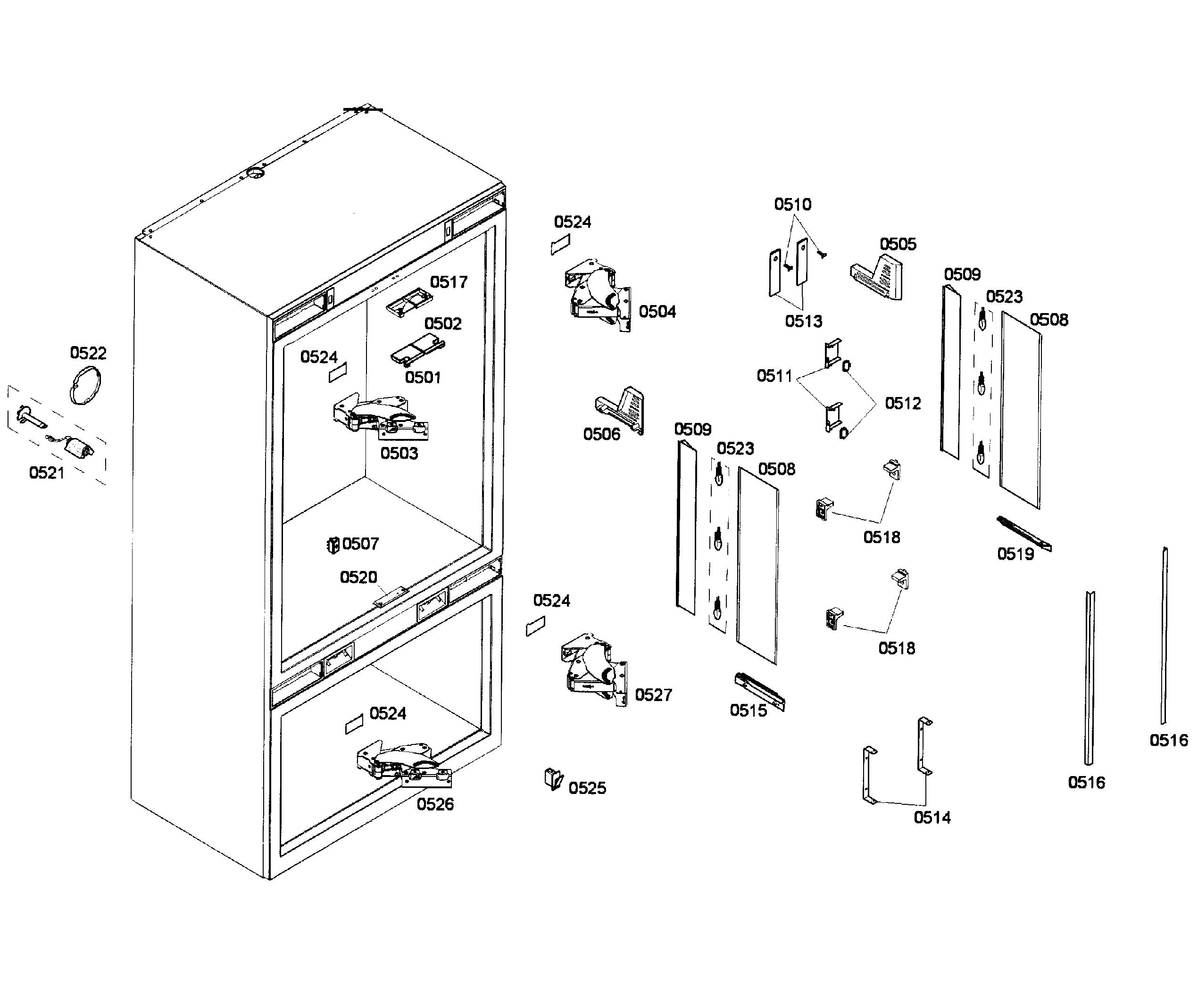

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 245 parts  |
Freezer Water Filter Cap 604684
#647

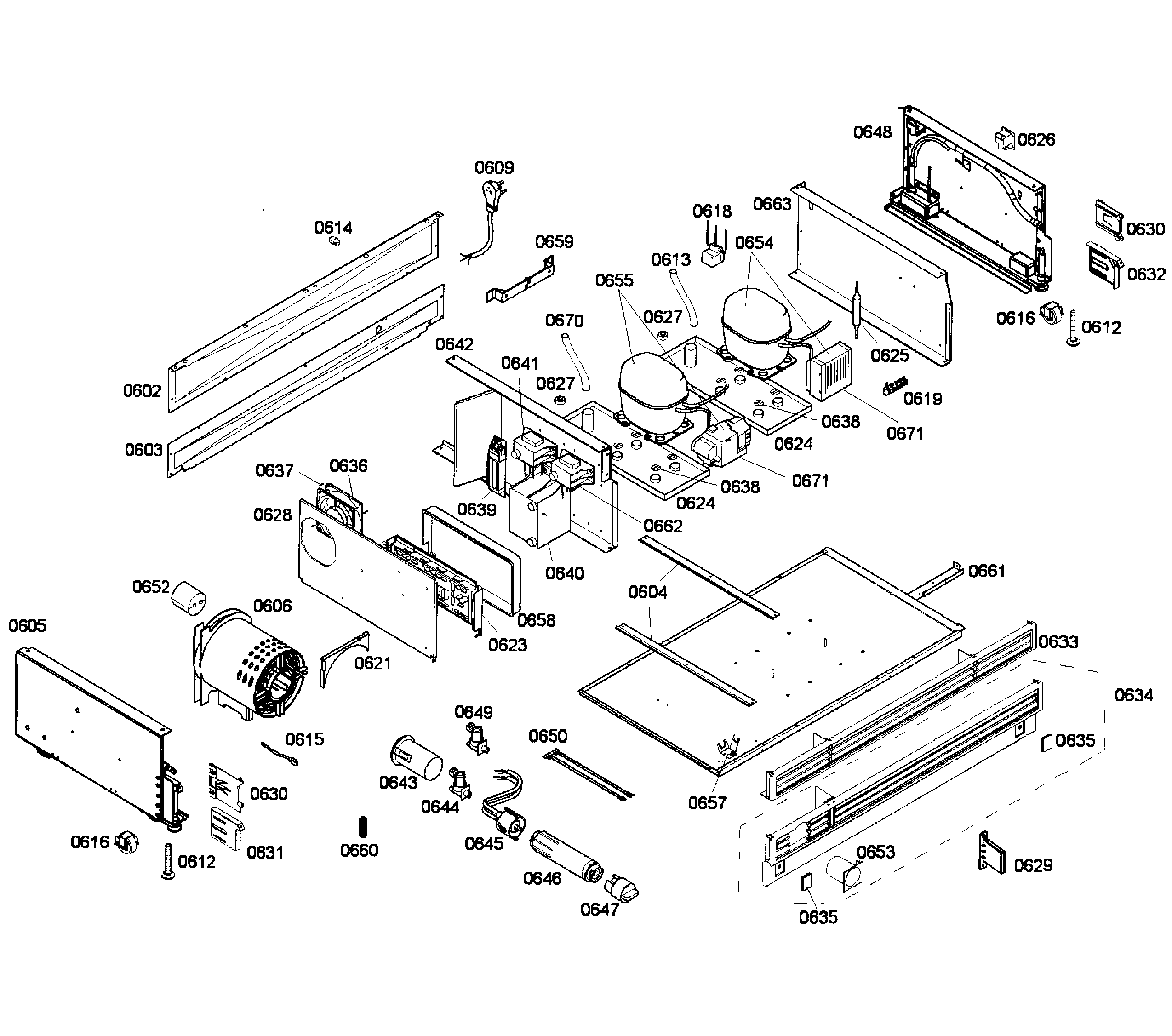

Cpmpressor diagram

Freezer water filter cap

Part #604684

Replaced by #00604684

?
Manufacturer substitution
This part replaces 604684. Substitute parts can look different from the original.
$11.49 |
15% OFF Phone Price : $13.49
In Stock
Refrigerator Drawer Slide Rail 641047
#327

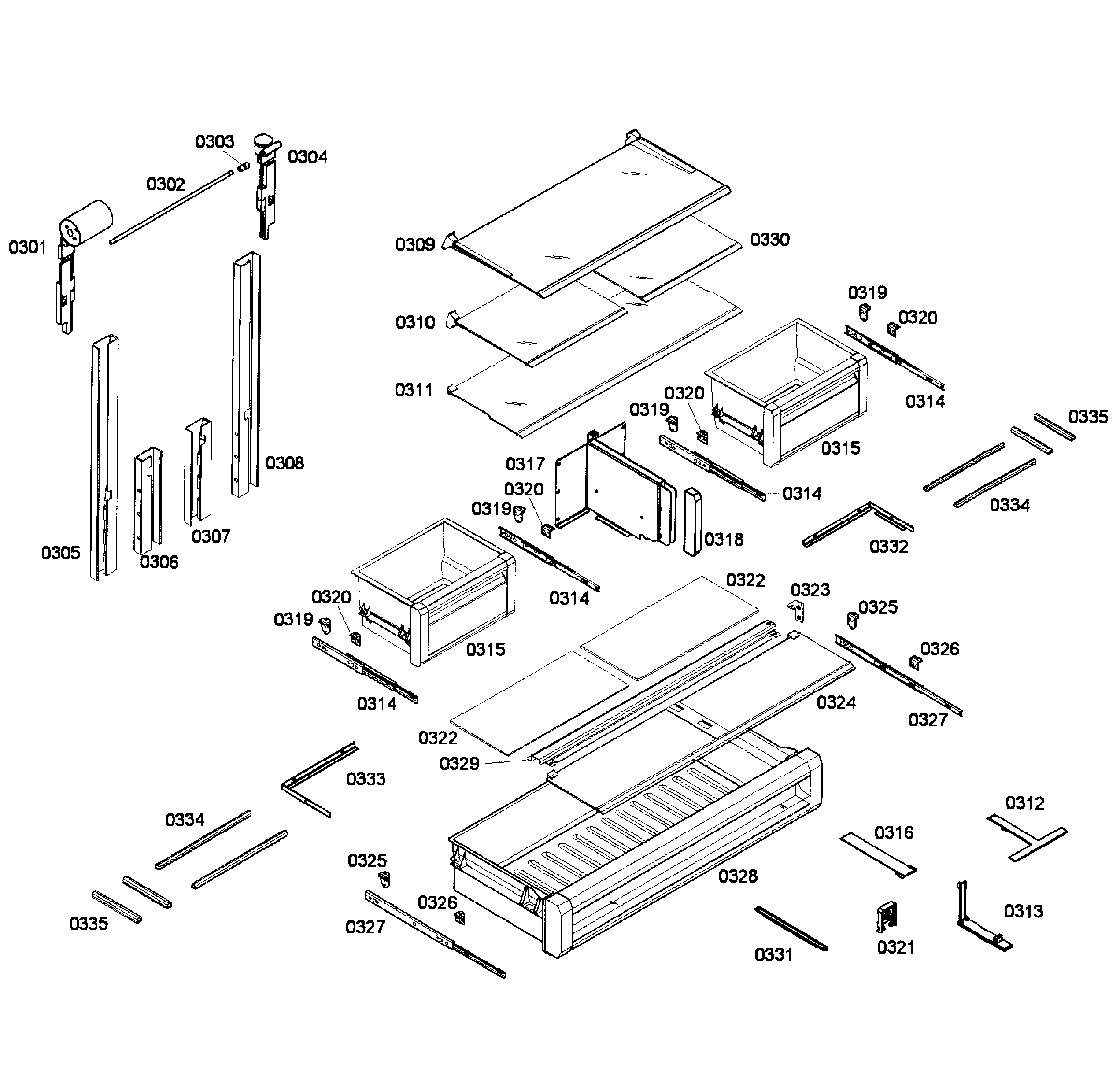

Refrigerator 2 diagram

Refrigerator drawer slide rail

Part #641047

Replaced by #00755129

?
Manufacturer substitution
This part replaces 641047. Substitute parts can look different from the original.
$71.27
In Stock
Clip 603971
Clip

Part #603971

Replaced by #00623319

?
Manufacturer substitution
This part replaces 603971. Substitute parts can look different from the original.
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
Refrigerator Fan Motor 676781
#408

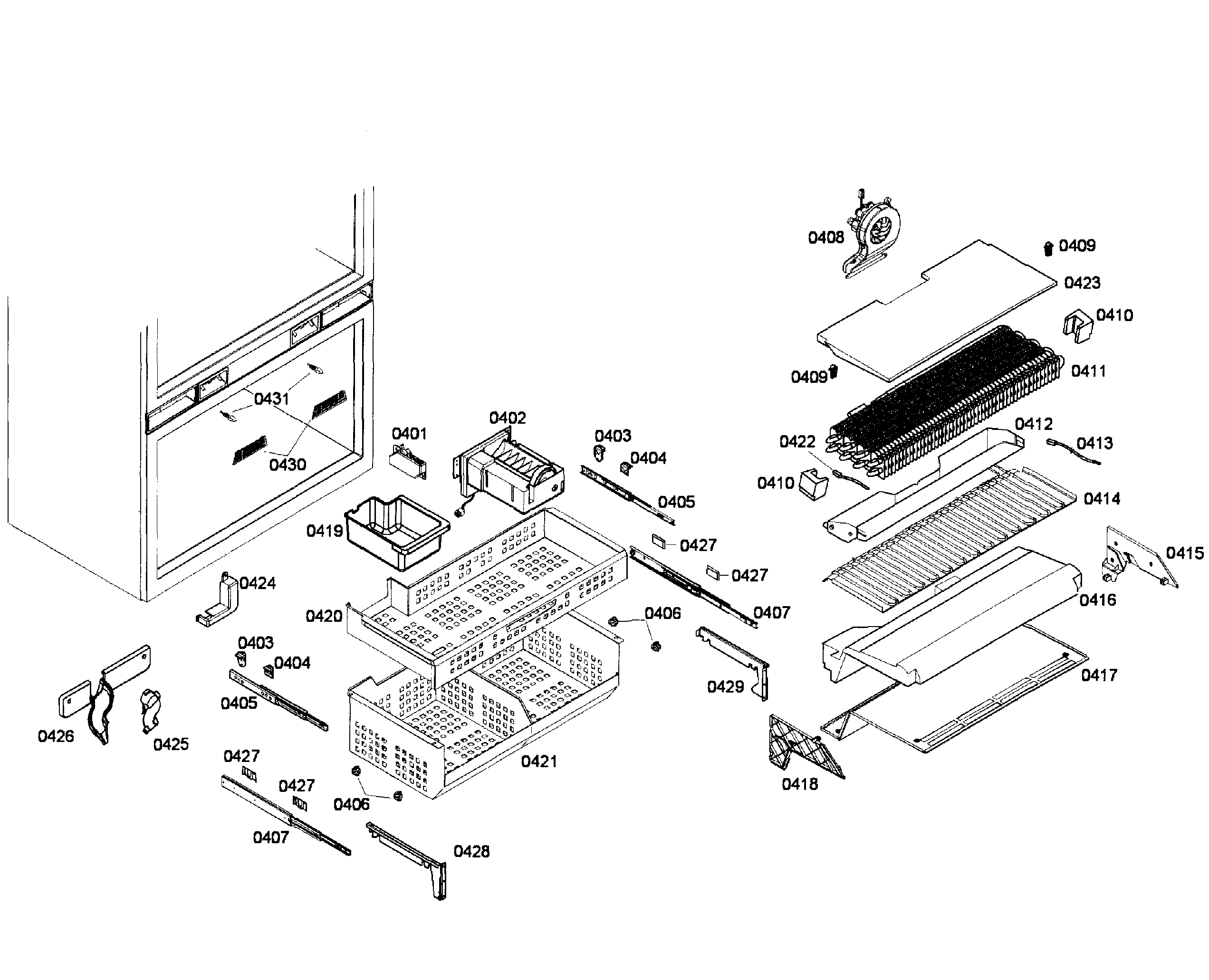

Freezer diagram

Refrigerator fan motor

Part #676781

Replaced by #00676781

?
Manufacturer substitution
This part replaces 676781. Substitute parts can look different from the original.
$197.62
In Stock
Fan 643804
#636

Cpmpressor diagram

Fan

Part #643804

Replaced by #00652338

?
Manufacturer substitution
This part replaces 643804. Substitute parts can look different from the original.
$97.79 |
11% OFF Phone Price : $109.79
In Stock
Refrigerator Filter 615452
#130

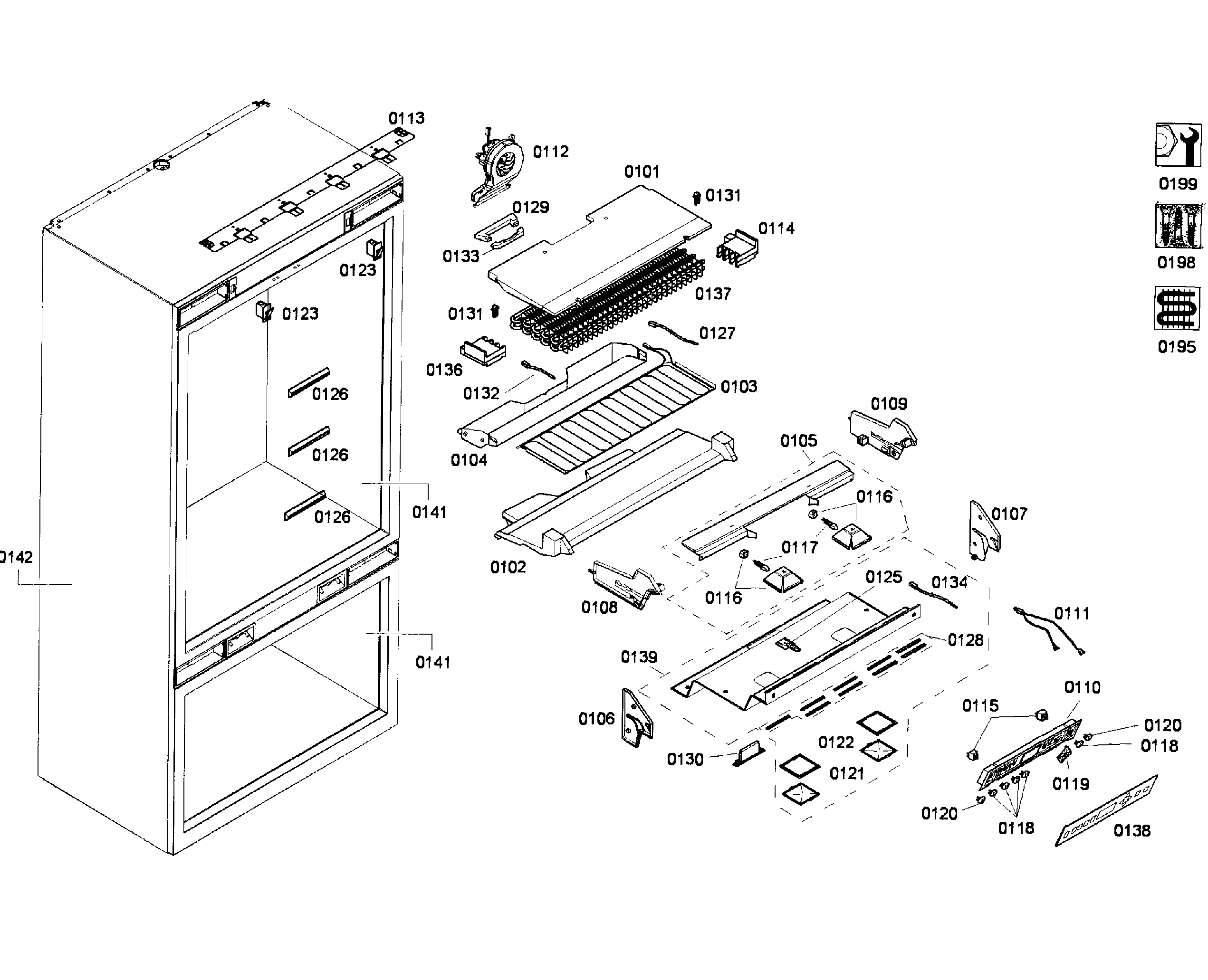

Refrigerator 1 diagram

Refrigerator filter

Part #615452

Replaced by #00636459

?
Manufacturer substitution
This part replaces 615452. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$30.19 |
17% OFF Phone Price : $36.19
In Stock
Switch 604020
Switch

Part #604020

Replaced by #00604020

?
Manufacturer substitution
This part replaces 604020. Substitute parts can look different from the original.
$18.94
In Stock
Refrigerator Fixture 682714
#105

Refrigerator 1 diagram

Refrigerator fixture

Part #682714

Replaced by #00682714

?
Manufacturer substitution
This part replaces 682714. Substitute parts can look different from the original.
$168.40
In Stock
Ice Cream Maker 700085
#402

Freezer diagram

Ice cream maker

Part #700085

Replaced by #00702092

?
Manufacturer substitution
This part replaces 700085. Substitute parts can look different from the original.
$959.80 |
$12.00 OFF Phone Price : $971.80
In Stock
Refrigerator Sheet 677450
#663

Cpmpressor diagram

Refrigerator sheet

Part #677450

Replaced by #00687646

?
Manufacturer substitution
This part replaces 677450. Substitute parts can look different from the original.
$298.87
In Stock
