Model # FU054ERD1 Official White-Westinghouse upright freezer - l284951

Here are the diagrams and repair parts for Official White-Westinghouse FU054ERD1 upright freezer - l284951, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 77 parts |

#12

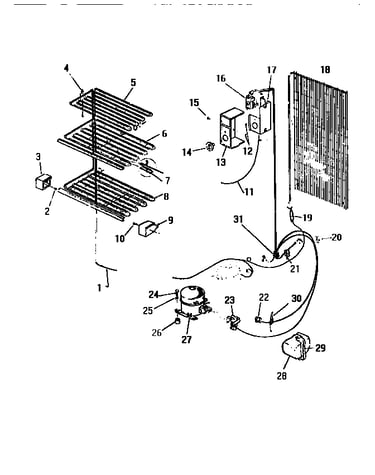

Systems diagram

Screw

Part #F55160

This item is not returnable

$2.16

In Stock

Qty

#26

Systems diagram

Grommet

Part #G151191

Replaced by #216498900

This item is not returnable

$13.39 |

13% OFF Phone Price : $15.39

In Stock

Qty

#11

Systems diagram

Tube

Part #F53194-6

Replaced by #5303916855

$47.89 |

11% OFF Phone Price : $53.89

In Stock

Qty

#21

Systems diagram

Copper clamp

Part #F116027

Replaced by #5304455846

This item is not returnable

$12.00 |

14% OFF Phone Price : $14.00

In Stock

Qty

#30

Systems diagram

Clip

Part #F122734

Replaced by #08007437

This item is not returnable

$2.16

In Stock

Qty

#24

Systems diagram

Screw 1/4-20

Part #G154589

Replaced by #5300183344

$11.26

In Stock

Qty

#30

Systems diagram

Clip

Part #R127581

The manufacturer no longer makes this part, and there's no substitute part

#21

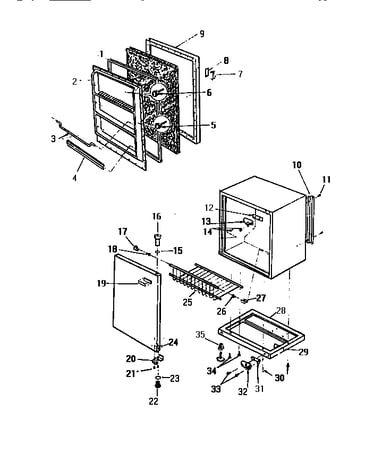

Door diagram

Screw-door s

Part #F121387

The manufacturer no longer makes this part, and there's no substitute part

Door diagram

Front

Part #F126822

The manufacturer no longer makes this part, and there's no substitute part

#33

Door diagram

Screw

Part #F900129

The manufacturer no longer makes this part, and there's no substitute part
