Gas Range

Model # TGP300TQ0 Official Estate gas freestanding range

Here are the diagrams and repair parts for Official Estate TGP300TQ0 gas freestanding range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

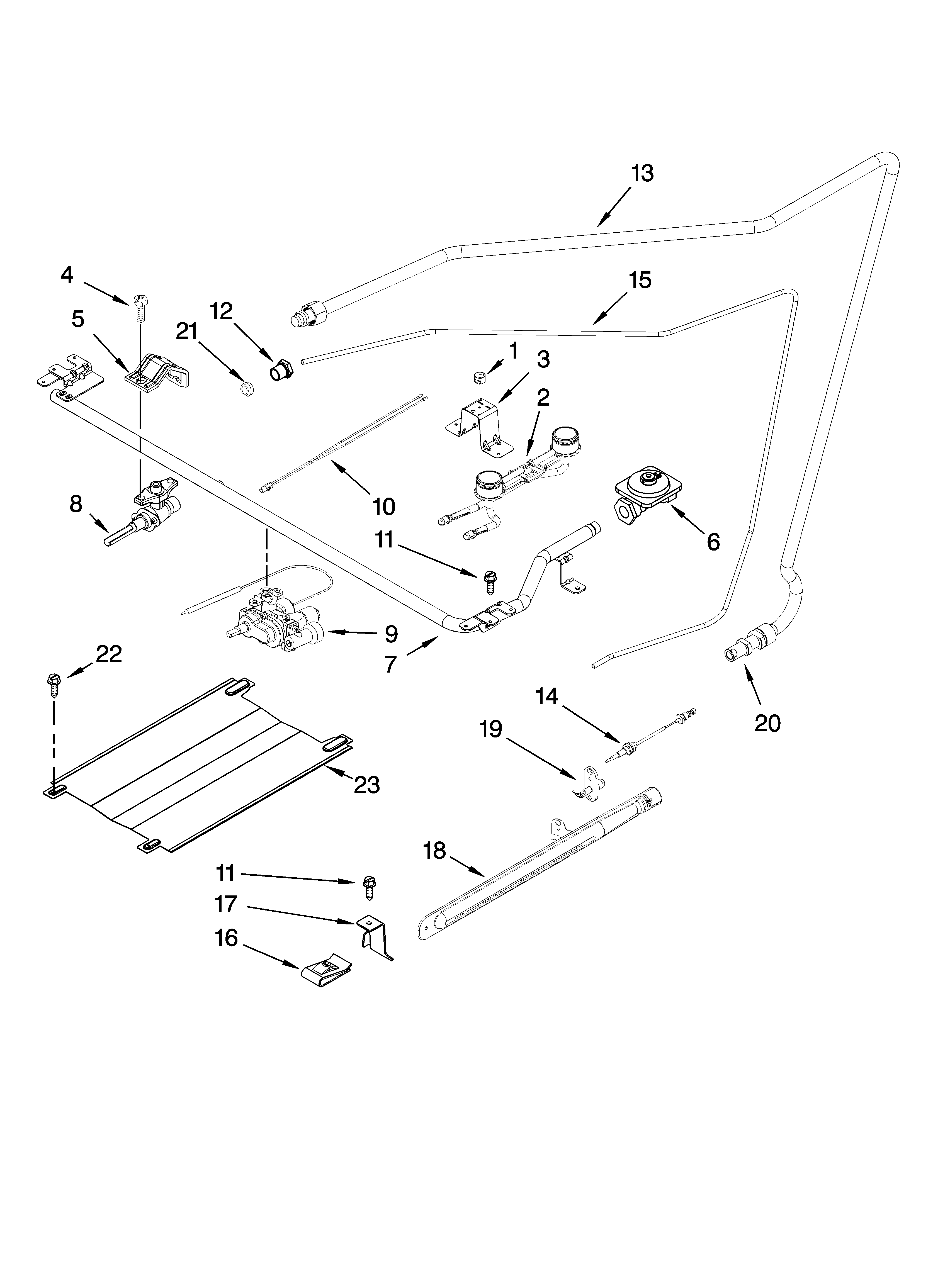

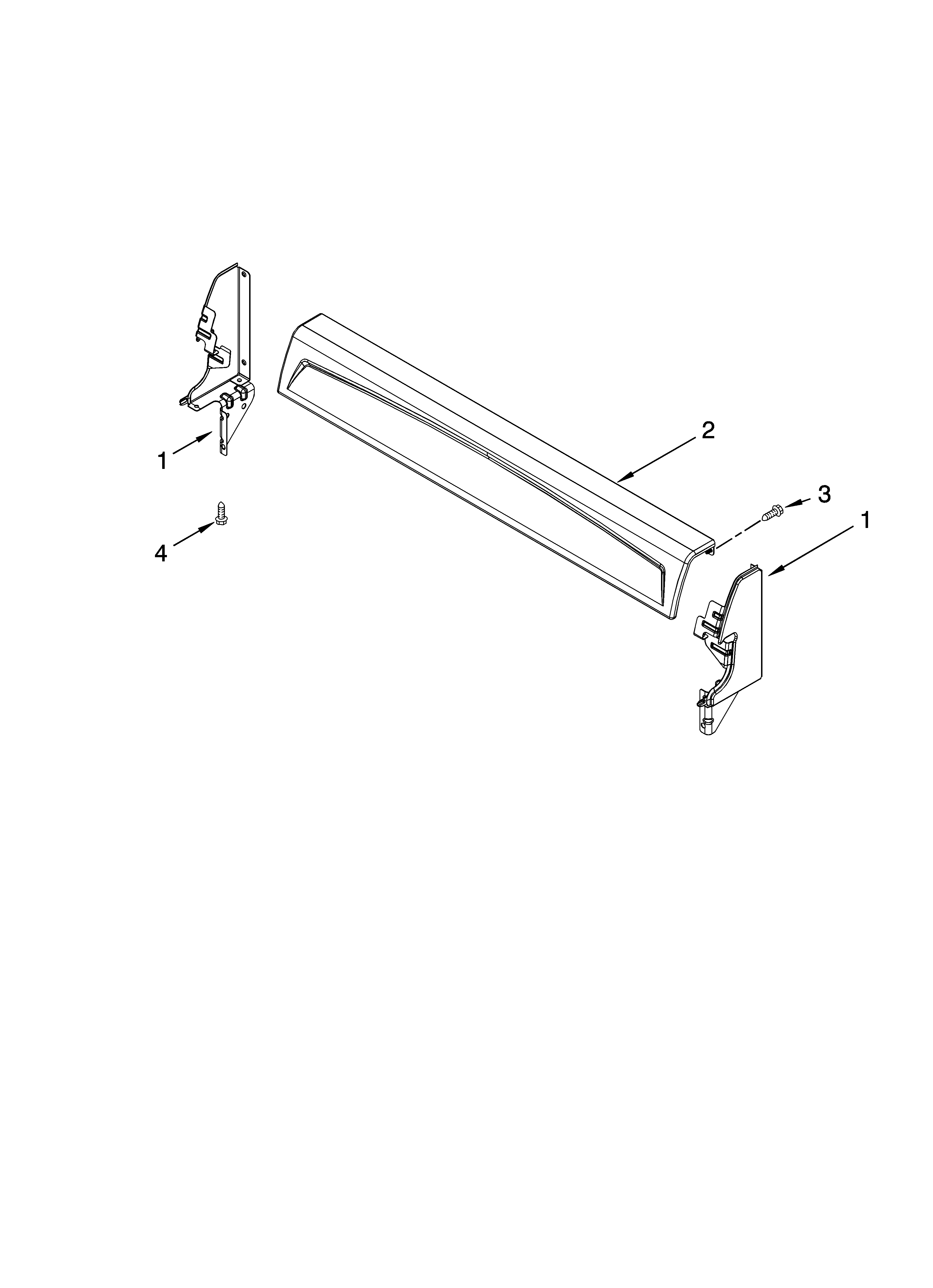

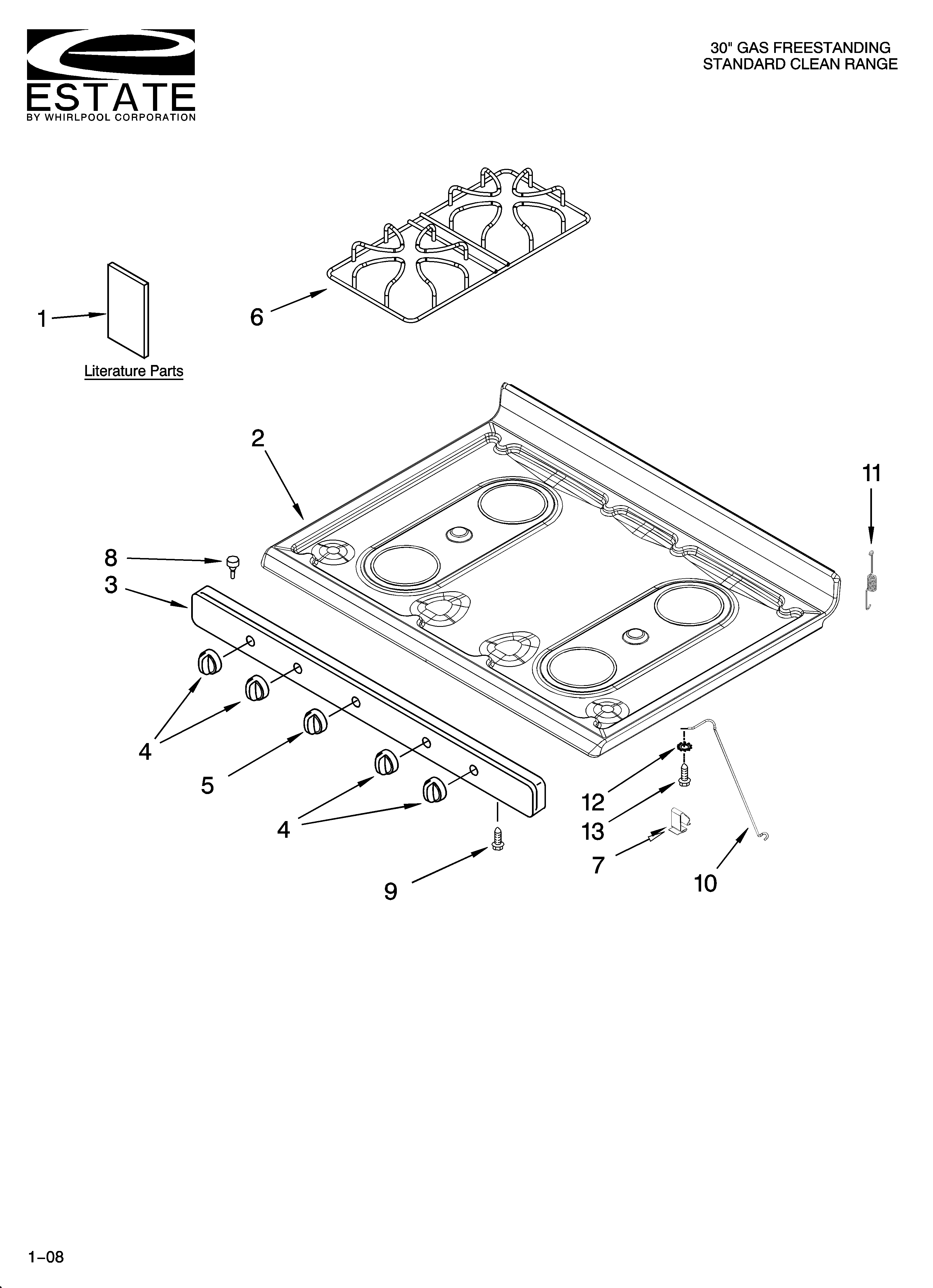

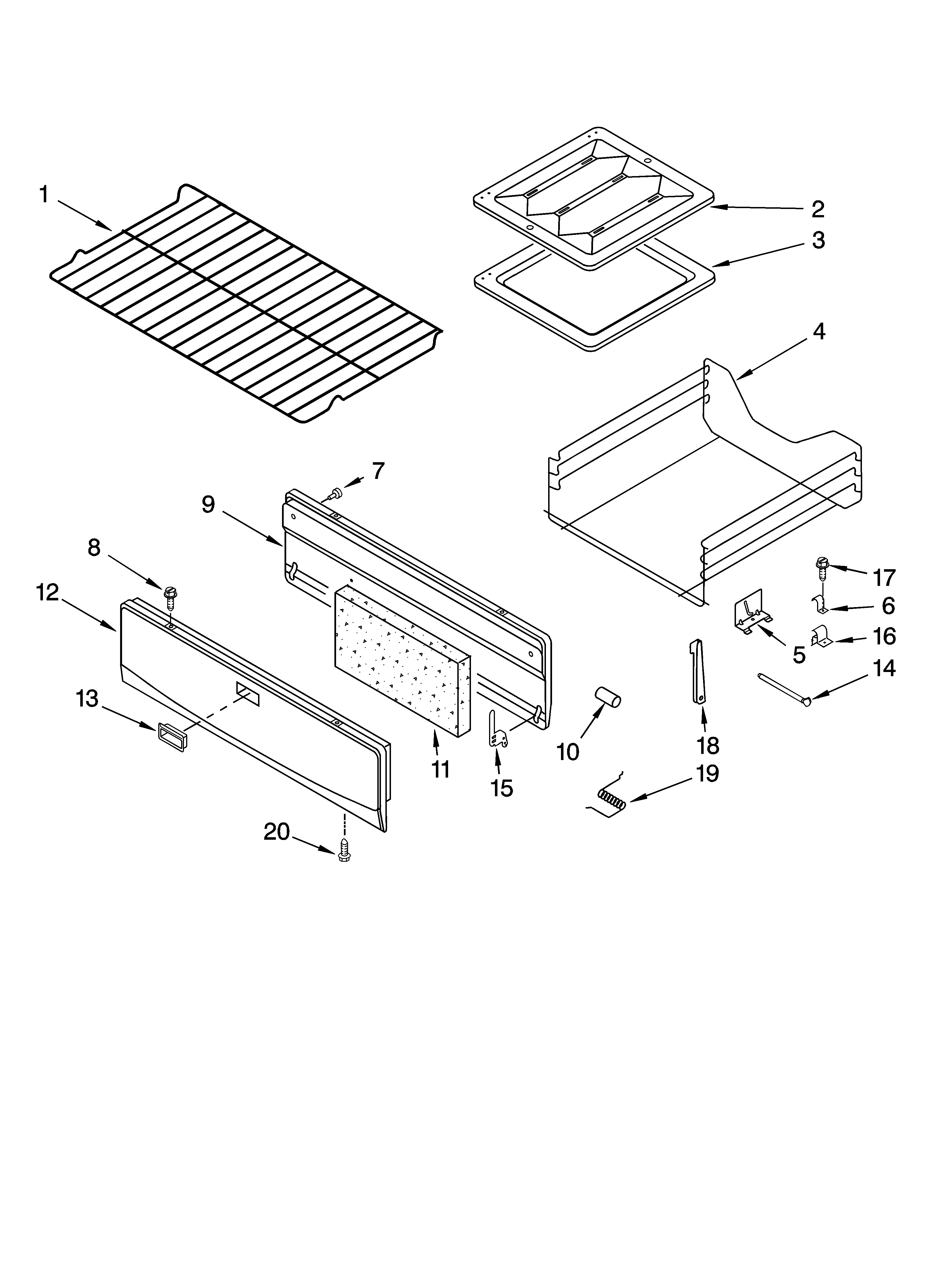

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
TGP300TQ0 Ranges
Spray W 350930
#NI

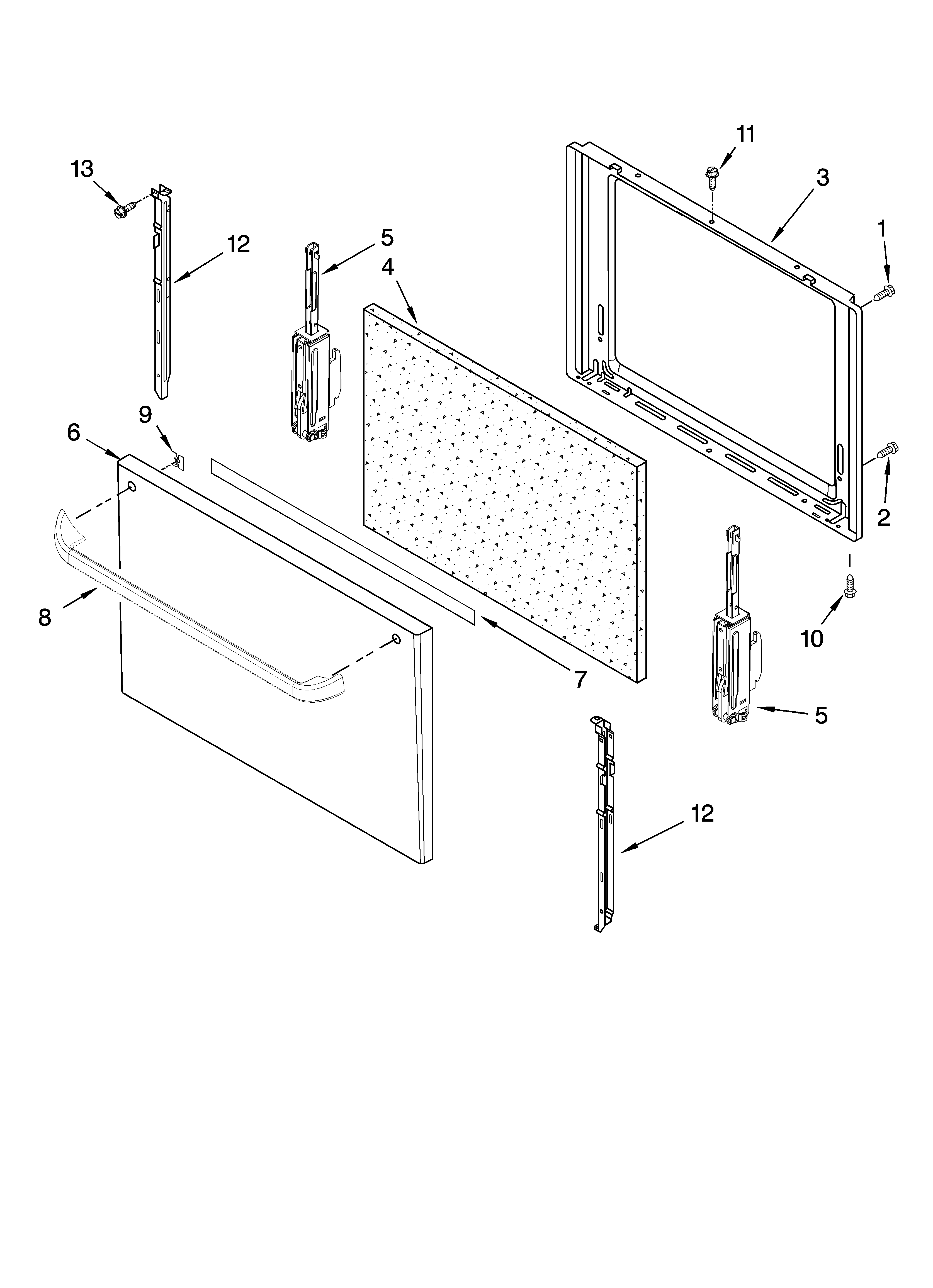

Door parts, optional parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
Screw 98006632
Screw

Part #98006632

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 98006632. Substitute parts can look different from the original.
$16.79
11% OFF Phone Price : $18.79
In Stock
Screw 98005000
Screw

Part #98005000

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 98005000. Substitute parts can look different from the original.
$16.79
11% OFF Phone Price : $18.79
In Stock
Range Leveling Leg W10058460
#10

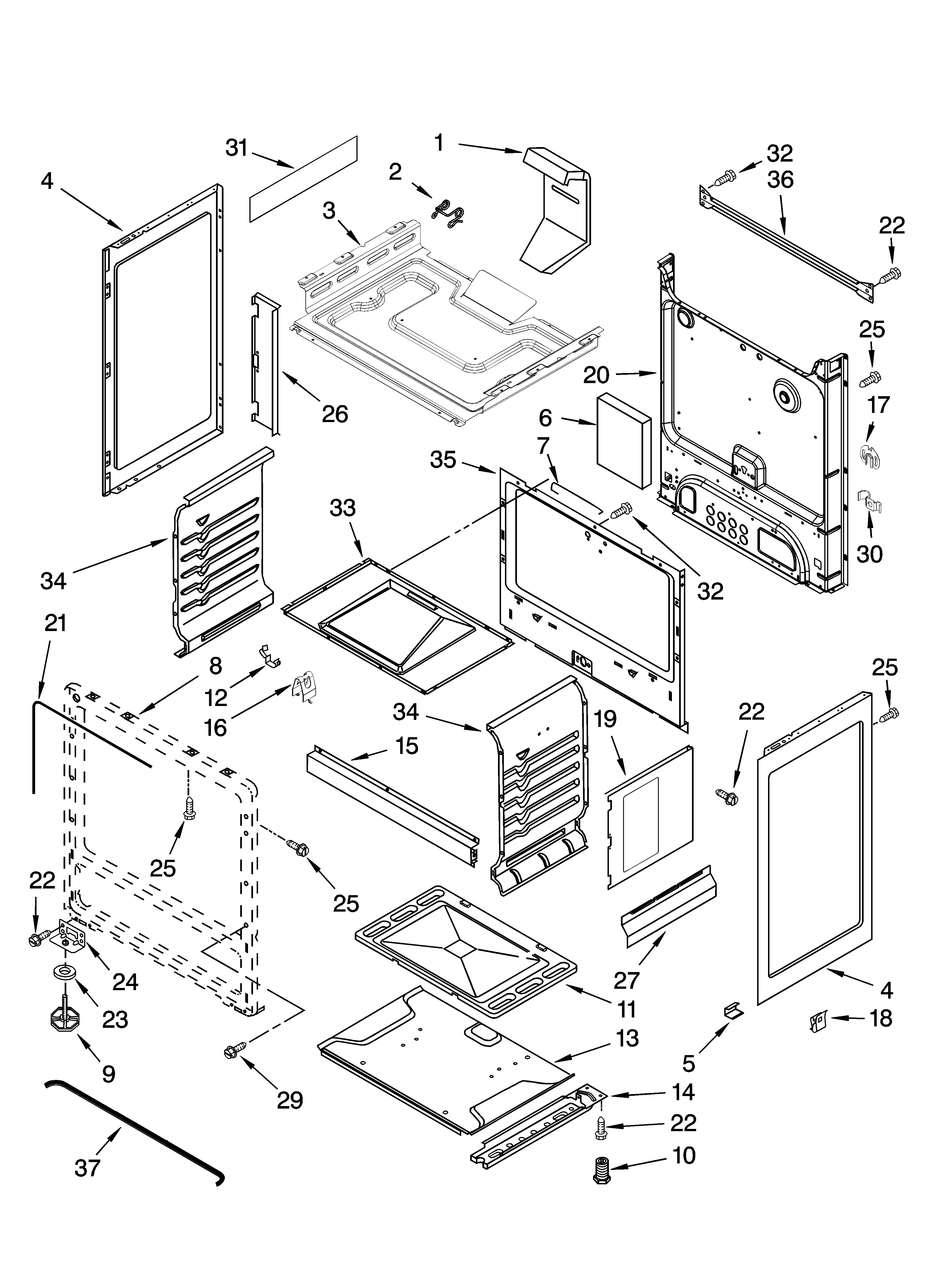

Chassis parts diagram

Range leveling leg

Part #W10058460

Replaced by #WPW10058460

?
Manufacturer substitution
This part replaces W10058460. Substitute parts can look different from the original.
This item is not returnable
$5.95
14% OFF Phone Price : $6.95
In Stock
Range Screw 98008545
#29

Chassis parts diagram

Range screw

Part #98008545

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 98008545. Substitute parts can look different from the original.
This item is not returnable
$4.67
18% OFF Phone Price : $5.67
In Stock
Screw 98004993
#10

Door parts, optional parts diagram

Screw

Part #98004993

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 98004993. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Range Screw 98006633
Range screw

Part #98006633

Replaced by #W10837731

?
Manufacturer substitution
This part replaces 98006633. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Magic Chef Range Wire Harness Retainer 98004294
#NI

Door parts, optional parts diagram

Magic chef range wire harness retainer

Part #98004294

In Stock
Range Oven Control Thermostat Bulb Clip 98005642
#12

Chassis parts diagram

Range oven control thermostat bulb clip

Part #98005642

In Stock
Door Gasket 98017163
#21

Chassis parts diagram

Door gasket

Part #98017163

Replaced by #WPW10217472

?
Manufacturer substitution
This part replaces 98017163. Substitute parts can look different from the original.
$68.28
8% OFF Phone Price : $74.28
In Stock
