Model # RVH1W/P1133108NW Official Amana range hood

Here are the diagrams and repair parts for Official Amana RVH1W-P1133108NW range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

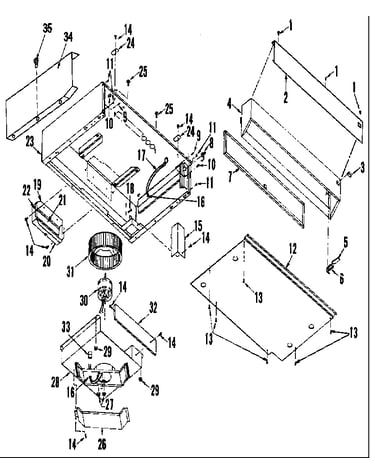

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Knob - Almond R0199730
#21

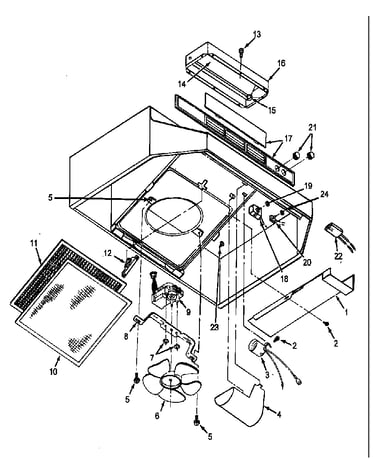

Rvh1 models diagram

Knob - almond

Part #R0199730

The manufacturer no longer makes this part, and there's no substitute part

Nameplate Assembly - White R0199727
#17

Rvh1 models diagram

Nameplate assembly - white

Part #R0199727

The manufacturer no longer makes this part, and there's no substitute part

Light Lens R0199456
#4

Rvh1 models diagram

Light lens

Part #R0199456

The manufacturer no longer makes this part, and there's no substitute part

Ductfree Filter R0199463

#NI

All parts diagram

Ductfree filter

Part #R0199463

The manufacturer no longer makes this part, and there's no substitute part

Filter Retainer R0199461
#12

Rvh1 models diagram

Filter retainer

Part #R0199461

The manufacturer no longer makes this part, and there's no substitute part

Damper Assembly (includes Item No. 14 & 15) R0199466
#16

Rvh1 models diagram

Damper assembly (includes item no. 14 & 15)

Part #R0199466

The manufacturer no longer makes this part, and there's no substitute part

Nameplate Assembly - Almond R0199728
#17

Rvh1 models diagram

Nameplate assembly - almond

Part #R0199728

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly (includes Items No. 6, 7, 8) R0199635
#9

Rvh1 models diagram

Motor assembly (includes items no. 6, 7, 8)

Part #R0199635

The manufacturer no longer makes this part, and there's no substitute part

Knob R0199465
#21

Rvh1 models diagram

Knob

Part #R0199465

The manufacturer no longer makes this part, and there's no substitute part

Bulb Holder W/wires R0199455
#3

Rvh1 models diagram

Bulb holder w/wires

Part #R0199455

The manufacturer no longer makes this part, and there's no substitute part
