Model # DK50-P1307704R Official Amana dehumidifier

Here are the diagrams and repair parts for Official Amana DK50-P1307704R dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Wire, Jumper (grey) (non-illus) R0211575
#999E

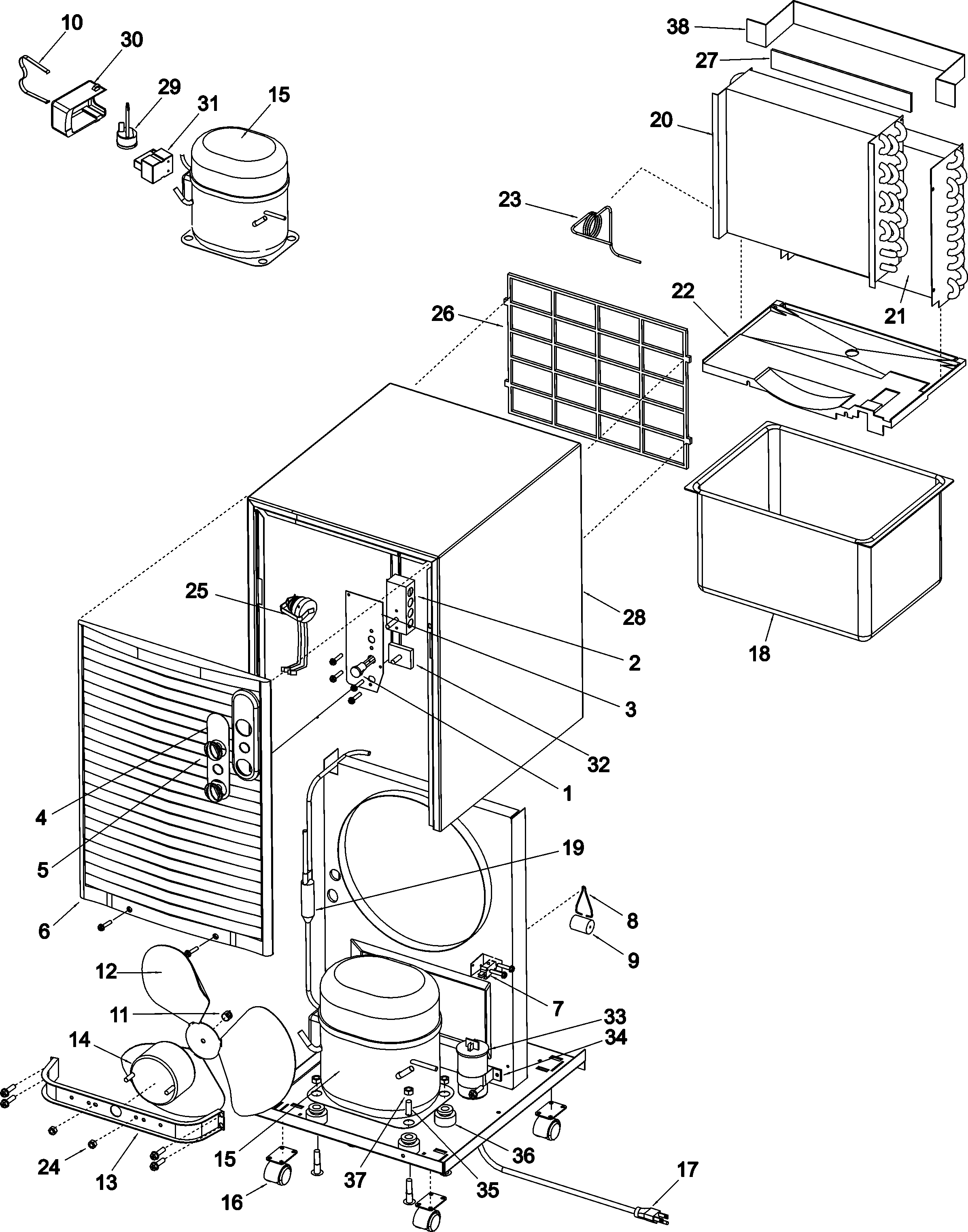

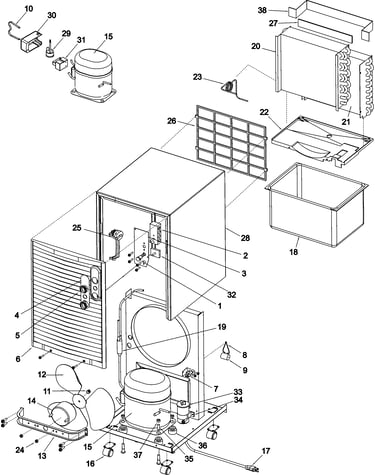

Cabinet diagram

Wire, jumper (grey) (non-illus)

Part #R0211575

The manufacturer no longer makes this part, and there's no substitute part

Clip - Fan Blade R0211522
#11

Cabinet diagram

Clip - fan blade

Part #R0211522

The manufacturer no longer makes this part, and there's no substitute part

Start Switch R0211519
#7

Cabinet diagram

Start switch

Part #R0211519

The manufacturer no longer makes this part, and there's no substitute part

Wire, Lead (red) (non-illus) R0211546
#999B

Cabinet diagram

Wire, lead (red) (non-illus)

Part #R0211546

The manufacturer no longer makes this part, and there's no substitute part

Gasket - Sponge Rubber R0211558
#27

Cabinet diagram

Gasket - sponge rubber

Part #R0211558

The manufacturer no longer makes this part, and there's no substitute part

Knob - Humidistat R9900207
#5

Cabinet diagram

Knob - humidistat

Part #R9900207

The manufacturer no longer makes this part, and there's no substitute part

Clip - Protector (non-illus) R9900044
#999F

Cabinet diagram

Clip - protector (non-illus)

Part #R9900044

The manufacturer no longer makes this part, and there's no substitute part

Capillary Tube R9900221
#23

Cabinet diagram

Capillary tube

Part #R9900221

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade & Clip R0211523
#12

Cabinet diagram

Fan blade & clip

Part #R0211523

The manufacturer no longer makes this part, and there's no substitute part

Nut R9900223
#39

Cabinet diagram

Nut

Part #R9900223

The manufacturer no longer makes this part, and there's no substitute part
