Model # 738558000 Official Sears watersaver toilet

Here are the diagrams and repair parts for Official Sears 738558000 watersaver toilet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |

Diaphragm A241
#4

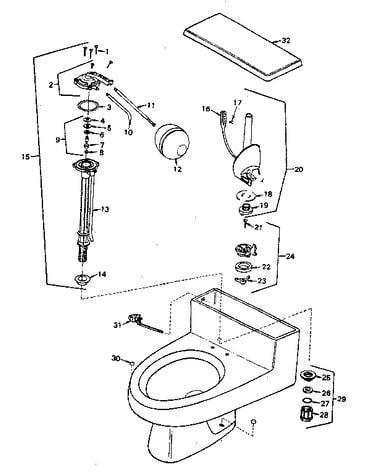

Unit parts diagram

Diaphragm

Part #A241

The manufacturer no longer makes this part, and there's no substitute part

Van Blt Cap 54008
#30B

Unit parts diagram

Van blt cap

Part #54008

The manufacturer no longer makes this part, and there's no substitute part

B Tank Lid 301304LID
#32A

Unit parts diagram

B tank lid

Part #301304LID

The manufacturer no longer makes this part, and there's no substitute part

Bl Bolt Cap 54006
#30C

Unit parts diagram

Bl bolt cap

Part #54006

The manufacturer no longer makes this part, and there's no substitute part

Activator 329
#31B

Unit parts diagram

Activator

Part #329

The manufacturer no longer makes this part, and there's no substitute part

Plunger Assembly A233
#9

Unit parts diagram

Plunger assembly

Part #A233

The manufacturer no longer makes this part, and there's no substitute part

Disc 263
#18

Unit parts diagram

Disc

Part #263

The manufacturer no longer makes this part, and there's no substitute part

Tank Lid 3912733013
#32F

Unit parts diagram

Tank lid

Part #3912733013

The manufacturer no longer makes this part, and there's no substitute part

V Tank Lid 301380LID
#32B

Unit parts diagram

V tank lid

Part #301380LID

The manufacturer no longer makes this part, and there's no substitute part

Bolt Cap 54036
#30E

Unit parts diagram

Bolt cap

Part #54036

The manufacturer no longer makes this part, and there's no substitute part
