Model # SP135T Official Lincoln welder

Here are the diagrams and repair parts for Official Lincoln SP135T welder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

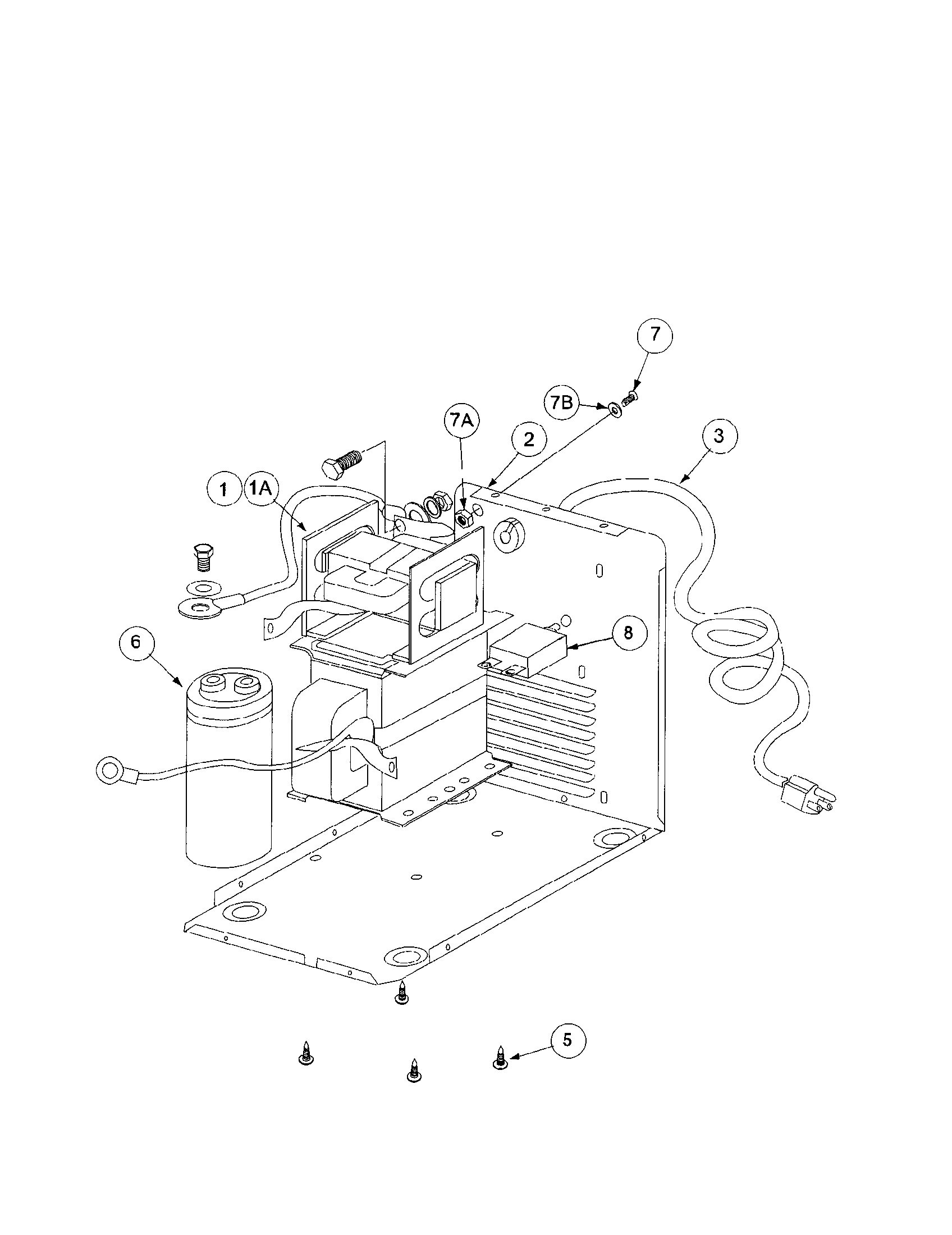

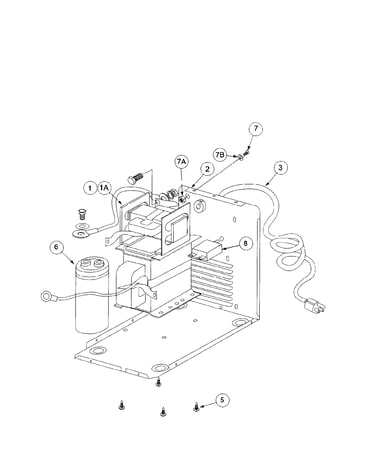

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Fan Motor M15787-1
#3

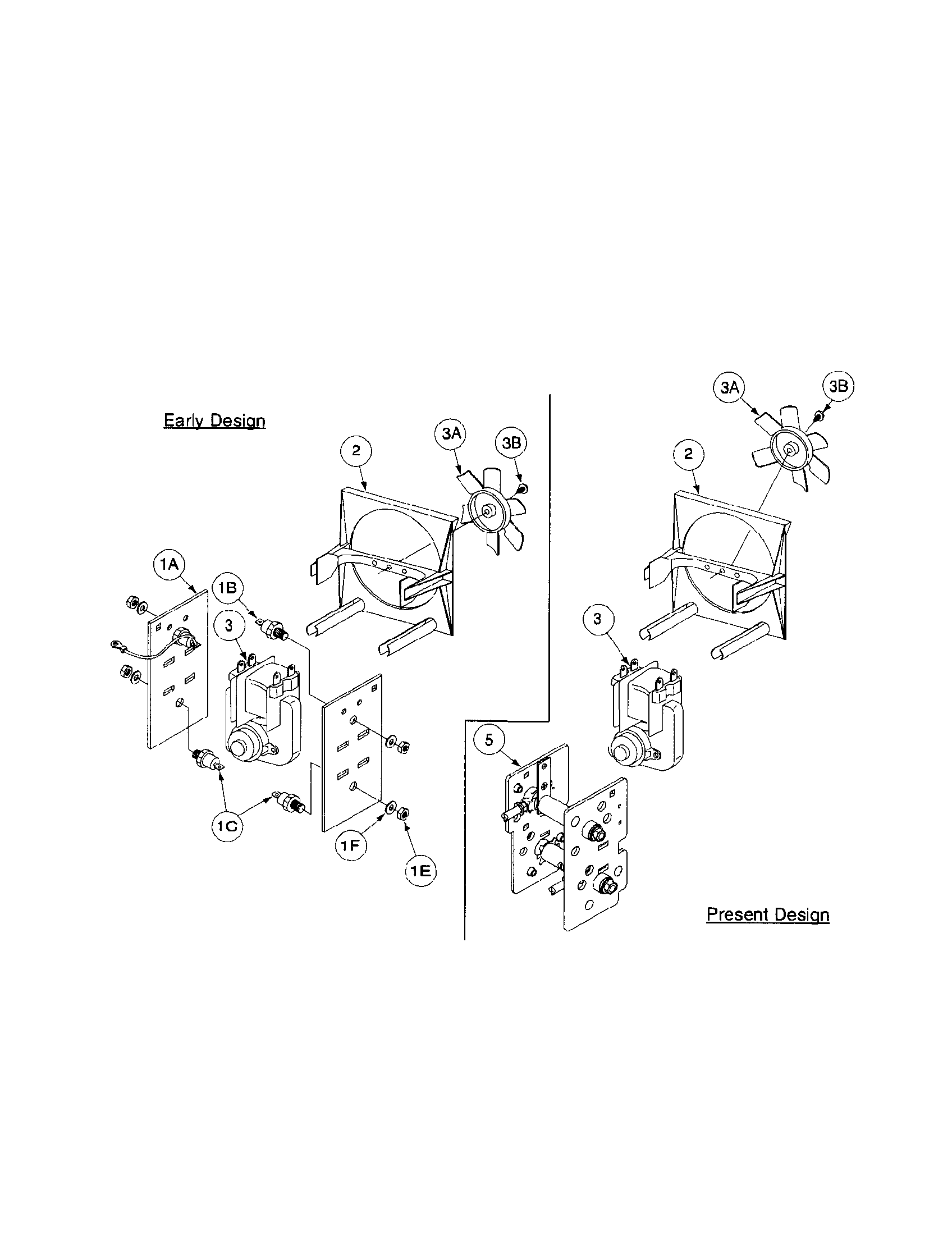

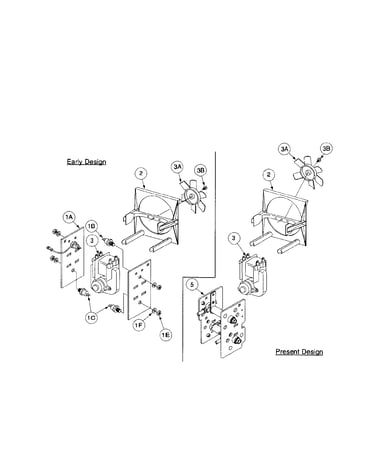

Rectifier and fan motor assembly diagram

Fan motor

Part #M15787-1

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer (2) T9695-15
#7

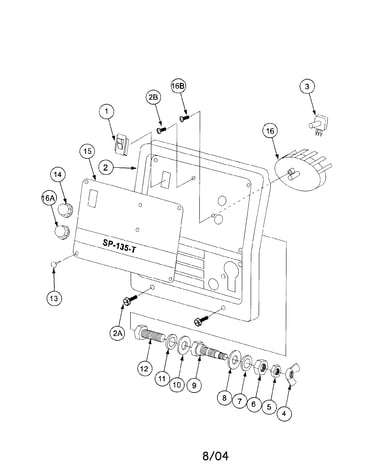

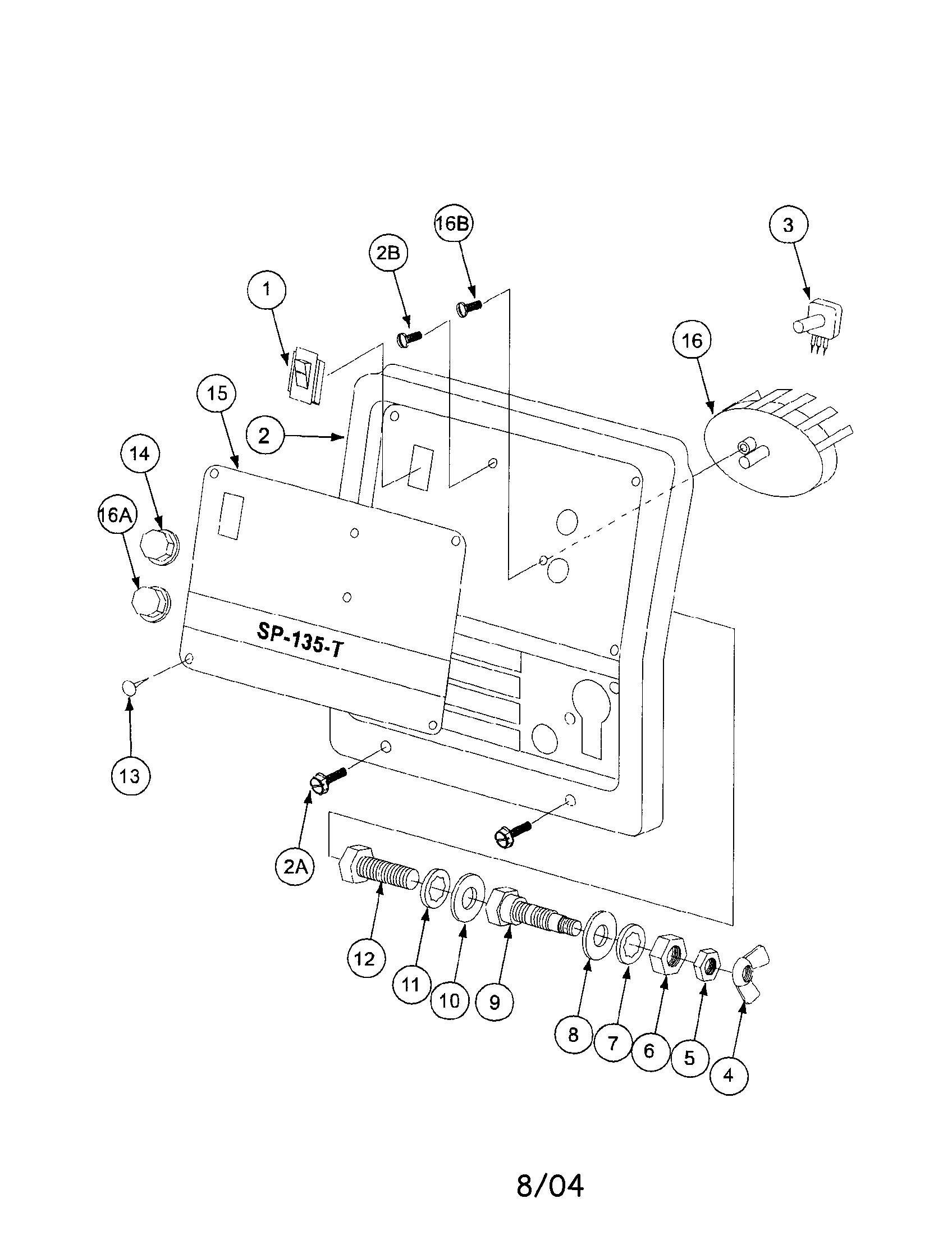

Case front assembly diagram

Lock washer (2)

Part #T9695-15

The manufacturer no longer makes this part, and there's no substitute part

#8-32 X .75 Round Head Screw (4) CF000096
#10C

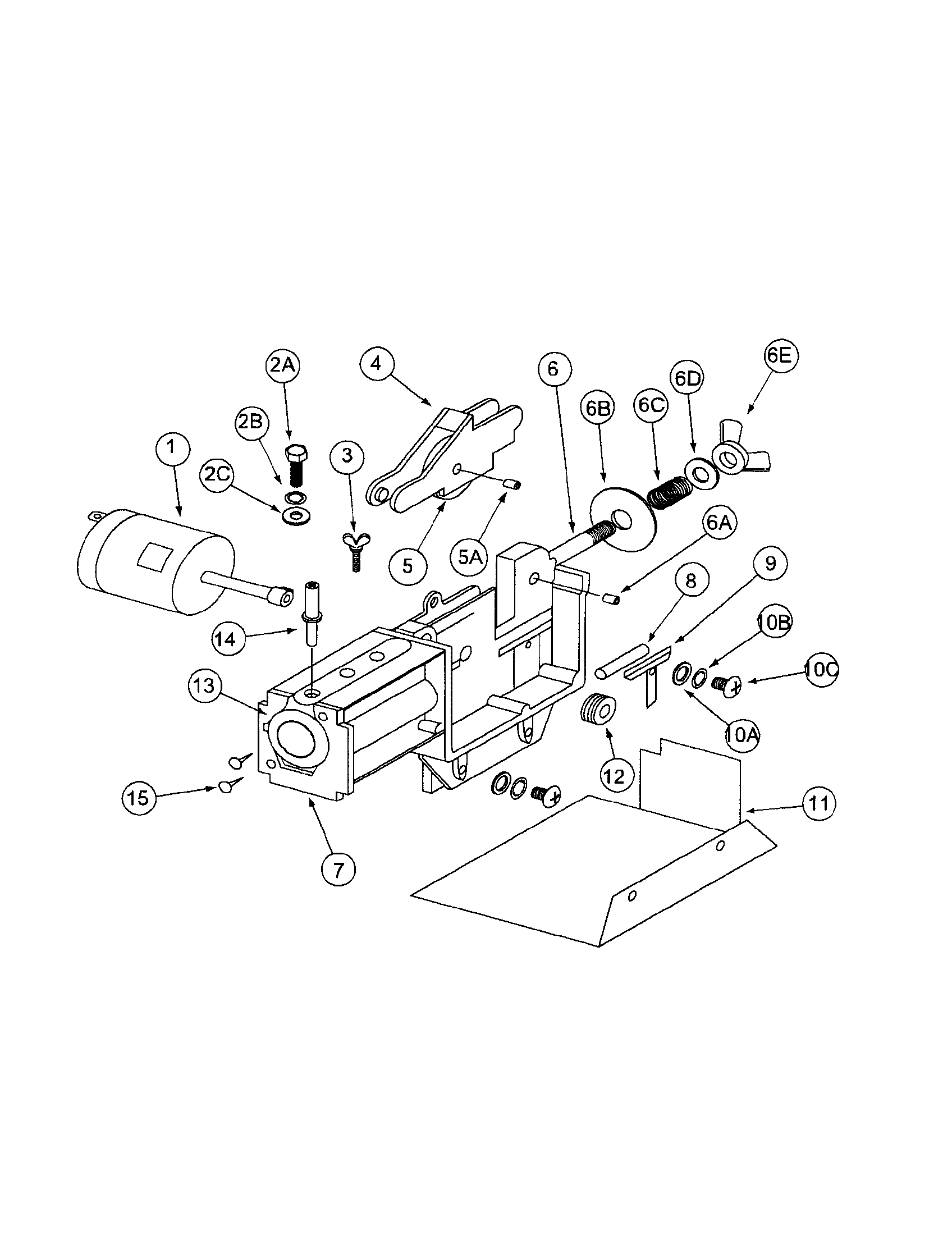

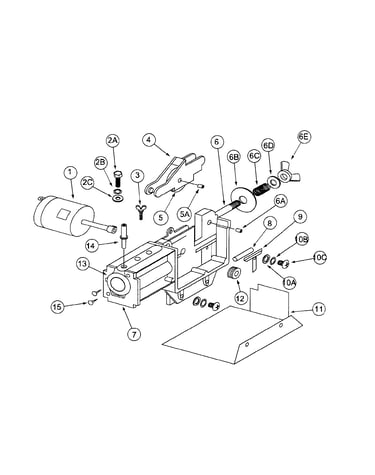

Wire drive assembly diagram

#8-32 x .75 round head screw (4)

Part #CF000096

The manufacturer no longer makes this part, and there's no substitute part

3/8-16 X .625 Hex Head Cap Screw CF000018
#17

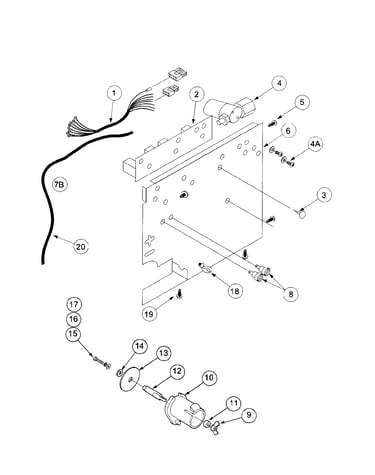

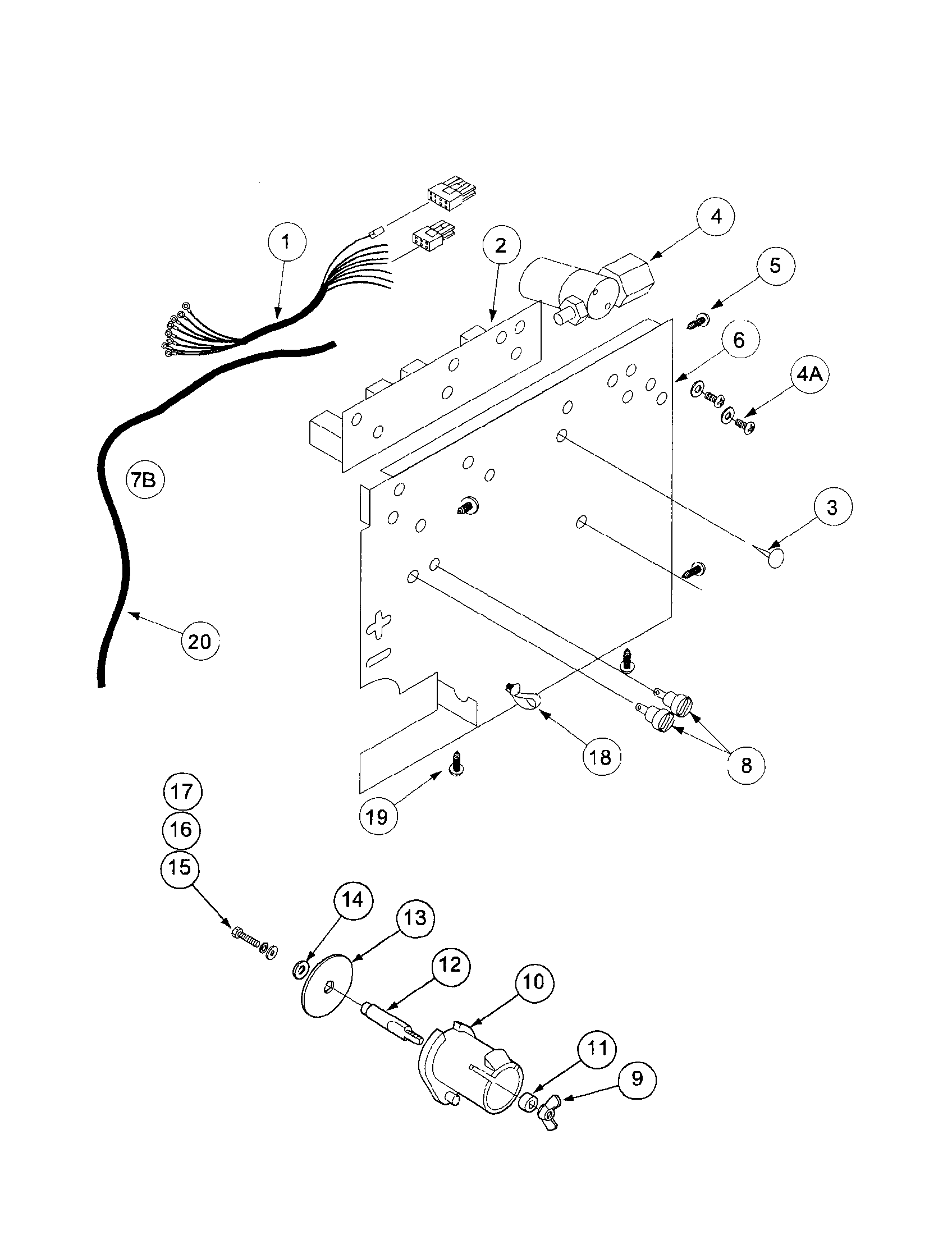

Center panel assembly diagram

3/8-16 x .625 hex head cap screw

Part #CF000018

The manufacturer no longer makes this part, and there's no substitute part

Dr Hinge M15451
#6

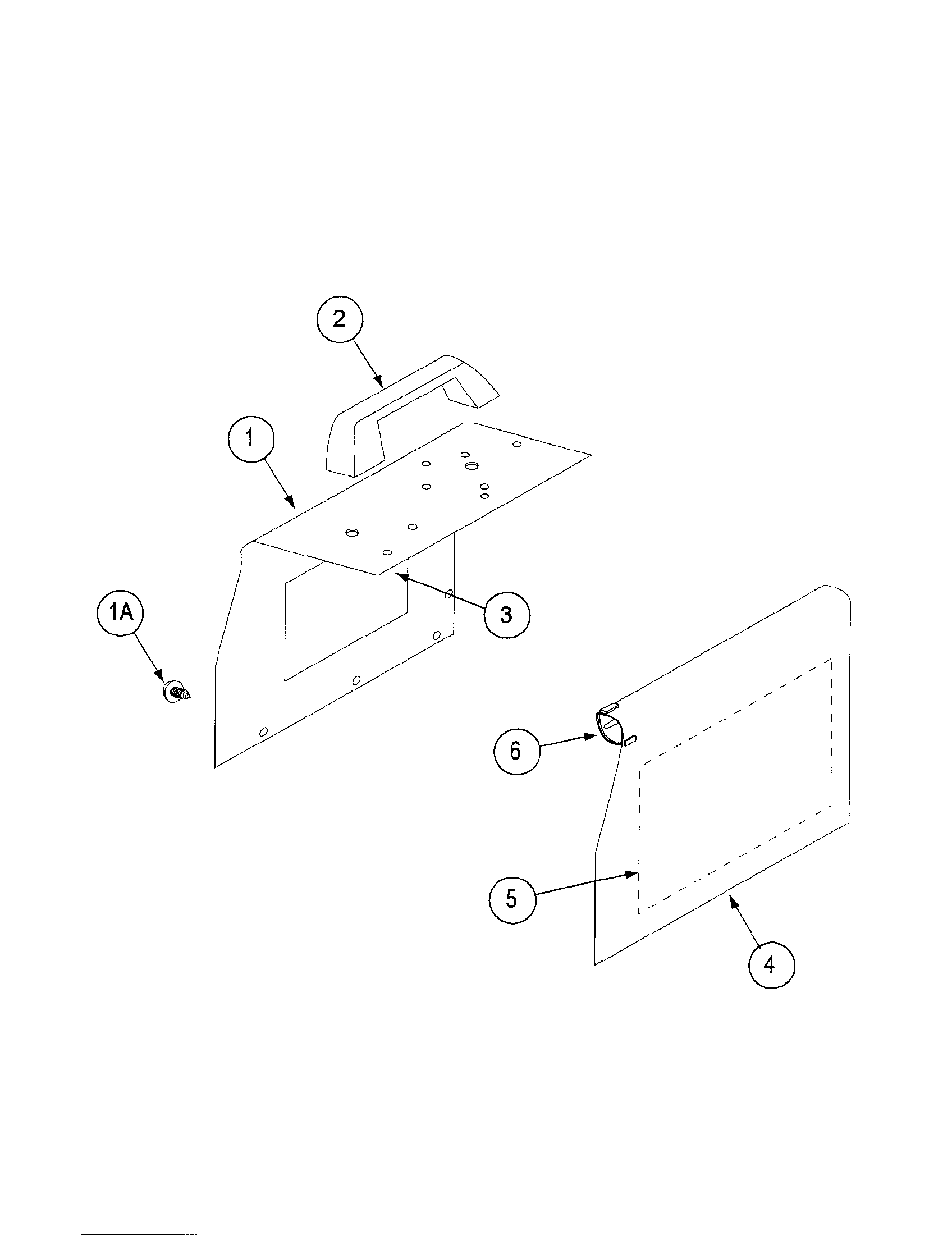

Case side and door assembly diagram

Dr hinge

Part #M15451

The manufacturer no longer makes this part, and there's no substitute part

Positive Rectifier Diode (negative)(2) M9661-39R
#1B

Rectifier and fan motor assembly diagram

Positive rectifier diode (negative)(2)

Part #M9661-39R

The manufacturer no longer makes this part, and there's no substitute part

Spindle Spacer S24226
#11

Center panel assembly diagram

Spindle spacer

Part #S24226

The manufacturer no longer makes this part, and there's no substitute part

Gun Cable K530-5

#NI08

All parts diagram

Gun cable

Part #K530-5

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut T9968-1
Wing nut

Part #T9968-1

The manufacturer no longer makes this part, and there's no substitute part

P.c. Board Support (7) S19300-2
#3

Center panel assembly diagram

P.c. board support (7)

Part #S19300-2

The manufacturer no longer makes this part, and there's no substitute part
