Model # 693359120 Official Kenmore room heater

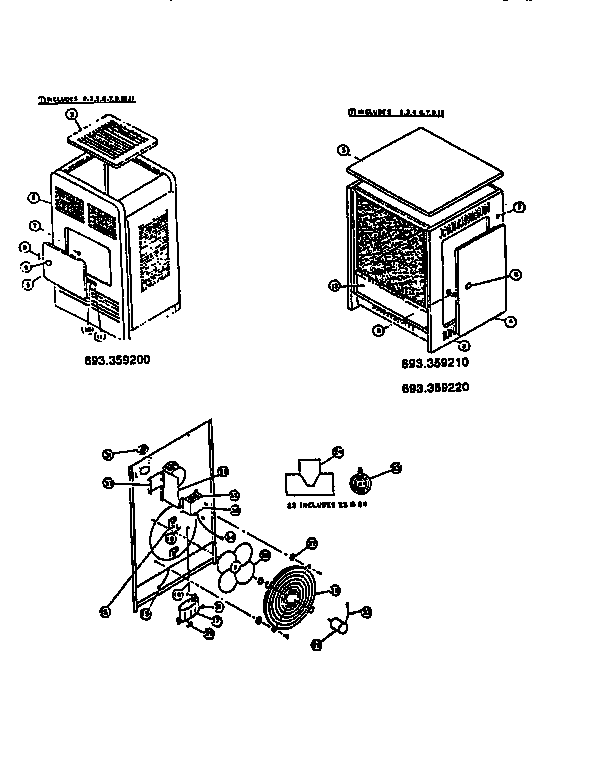

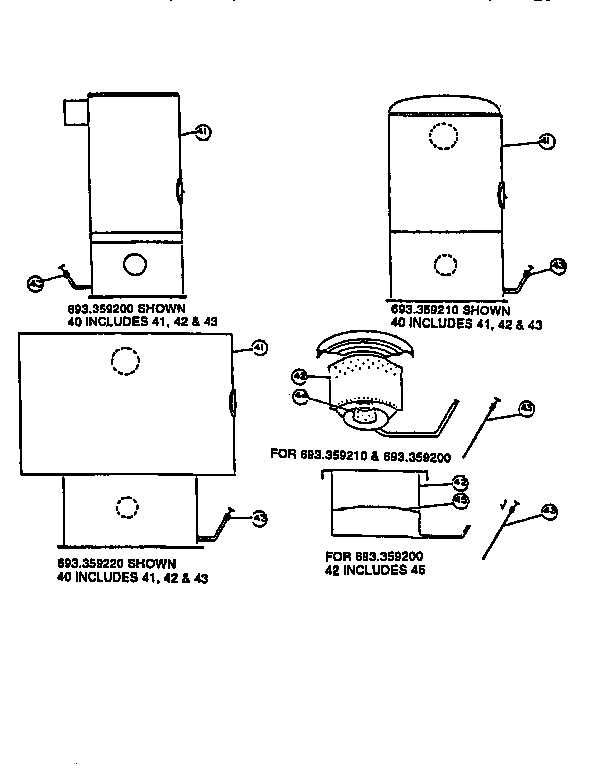

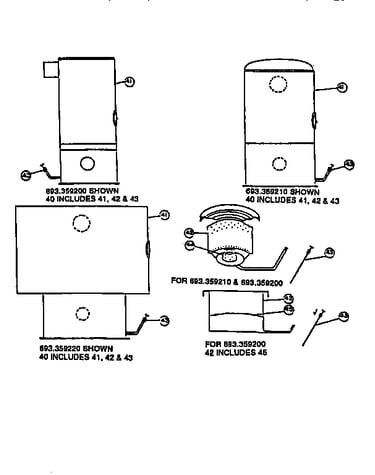

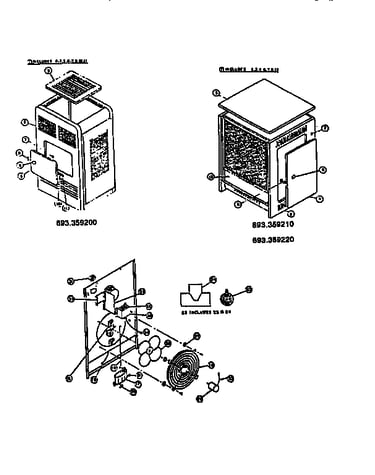

Here are the diagrams and repair parts for Official Kenmore 693359120 room heater, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
693359120 Room Heater
#27
All parts diagram
Grommet
Part #15936-G1
The manufacturer no longer makes this part, and there's no substitute part
#22
All parts diagram
Regulator
Part #20102-G3
The manufacturer no longer makes this part, and there's no substitute part
#34
All parts diagram
Cord
Part #107376-G1
The manufacturer no longer makes this part, and there's no substitute part
#40
All parts diagram
Assembly complete
Part #106979-G2
The manufacturer no longer makes this part, and there's no substitute part
#24
All parts diagram
Tee assembly
Part #7496-G1-1
The manufacturer no longer makes this part, and there's no substitute part
#37
All parts diagram
Shield switch
Part #108487-G1-1
The manufacturer no longer makes this part, and there's no substitute part
#31
All parts diagram
Fan switch
Part #108545-G1
The manufacturer no longer makes this part, and there's no substitute part
#42
All parts diagram
Burner
Part #106943-G1
The manufacturer no longer makes this part, and there's no substitute part
#35
All parts diagram
Shield
Part #106329-G2
The manufacturer no longer makes this part, and there's no substitute part
#2
All parts diagram
Casing
Part #106925-G5-3
The manufacturer no longer makes this part, and there's no substitute part
