Kenmore
Gas Range

Model # 79036733702 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 79036733702 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

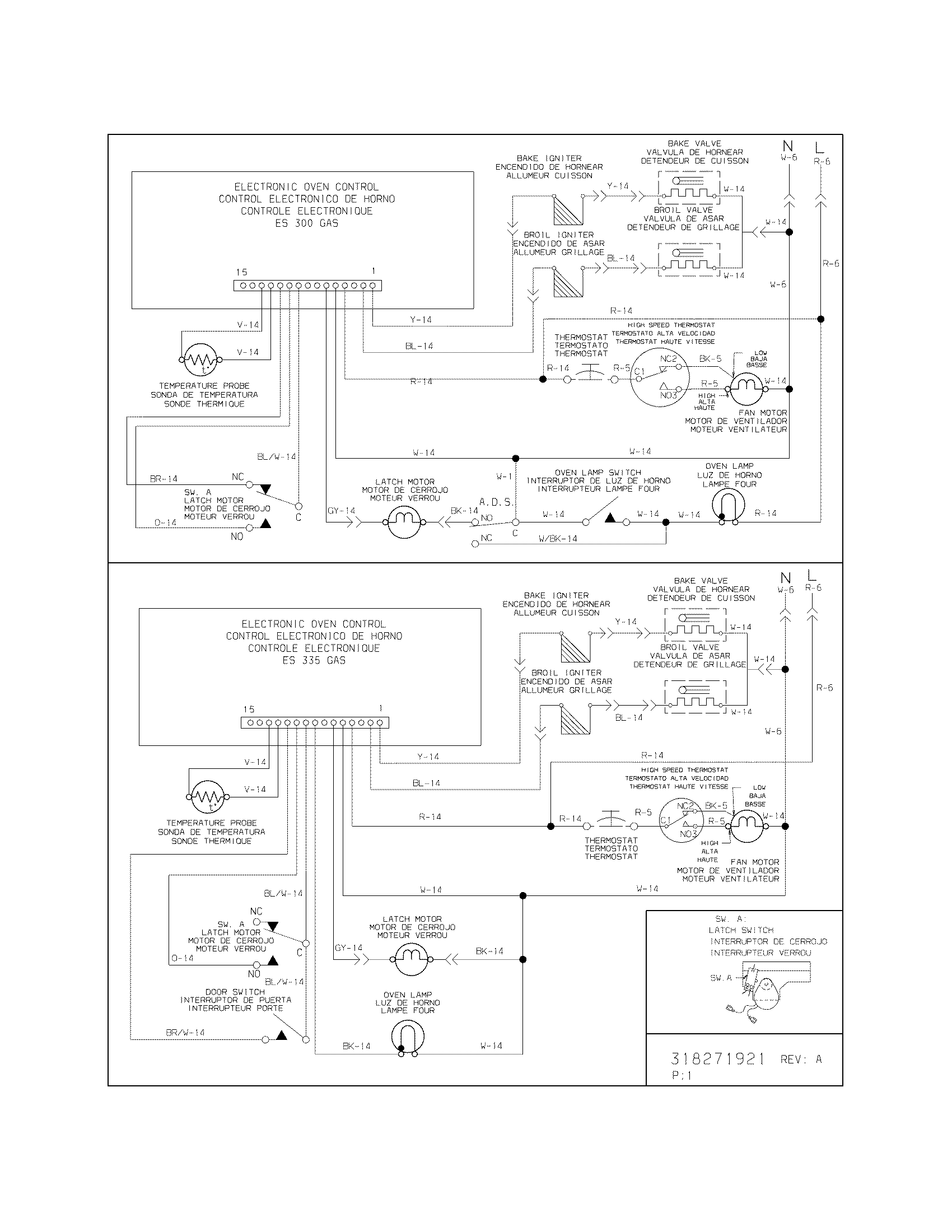

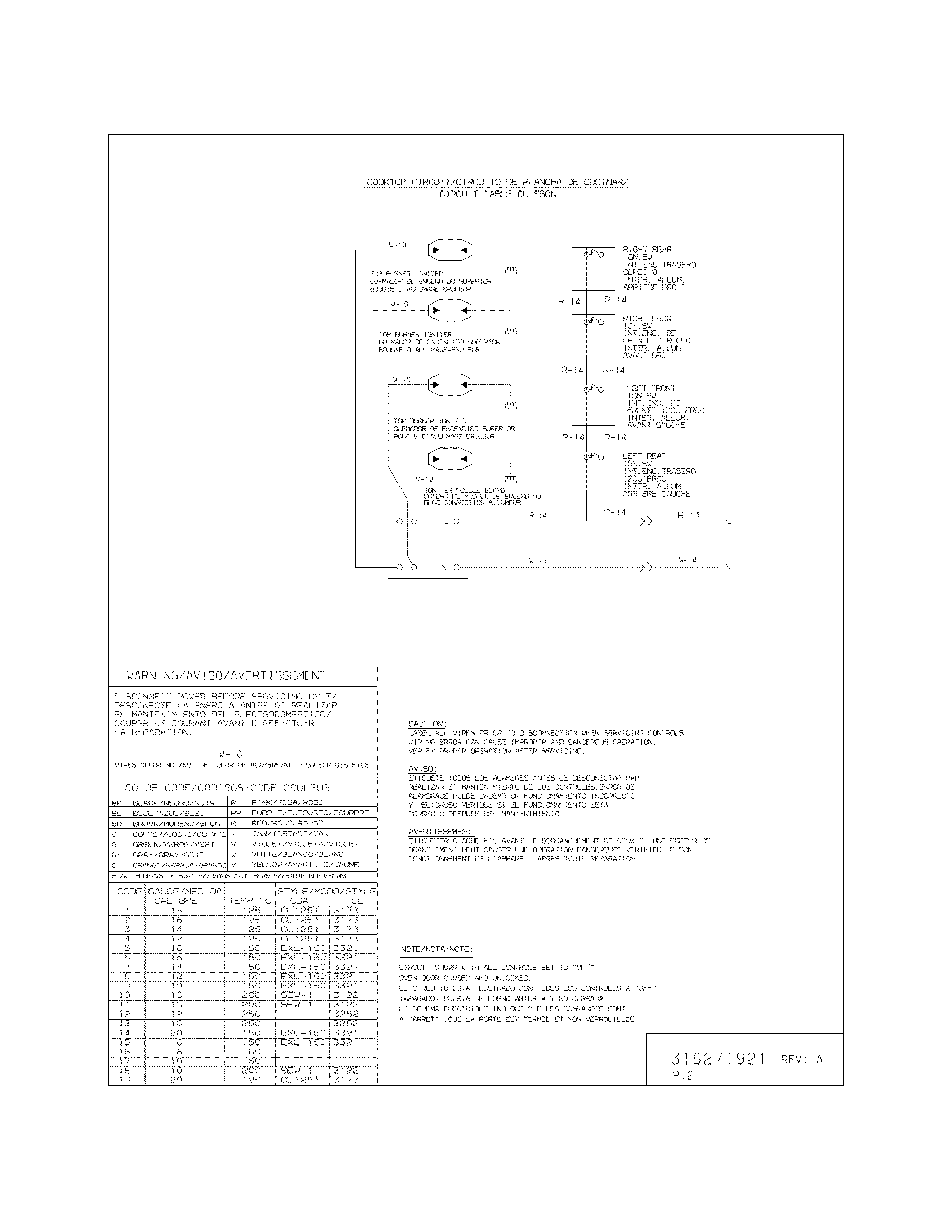

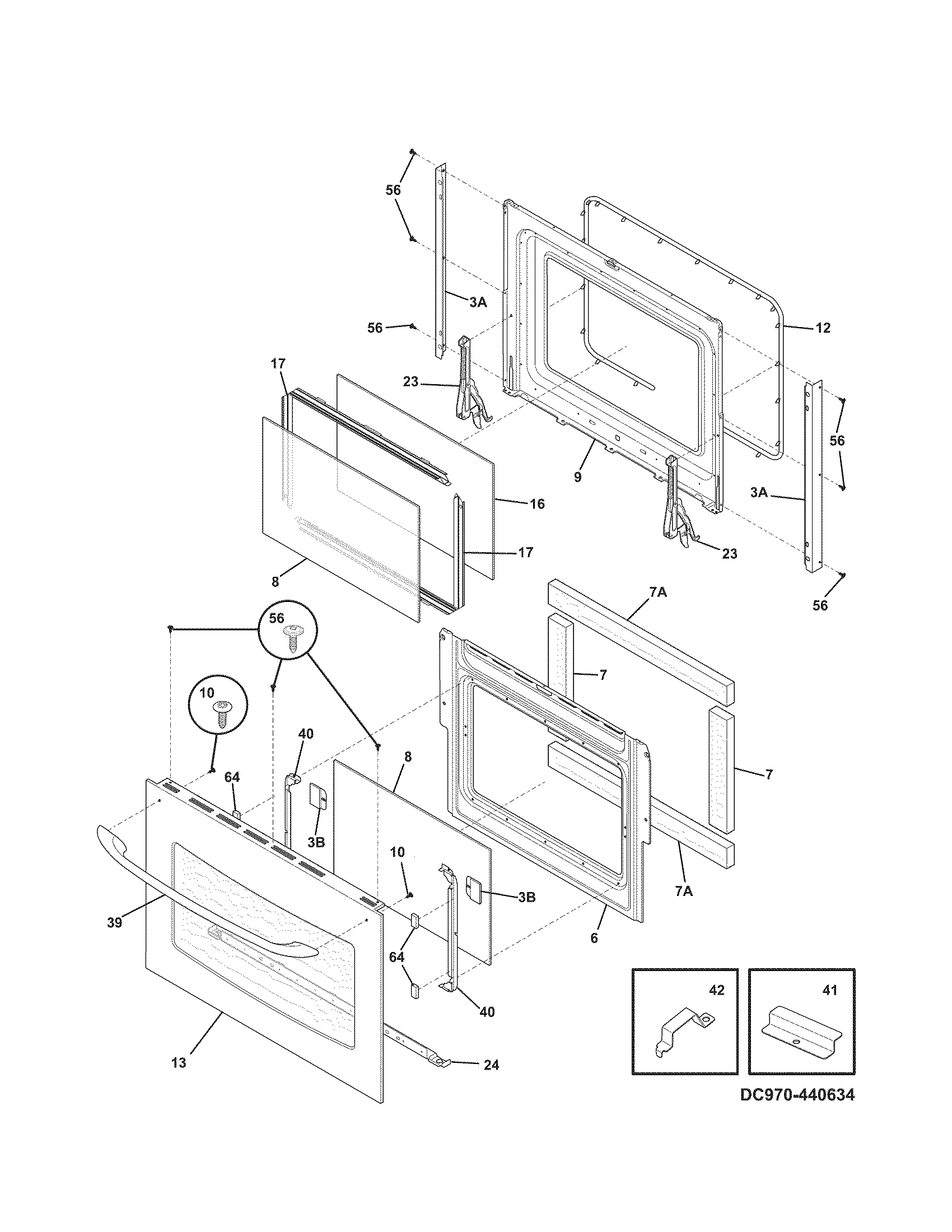

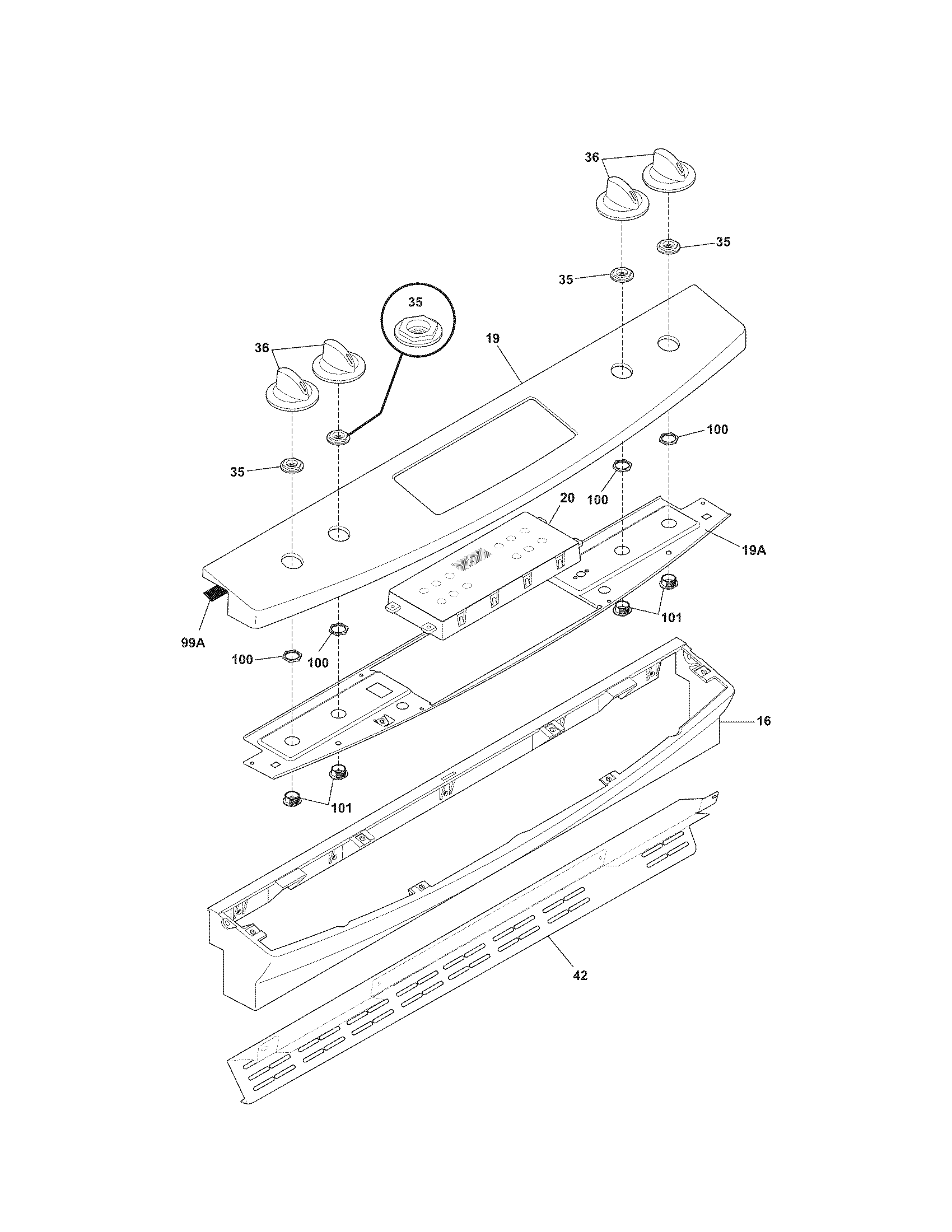

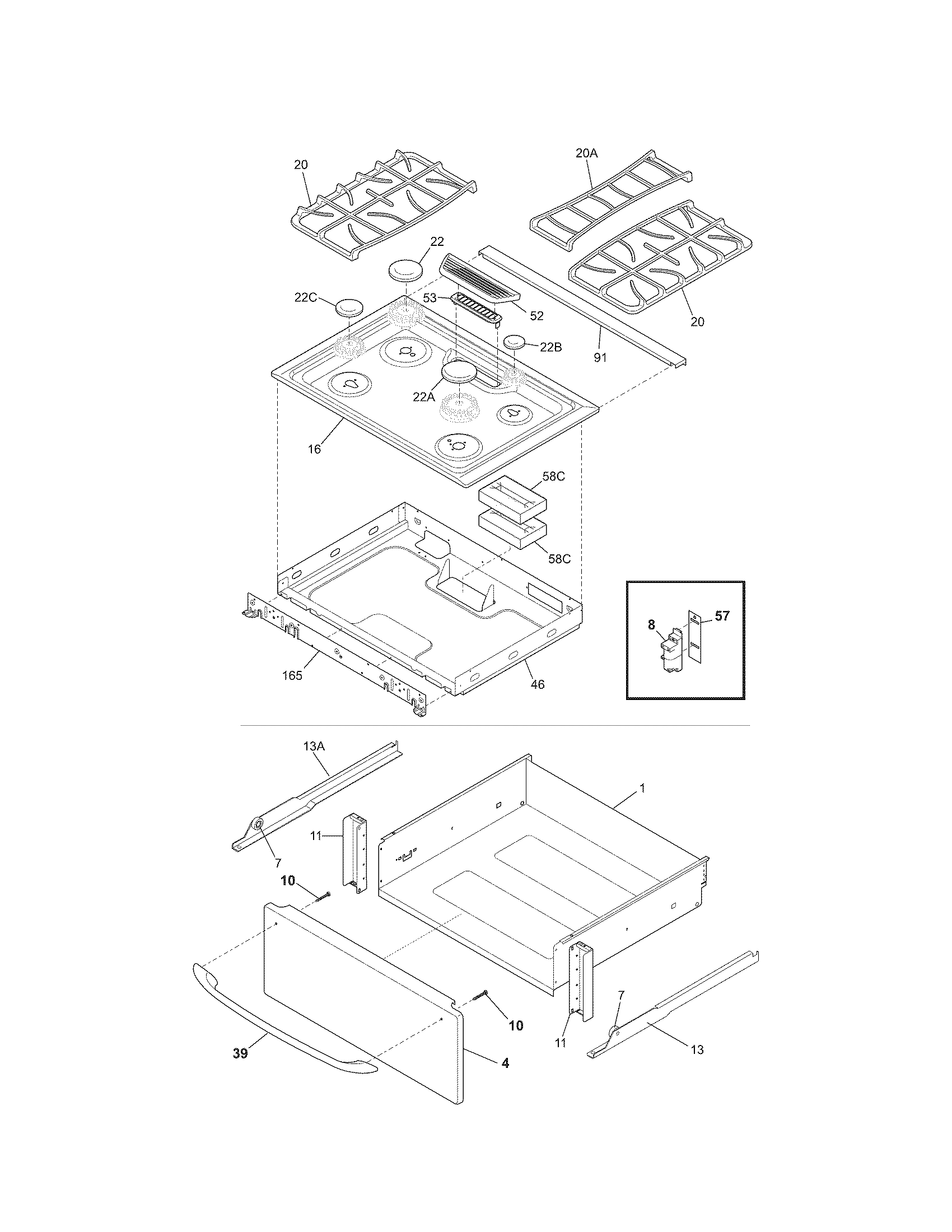

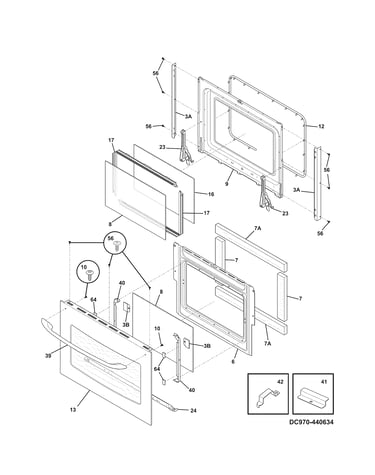

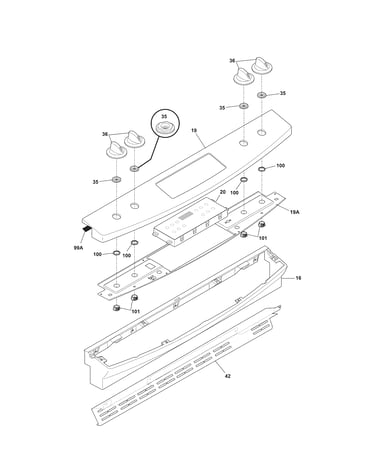

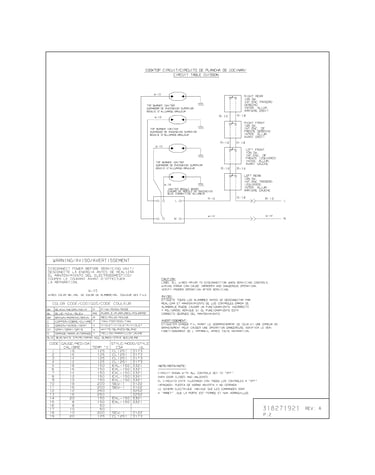

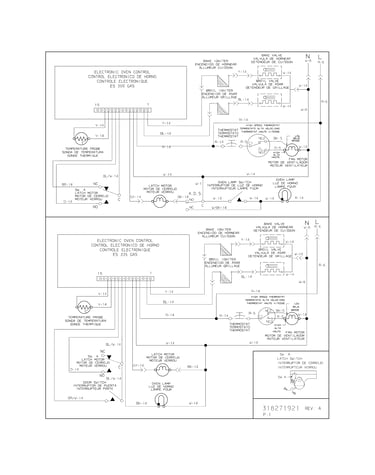

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 173 parts  |
Range Oven Light Bulb 5303013071
#15

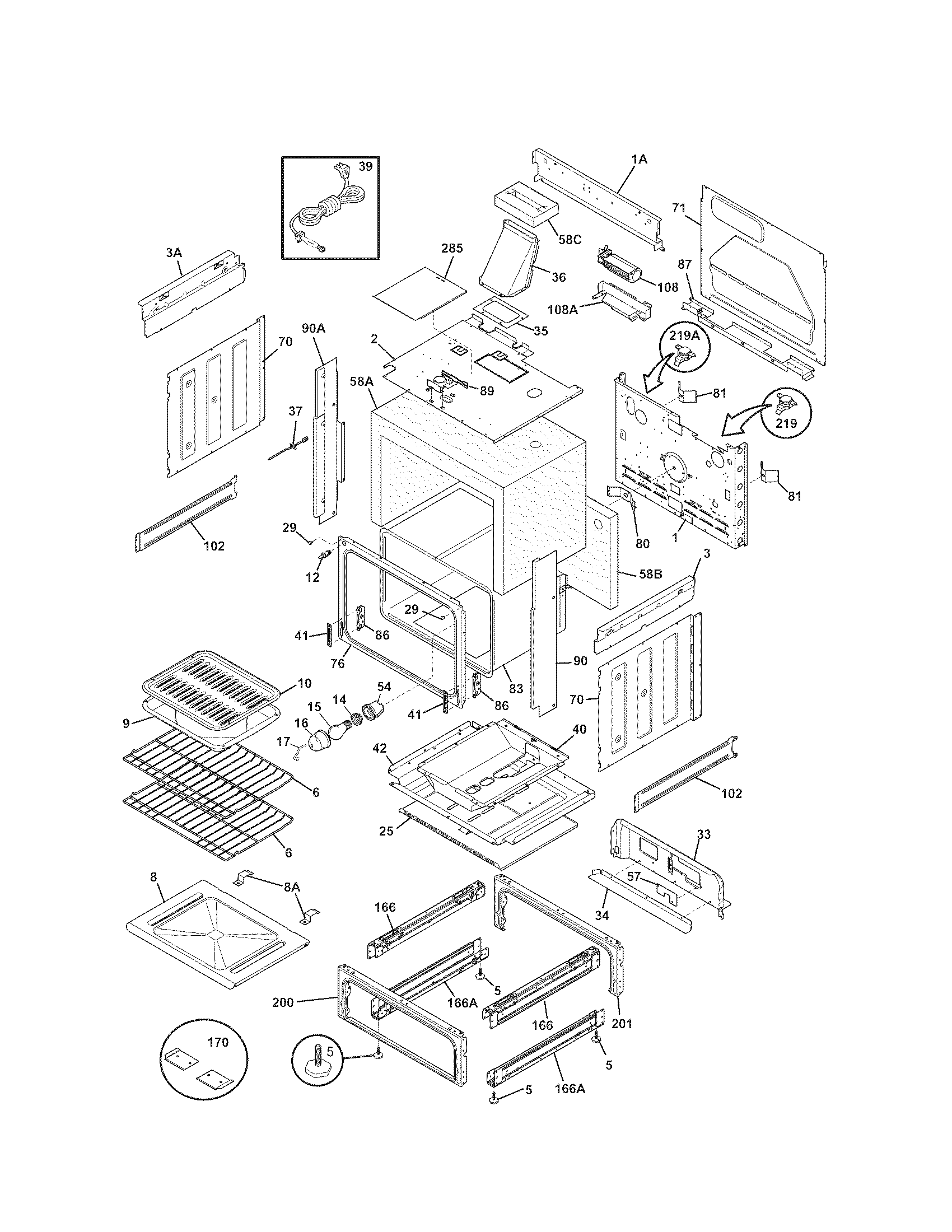

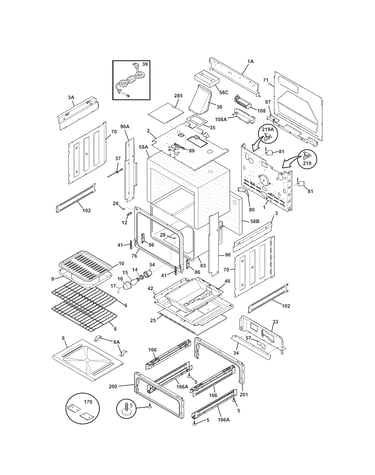

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Frigidaire Range Oven Burner Igniter (replaces 316428600, 5303308452, 5303308468, 7316428600, 7318177710) 318177710
#26

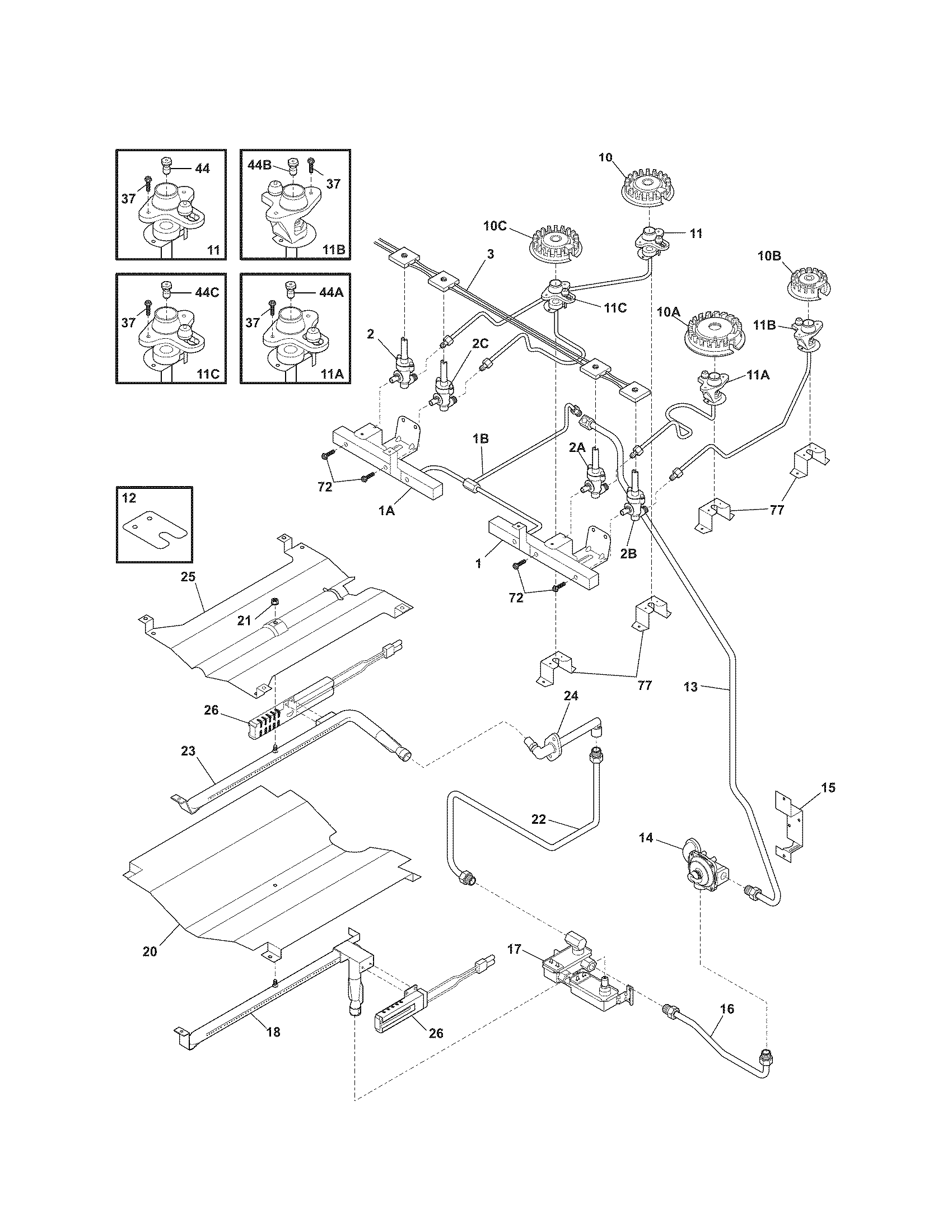

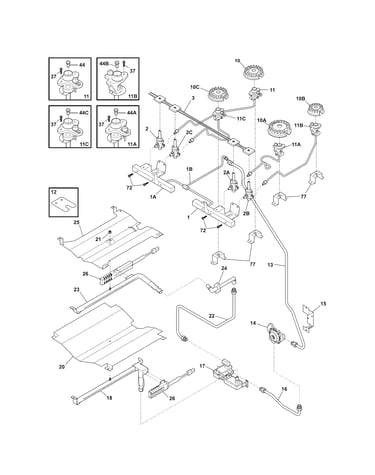

Burner diagram

Frigidaire range oven burner igniter (replaces 316428600, 5303308452, 5303308468, 7316428600, 7318177710)

Part #318177710

BEST SELLER
$152.42 |
7% OFF Phone Price : $164.42
In Stock
Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

Body diagram

Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Range Screw (replaces 5304472956, 7316240600) 316240600
#37

Burner diagram

Range screw (replaces 5304472956, 7316240600)

Part #316240600

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Handle (black) 316443600
Handle (black)

Part #316443600

Replaced by #5304458312

?
Manufacturer substitution
This part replaces 316443600. Substitute parts can look different from the original.
BEST SELLER
$68.94 |
8% OFF Phone Price : $74.94
In Stock
Range Pressure Regulator 316416700
#14

Burner diagram

Range pressure regulator

Part #316416700

Replaced by #5304521339

?
Manufacturer substitution
This part replaces 316416700. Substitute parts can look different from the original.
BEST SELLER
$64.33 |
9% OFF Phone Price : $70.33
In Stock
Range Surface Burner Head (replaces 5304444403) 316212300
#10

Burner diagram

Range surface burner head (replaces 5304444403)

Part #316212300

BEST SELLER
$70.65 |
8% OFF Phone Price : $76.65
In Stock
Crosley Range High-limit Thermostat 318003614
#219

Body diagram

Crosley range high-limit thermostat

Part #318003614

BEST SELLER
$69.03 |
8% OFF Phone Price : $75.03
In Stock
Range Sealed Burner Assembly 316206400
#10B

Burner diagram

Range sealed burner assembly

Part #316206400

Replaced by #316206401

?
Manufacturer substitution
This part replaces 316206400. Substitute parts can look different from the original.
BEST SELLER
$58.89 |
9% OFF Phone Price : $64.89
In Stock
Range Oven Light Lens 318406100
#16

Body diagram

Range oven light lens

Part #318406100

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 318406100. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
