Model # 14328319A Official Craftsman rewind starter - 28319a

Here are the diagrams and repair parts for Official Craftsman 14328319A rewind starter - 28319a, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |

Handle Assembly 590387
#2

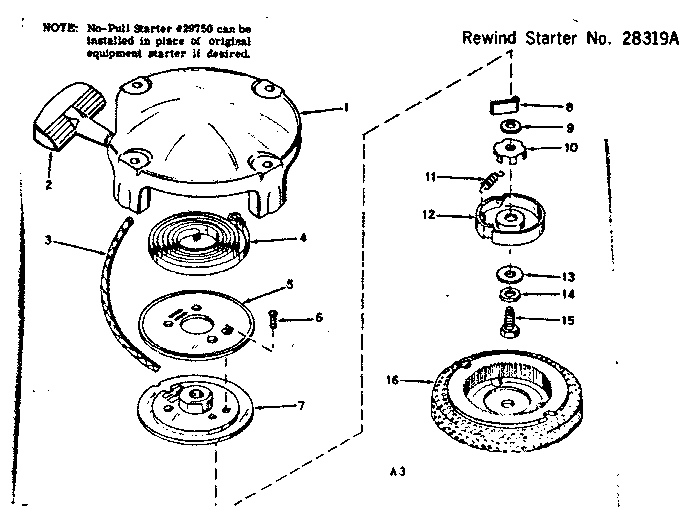

Rewind starter diagram

Handle assembly

Part #590387

The manufacturer no longer makes this part, and there's no substitute part

Starter Cup 29709
#16

Rewind starter diagram

Starter cup

Part #29709

The manufacturer no longer makes this part, and there's no substitute part

Housing 31695
#1

Rewind starter diagram

Housing

Part #31695

The manufacturer no longer makes this part, and there's no substitute part

Washer 28780
#14

Rewind starter diagram

Washer

Part #28780

The manufacturer no longer makes this part, and there's no substitute part

Starter 590148
#8

Rewind starter diagram

Starter

Part #590148

The manufacturer no longer makes this part, and there's no substitute part

Screw 29728
#15

Rewind starter diagram

Screw

Part #29728

The manufacturer no longer makes this part, and there's no substitute part

Brake 28774
#10

Rewind starter diagram

Brake

Part #28774

The manufacturer no longer makes this part, and there's no substitute part

Retainer 31280
#12

Rewind starter diagram

Retainer

Part #31280

The manufacturer no longer makes this part, and there's no substitute part

Spring 31277
#11

Rewind starter diagram

Spring

Part #31277

The manufacturer no longer makes this part, and there's no substitute part

Sheave 28287
#5

Rewind starter diagram

Sheave

Part #28287

The manufacturer no longer makes this part, and there's no substitute part
