Craftsman
Lawn & Garden Engine

Model # 143059013 Official Craftsman engine

Here are the diagrams and repair parts for Official Craftsman 143059013 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

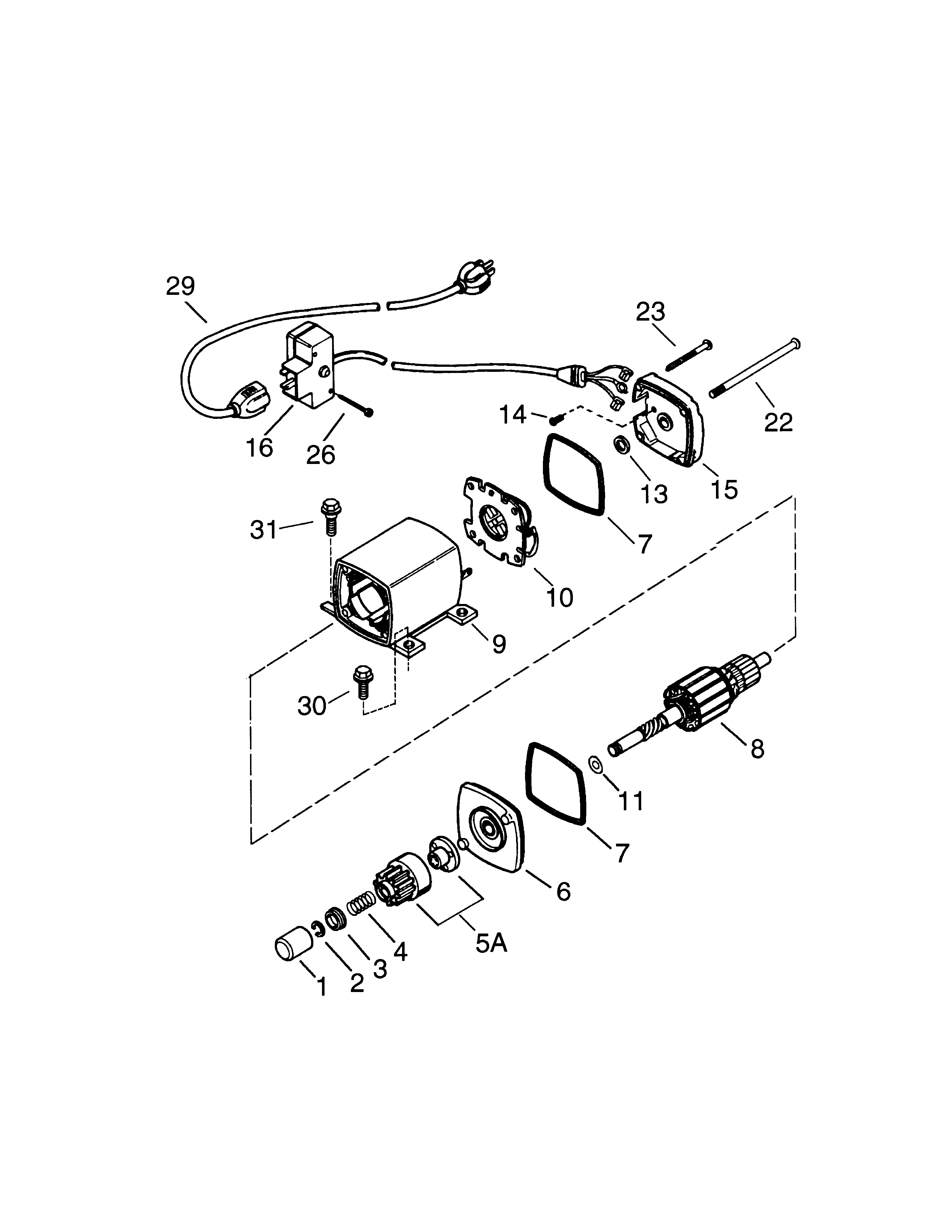

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 200 parts  |
Repair Kit 632760
#60

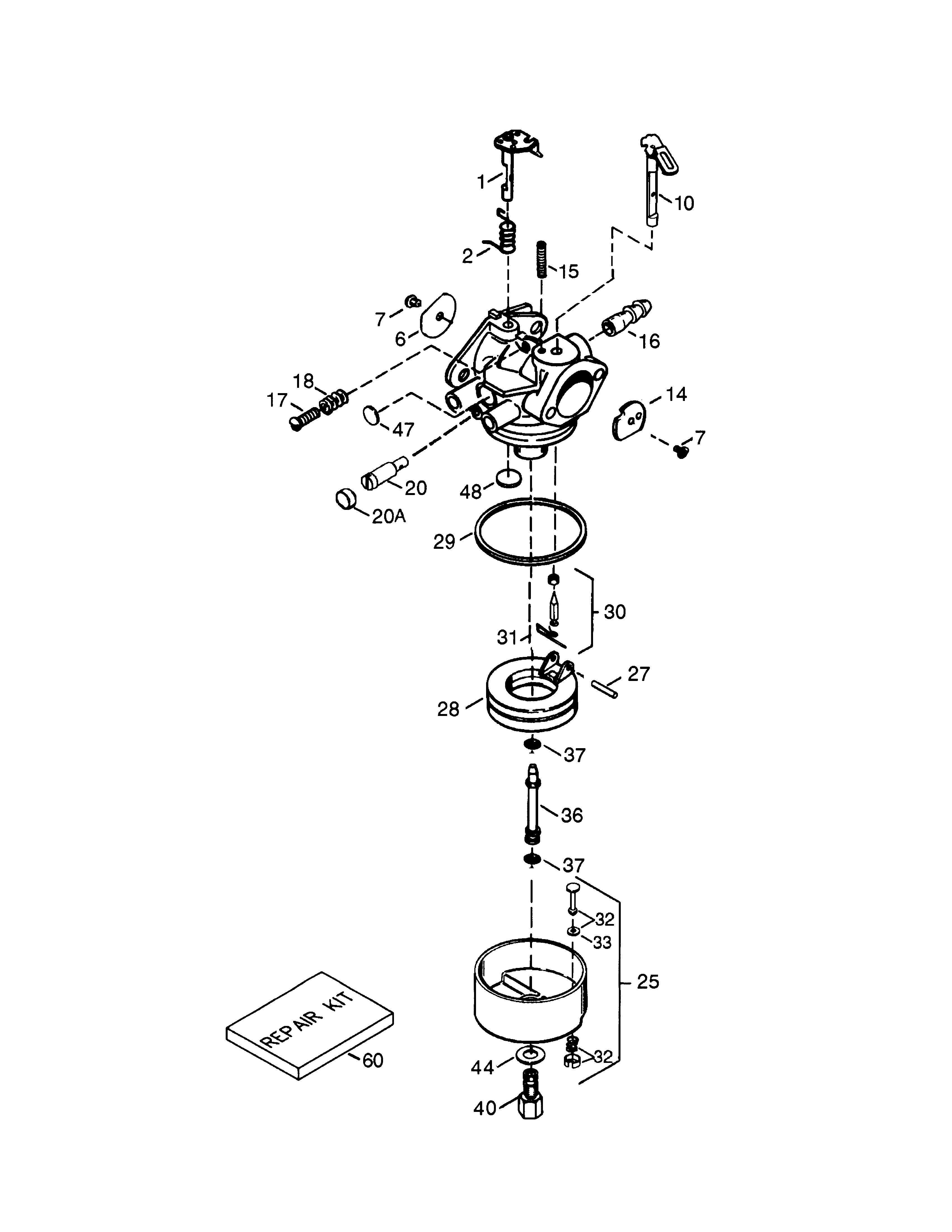

Carburetor diagram

Repair kit

Part #632760

Replaced by #632760B

?
Manufacturer substitution
This part replaces 632760. Substitute parts can look different from the original.
BEST SELLER
$22.91 |
21% OFF Phone Price : $28.91
Back Order
Lawn & Garden Equipment Engine Recoil Starter Rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032) 590535
#12

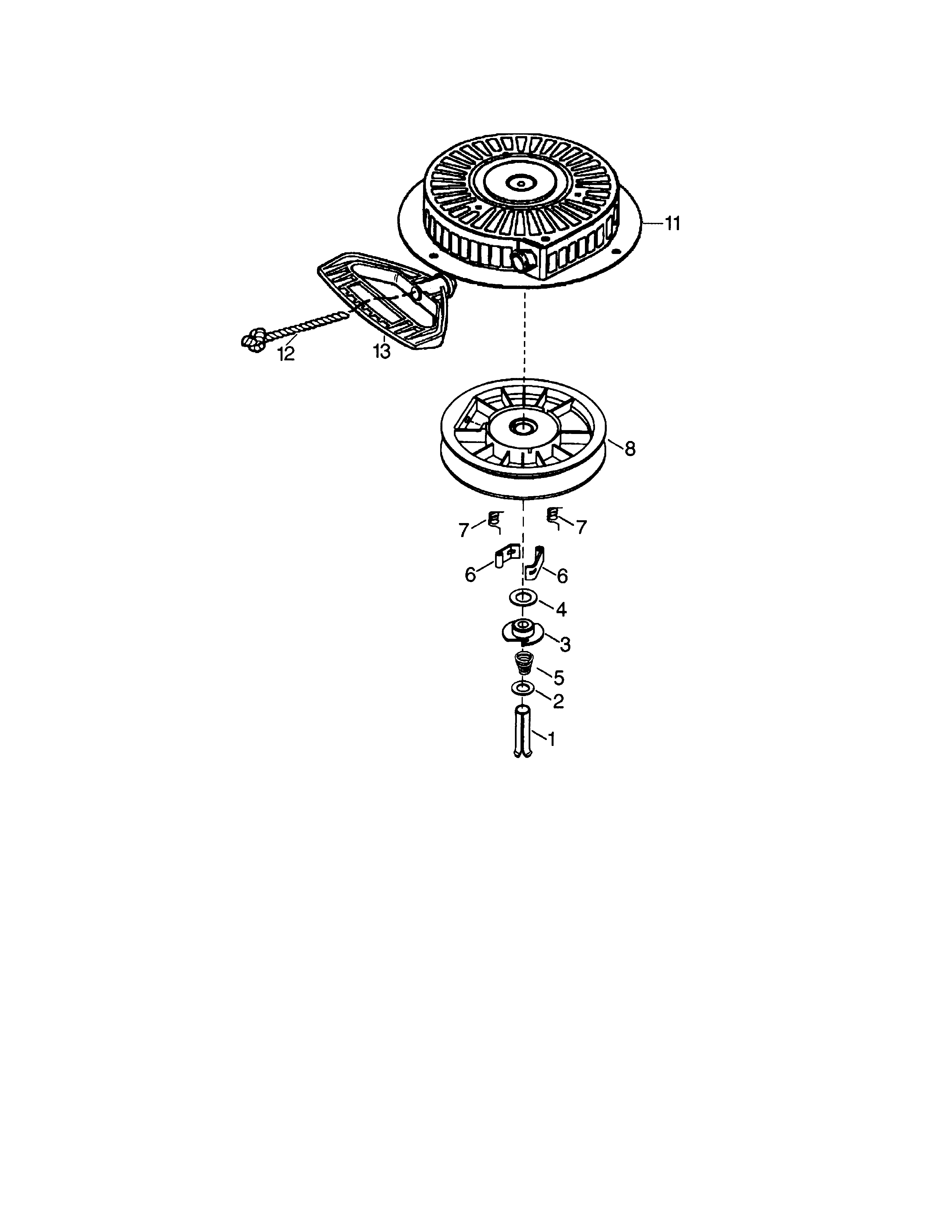

Rewind starter diagram

Lawn & garden equipment engine recoil starter rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032)

Part #590535

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#292

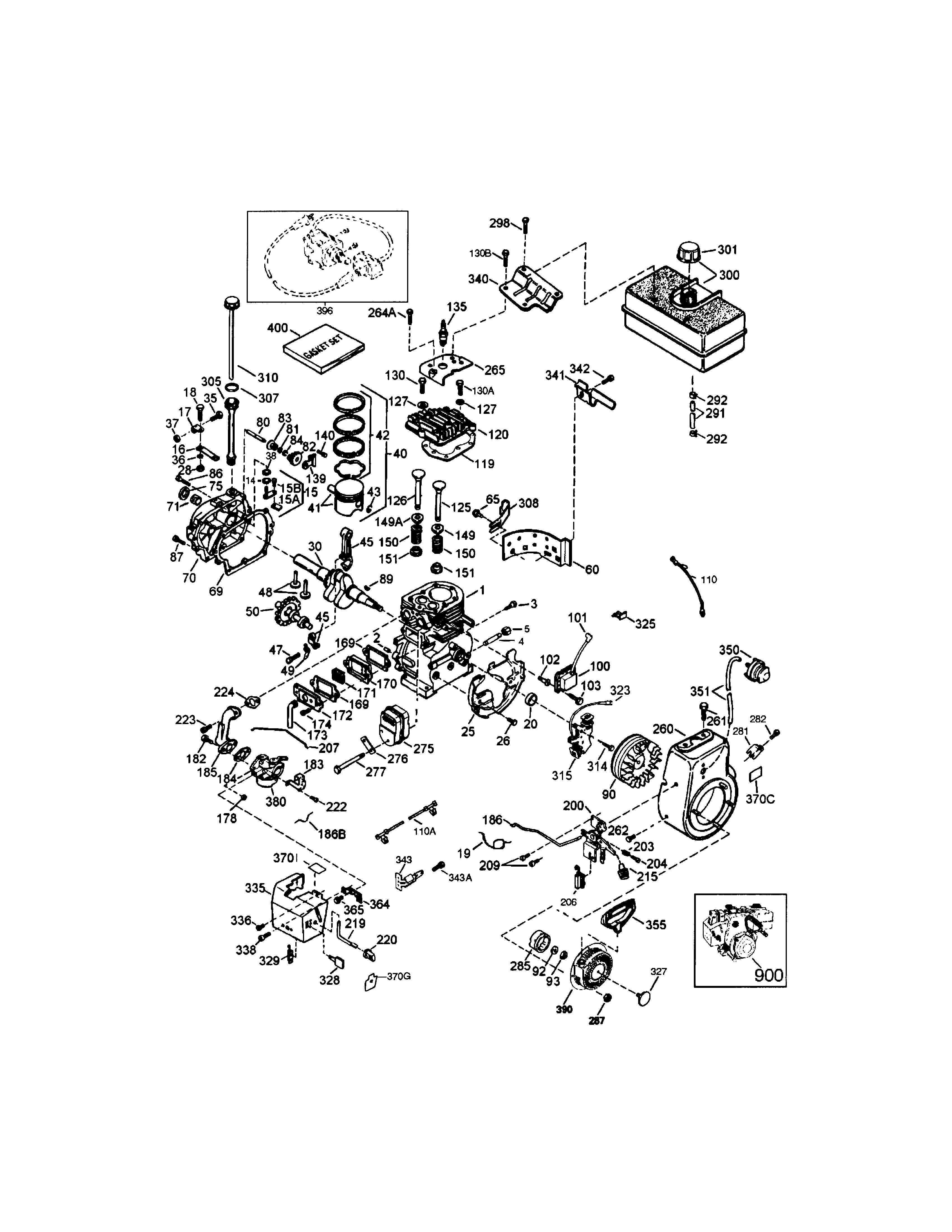

Engine assembly diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Fuel Line (replaces 32180, 32180a, 32180b, 500236, Tc-32180c) 32180C
#351

Engine assembly diagram

Lawn & garden equipment engine fuel line (replaces 32180, 32180a, 32180b, 500236, tc-32180c)

Part #32180C

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Carburetor Primer Assembly (replaces 570682, Tc-570682a) 570682A
#350

Engine assembly diagram

Lawn & garden equipment engine carburetor primer assembly (replaces 570682, tc-570682a)

Part #570682A

BEST SELLER
$11.79 |
15% OFF Phone Price : $13.79
In Stock
Lawn & Garden Equipment Engine Fuel Tank Cap 35355
#301

Engine assembly diagram

Lawn & garden equipment engine fuel tank cap

Part #35355

Replaced by #37845

?
Manufacturer substitution
This part replaces 35355. Substitute parts can look different from the original.
BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Lawn & Garden Equipment Engine Throttle Control Knob 35440
#215

Engine assembly diagram

Lawn & garden equipment engine throttle control knob

Part #35440

This item is not returnable
$4.14 |
19% OFF Phone Price : $5.14
In Stock
Float 632019
#28

Carburetor diagram

Float

Part #632019

Replaced by #632019A

?
Manufacturer substitution
This part replaces 632019. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Troybilt Lawn & Garden Equipment O-ring 35499
#307

Engine assembly diagram

Troybilt lawn & garden equipment o-ring

Part #35499

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Carburetor O-ring 632547
#37

Carburetor diagram

Troybilt lawn & garden equipment engine carburetor o-ring

Part #632547

This item is not returnable
$3.64 |
22% OFF Phone Price : $4.64
In Stock
