Whirlpool
Dishwasher

Model # GU3600XTVQ3 Official Whirlpool undercounter dishwasher

Here are the diagrams and repair parts for Official Whirlpool GU3600XTVQ3 undercounter dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

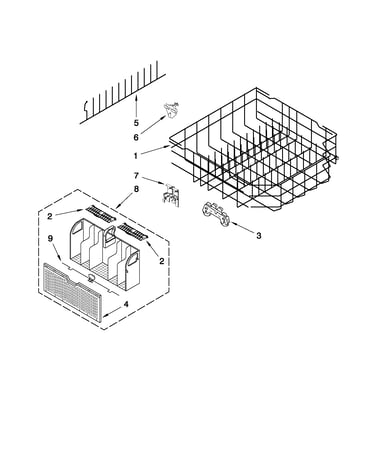

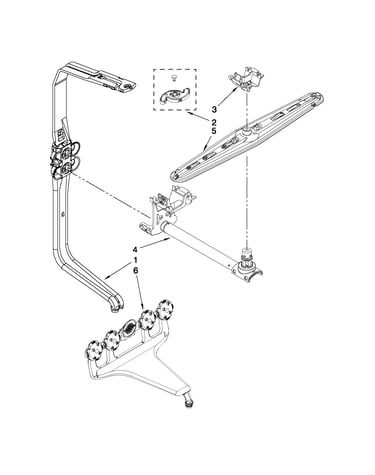

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 177 parts  |
Dishwasher Drain Pump W10158351
#14

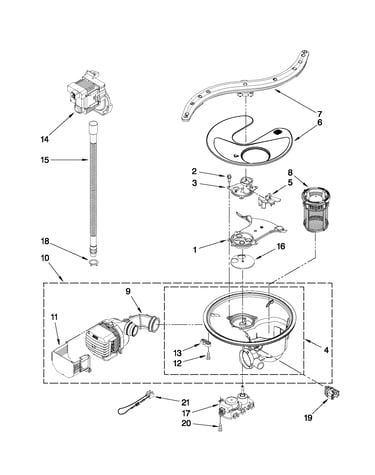

Pump, washarm and motor parts diagram

Dishwasher drain pump

Part #W10158351

Replaced by #WPW10348269

?
Manufacturer substitution
This part replaces W10158351. Substitute parts can look different from the original.
BEST SELLER
$65.25 |
8% OFF Phone Price : $71.25
In Stock
Dishwasher Door Balance Link W10158291
#22

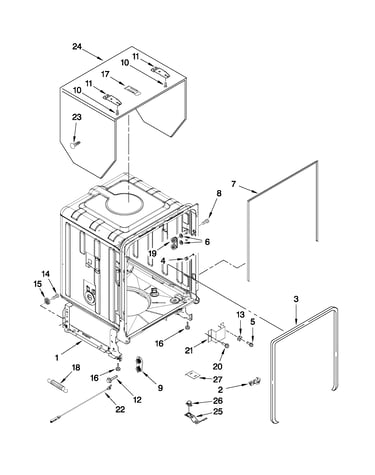

Tub and frame parts diagram

Dishwasher door balance link

Part #W10158291

Replaced by #8194001

?
Manufacturer substitution
This part replaces W10158291. Substitute parts can look different from the original.
BEST SELLER
$25.94 |
19% OFF Phone Price : $31.94
In Stock
Dishwasher Dishrack Slide Rail Stop, Upper 8565925
#19

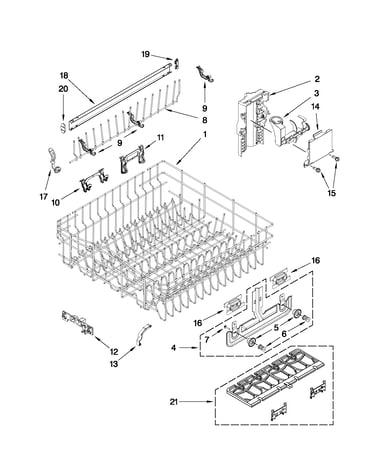

Upper rack and track parts diagram

Dishwasher dishrack slide rail stop, upper

Part #8565925

Replaced by #WP8565925

?
Manufacturer substitution
This part replaces 8565925. Substitute parts can look different from the original.
BEST SELLER
$8.34 |
11% OFF Phone Price : $9.34
In Stock
Dishwasher Drain Hose 8269144
#15

Pump, washarm and motor parts diagram

Dishwasher drain hose

Part #8269144

Replaced by #8269144A

?
Manufacturer substitution
This part replaces 8269144. Substitute parts can look different from the original.
BEST SELLER
$21.25 |
22% OFF Phone Price : $27.25
In Stock
Dishwasher Drain Hose W10195750
#9

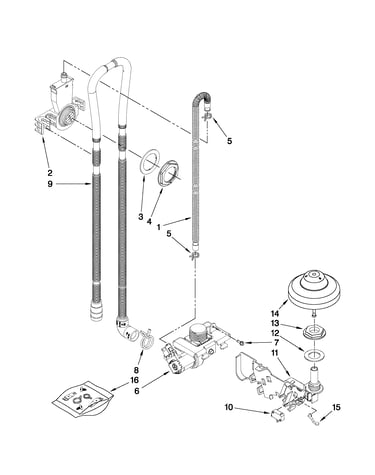

Fill, drain and overfill parts diagram

Dishwasher drain hose

Part #W10195750

Replaced by #WPW10545278

?
Manufacturer substitution
This part replaces W10195750. Substitute parts can look different from the original.
BEST SELLER
$41.40 |
13% OFF Phone Price : $47.40
In Stock
Dishwasher Turbidity Sensor W10134017
#19

Pump, washarm and motor parts diagram

Dishwasher turbidity sensor

Part #W10134017

Replaced by #WPW10705575

?
Manufacturer substitution
This part replaces W10134017. Substitute parts can look different from the original.
BEST SELLER
$22.13 |
21% OFF Phone Price : $28.13
In Stock
Dishwasher Filter W10056426
#8

Pump, washarm and motor parts diagram

Dishwasher filter

Part #W10056426

Replaced by #W10872845

?
Manufacturer substitution
This part replaces W10056426. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Seal 8269110
#7

Tub and frame parts diagram

Seal

Part #8269110

Replaced by #W10864081

?
Manufacturer substitution
This part replaces 8269110. Substitute parts can look different from the original.
BEST SELLER
$54.57 |
10% OFF Phone Price : $60.57
In Stock
Dishwasher Vent Gasket 8269259
#6

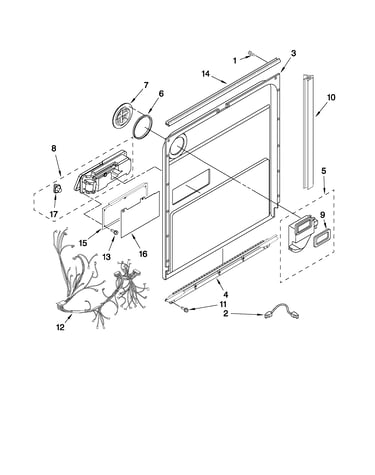

Door and latch parts diagram

Dishwasher vent gasket

Part #8269259

Replaced by #WP8269259

?
Manufacturer substitution
This part replaces 8269259. Substitute parts can look different from the original.
BEST SELLER
$31.73 |
16% OFF Phone Price : $37.73
In Stock
Dishwasher Detergent Dispenser Assembly W10224429
#8

Door and latch parts diagram

Dishwasher detergent dispenser assembly

Part #W10224429

Replaced by #WPW10199696

?
Manufacturer substitution
This part replaces W10224429. Substitute parts can look different from the original.
BEST SELLER
$111.43 |
10% OFF Phone Price : $123.43
In Stock
