Frigidaire
Electric Range

Model # FED365ESD Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FED365ESD electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

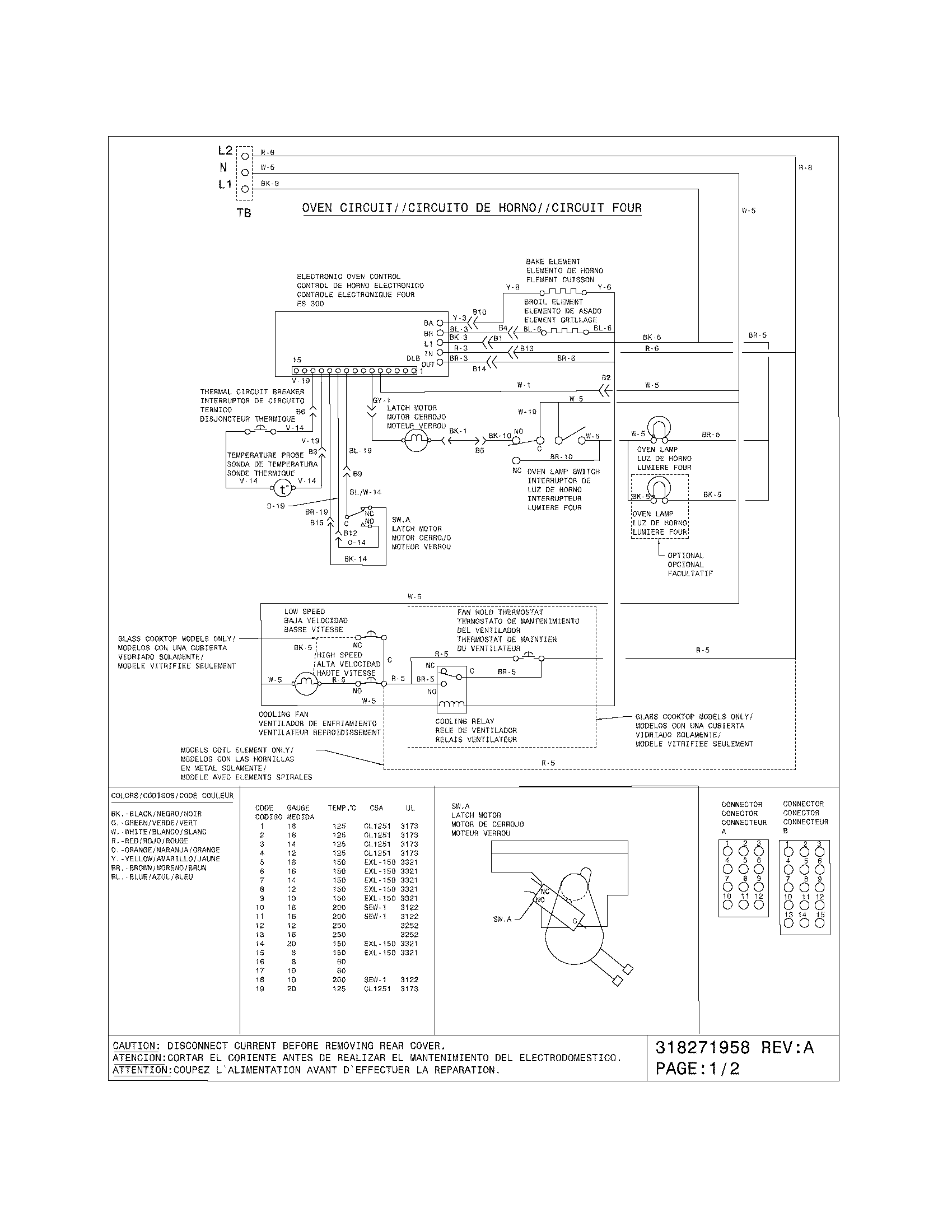

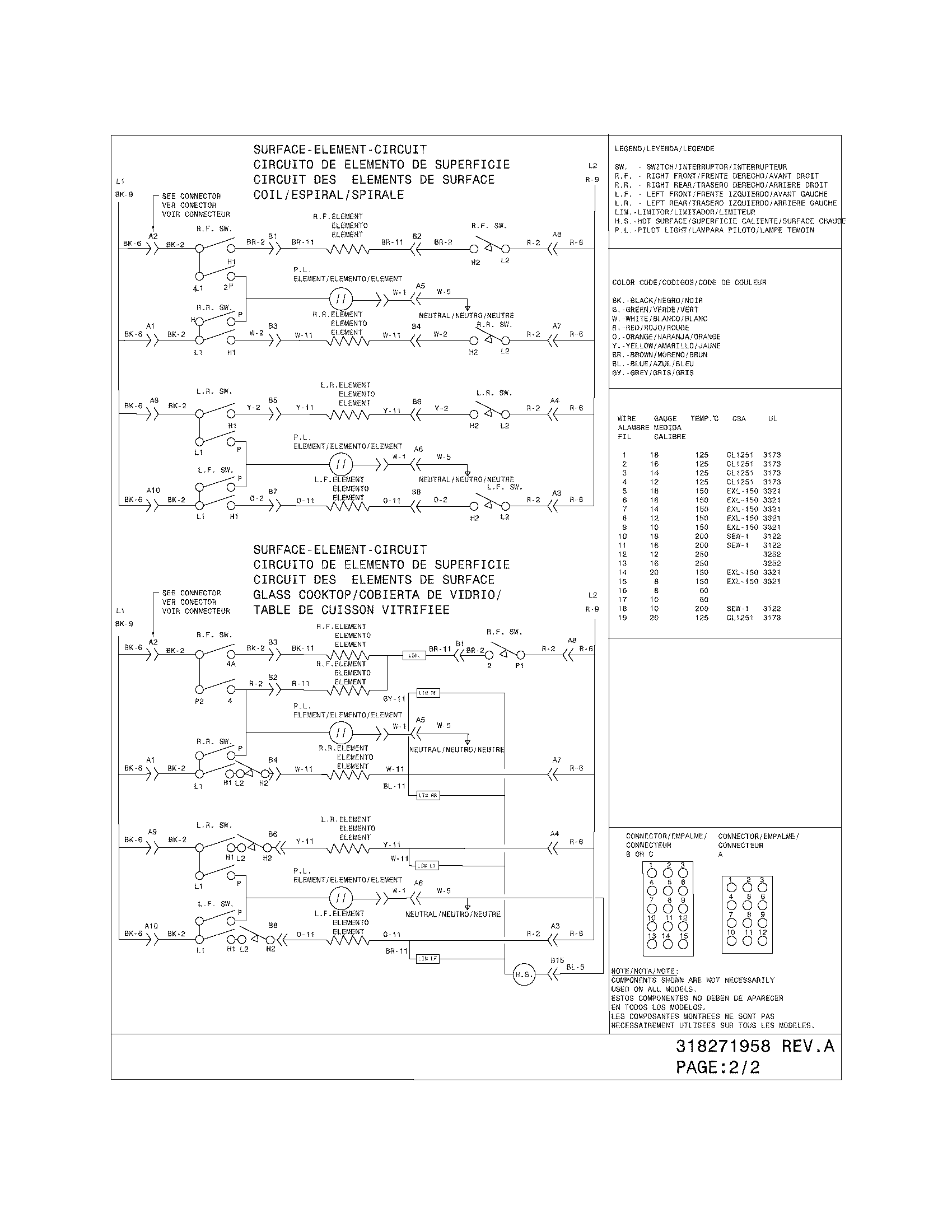

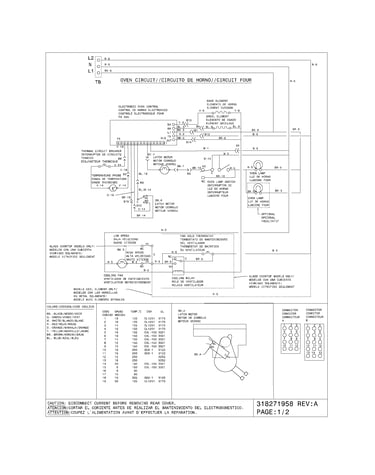

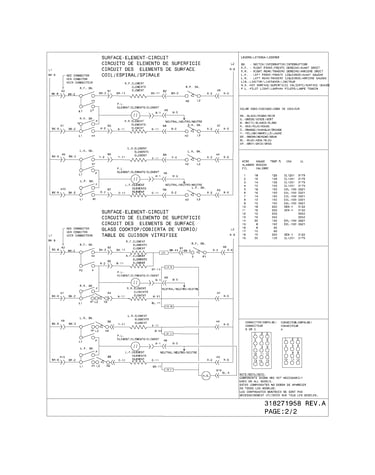

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Range Oven Light Bulb 5303013071
#15

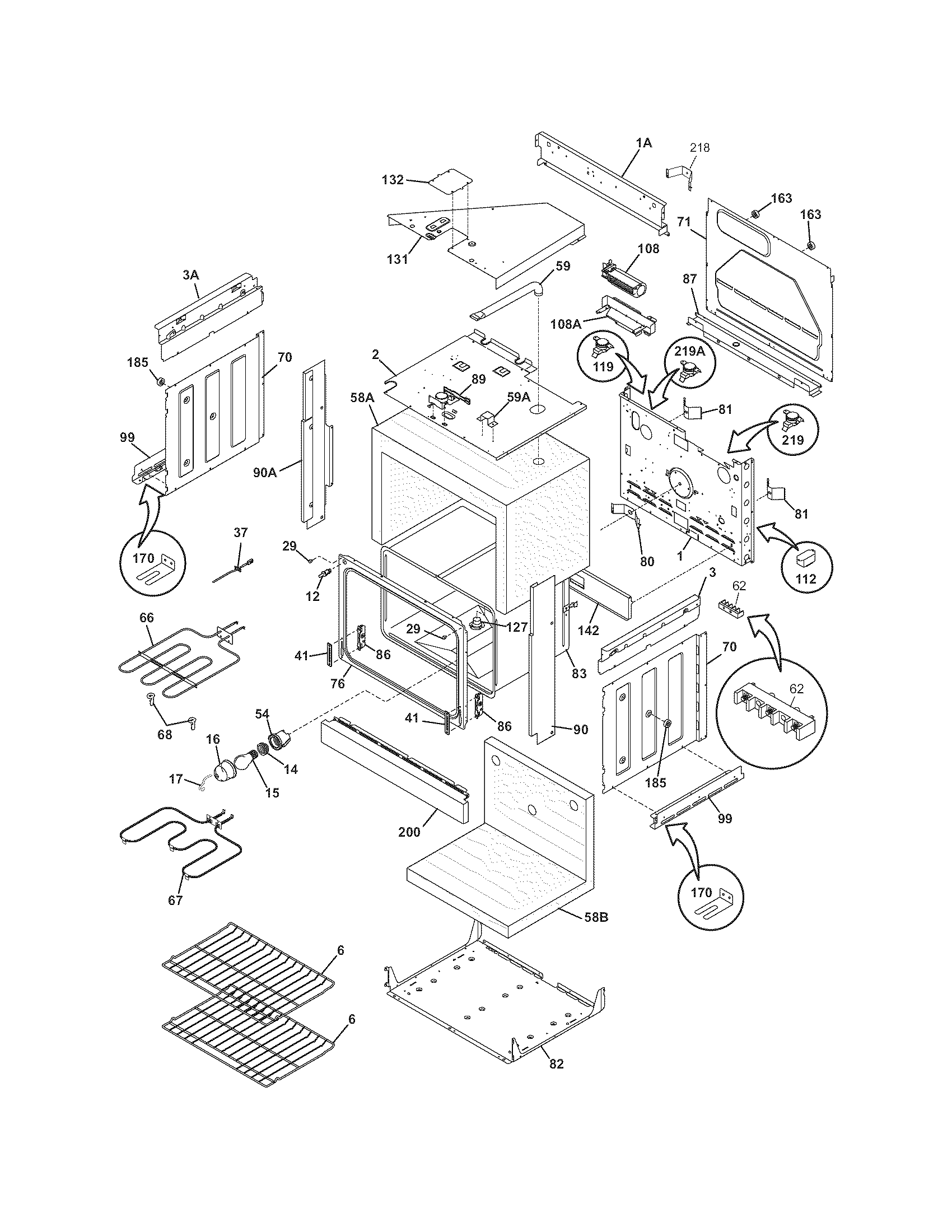

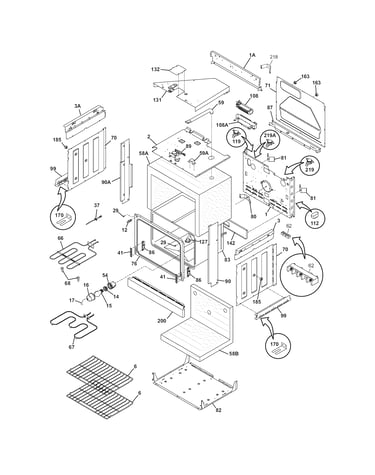

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

Body diagram

Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$43.55 |
12% OFF Phone Price : $49.55
In Stock
Element 318198830
#15B

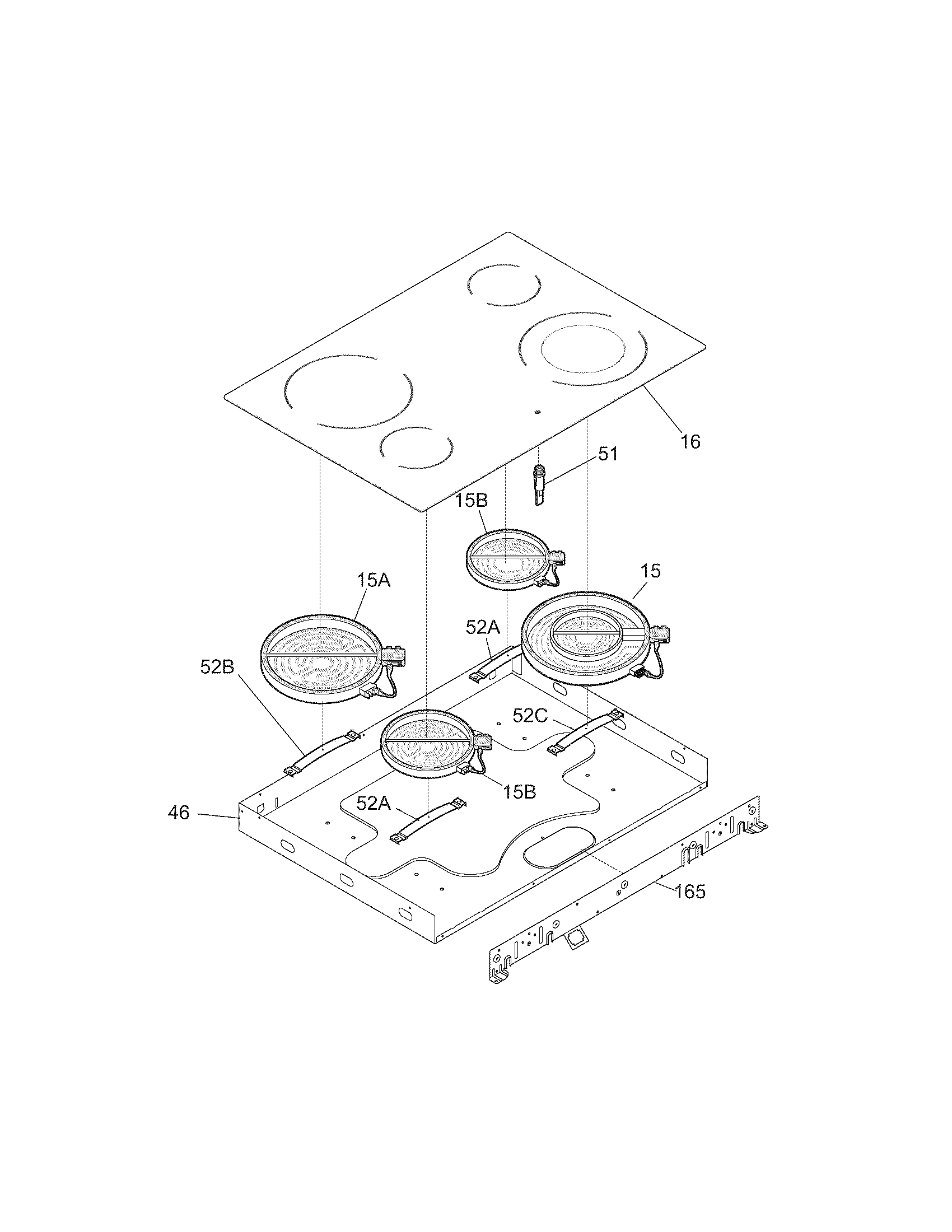

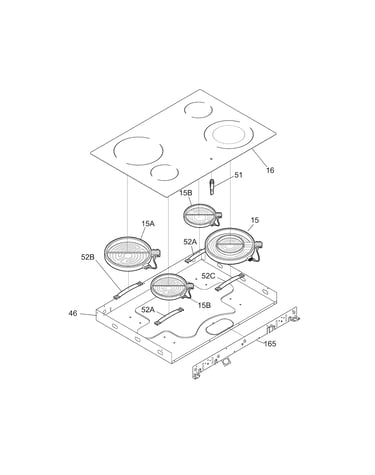

Top/drawer diagram

Element

Part #318198830

Replaced by #318178110

?
Manufacturer substitution
This part replaces 318198830. Substitute parts can look different from the original.
BEST SELLER
$138.09 |
8% OFF Phone Price : $150.09
In Stock
Element 318198932
#15

Top/drawer diagram

Element

Part #318198932

Replaced by #316555800

?
Manufacturer substitution
This part replaces 318198932. Substitute parts can look different from the original.
BEST SELLER
$159.22 |
7% OFF Phone Price : $171.22
In Stock
Range Oven Door Inner Glass 316117500
#8

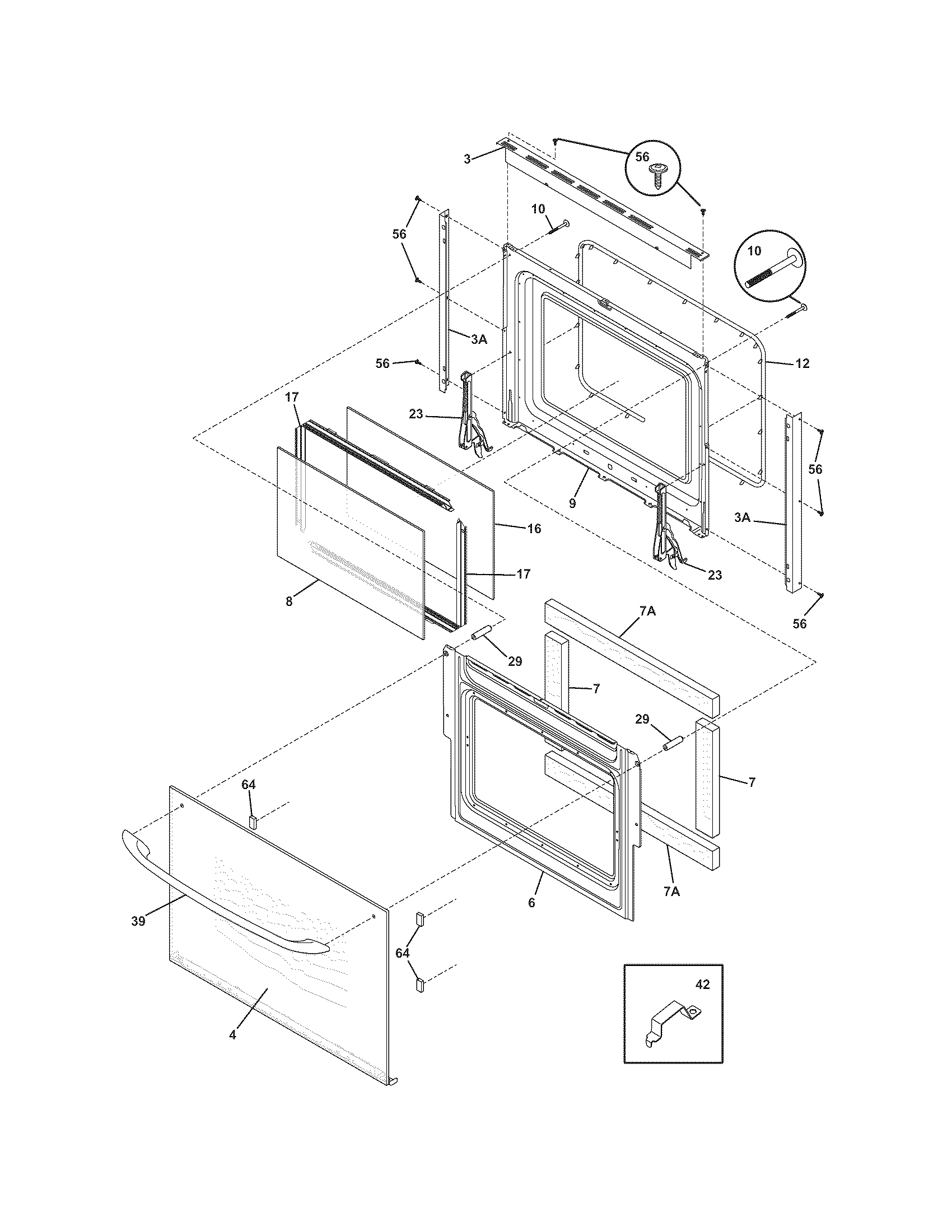

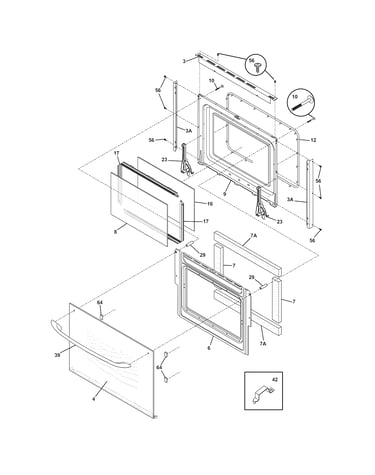

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Range Control Panel Overlay 316419103
#NI

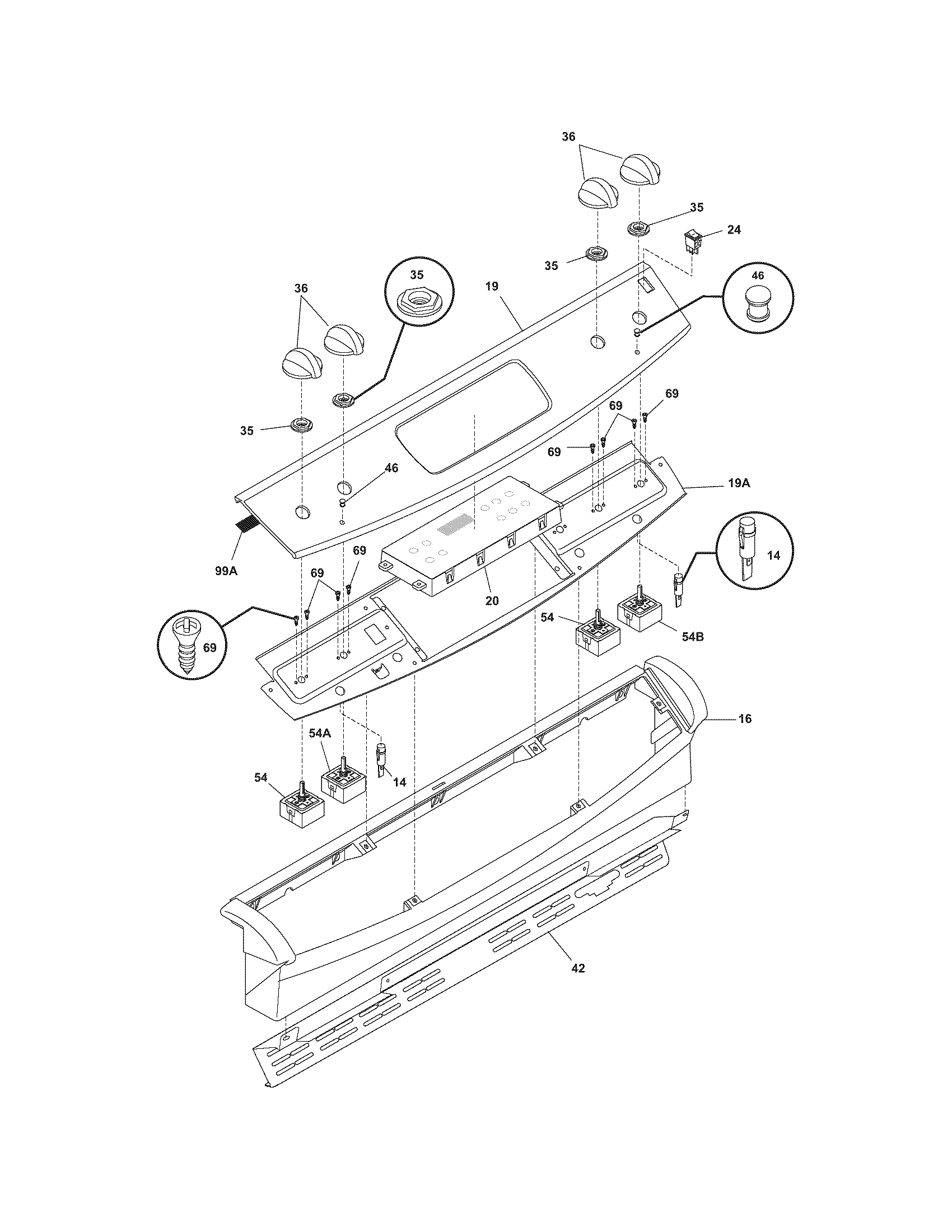

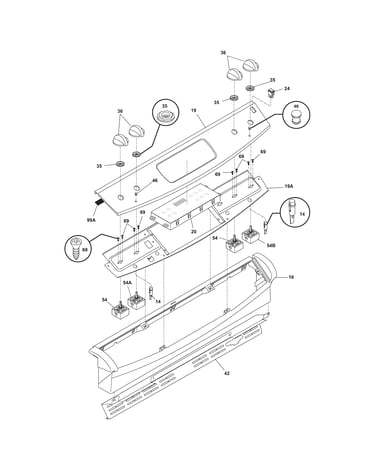

Backguard diagram

Range control panel overlay

Part #316419103

Replaced by #316419141

?
Manufacturer substitution
This part replaces 316419103. Substitute parts can look different from the original.
BEST SELLER
$37.99 |
14% OFF Phone Price : $43.99
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Dual Element Infinite Switch 318191027
#54B

Backguard diagram

Range dual element infinite switch

Part #318191027

Replaced by #318191023

?
Manufacturer substitution
This part replaces 318191027. Substitute parts can look different from the original.
BEST SELLER
$62.73 |
9% OFF Phone Price : $68.73
In Stock
Range Control Overlay 316419104
#NI

Backguard diagram

Range control overlay

Part #316419104

Replaced by #316419137

?
Manufacturer substitution
This part replaces 316419104. Substitute parts can look different from the original.
BEST SELLER
$30.22 |
17% OFF Phone Price : $36.22
In Stock
Oven Switch 318369616
#54A

Backguard diagram

Oven switch

Part #318369616

Replaced by #903136-9020

?
Manufacturer substitution
This part replaces 318369616. Substitute parts can look different from the original.
BEST SELLER
$72.58 |
8% OFF Phone Price : $78.58
In Stock
