Rear-Engine Riding Mower

Model # 13196263 Official Craftsman 26" riding lawn mower

Here are the diagrams and repair parts for Official Craftsman 13196263 26" riding lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 254 parts  |
Washer 61537
#9

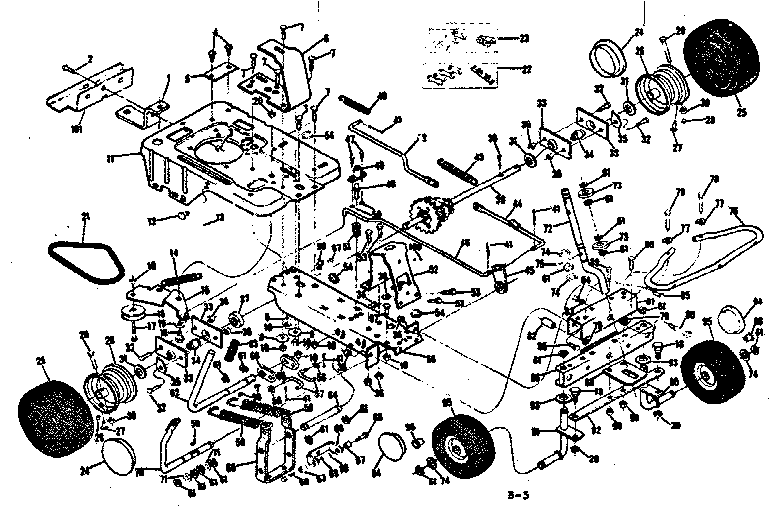

Main frame and wheel assembly diagram

Washer

Part #61537

Replaced by #596134901

?
Manufacturer substitution
This part replaces 61537. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Washer 52966
#22

Main frame and wheel assembly diagram

Washer

Part #52966

Replaced by #532121749

?
Manufacturer substitution
This part replaces 52966. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Bolt 67613
#23

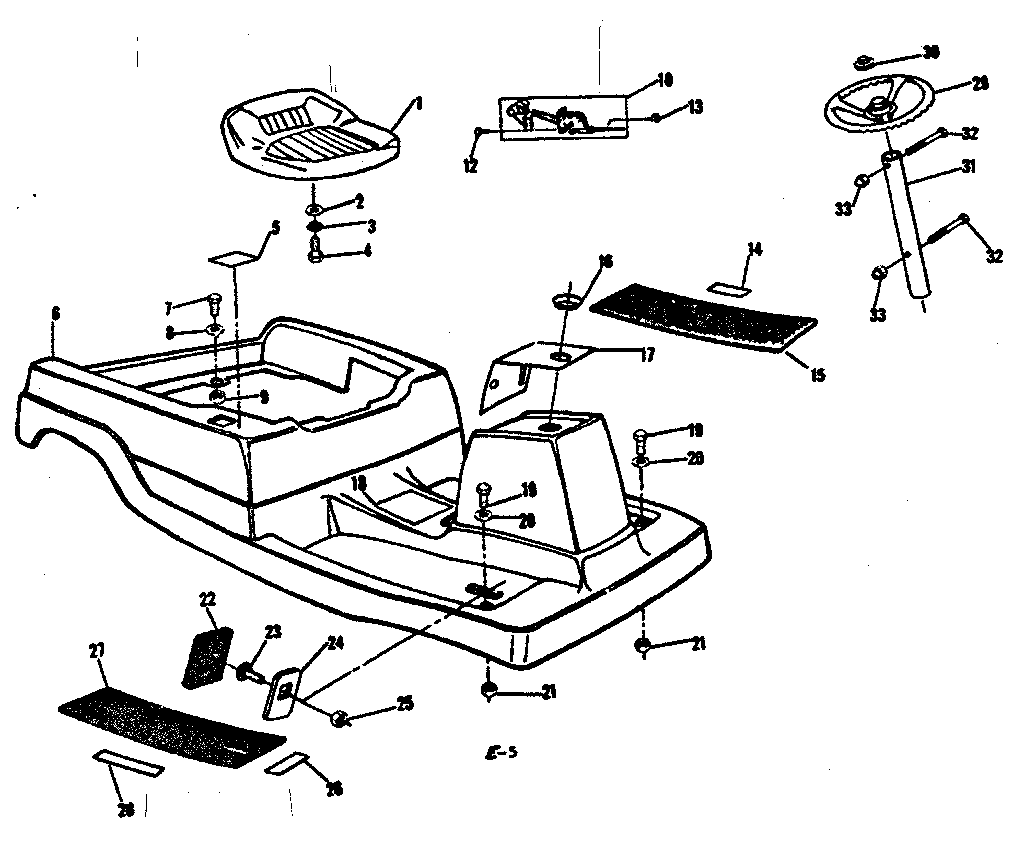

Body shroud and seat assembly diagram

Bolt

Part #67613

The manufacturer no longer makes this part, and there's no substitute part

Carriage Bolt 126219
#4

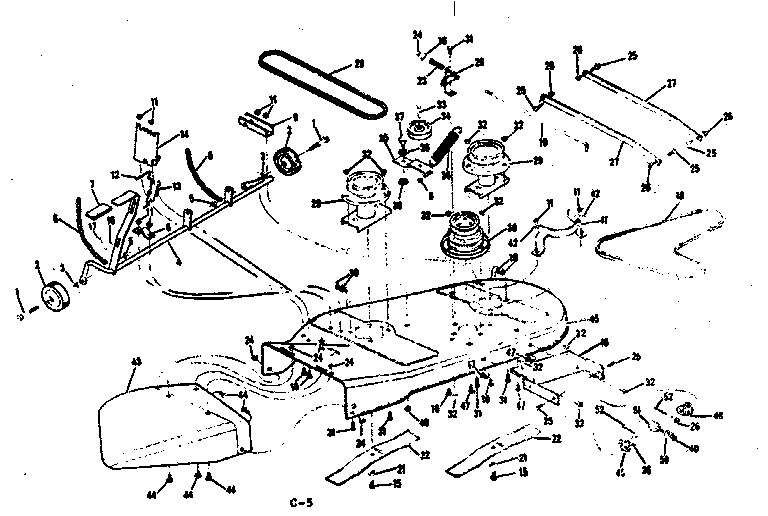

Lower pivot shaft diagram

Carriage bolt

Part #126219

The manufacturer no longer makes this part, and there's no substitute part

Bolt 126211
#41

Lower pivot shaft diagram

Bolt

Part #126211

The manufacturer no longer makes this part, and there's no substitute part

Seat Assembly 67872
#1

Body shroud and seat assembly diagram

Seat assembly

Part #67872

Replaced by #532401042

?
Manufacturer substitution
This part replaces 67872. Substitute parts can look different from the original.
$179.96
In Stock
Battery Rod 67187
#18

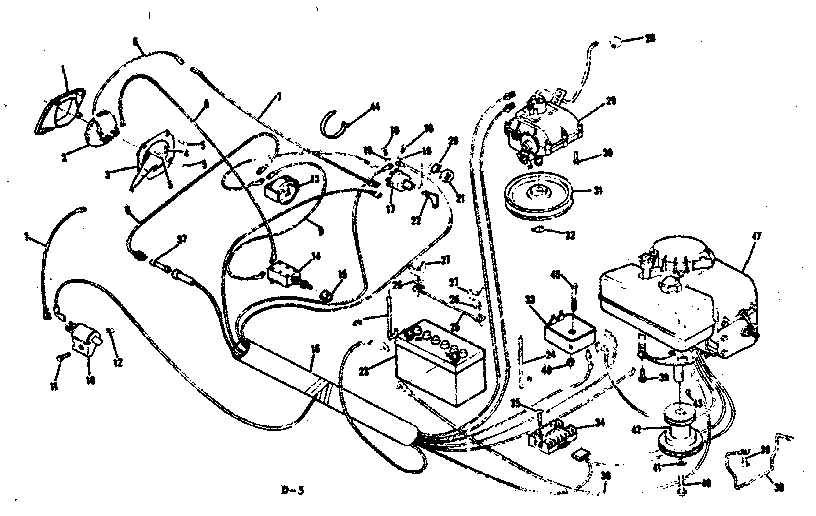

Engine and wire harness diagram

Battery rod

Part #67187

Replaced by #582935901

?
Manufacturer substitution
This part replaces 67187. Substitute parts can look different from the original.
$10.26
In Stock
Washer 67725
#43

Main frame and wheel assembly diagram

Washer

Part #67725

Replaced by #532067725

?
Manufacturer substitution
This part replaces 67725. Substitute parts can look different from the original.
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Bearing 62346
#26

Main frame and wheel assembly diagram

Bearing

Part #62346

Replaced by #583637001

?
Manufacturer substitution
This part replaces 62346. Substitute parts can look different from the original.
$11.97
In Stock
Nut 67759
#8

Engine and wire harness diagram

Nut

Part #67759

Replaced by #532124211

?
Manufacturer substitution
This part replaces 67759. Substitute parts can look different from the original.
$8.54
In Stock
