Model # 79046604500 Official Kenmore Elite electric range
Here are the diagrams and repair parts for Official Kenmore Elite 79046604500 electric range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual

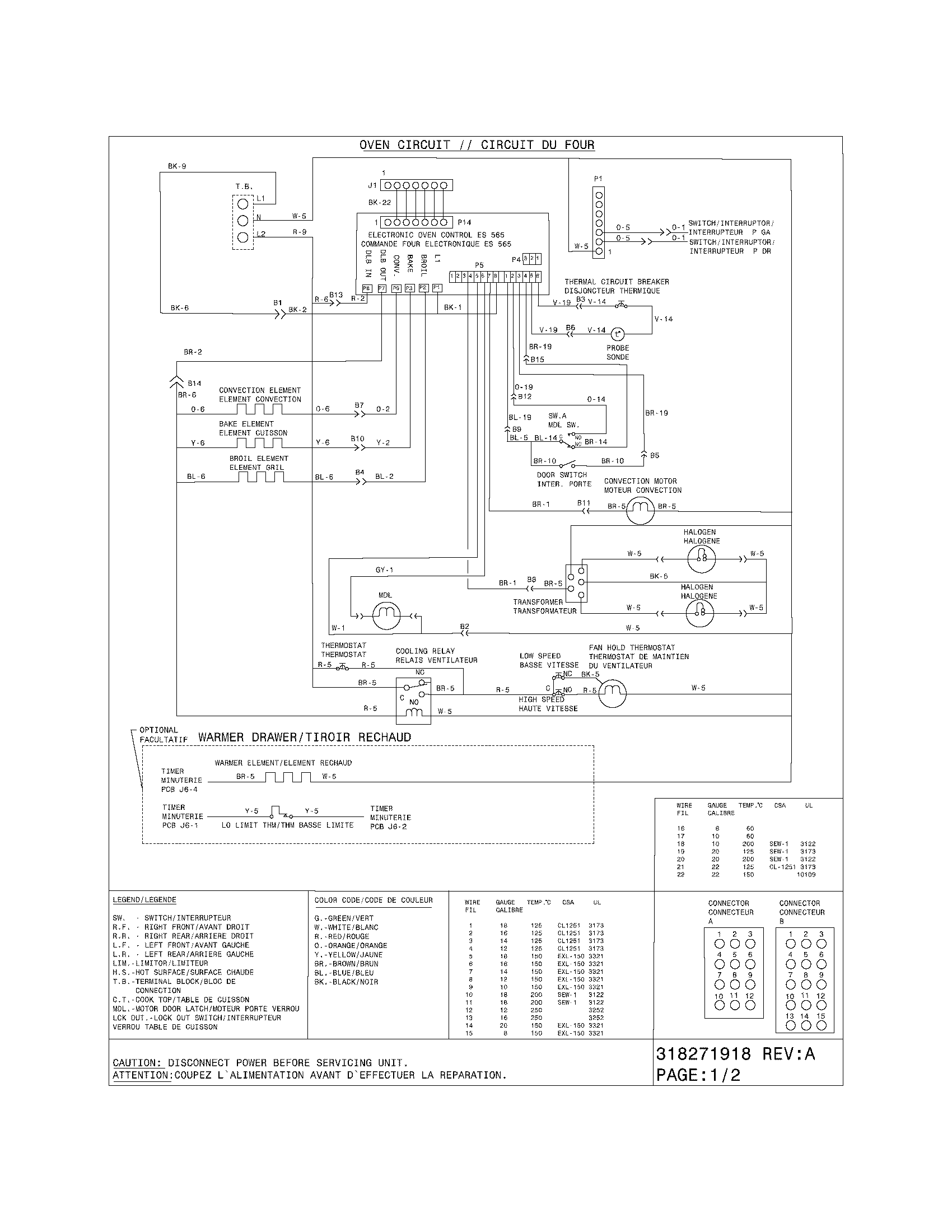

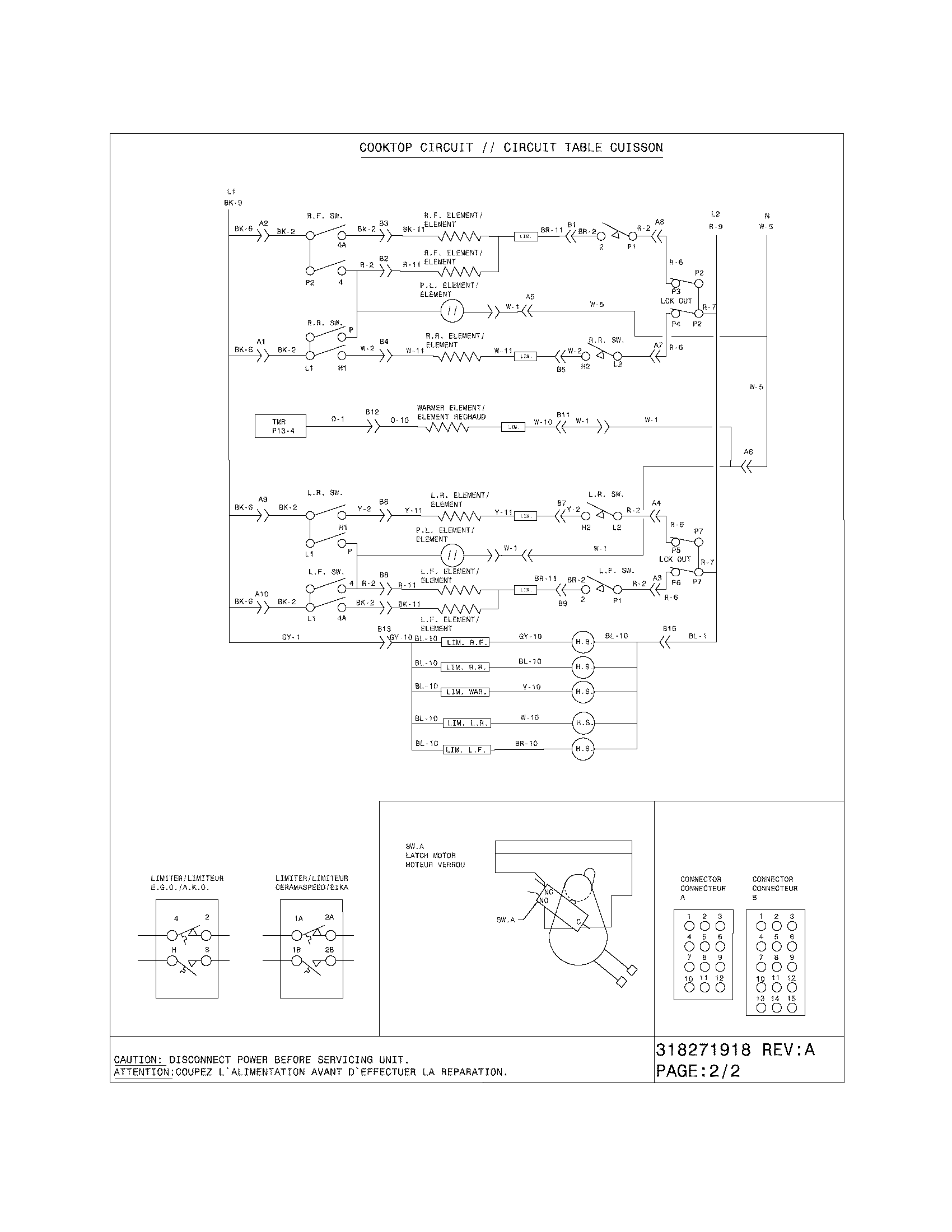

Error CodesBy Schematic
By Part

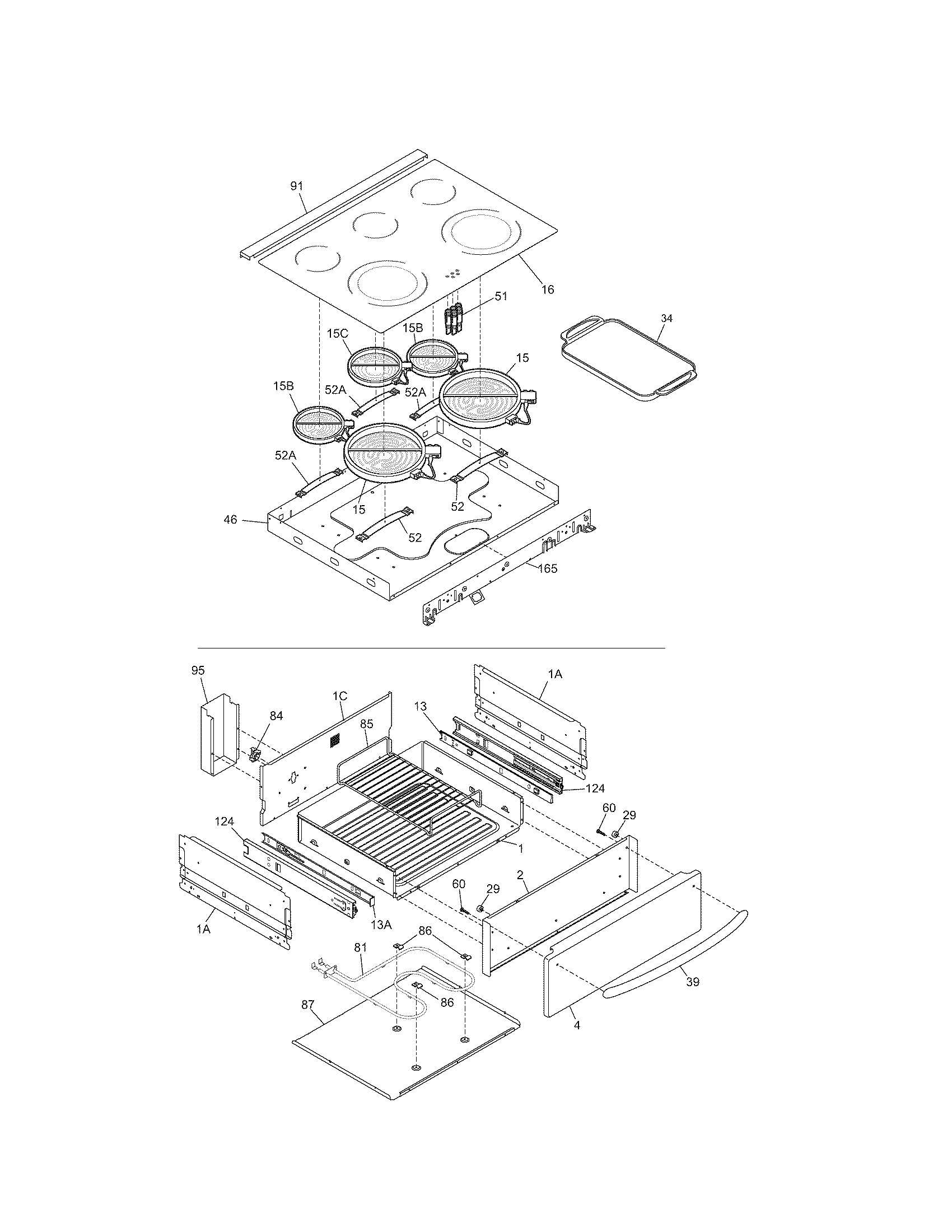

SELECT DIAGRAM
Browse Parts for79046604500 Ranges
- #67

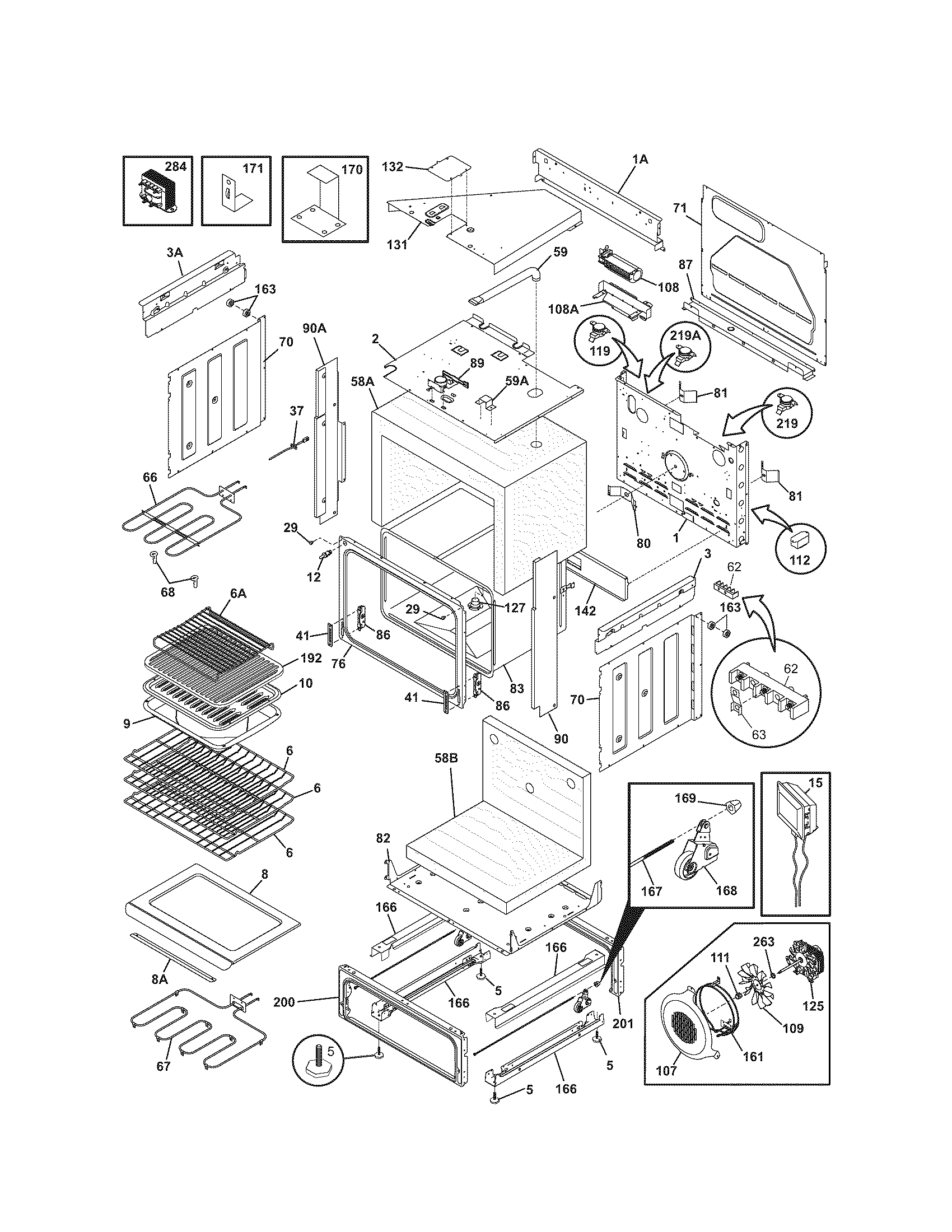

Body diagram
ElementPart #318254901
Replaced by #318254906
?Manufacturer substitutionThis part replaces 318254901. Substitute parts can look different from the original.$155.57 |7% OFF Phone Price : $167.57In Stock - #8

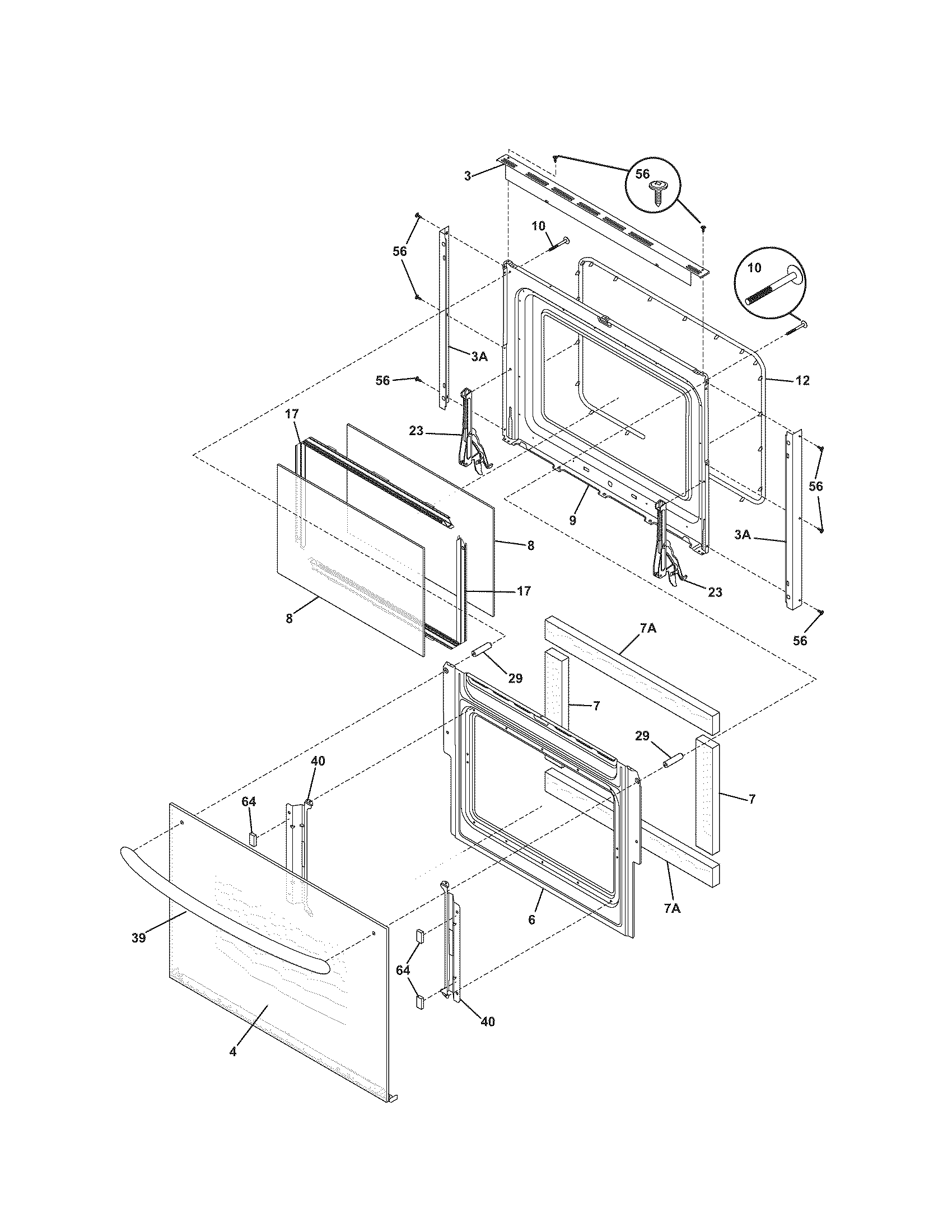

Door diagram
Range oven door inner glassPart #316117500
Replaced by #5304503232
?Manufacturer substitutionThis part replaces 316117500. Substitute parts can look different from the original.$77.39 |7% OFF Phone Price : $83.39In Stock - #54

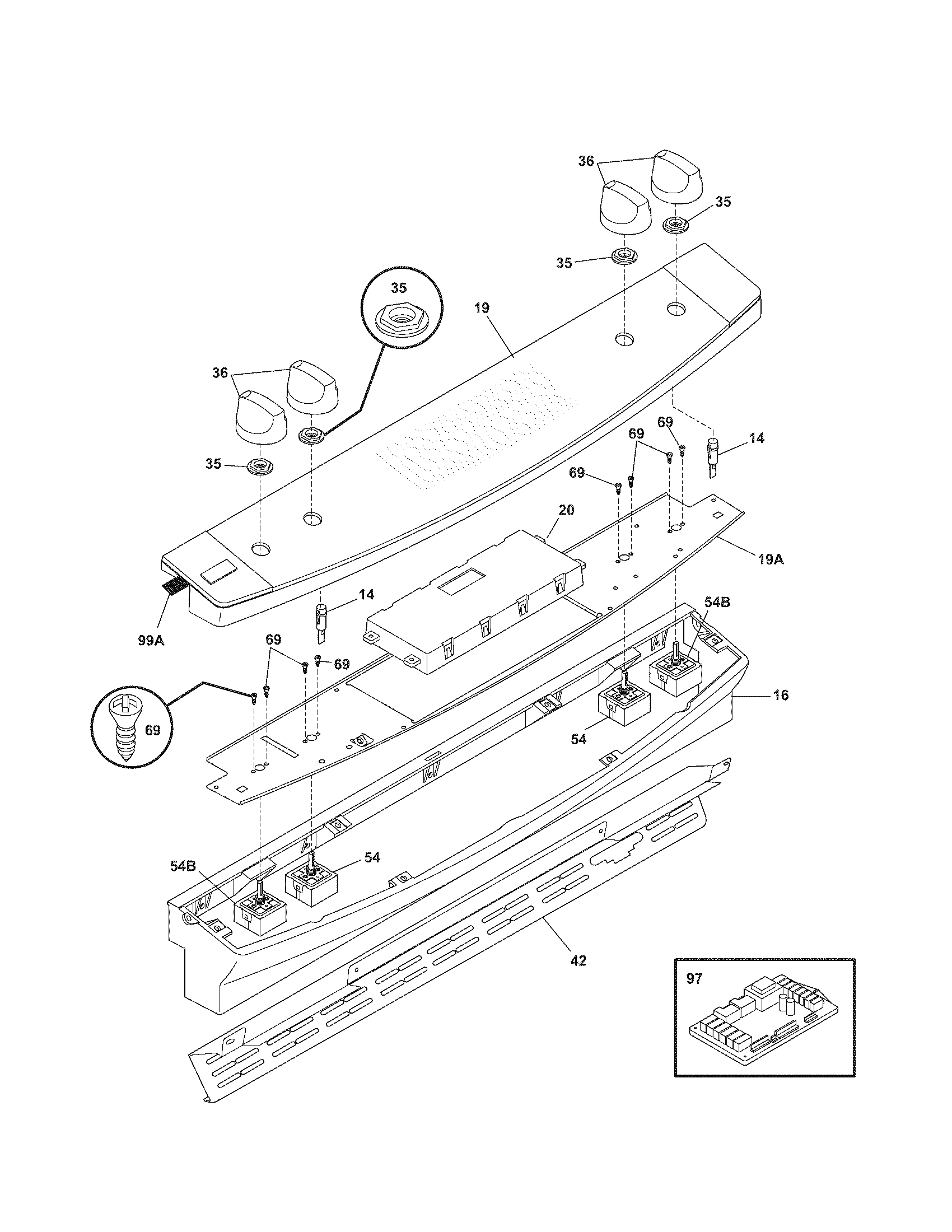

Backguard diagram
SwitchPart #318220080
Replaced by #903136-9010
?Manufacturer substitutionThis part replaces 318220080. Substitute parts can look different from the original.$71.45 |8% OFF Phone Price : $77.45In Stock - #62
Body diagram
Terminal blockPart #5303935061
Replaced by #5304409888
?Manufacturer substitutionThis part replaces 5303935061. Substitute parts can look different from the original.$22.93 |21% OFF Phone Price : $28.93In Stock - #54B
Backguard diagram
Frigidaire range surface element infinite switchPart #318191023
$59.43 |9% OFF Phone Price : $65.43In Stock - #66
Body diagram
Range broil elementPart #318255600
Replaced by #318255605
?Manufacturer substitutionThis part replaces 318255600. Substitute parts can look different from the original.$111.69 |10% OFF Phone Price : $123.69In Stock - Screw
Part #08016432
Replaced by #131243700
?Manufacturer substitutionThis part replaces 08016432. Substitute parts can look different from the original.$55.42In Stock - #111
Body diagram
Range convection fan blade nutPart #316136600
$19.42 |9% OFF Phone Price : $21.42In Stock - #263
Body diagram
WasherPart #316136500
Replaced by #316008401
?Manufacturer substitutionThis part replaces 316136500. Substitute parts can look different from the original.$13.71 |13% OFF Phone Price : $15.71In Stock - #99A
Backguard diagram
GasketPart #318313211
Replaced by #318313231
?Manufacturer substitutionThis part replaces 318313211. Substitute parts can look different from the original.$65.07 |8% OFF Phone Price : $71.07In Stock
