Kenmore
Gas Range

Model # 9116047812 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 9116047812 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

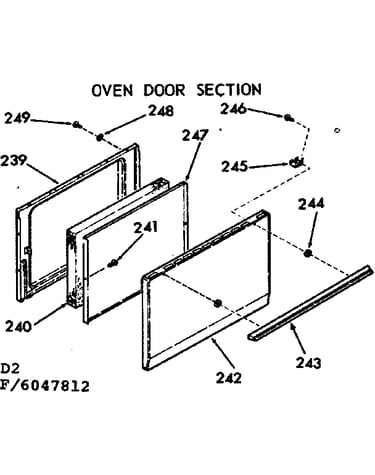

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 178 parts  |
Igniter 311846
#75

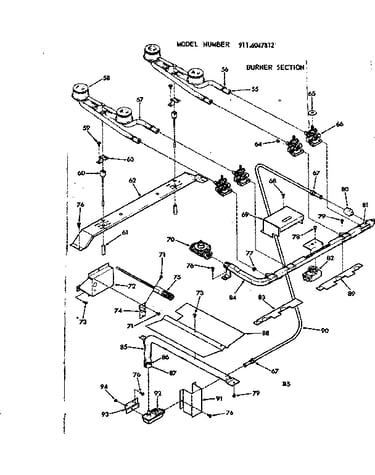

Burner section diagram

Igniter

Part #311846

Replaced by #WB2X9154

?
Manufacturer substitution
This part replaces 311846. Substitute parts can look different from the original.
BEST SELLER
$84.11 |
7% OFF Phone Price : $90.11
In Stock
Screw 311484
Screw

Part #311484

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 311484. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 295849
Screw

Part #295849

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 295849. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 102430
Screw

Part #102430

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102430. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 102428
Screw

Part #102428

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102428. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Terminal STD374250
#323B

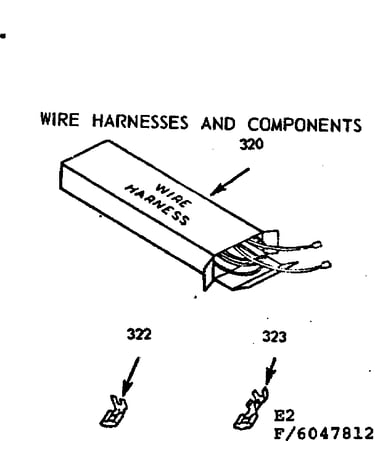

Wire harnesses and components diagram

Terminal

Part #STD374250

The manufacturer no longer makes this part, and there's no substitute part

Screw 239268
#86

Burner section diagram

Screw

Part #239268

Replaced by #WB1X1118

?
Manufacturer substitution
This part replaces 239268. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Washer 303963
#169

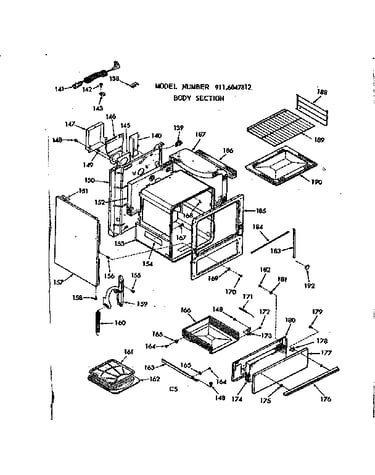

Body section diagram

Washer

Part #303963

This item is not returnable
$2.16
In Stock
Bracket 311689
#74

Burner section diagram

Bracket

Part #311689

$7.71
In Stock
Washer 310218
#46

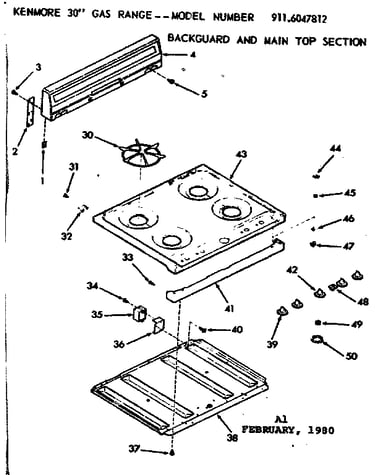

Backguard and main top section diagram

Washer

Part #310218

This item is not returnable
$2.16
In Stock
