Gas Walk-Behind Mower

Model # 917388540 Official Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917388540 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

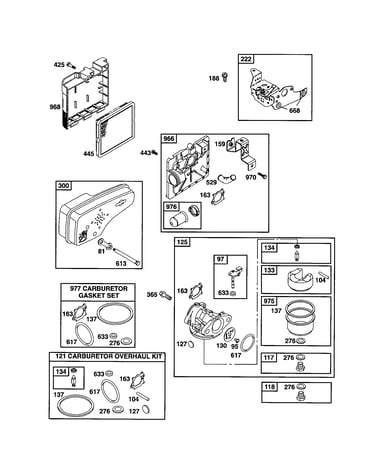

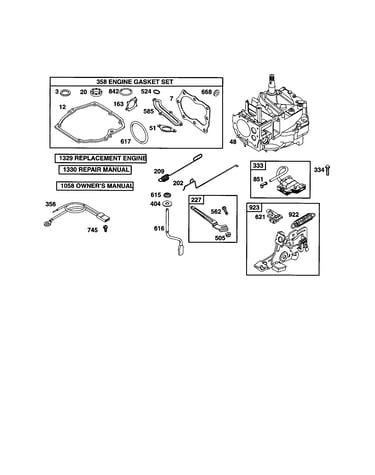

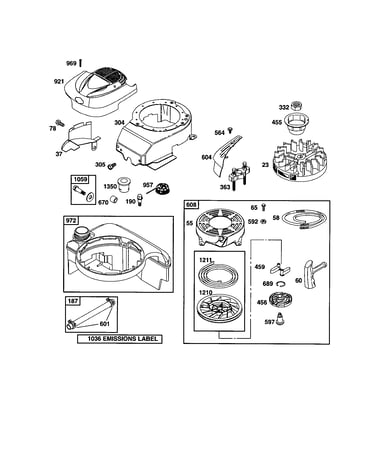

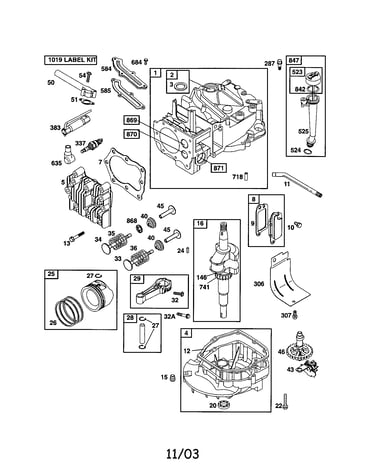

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |
Lock Nut 83923
#39

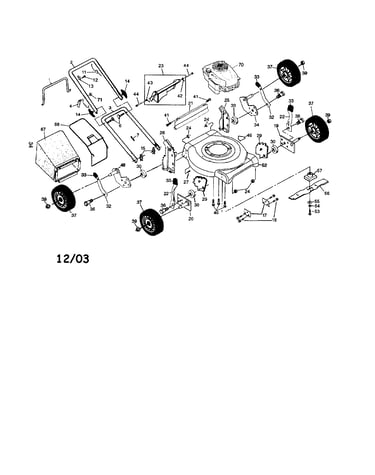

Engine/handle/housing/wheels/bag diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Belt, 21-in 175064
#56

Engine/handle/housing/wheels/bag diagram

Belt, 21-in

Part #175064

Replaced by #532406712

?
Manufacturer substitution
This part replaces 175064. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.13 |
21% OFF Phone Price : $28.13
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#41

Engine/handle/housing/wheels/bag diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Handle Knob 136376
#14

Engine/handle/housing/wheels/bag diagram

Handle knob

Part #136376

Replaced by #532185577

?
Manufacturer substitution
This part replaces 136376. Substitute parts can look different from the original.
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Handle Bolt 131959
#6

Engine/handle/housing/wheels/bag diagram

Handle bolt

Part #131959

Replaced by #532191574

?
Manufacturer substitution
This part replaces 131959. Substitute parts can look different from the original.
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Grass Bag 189262
#67

Engine/handle/housing/wheels/bag diagram

Grass bag

Part #189262

Replaced by #532410666

?
Manufacturer substitution
This part replaces 189262. Substitute parts can look different from the original.
$66.54 |
8% OFF Phone Price : $72.54
In Stock
Wire Tie 66426
#7

Engine/handle/housing/wheels/bag diagram

Wire tie

Part #66426

The manufacturer no longer makes this part, and there's no substitute part

Wheel Bracket 160835X007
#29

Engine/handle/housing/wheels/bag diagram

Wheel bracket

Part #160835X007

Replaced by #532407494

?
Manufacturer substitution
This part replaces 160835X007. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Walk-behind Lawn Mower Selector Knob 87877
#33

Engine/handle/housing/wheels/bag diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Nut 132004
#71

Engine/handle/housing/wheels/bag diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
