Model # JXP5032WW Official Jenn-Air range hood

Here are the diagrams and repair parts for Official Jenn-Air JXP5032WW range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Range Hood Blower Fan W10294501
#13

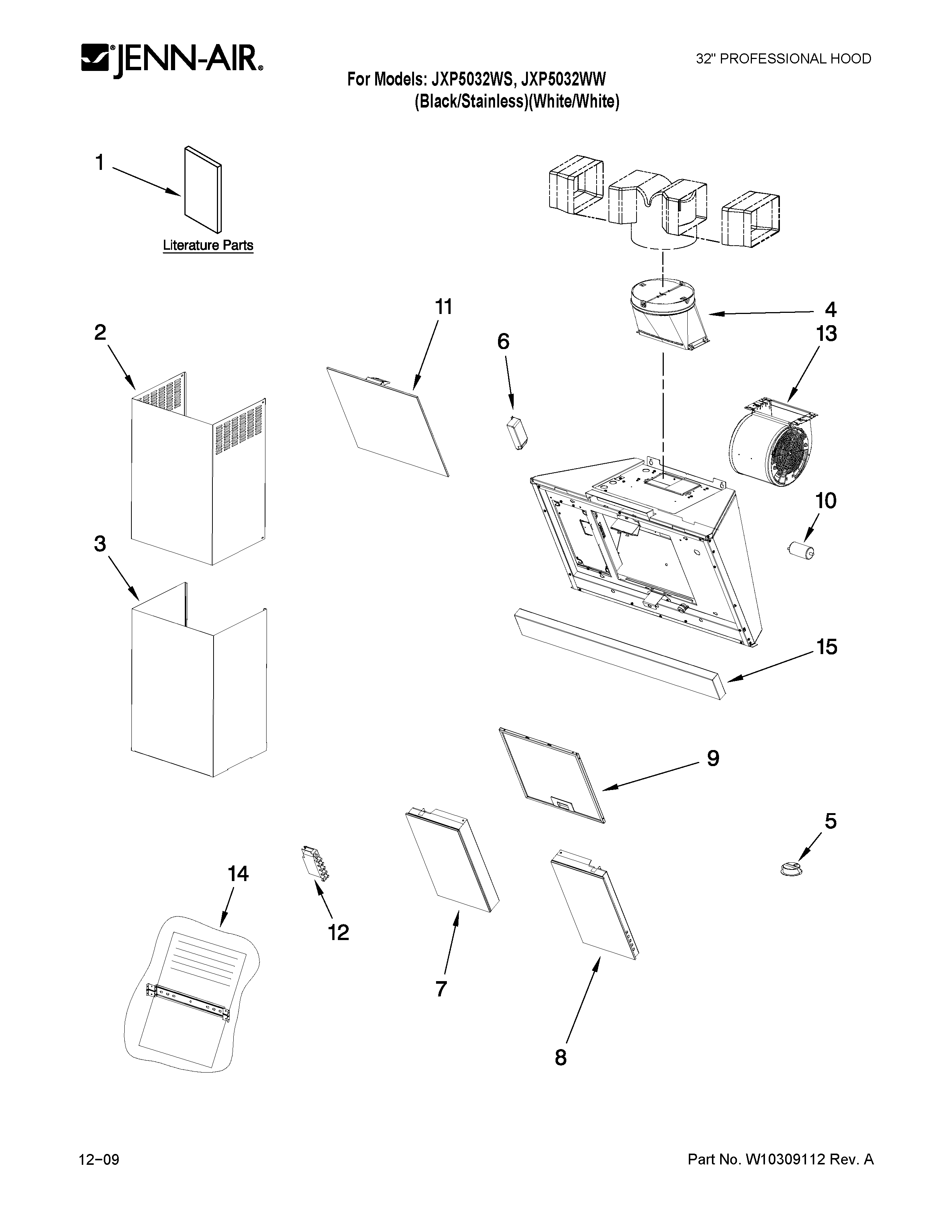

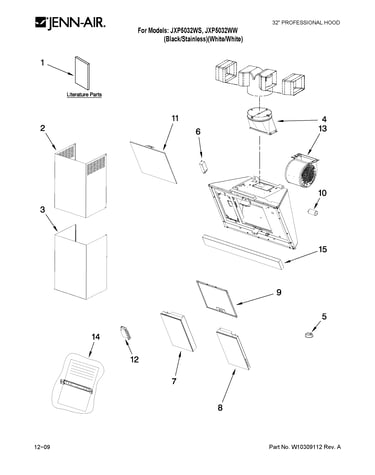

Hood parts diagram

Range hood blower fan

Part #W10294501

Replaced by #W11106377

?
Manufacturer substitution
This part replaces W10294501. Substitute parts can look different from the original.
$413.72 |
$12.00 OFF Phone Price : $425.72
In Stock
Range Hood Light Bulb W10298151
#5

Hood parts diagram

Range hood light bulb

Part #W10298151

Replaced by #WPW10298151

?
Manufacturer substitution
This part replaces W10298151. Substitute parts can look different from the original.
This item is not returnable
$23.69 |
20% OFF Phone Price : $29.69
In Stock
Range Hood Blower Motor Capacitor 8186677
#10

Hood parts diagram

Range hood blower motor capacitor

Part #8186677

$109.48
In Stock
Range Hood Filters 8190836
#9

Hood parts diagram

Range hood filters

Part #8190836

Replaced by #WP8190836

?
Manufacturer substitution
This part replaces 8190836. Substitute parts can look different from the original.
$88.34 |
6% OFF Phone Price : $94.34
In Stock
Range Hood Lower Flue Panel W10291599
#2

Hood parts diagram

Range hood lower flue panel

Part #W10291599

Replaced by #W11321566

?
Manufacturer substitution
This part replaces W10291599. Substitute parts can look different from the original.
$289.96
In Stock
Transformer 8186686
#6

Hood parts diagram

Transformer

Part #8186686

Replaced by #W11186486

?
Manufacturer substitution
This part replaces 8186686. Substitute parts can look different from the original.
$114.79 |
9% OFF Phone Price : $126.79
In Stock
Glass W10294519
#11A

Hood parts diagram

Glass

Part #W10294519

The manufacturer no longer makes this part, and there's no substitute part

Glass W10295800
#8A

Hood parts diagram

Glass

Part #W10295800

The manufacturer no longer makes this part, and there's no substitute part

Air Duct W10169956
#4

Hood parts diagram

Air duct

Part #W10169956

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Electronic Control Board W10294522
#12

Hood parts diagram

Range hood electronic control board

Part #W10294522

The manufacturer no longer makes this part, and there's no substitute part
