Model # MICROLINE 93 Official OKI Data printer

Here are the diagrams and repair parts for Official OKI Data MICROLINE-93 printer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

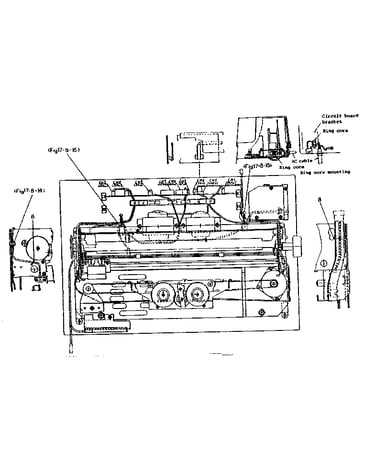

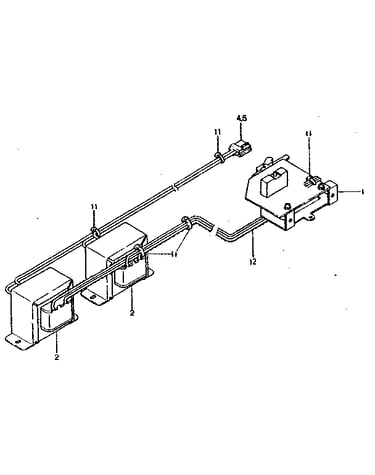

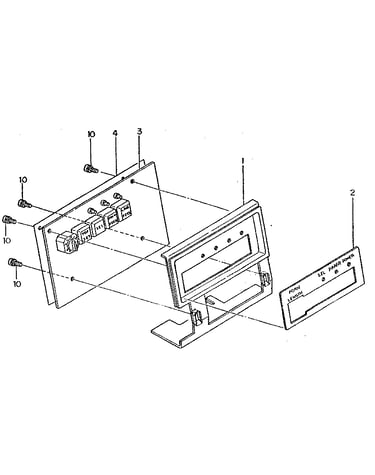

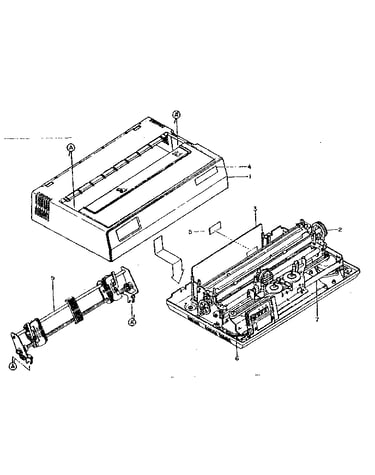

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
Sheet Guide LR-123467-1
#11

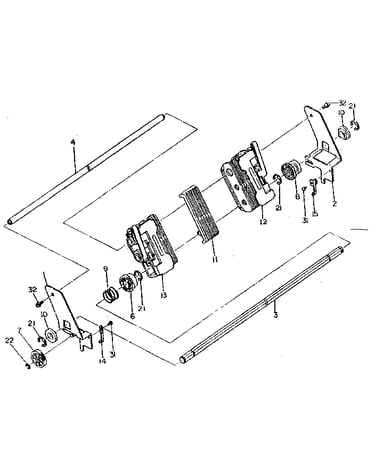

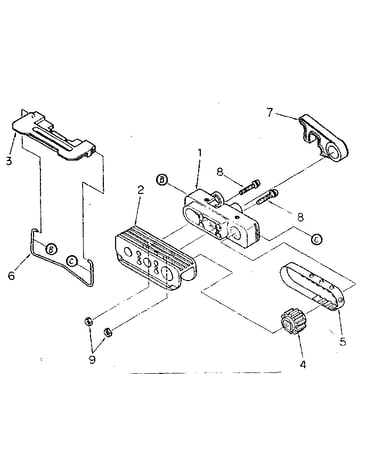

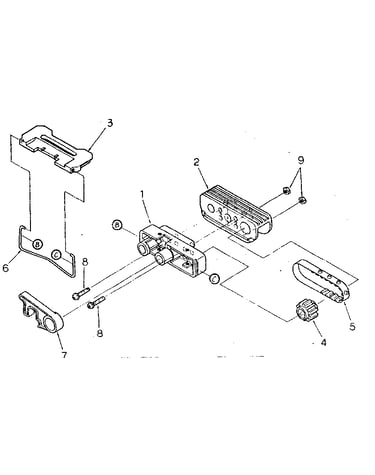

Tractor unit (ly-39702-1) diagram

Sheet guide

Part #LR-123467-1

The manufacturer no longer makes this part, and there's no substitute part

Crimp Terminal LP-6364-2
#18

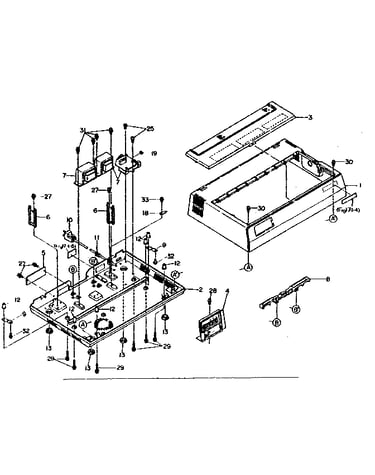

Cover unit (lm-62052-2) (for usa 117 v) diagram

Crimp terminal

Part #LP-6364-2

The manufacturer no longer makes this part, and there's no substitute part

Base Frame LR-132461-1
#1

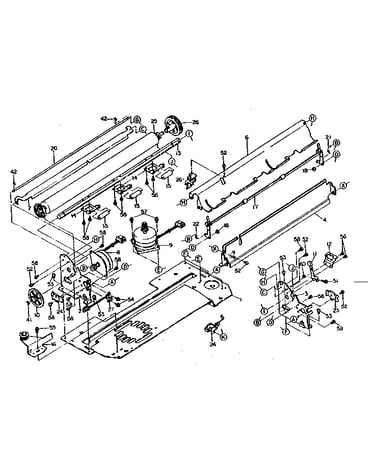

Base unit (lr-194276-1) diagram

Base frame

Part #LR-132461-1

The manufacturer no longer makes this part, and there's no substitute part

Screw P(SW+2W)3-6-HH
#28

Cover unit (lm-62052-2) (for usa 117 v) diagram

Screw

Part #P(SW+2W)3-6-HH

The manufacturer no longer makes this part, and there's no substitute part

Screw P(W)3-5-HH
#32

Cover unit (lm-62052-2) (for usa 117 v) diagram

Screw

Part #P(W)3-5-HH

The manufacturer no longer makes this part, and there's no substitute part

Space Motor LR-191854-3
#9

Base unit (lr-194276-1) diagram

Space motor

Part #LR-191854-3

The manufacturer no longer makes this part, and there's no substitute part

Washer W2.3-HH
#17

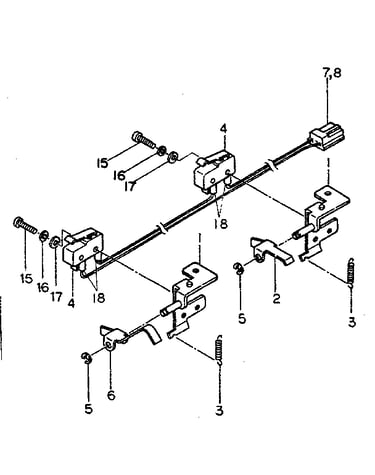

Paper out assembly (4lr-129907-1) diagram

Washer

Part #W2.3-HH

The manufacturer no longer makes this part, and there's no substitute part

Small Pan-head Screw P3-30-HH
#24

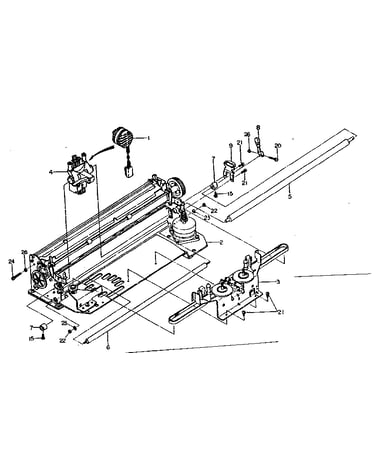

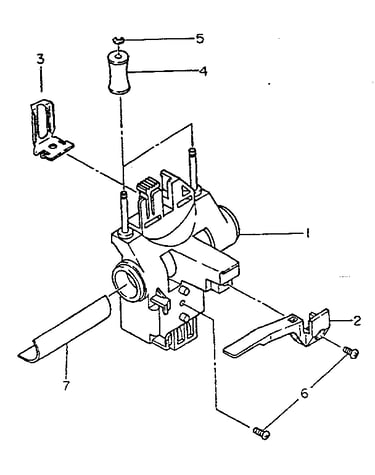

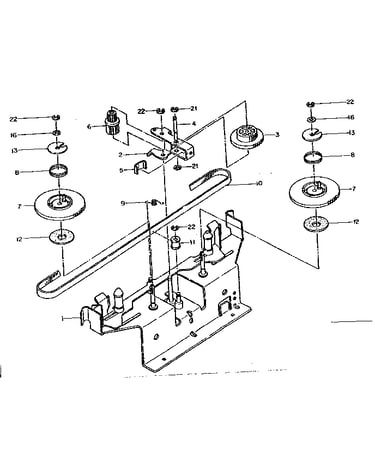

Printer unit (lr-1449-1) diagram

Small pan-head screw

Part #P3-30-HH

The manufacturer no longer makes this part, and there's no substitute part

Screw P(SW+2W)4-6-HH
#33

Cover unit (lm-62052-2) (for usa 117 v) diagram

Screw

Part #P(SW+2W)4-6-HH

The manufacturer no longer makes this part, and there's no substitute part

Adjusting Lever LR-132115-1
#8

Printer unit (lr-1449-1) diagram

Adjusting lever

Part #LR-132115-1

The manufacturer no longer makes this part, and there's no substitute part
