Craftsman
Garage Door Opener

Model # 139663801 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 139663801 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Transmitter 6634

#NI

All parts diagram

Transmitter

Part #6634

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A183
#1

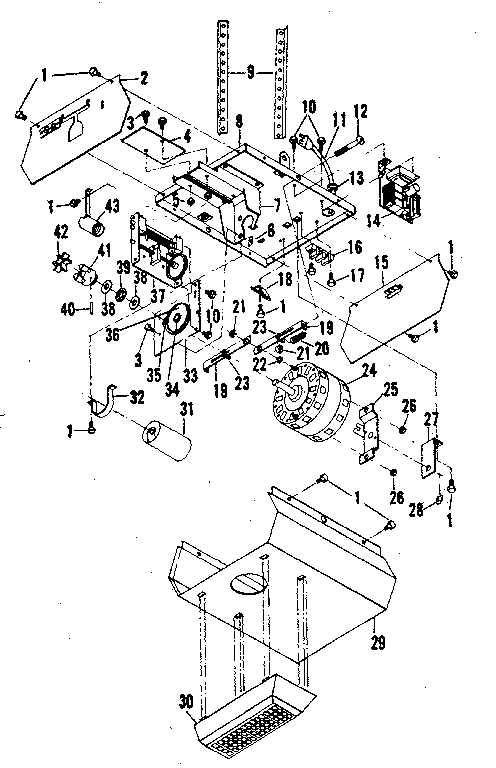

Chassis assembly diagram

Screw

Part #171A183

The manufacturer no longer makes this part, and there's no substitute part

'e' Ring 158A29
#28

Chassis assembly diagram

'e' ring

Part #158A29

The manufacturer no longer makes this part, and there's no substitute part

Logic Board 4A1226
#14

Chassis assembly diagram

Logic board

Part #4A1226

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Insert Coupling 25A8
#42

Chassis assembly diagram

Garage door opener insert coupling

Part #25A8

The manufacturer no longer makes this part, and there's no substitute part

Gear 81B23
#36

Chassis assembly diagram

Gear

Part #81B23

The manufacturer no longer makes this part, and there's no substitute part

Bracket 12A303
#32

Chassis assembly diagram

Bracket

Part #12A303

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 146A47
#6

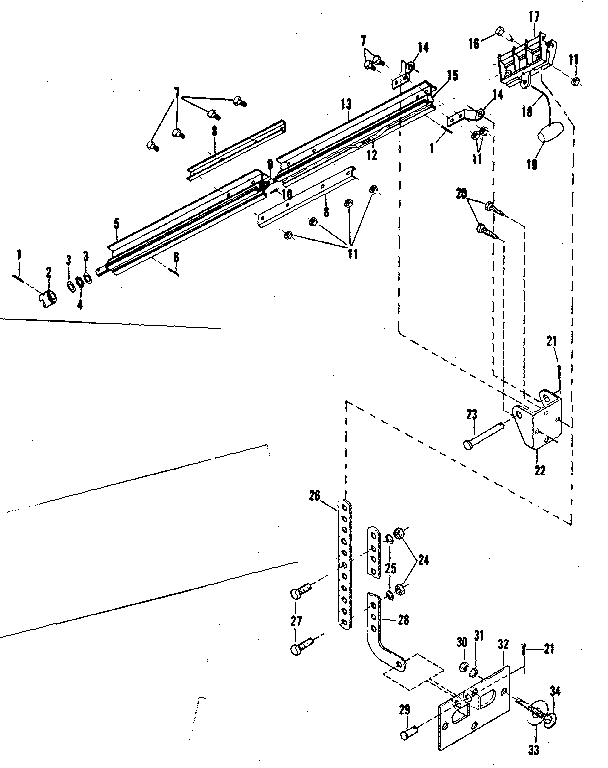

Rail assembly diagram

Roll pin

Part #146A47

The manufacturer no longer makes this part, and there's no substitute part

Bracket 12B297
Bracket

Part #12B297

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A274
#5

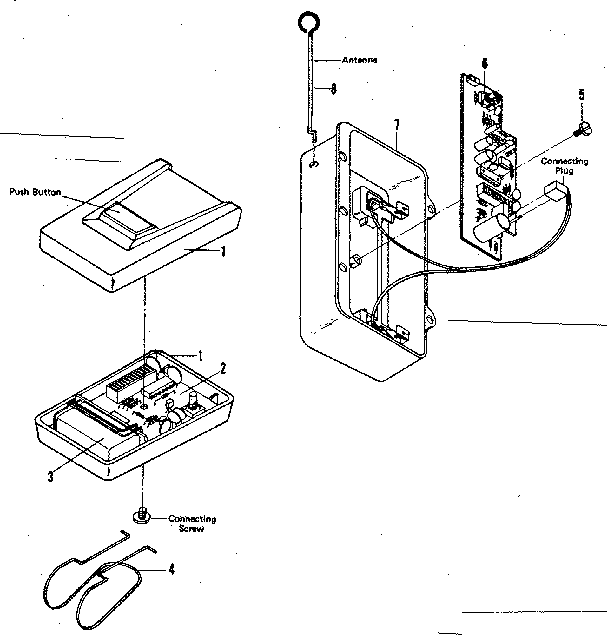

Radio controls diagram

Screw

Part #171A274

The manufacturer no longer makes this part, and there's no substitute part
