Craftsman
Power Drill

Model # 31511330 Official Craftsman drill

Here are the diagrams and repair parts for Official Craftsman 31511330 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Screw 1-930993-01
#41

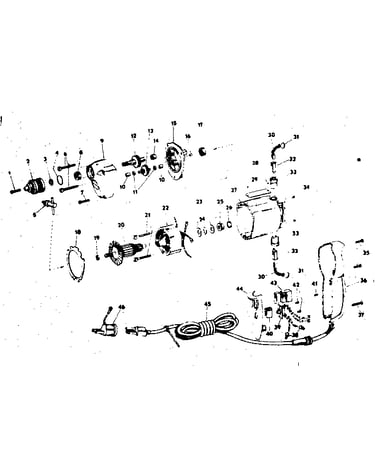

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Br Tube 2-623878-01
#32

Unit parts diagram

Br tube

Part #2-623878-01

The manufacturer no longer makes this part, and there's no substitute part

Washer 1-706382-808
#19

Unit parts diagram

Washer

Part #1-706382-808

The manufacturer no longer makes this part, and there's no substitute part

Chuck 2-614369-01
#2

Unit parts diagram

Chuck

Part #2-614369-01

The manufacturer no longer makes this part, and there's no substitute part

Gear Housing Cover 3-614337-03
#15

Unit parts diagram

Gear housing cover

Part #3-614337-03

The manufacturer no longer makes this part, and there's no substitute part

Washer 1-703493-804
#23

Unit parts diagram

Washer

Part #1-703493-804

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-623654-00
#6

Unit parts diagram

Screw

Part #1-623654-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-703432-55
#37

Unit parts diagram

Screw

Part #1-703432-55

The manufacturer no longer makes this part, and there's no substitute part

Cord Comp. 2-622897-02
#45

Unit parts diagram

Cord comp.

Part #2-622897-02

The manufacturer no longer makes this part, and there's no substitute part

Retain Ring 1-829994-00
#4

Unit parts diagram

Retain ring

Part #1-829994-00

The manufacturer no longer makes this part, and there's no substitute part
