Kenmore
Range Hood

Model # 2335168912 Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 2335168912 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Range Hood Nameplate 99090620
#23

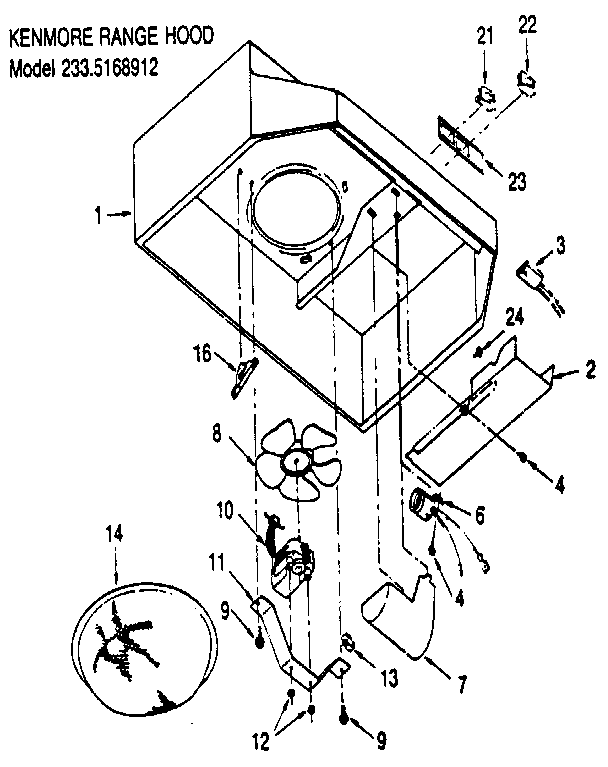

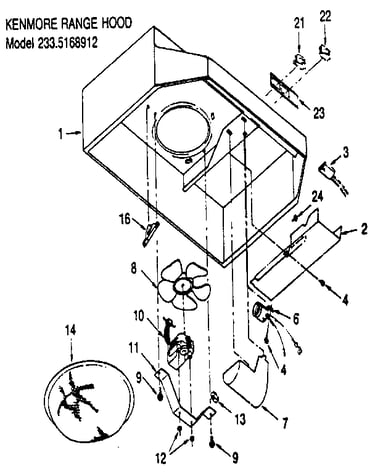

Range hood diagram

Range hood nameplate

Part #99090620

Replaced by #S97010709

?
Manufacturer substitution
This part replaces 99090620. Substitute parts can look different from the original.
This item is not returnable
$6.05
In Stock
Range Hood Wiring Cover 98006621
#2

Range hood diagram

Range hood wiring cover

Part #98006621

Replaced by #S98006621

?
Manufacturer substitution
This part replaces 98006621. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Range Hood Filter Latch 99420472
#16

Range hood diagram

Range hood filter latch

Part #99420472

Replaced by #S99420472

?
Manufacturer substitution
This part replaces 99420472. Substitute parts can look different from the original.
This item is not returnable
$19.92 |
9% OFF Phone Price : $21.92
In Stock
Switch 99030171
#22

Range hood diagram

Switch

Part #99030171

Replaced by #97016970

?
Manufacturer substitution
This part replaces 99030171. Substitute parts can look different from the original.
$37.50 |
14% OFF Phone Price : $43.50
In Stock
Range Hood Fan Motor Lock Nut 99260428
#12

Range hood diagram

Range hood fan motor lock nut

Part #99260428

Replaced by #S99260428

?
Manufacturer substitution
This part replaces 99260428. Substitute parts can look different from the original.
This item is not returnable
$3.33
Back Order
Switch Wht 99030248
#21A

Range hood diagram

Switch wht

Part #99030248

Replaced by #97016971

?
Manufacturer substitution
This part replaces 99030248. Substitute parts can look different from the original.
This item is not returnable
$25.71
In Stock
Motor Mount 98006765
#11

Range hood diagram

Motor mount

Part #98006765

Replaced by #S98006765

?
Manufacturer substitution
This part replaces 98006765. Substitute parts can look different from the original.
This item is not returnable
$4.98
In Stock
Aluminum Filter 99010122
#14

Range hood diagram

Aluminum filter

Part #99010122

The manufacturer no longer makes this part, and there's no substitute part

Blade 99020123
#8

Range hood diagram

Blade

Part #99020123

Replaced by #06112-00

?
Manufacturer substitution
This part replaces 99020123. Substitute parts can look different from the original.
This item is not returnable
$6.92
In Stock
Switch 99030172
#21

Range hood diagram

Switch

Part #99030172

Replaced by #97016970

?
Manufacturer substitution
This part replaces 99030172. Substitute parts can look different from the original.
$37.50 |
14% OFF Phone Price : $43.50
In Stock
