LCD Television

Model # UN60KS8000FXZA-EA01 Official Samsung uhd television

Here are the diagrams and repair parts for Official Samsung UN60KS8000FXZA-EA01 uhd television, as well as links to manuals and error code tables, if available.

By Schematic

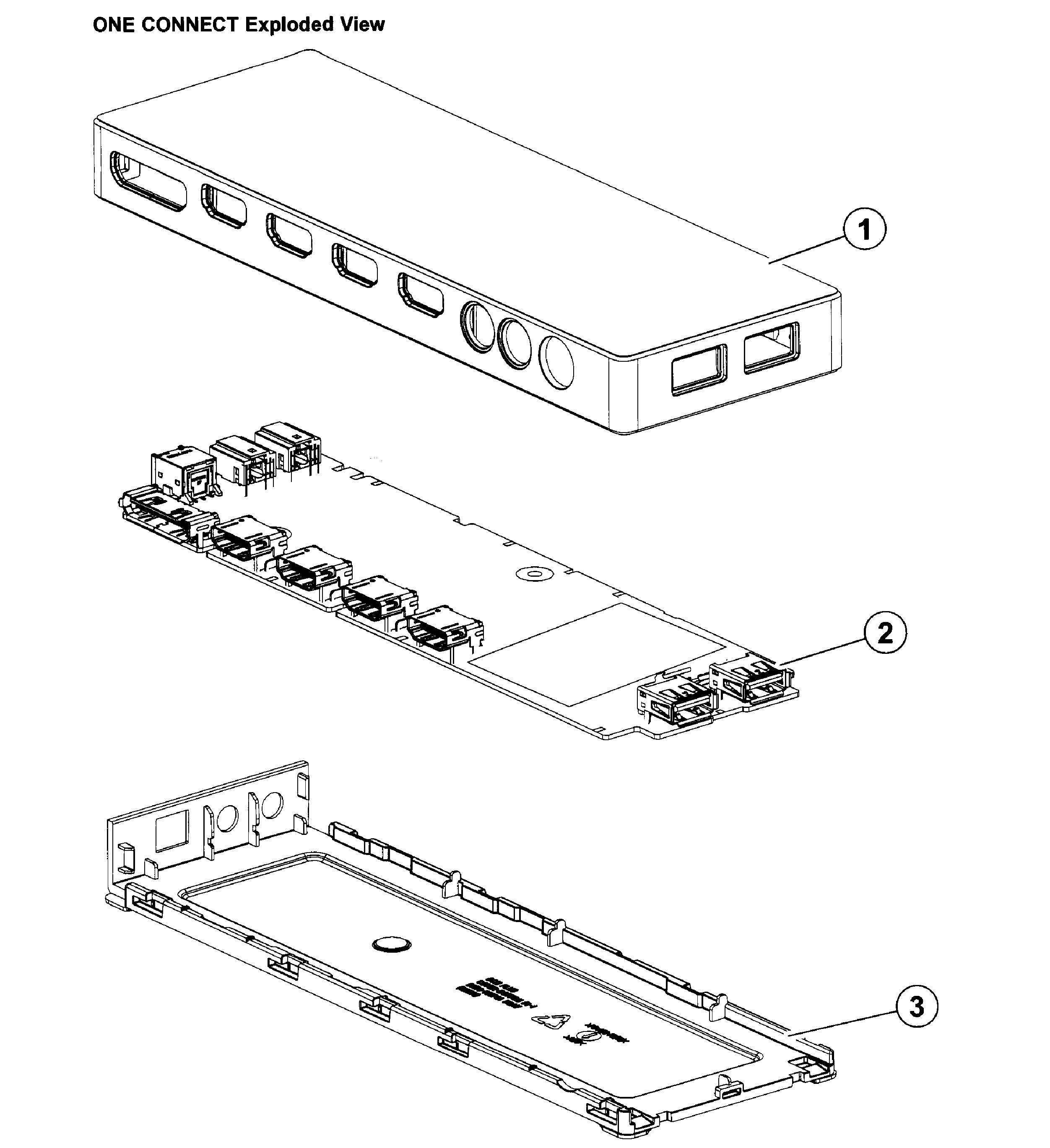

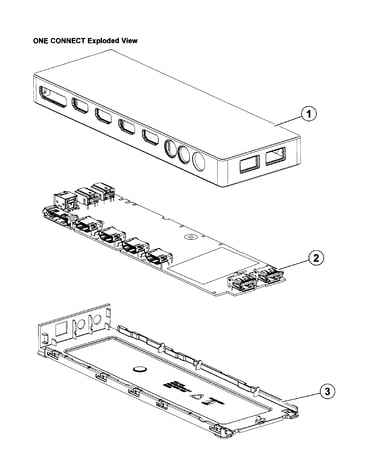

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
UN60KS8000FXZA-EA01 Televisions
Network-wl BN59-01239A
#6

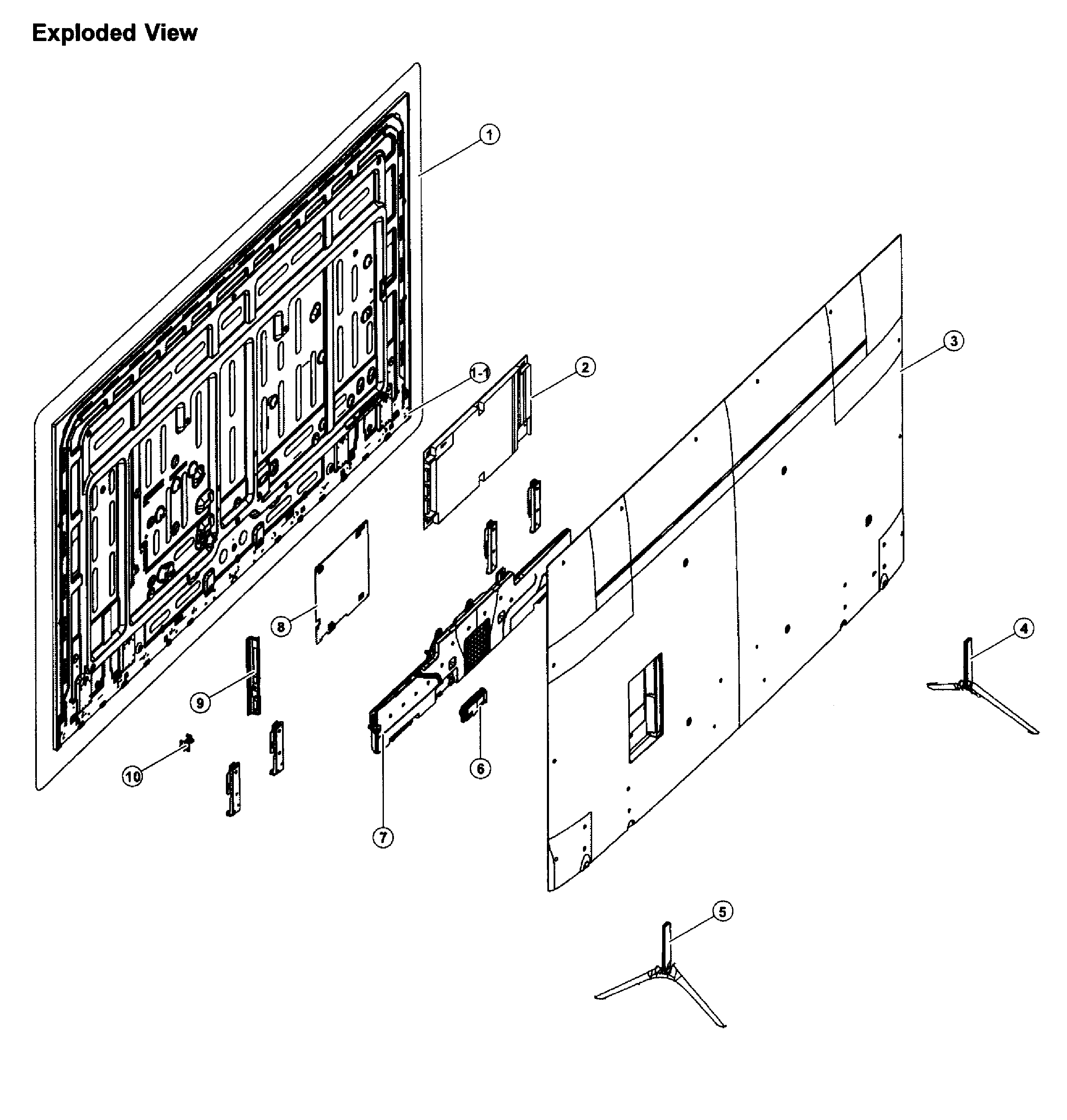

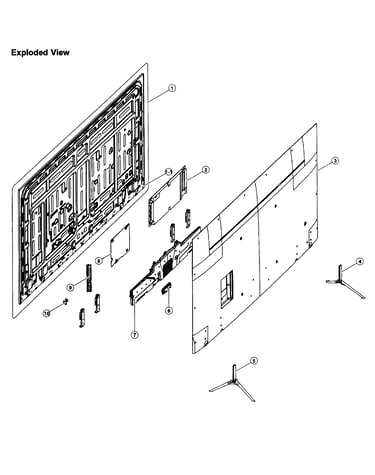

Main asy diagram

Network-wl

Part #BN59-01239A

The manufacturer no longer makes this part, and there's no substitute part

Bracket BN61-13557J
#NI

Main asy diagram

Bracket

Part #BN61-13557J

The manufacturer no longer makes this part, and there's no substitute part

Ic-decoder 1204-003677
#NI

Main asy diagram

Ic-decoder

Part #1204-003677

The manufacturer no longer makes this part, and there's no substitute part

Ic-decoder 1204-003679
#NI

Main asy diagram

Ic-decoder

Part #1204-003679

The manufacturer no longer makes this part, and there's no substitute part

Ic-dc/dc 1203-008733
#NI

Main asy diagram

Ic-dc/dc

Part #1203-008733

The manufacturer no longer makes this part, and there's no substitute part

Fuse,3a 3601-001376
#NI

Main asy diagram

Fuse,3a

Part #3601-001376

The manufacturer no longer makes this part, and there's no substitute part

Television Stand, Left BN96-39921A
#5

Main asy diagram

Television stand, left

Part #BN96-39921A

The manufacturer no longer makes this part, and there's no substitute part

Ic-dc/dc 1203-008732
#NI

Main asy diagram

Ic-dc/dc

Part #1203-008732

The manufacturer no longer makes this part, and there's no substitute part

Ic-repeate 1205-005537
#NI

Main asy diagram

Ic-repeate

Part #1205-005537

The manufacturer no longer makes this part, and there's no substitute part

Ic Cmos Lo 0801-003292
#NI

Main asy diagram

Ic cmos lo

Part #0801-003292

The manufacturer no longer makes this part, and there's no substitute part
