Model # MEC4536WW00 Official Maytag 36" electric built-in coil cooktop

Here are the diagrams and repair parts for Official Maytag MEC4536WW00 36" electric built-in coil cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Surface Element 7406P480-60
#11

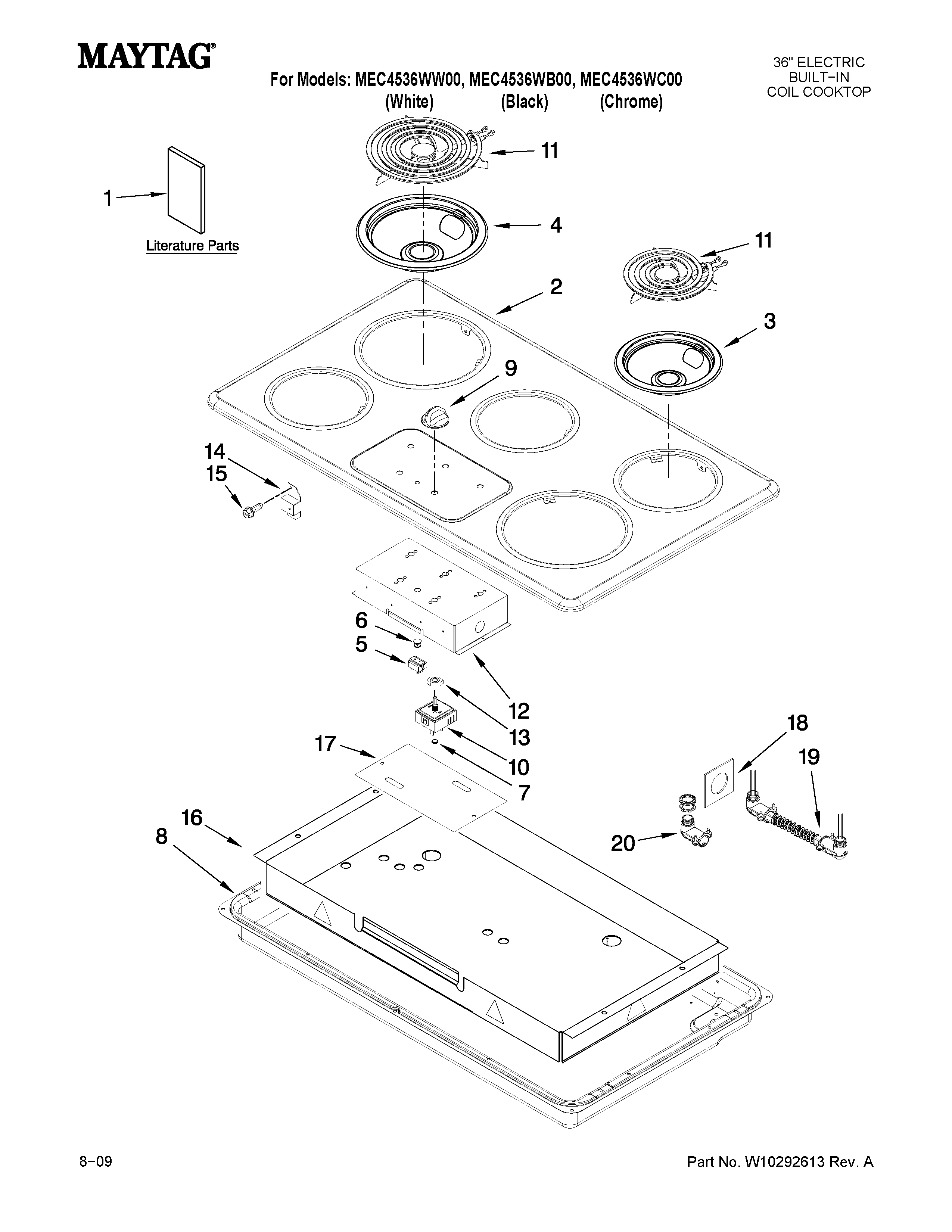

Cooktop parts diagram

Surface element

Part #7406P480-60

Replaced by #WP660532

?
Manufacturer substitution
This part replaces 7406P480-60. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Bowl-drip 7725P053-60
#3

Cooktop parts diagram

Bowl-drip

Part #7725P053-60

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 7725P053-60. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Surface Element 7406P478-60
#11A

Cooktop parts diagram

Surface element

Part #7406P478-60

Replaced by #WP3191454

?
Manufacturer substitution
This part replaces 7406P478-60. Substitute parts can look different from the original.
$88.82 |
6% OFF Phone Price : $94.82
In Stock
Range Surface Burner Knob W10270283
#9

Cooktop parts diagram

Range surface burner knob

Part #W10270283

This item is not returnable
$19.49 |
9% OFF Phone Price : $21.49
In Stock
Switch Cover 4005F086-51
#17

Cooktop parts diagram

Switch cover

Part #4005F086-51

$29.89
In Stock
Conduit 5700P384-60
#19

Cooktop parts diagram

Conduit

Part #5700P384-60

$72.91
In Stock
Wire Harness 5175P373-60
#NI

Optional parts (not included) diagram

Wire harness

Part #5175P373-60

$114.47
In Stock
Wire Harness 5175P374-60
#NI

Optional parts (not included) diagram

Wire harness

Part #5175P374-60

$133.02
In Stock
Stand Mixer Screw, #10-24 X 1/4-in WP4159193
#NI

Optional parts (not included) diagram

Stand mixer screw, #10-24 x 1/4-in

Part #WP4159193

This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Knob W10270282
#9A

Cooktop parts diagram

Knob

Part #W10270282

$14.39
In Stock
