GE
Top-Mount Refrigerator

Model # GTE17HBWKRWW Official GE refrigerator - w series

Here are the diagrams and repair parts for Official GE GTE17HBWKRWW refrigerator - w series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Dryer Filter WR86X0096
#740

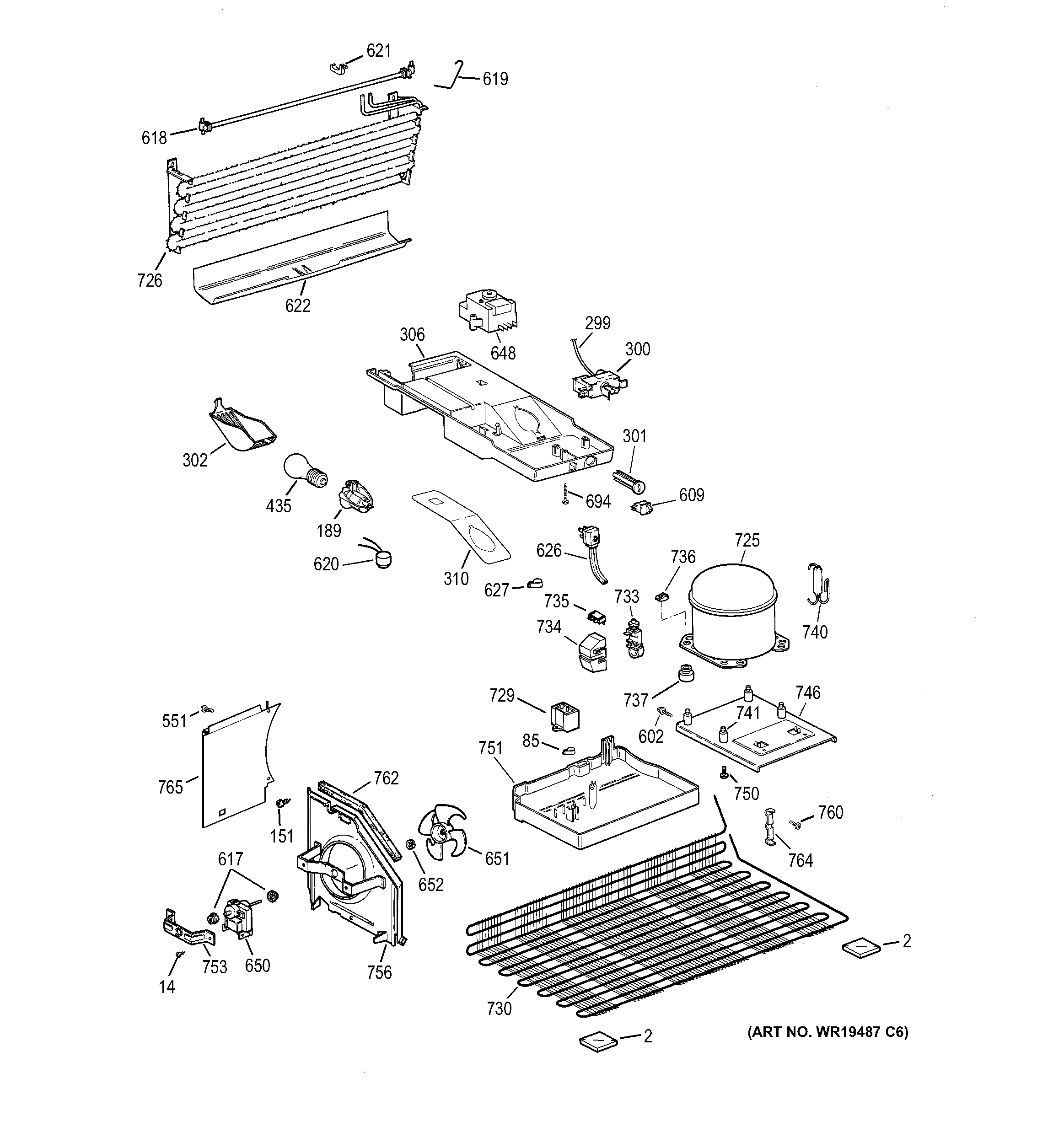

Machine compartment diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Evaporator Fan Blade (replaces Wr60x10047, Wr60x10188) WR60X10204
#613

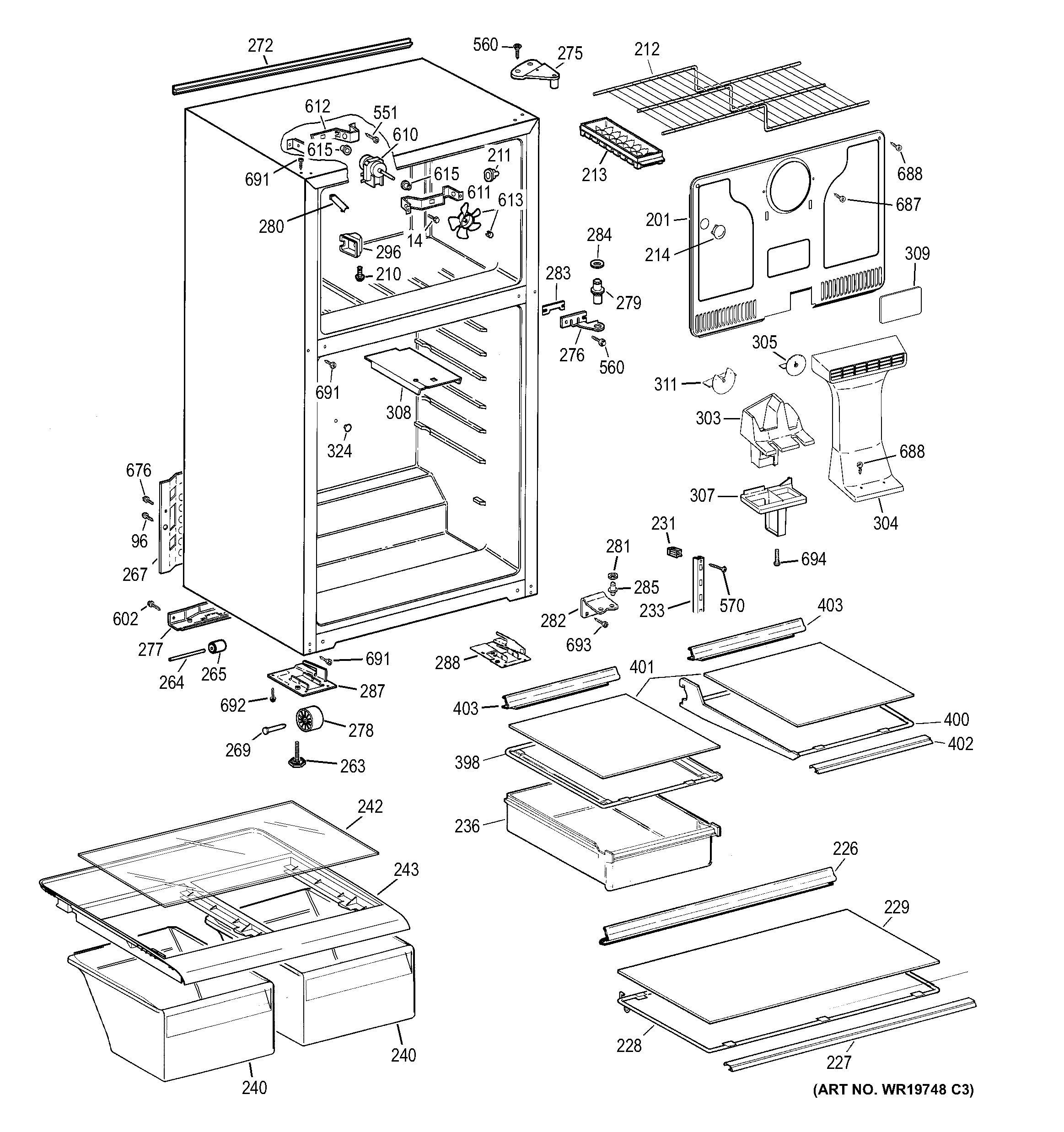

Cabinet diagram

Refrigerator evaporator fan blade (replaces wr60x10047, wr60x10188)

Part #WR60X10204

BEST SELLER
$12.47 |
14% OFF Phone Price : $14.47
In Stock
Refrigerator Condenser Fan Blade (replaces Wr60x10088) WR60X10207
#651

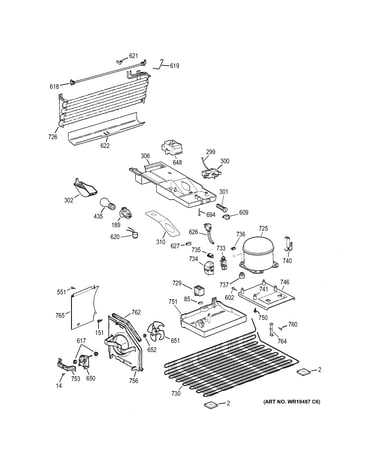

Machine compartment diagram

Refrigerator condenser fan blade (replaces wr60x10088)

Part #WR60X10207

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Door Hinge Nylon Washer WR01X10146
#281

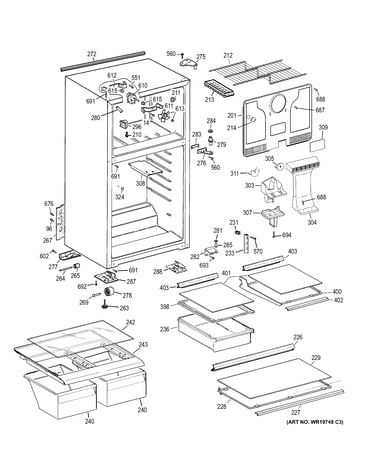

Cabinet diagram

Refrigerator door hinge nylon washer

Part #WR01X10146

Replaced by #WR01X27364

?
Manufacturer substitution
This part replaces WR01X10146. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Refrigerator Door Shelf Rail (replaces Wr17x12916) WR17X11889
#19

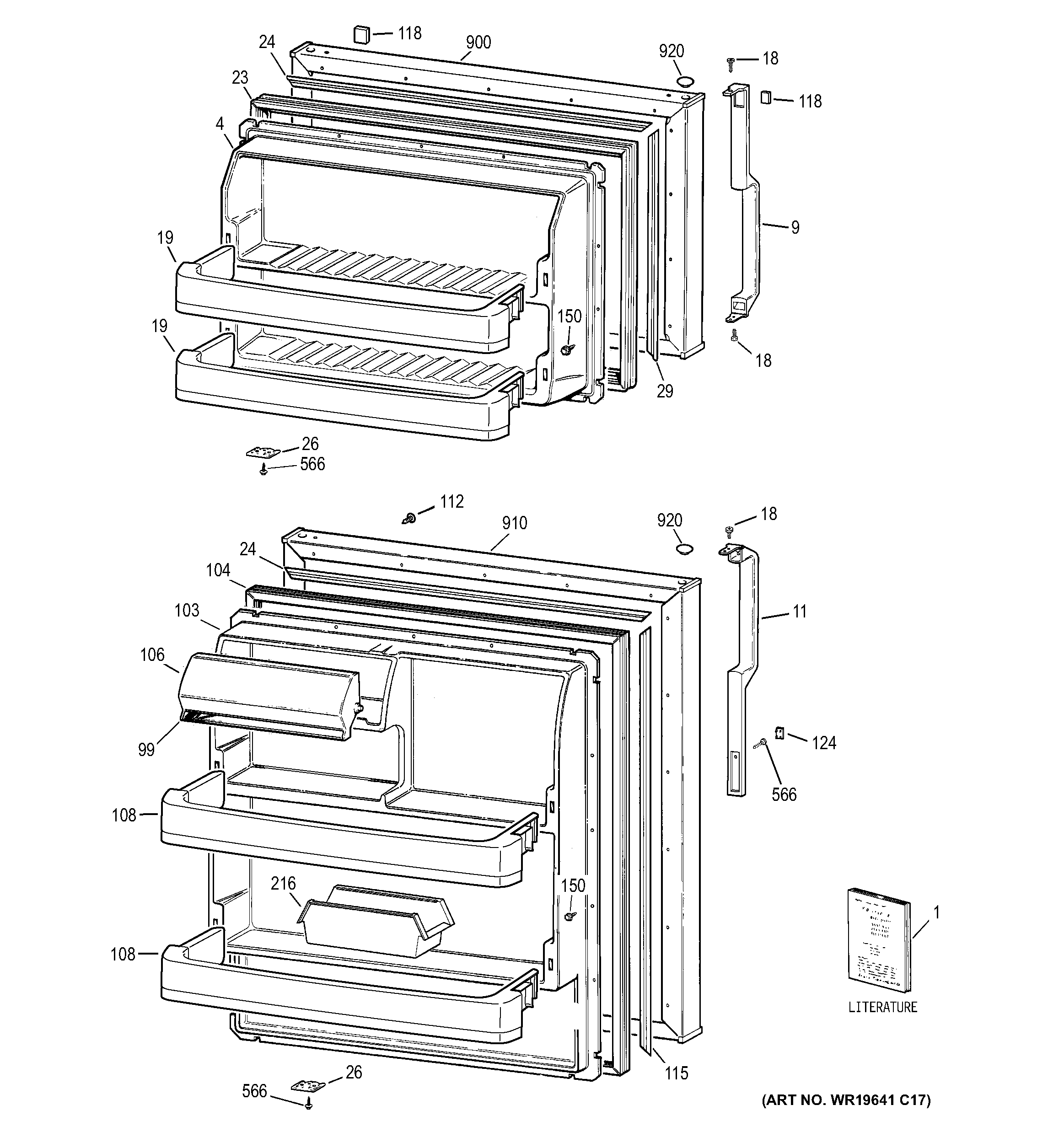

Doors diagram

Refrigerator door shelf rail (replaces wr17x12916)

Part #WR17X11889

BEST SELLER
$26.47 |
18% OFF Phone Price : $32.47
In Stock
Refrigerator Freezer Door Shelf Rail WR17X11890
#108

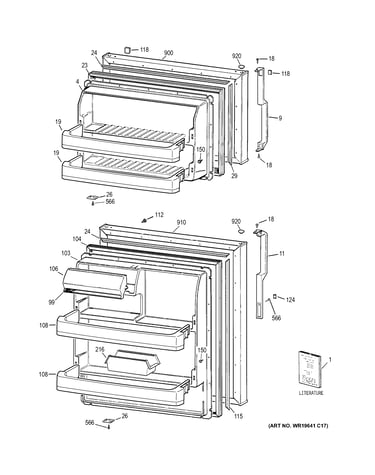

Doors diagram

Refrigerator freezer door shelf rail

Part #WR17X11890

This item is not returnable
$13.72 |
13% OFF Phone Price : $15.72
In Stock
Refrigerator Dairy Bin Cover (replaces Wr22x503) WR22X10068
#106

Doors diagram

Refrigerator dairy bin cover (replaces wr22x503)

Part #WR22X10068

This item is not returnable
$13.84 |
13% OFF Phone Price : $15.84
In Stock
Refrigerator Crisper Drawer (replaces Wr32x1449) WR32X10340
#240

Cabinet diagram

Refrigerator crisper drawer (replaces wr32x1449)

Part #WR32X10340

$55.66 |
10% OFF Phone Price : $61.66
In Stock
Refrigerator Door Hinge Pin WR02X12238
#285

Cabinet diagram

Refrigerator door hinge pin

Part #WR02X12238

Replaced by #WR02X27092

?
Manufacturer substitution
This part replaces WR02X12238. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Door Gasket WR24X10051
#104

Doors diagram

Refrigerator door gasket

Part #WR24X10051

Replaced by #WR24X10229

?
Manufacturer substitution
This part replaces WR24X10051. Substitute parts can look different from the original.
$64.79 |
10% OFF Was : $71.98
In Stock
