Model # UG8290 Official Speed Queen home laundry ultra-mate laundry system

Here are the diagrams and repair parts for Official Speed Queen UG8290 home laundry ultra-mate laundry system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

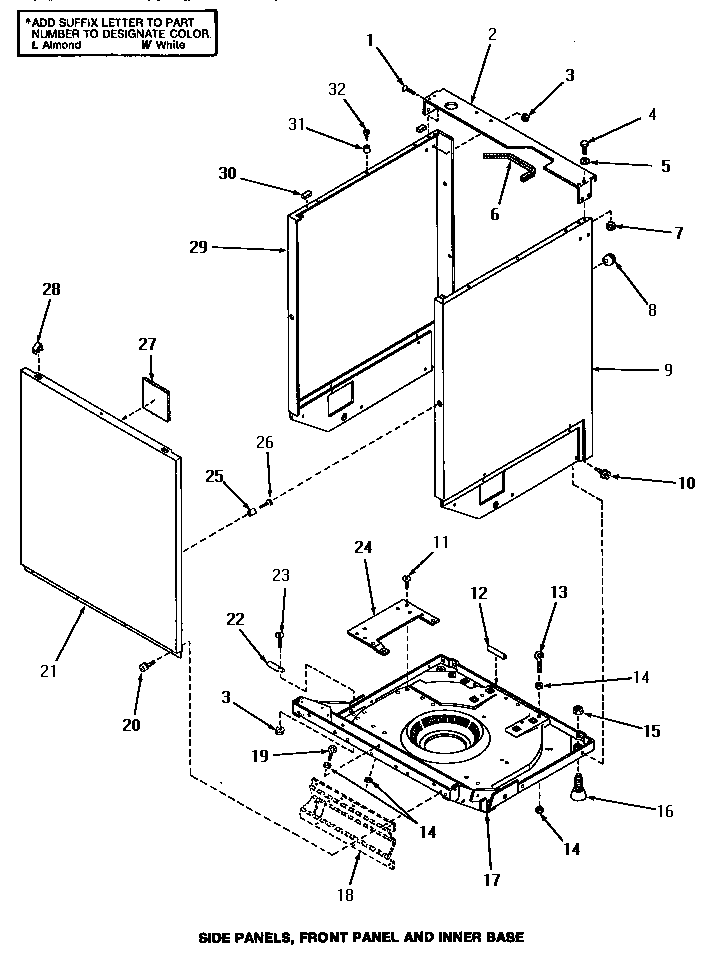

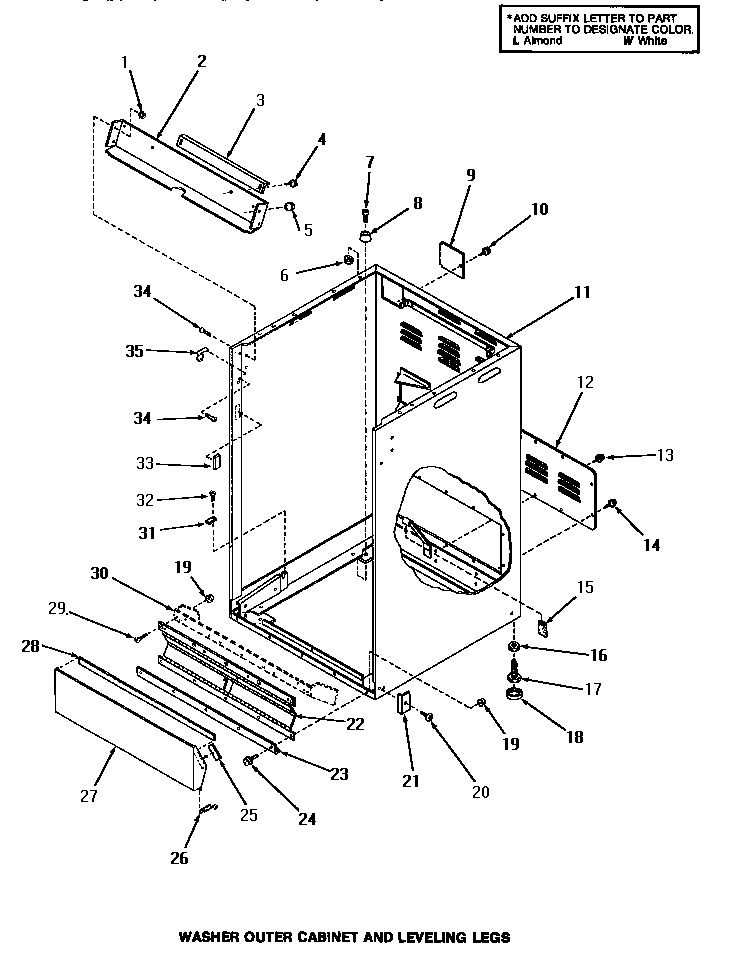

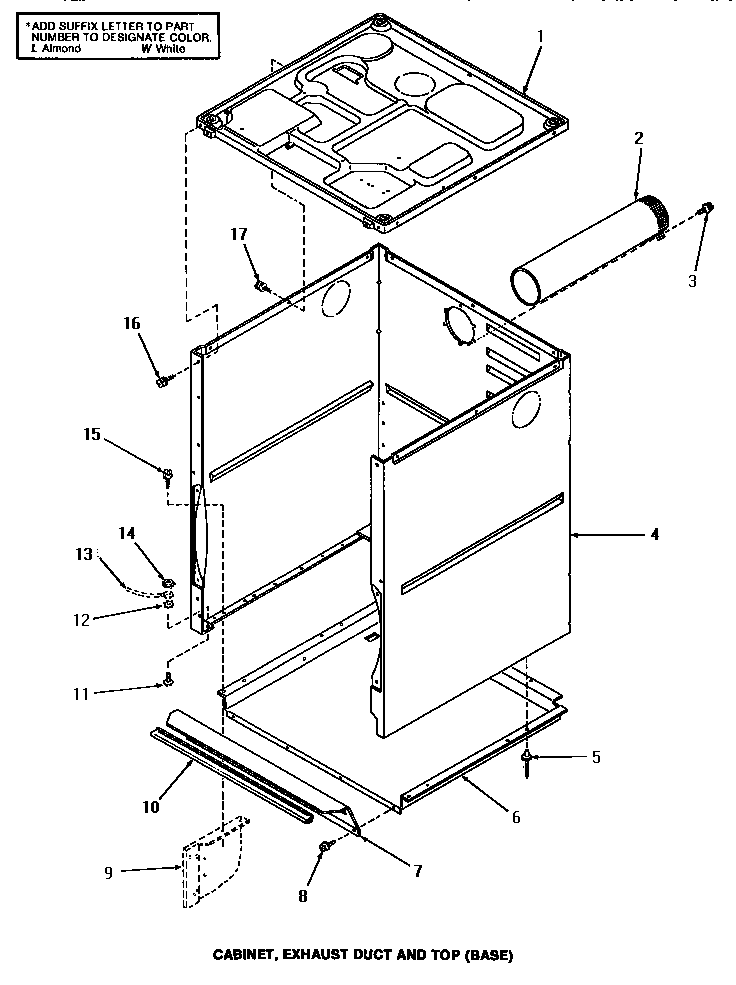

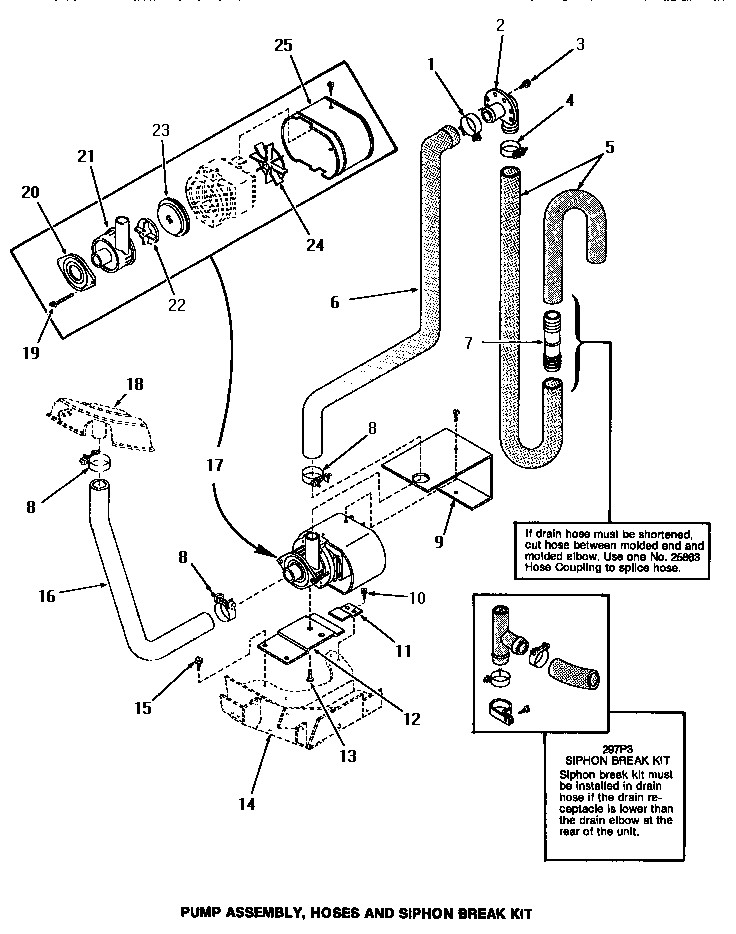

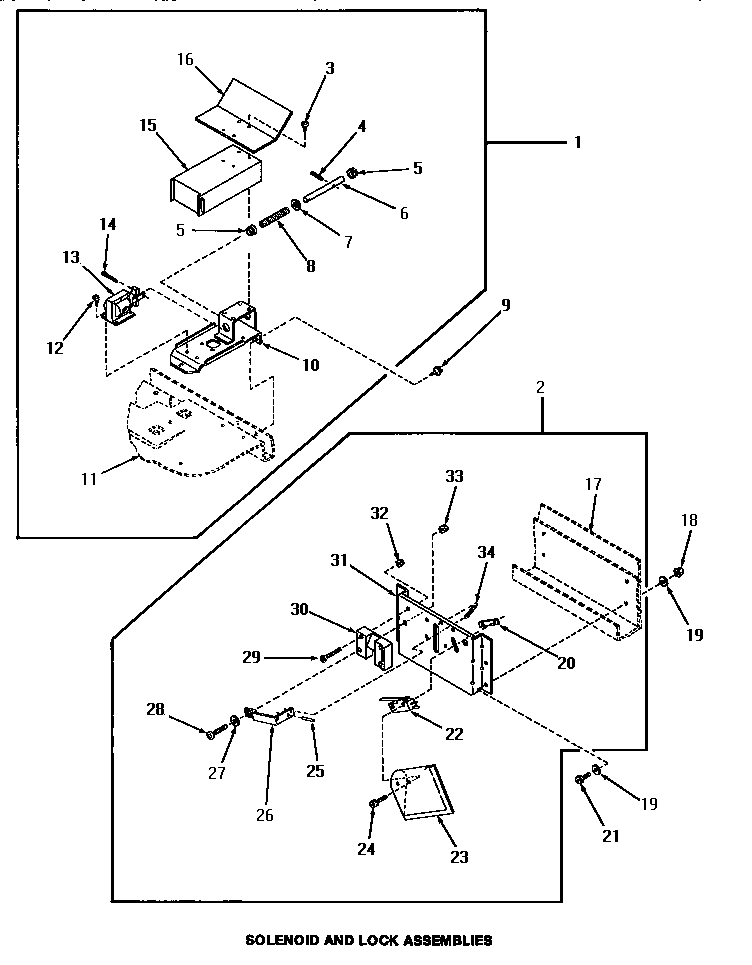

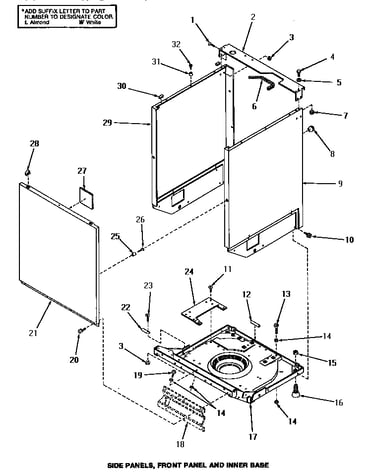

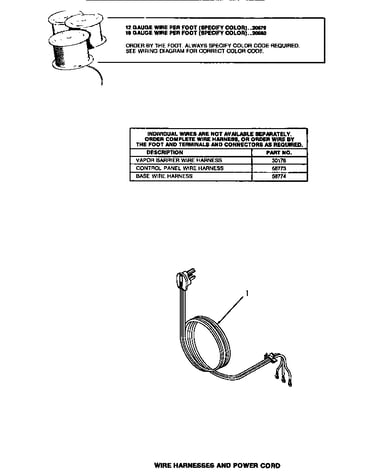

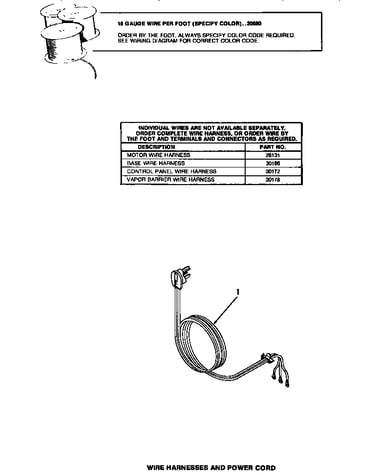

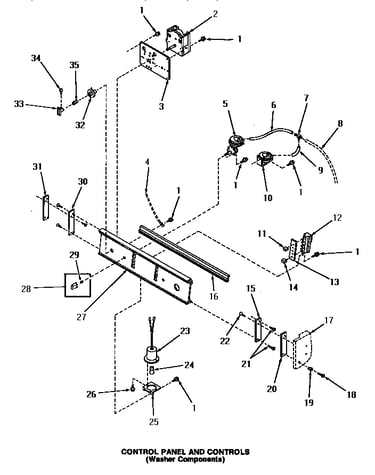

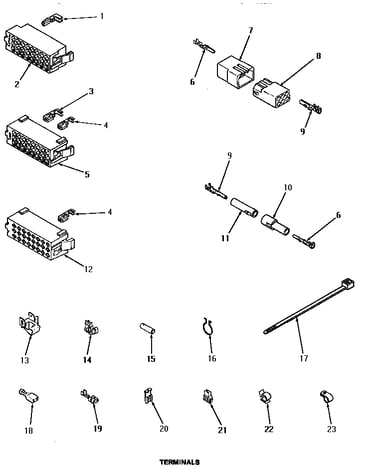

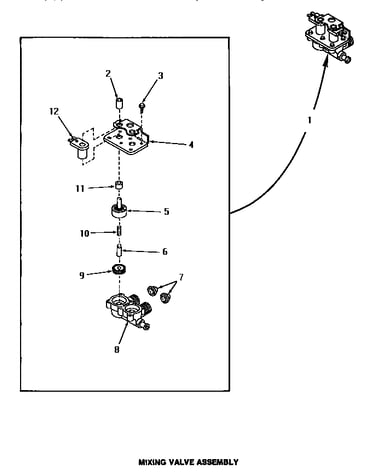

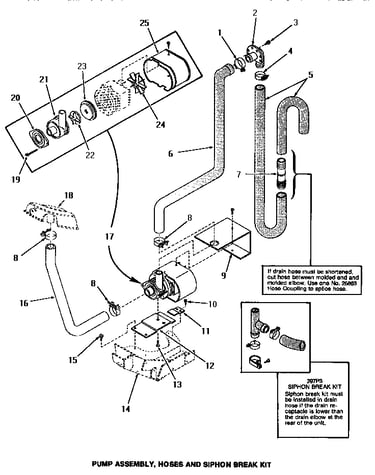

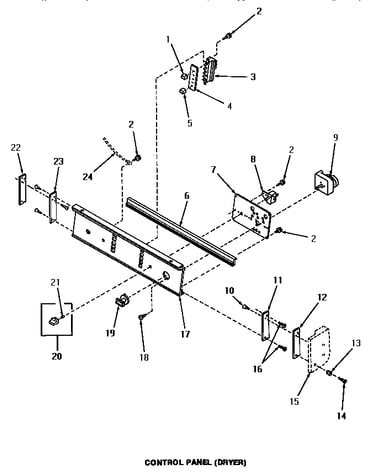

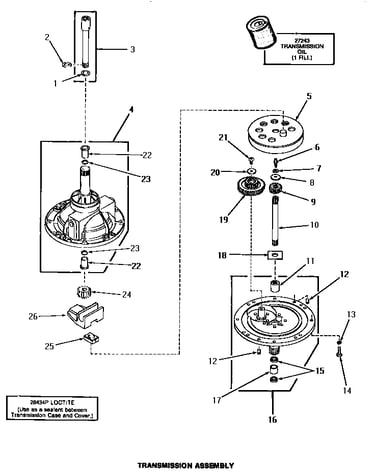

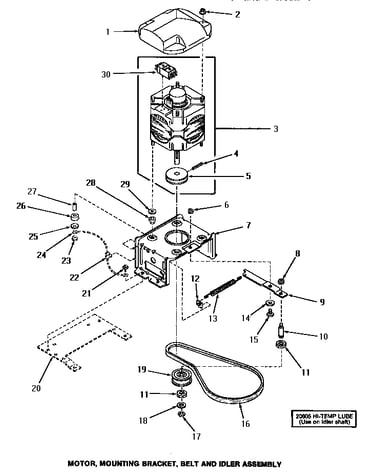

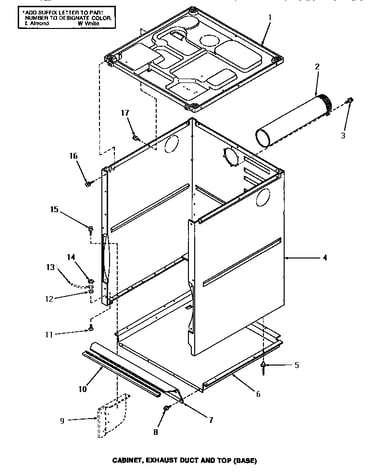

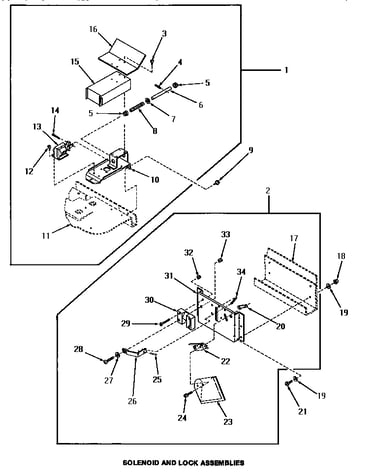

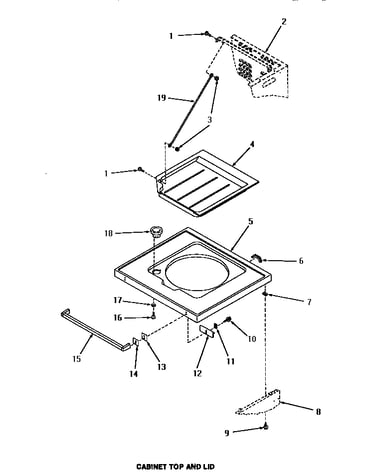

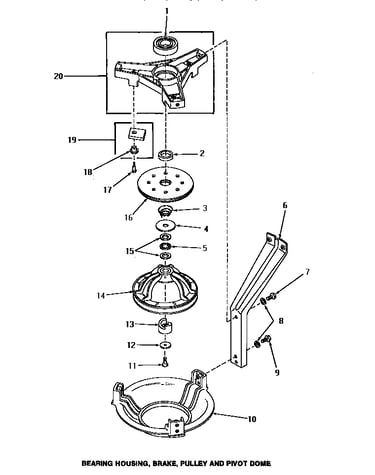

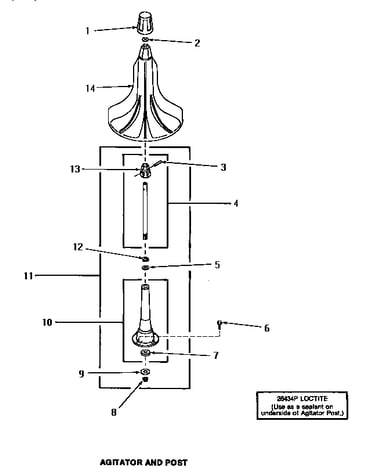

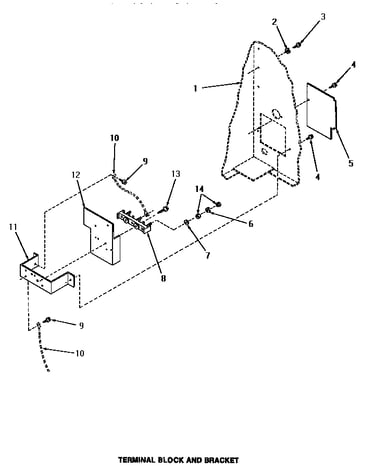

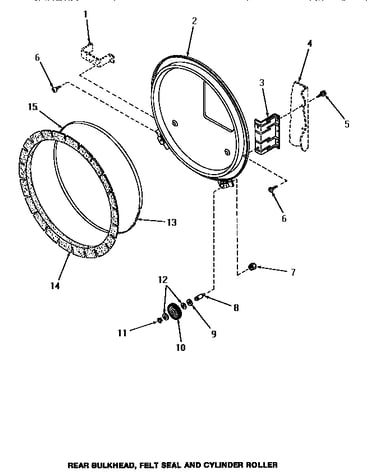

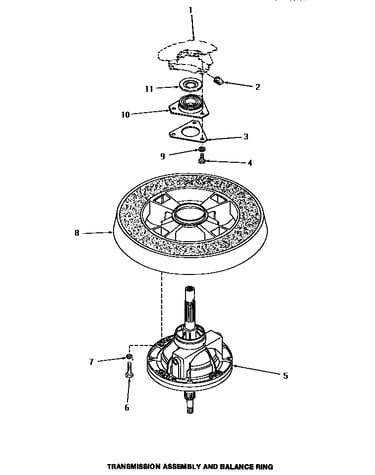

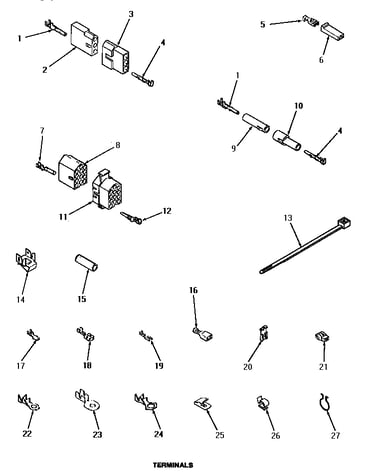

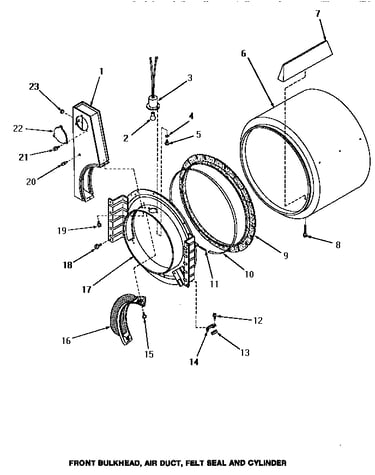

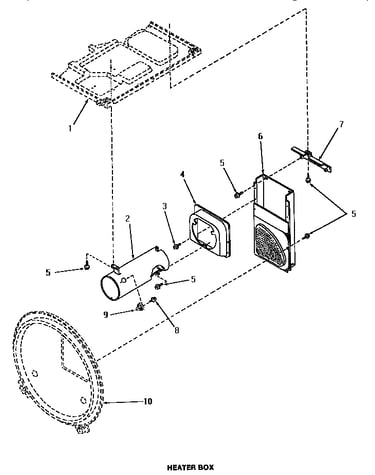

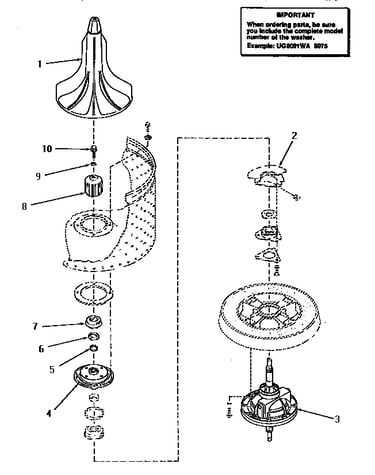

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 522 parts  |
Sendor 56231
#7

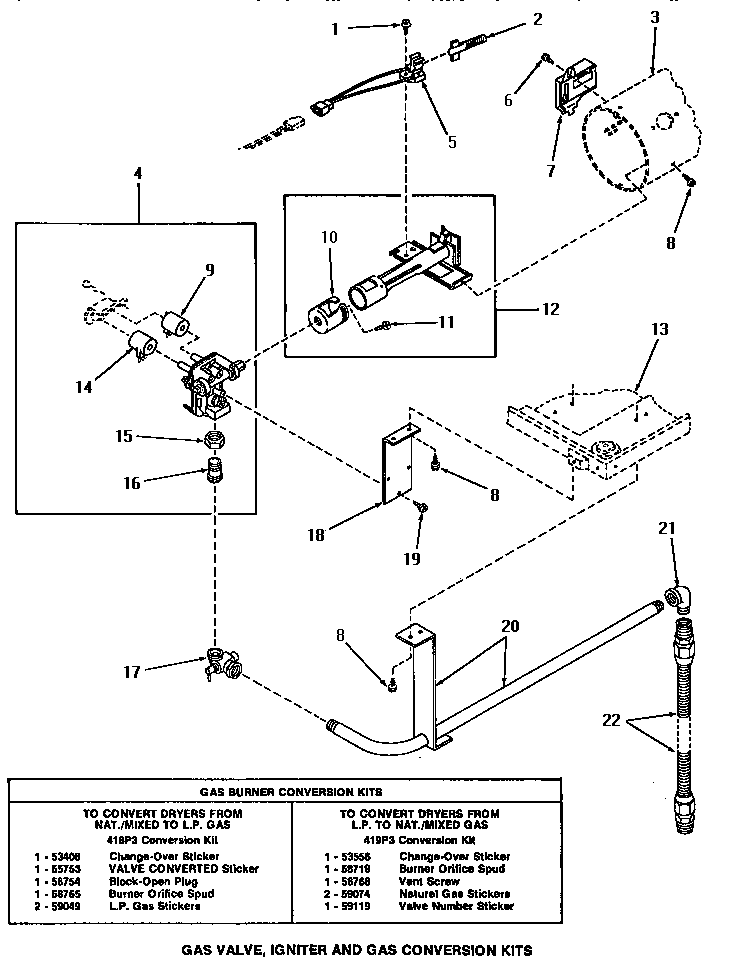

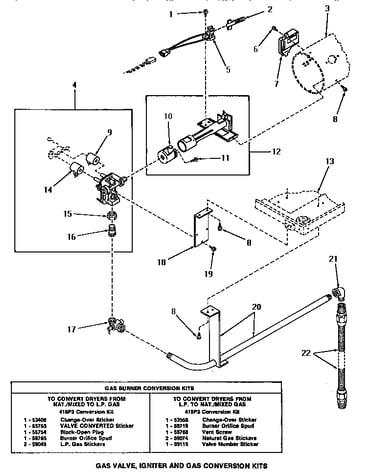

Gas valve, igniter & gas conversion kits diagram

Sendor

Part #56231

Replaced by #WP338906

?
Manufacturer substitution
This part replaces 56231. Substitute parts can look different from the original.
BEST SELLER
$37.66 |
14% OFF Phone Price : $43.66
In Stock
Hose Clamp 22294
#3

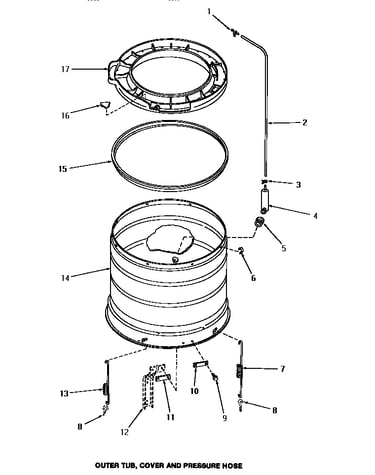

Outer tub, cover & pressure hose diagram

Hose clamp

Part #22294

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 22294. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Washtub 29074
#5

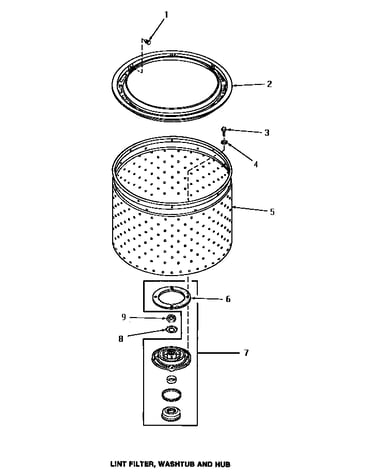

Lint filter, washtub & hub diagram

Washtub

Part #29074

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 29074. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dryer Blower Fan 56000
#23

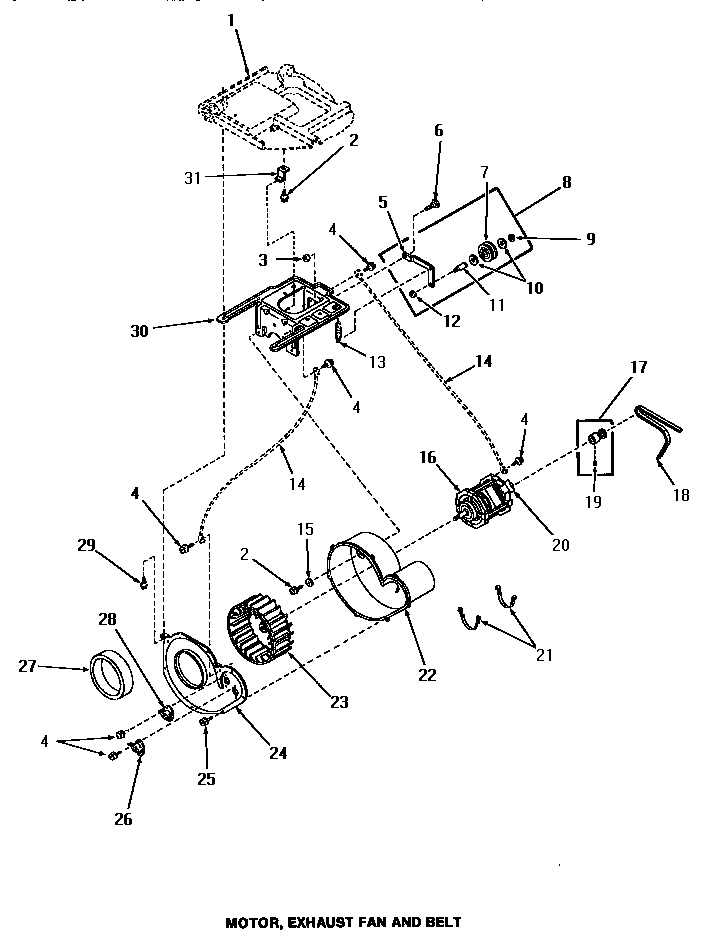

Motor, exhaust fan & belt diagram

Dryer blower fan

Part #56000

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 29176
#4

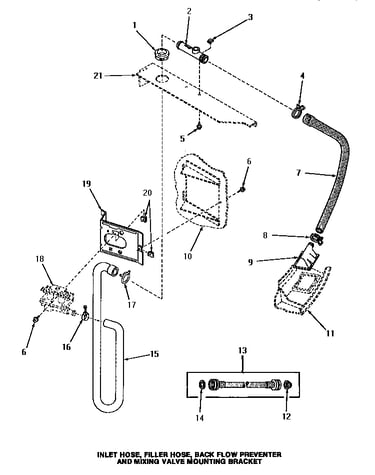

Inlet hose, filler hose, back flow preventer & bracket diagram

Hose clamp

Part #29176

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 29176. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock

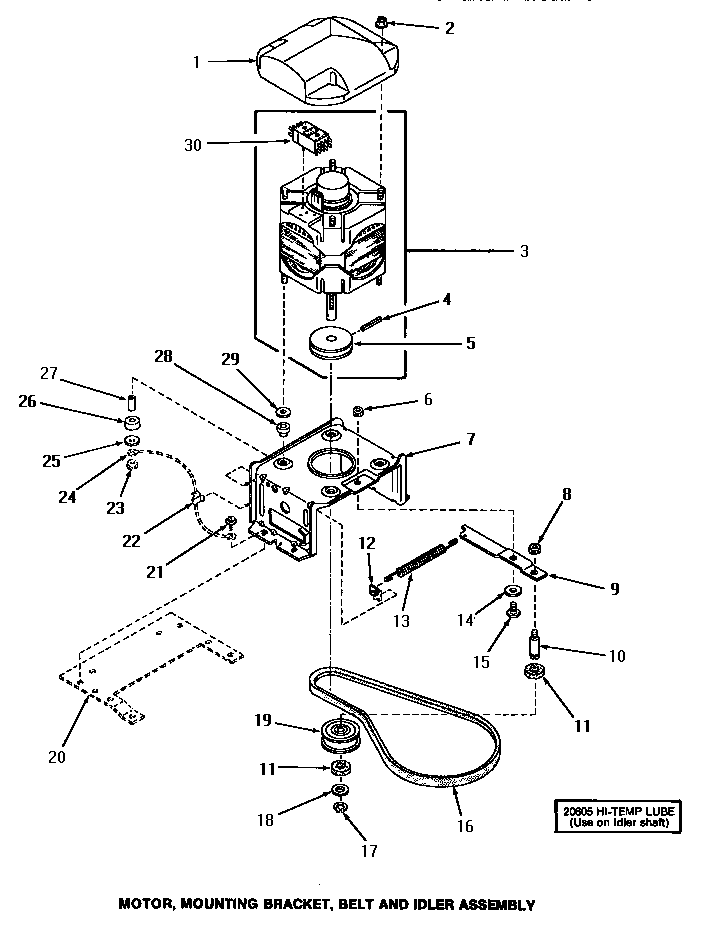

Idler Wheel 54414
#7

Motor, exhaust fan & belt diagram

Idler wheel

Part #54414

Replaced by #WPY54414

?
Manufacturer substitution
This part replaces 54414. Substitute parts can look different from the original.
BEST SELLER
$18.57 |
10% OFF Phone Price : $20.57
In Stock
Door Switch 56052
#22

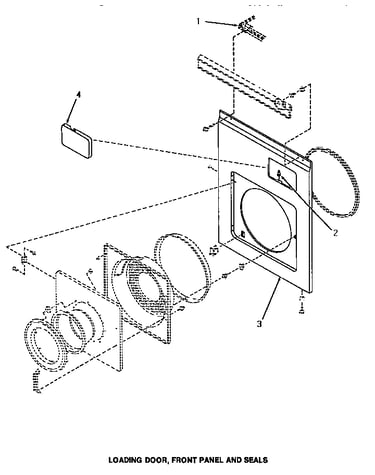

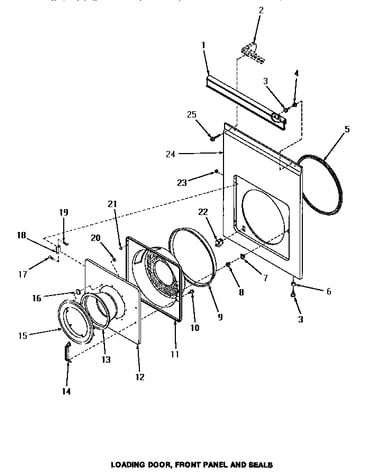

Dryer loading door, front panel & seals diagram

Door switch

Part #56052

Replaced by #W10169313

?
Manufacturer substitution
This part replaces 56052. Substitute parts can look different from the original.
BEST SELLER
$15.00 |
12% OFF Phone Price : $17.00
In Stock
Door Switch 57012
#22

Dryer loading door, front panel & seals diagram

Door switch

Part #57012

Replaced by #W10169313

?
Manufacturer substitution
This part replaces 57012. Substitute parts can look different from the original.
BEST SELLER
$15.00 |
12% OFF Phone Price : $17.00
In Stock
Speed Queen Coil 58804B
#9

Gas valve, igniter & gas conversion kits diagram

Speed queen coil

Part #58804B

$26.91
In Stock
Screw 56086
Screw

Part #56086

Replaced by #WPY014874

?
Manufacturer substitution
This part replaces 56086. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
