Model # 315277060 Official Craftsman industrial power planer

Here are the diagrams and repair parts for Official Craftsman 315277060 industrial power planer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |

Screw 620775-012
#14

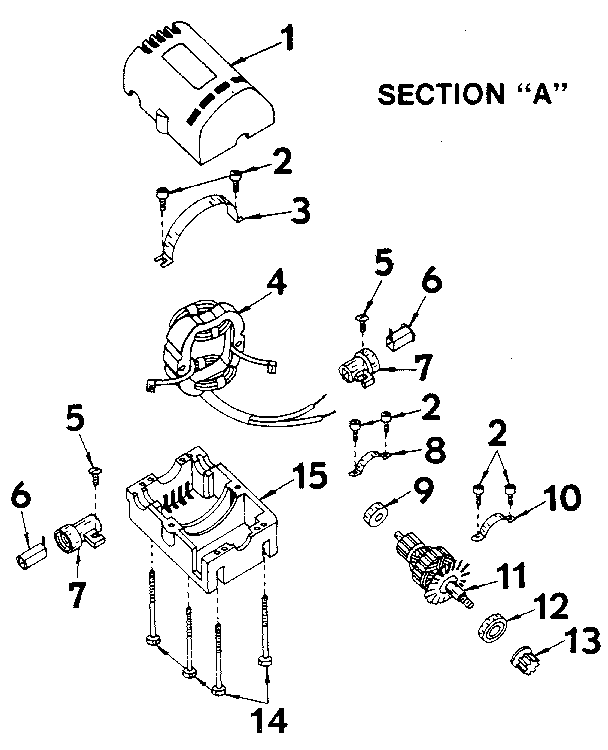

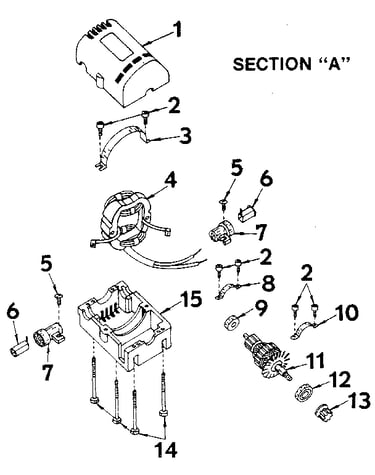

Motor assembly diagram

Screw

Part #620775-012

The manufacturer no longer makes this part, and there's no substitute part

Bl Clamp 999682-003
#11

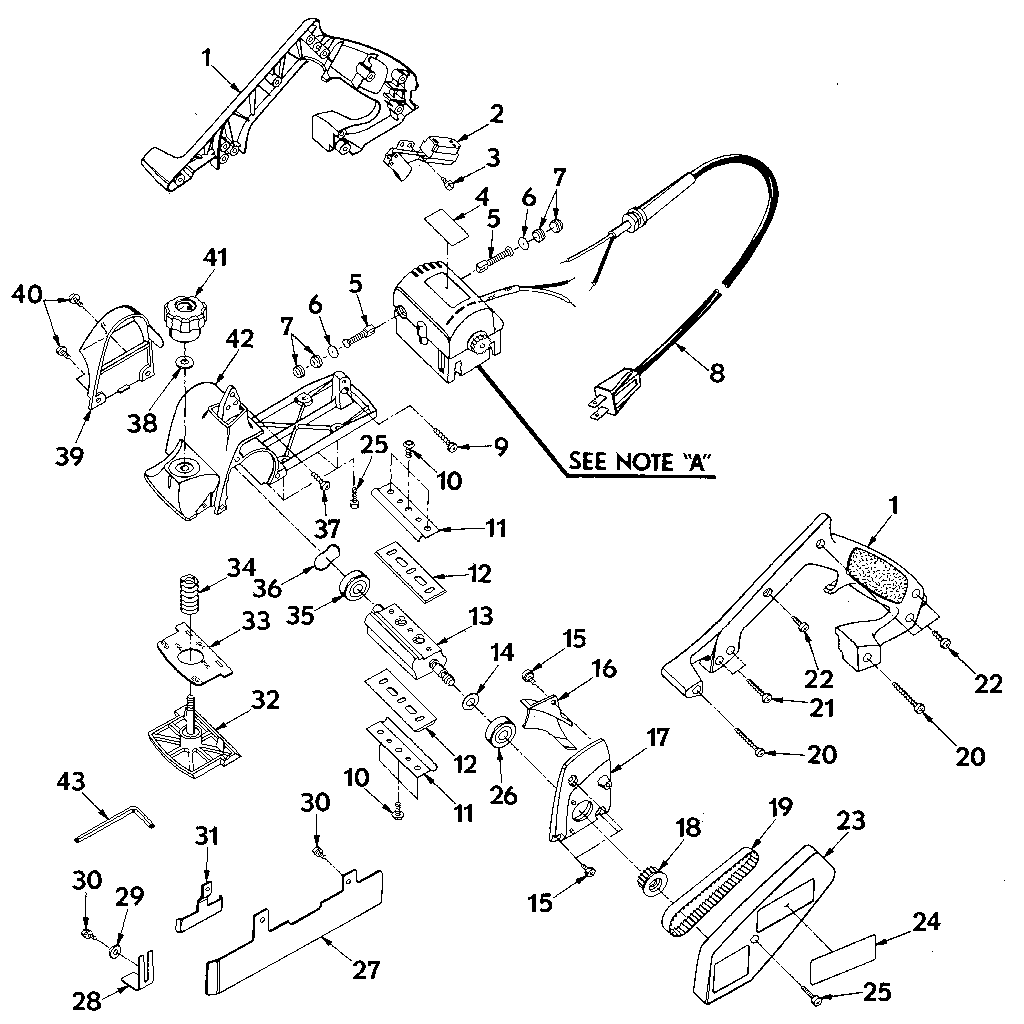

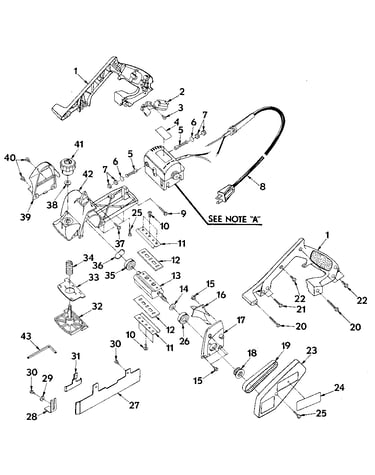

Unit parts diagram

Bl clamp

Part #999682-003

The manufacturer no longer makes this part, and there's no substitute part

Armature 967142-001
#11

Motor assembly diagram

Armature

Part #967142-001

The manufacturer no longer makes this part, and there's no substitute part

Cuttr Hd Ay 610389-002
#13

Unit parts diagram

Cuttr hd ay

Part #610389-002

The manufacturer no longer makes this part, and there's no substitute part

Rubber Plate 606802-001
#33

Unit parts diagram

Rubber plate

Part #606802-001

The manufacturer no longer makes this part, and there's no substitute part

Ball Brg 621221-003
#9

Motor assembly diagram

Ball brg

Part #621221-003

The manufacturer no longer makes this part, and there's no substitute part

Washer 931744-815
#29

Unit parts diagram

Washer

Part #931744-815

The manufacturer no longer makes this part, and there's no substitute part

Know W/ind 968152-001
#41

Unit parts diagram

Know w/ind

Part #968152-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 706382-813
#6

Unit parts diagram

Washer

Part #706382-813

The manufacturer no longer makes this part, and there's no substitute part

Plascrw 617966-020
#20

Unit parts diagram

Plascrw

Part #617966-020

The manufacturer no longer makes this part, and there's no substitute part
