Kenmore
Wall Oven/Microwave Combo

Model # 1039568111 Official Kenmore 30" electric microwave/range

Here are the diagrams and repair parts for Official Kenmore 1039568111 30" electric microwave/range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

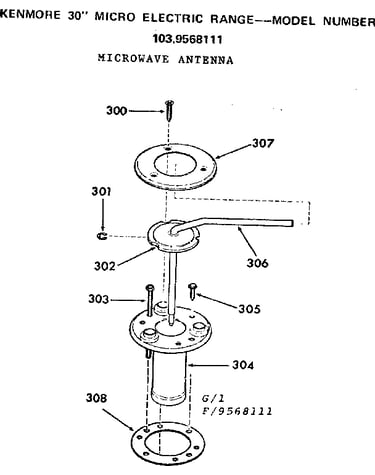

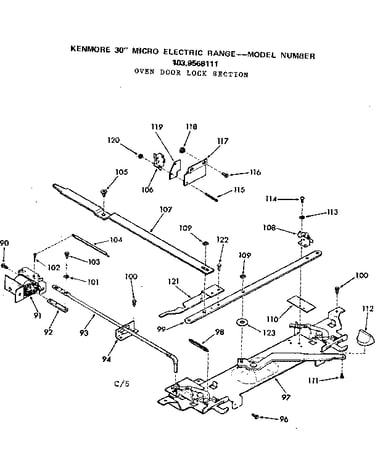

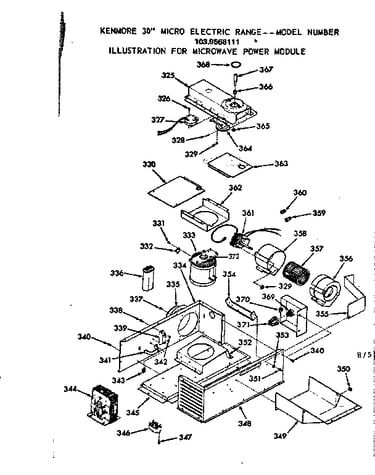

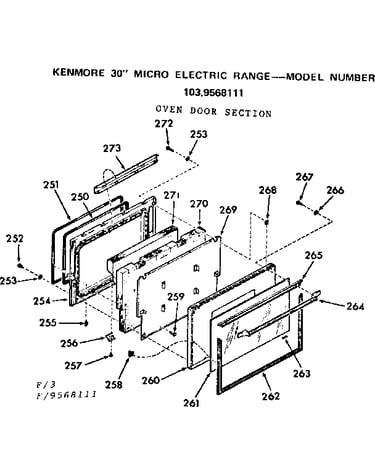

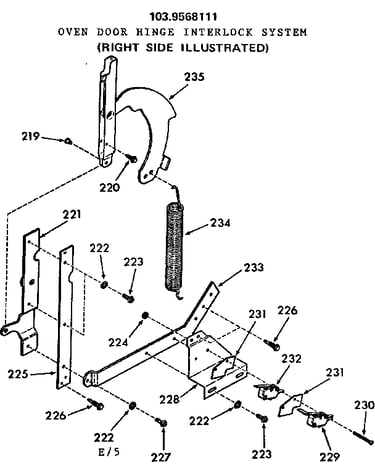

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 308 parts  |
Lamp Bulb STD372401
#127

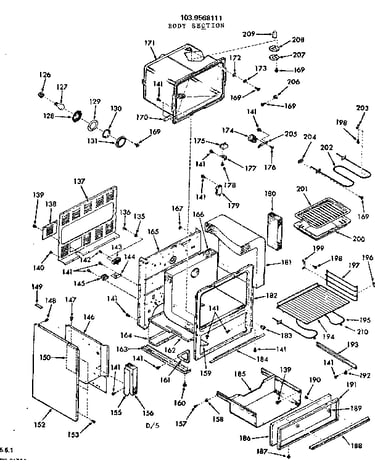

Body section diagram

Lamp bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Terminal Block 304645
#74

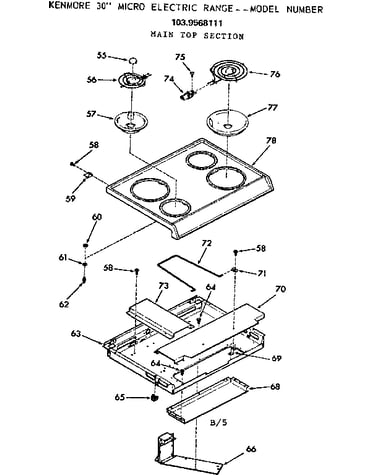

Main top section diagram

Terminal block

Part #304645

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces 304645. Substitute parts can look different from the original.
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Bowl 304969
#77

Main top section diagram

Bowl

Part #304969

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 304969. Substitute parts can look different from the original.
BEST SELLER
$15.00 |
12% OFF Phone Price : $17.00
In Stock
Bowl 296481
#57

Main top section diagram

Bowl

Part #296481

Replaced by #WB32X107

?
Manufacturer substitution
This part replaces 296481. Substitute parts can look different from the original.
$9.80 |
10% OFF Was : $10.89
In Stock
Screw 299632
#75

Main top section diagram

Screw

Part #299632

Replaced by #WB1X1425

?
Manufacturer substitution
This part replaces 299632. Substitute parts can look different from the original.
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Unit 112696
#56A

Main top section diagram

Unit

Part #112696

The manufacturer no longer makes this part, and there's no substitute part

Pointer 303866
#41

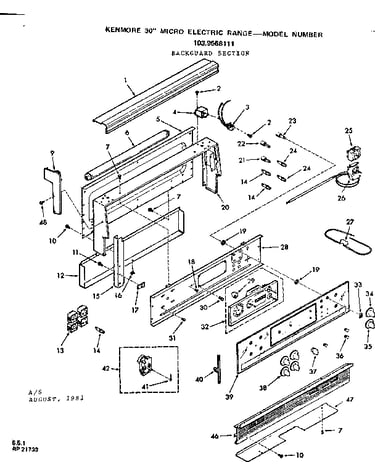

Backguard section diagram

Pointer

Part #303866

This item is not returnable
$2.29
In Stock
Socket Housing 304800
#402

Wire harness and components diagram

Socket housing

Part #304800

$16.99
In Stock
Retainer 309196
#162

Body section diagram

Retainer

Part #309196

$15.49
In Stock
Pin Housing 304799
#401

Wire harness and components diagram

Pin housing

Part #304799

$10.49
In Stock
