Power Stapler

Model # 3200/50-S16P Official Paslode stapler

Here are the diagrams and repair parts for Official Paslode 3200/50-S16P stapler, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
3200/50-S16P Power Tools
Nailer Trigger Valve Spring 097748
#41

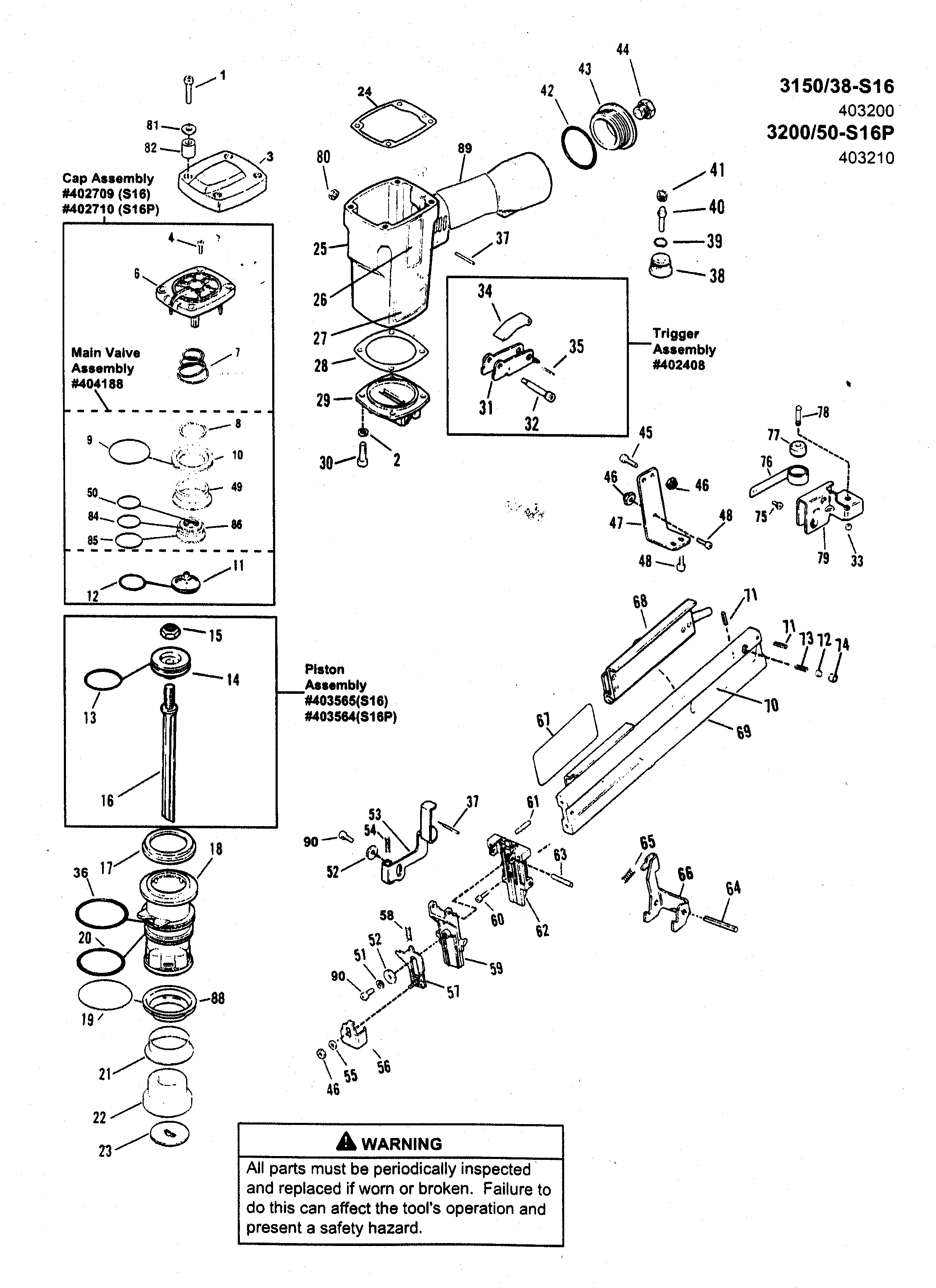

Stapler parts diagram

Nailer trigger valve spring

Part #097748

The manufacturer no longer makes this part, and there's no substitute part

Back Plate 402788
#72

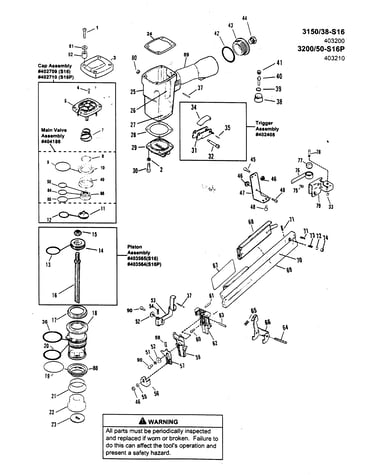

Stapler parts diagram

Back plate

Part #402788

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 405246
#18

Stapler parts diagram

Sleeve

Part #405246

The manufacturer no longer makes this part, and there's no substitute part

Washer 402736
#55

Stapler parts diagram

Washer

Part #402736

The manufacturer no longer makes this part, and there's no substitute part

Screw 404232
#60

Stapler parts diagram

Screw

Part #404232

The manufacturer no longer makes this part, and there's no substitute part

Back Plate 403205
#62

Stapler parts diagram

Back plate

Part #403205

The manufacturer no longer makes this part, and there's no substitute part

Stapler O-ring 092775
#84

Stapler parts diagram

Stapler o-ring

Part #092775

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 005849
#35

Stapler parts diagram

Roll pin

Part #005849

The manufacturer no longer makes this part, and there's no substitute part

Bumper 403853
#22

Stapler parts diagram

Bumper

Part #403853

The manufacturer no longer makes this part, and there's no substitute part

Repair Kit 219224
#NI

Stapler parts diagram

Repair kit

Part #219224

The manufacturer no longer makes this part, and there's no substitute part
