Power Drill

Model # 900271140 Official Craftsman drill

Here are the diagrams and repair parts for Official Craftsman 900271140 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

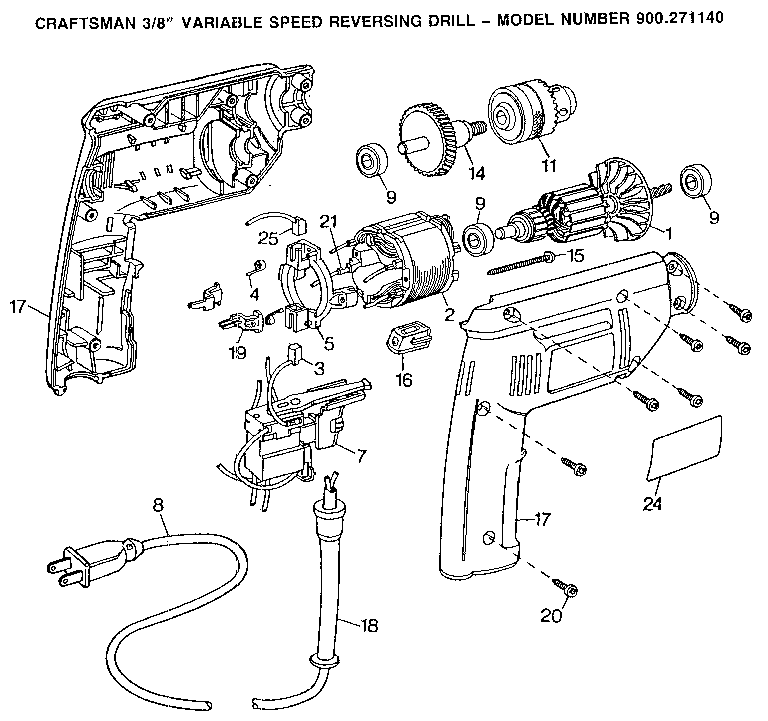

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Sears Drill Motor Brush Spring 445860-00
#4

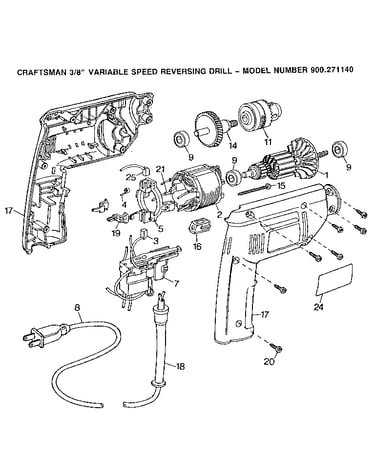

Craftsman 3/8" variable speed reversing drill diagram

Sears drill motor brush spring

Part #445860-00

The manufacturer no longer makes this part, and there's no substitute part

Nut 146636-00
#19

Craftsman 3/8" variable speed reversing drill diagram

Nut

Part #146636-00

The manufacturer no longer makes this part, and there's no substitute part

Lead 146475-02
#3

Craftsman 3/8" variable speed reversing drill diagram

Lead

Part #146475-02

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 330005-01
#18

Craftsman 3/8" variable speed reversing drill diagram

Power tool power cord strain relief

Part #330005-01

The manufacturer no longer makes this part, and there's no substitute part

Lead 146475-03
#25

Craftsman 3/8" variable speed reversing drill diagram

Lead

Part #146475-03

The manufacturer no longer makes this part, and there's no substitute part

Brinley Power Tool 2-prong Power Cord 448557-98
#8

Craftsman 3/8" variable speed reversing drill diagram

Brinley power tool 2-prong power cord

Part #448557-98

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Terminal 448387-00
#21

Craftsman 3/8" variable speed reversing drill diagram

Black & decker terminal

Part #448387-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 143712-00
#20

Craftsman 3/8" variable speed reversing drill diagram

Screw

Part #143712-00

The manufacturer no longer makes this part, and there's no substitute part

Brush Ring 449899-00
#5

Craftsman 3/8" variable speed reversing drill diagram

Brush ring

Part #449899-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Level 143845-00
#16

Craftsman 3/8" variable speed reversing drill diagram

Drill level

Part #143845-00

The manufacturer no longer makes this part, and there's no substitute part
